lamborghini lm002 (1988) transfer (castings) parts diagram

018 - Transfer (Castings)

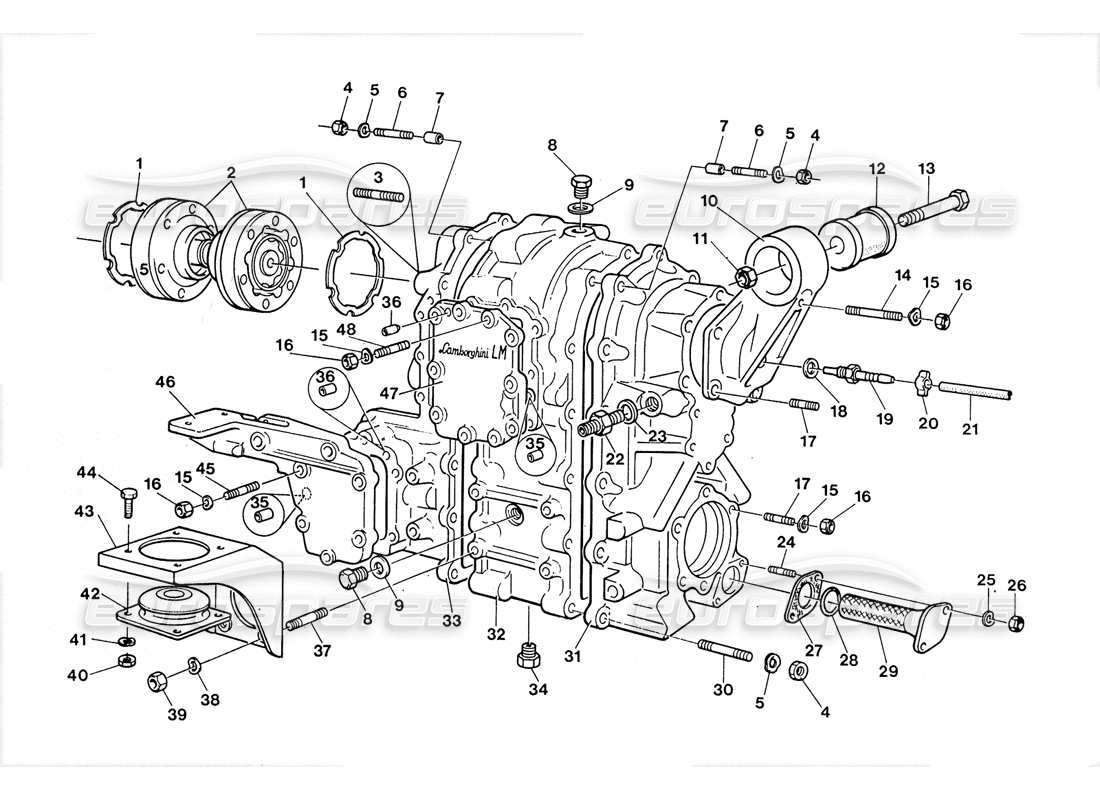

Lamborghini LM002 (1988) Transfer (Castings) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 002726210
      GASKET
      Guarnizione
      from £9.83
      from £9.83
      SEAL Genuine Lamborghini - New In stock
      # 002
      MPN: 002723295
      SHAFT
      TREE 0.153.15.01.72.001
      Lamborghini PART 002723295 Genuine Lamborghini - New (to order)
      # 003
      MPN: 008301021
      STUD
      PRIGIONIERO
      from £14.38
      from £14.38
      SPECIAL STUD M10X48 Genuine Lamborghini - New (to order)
      # 004
      MPN: N10155210
      NUT
      Dado M10 UNI 5588-65A 8G
      from £1.22
      from £1.22
      This part replaces part number 008201001
      HEX.NUT Genuine Lamborghini - New In stock
      hex. nut - M 10 DIN 934-8 Genuine Porsche Part - New (to order)
      # 005
      MPN: WHT000768
      LOCK WASHER
      from £1.18
      from £1.18
      This part replaces part number 008410806 - and 1 more. Click to view details
      SPRING WASHER Genuine Lamborghini - New In stock
      # 006
      MPN: 008301023
      STUD
      PRIGIONIERO
      from £14.38
      from £14.38
      SPECIAL STUD M10X36 Genuine Lamborghini - New (to order)
      # 007
      MPN: 0088S1502
      DOWEL
      GRAND
      DOWEL Genuine Lamborghini - New (to order)
      # 008
      MPN: 008931201
      PLUG
      TAPPO 0.12X1,25X9 OIL 5S
      from £22.68
      from £22.68
      PLUG D.12X1.25X9 OIL5S Genuine Lamborghini - New (to order)
      # 009
      MPN: WHT003362
      WASHER
      ROND. D. 12X22X1 ,5 RAME
      from £0.91
      from £0.91
      COPPER WASHER D.12X22X1.5 Genuine Lamborghini - New In stock
      # 010
      MPN: 002721703
      COVER
      COPERCHIO D/PORTAM.X SUPP.TR.C
      from £1,171.60
      from £1,171.60
      COVER Genuine Lamborghini - New (to order)
      # 011
      MPN: 008201414
      NUT
      DADO AUTOBL.C40 NON SON. 14X1, 5
      from £12.98
      from £12.98
      14X1.5X13.8 NUT Genuine Lamborghini - New In stock
      # 012
      MPN: 0B9501144
      SILENTBLOC
      from £115.28
      from £115.28
      This part replaces part number 008921408 - and 1 more. Click to view details
      SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
      SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
      # 013
      MPN: 008101411
      BOLT
      BULLONE
      from £4.11
      from £4.11
      SCREW 14X1.5X85 UNI 5738/8 Genuine Lamborghini - New (to order)
      # 014
      MPN: 006300812
      STUD
      PRIGIONIERO
      STUD Genuine Lamborghini - New (to order)
      # 015
      MPN: WHT001514
      LOCK WASHER
      Ros. el. 8,4X17X0,8
      from £15.09
      from £15.09
      This part replaces part number 008410805
      SPRING WASHER Genuine Lamborghini - New (to order)
      # 016
      MPN: 008200806
      NUT
      Dado MS UNI 558B-65/8G
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 017
      MPN: 008300859
      STUD
      PRIGIONIERO
      from £32.42
      from £32.42
      SPECIAL STUD M8X20 Genuine Lamborghini - New (to order)
      # 018
      MPN: WHT003362
      WASHER
      ROND.D. 12X22X1 ,5 RAME
      from £0.92
      from £0.92
      COPPER WASHER D.12X22X1.5 Genuine Lamborghini - New In stock
      # 019
      MPN: 002721857
      UNION
      COMPLESS.RACCORDO X SFIATO OLI
      Lamborghini PART 002721857 Genuine Lamborghini - New (to order)
      # 020
      MPN: 008830903
      CLIP
      BAND FA 1518
      from £7.55
      from £7.55
      CLAMP Genuine Lamborghini - New (to order)
      # 021
      MPN: 002721833
      PIPE
      TUBO COLLEGAM.T.E. A TUBO RIGID
      from £31.91
      from £31.91
      HOSE TO PIPE Genuine Lamborghini - New (to order)
      # 022
      MPN: 002424682
      NIPPLE
      NIPPLO SUL RADIAT.OLIO CAMBIO
      from £2.13
      from £2.13
      GEARBOX OIL RADIATORNIPPLE Genuine Lamborghini - New (to order)
      # 023
      MPN: 008401621
      WASHER
      RONDELLA RAME RIC . D . 22X 1 6 , 1 X1 ,
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 024
      MPN: 008300636
      STUD
      PRIGIONIERO
      from £8.84
      from £8.84
      SPECIAL STUD M6X13 Genuine Lamborghini - New (to order)
      # 025
      MPN: WHT001197
      LOCK WASHER
      RONDELLA DI FERMO DIN 137/B
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 026
      MPN: N01100637
      NUT
      DADO M6 UNI 5588-65/8G
      from £0.53
      from £0.53
      This part replaces part number 008200604
      HEX.NUT Genuine Lamborghini - New In stock
      # 027
      MPN: 002721752
      GASKET
      Guarnizione
      from £17.83
      from £17.83
      SEAL Genuine Lamborghini - New (to order)
      # 028
      MPN: 008602801
      O RING
      ANELLO OR 41 12
      from £2.37
      from £2.37
      RING 28 MM OR Genuine Lamborghini - New In stock
      # 029
      MPN: 002721749
      FILTER
      FILTRO X POMPA OLIO
      Lamborghini PART 002721749 Genuine Lamborghini - New (to order)
      # 030
      MPN: 008301022
      STUD
      PRIGIONIERO
      from £7.55
      from £7.55
      SPECIAL STUD M10X28 Genuine Lamborghini - New (to order)
      # 031
      MPN: 002725972
      REAR CASE
      CORPO POSTERIORE TR . CASE
      from £2,926.82
      from £2,926.82
      GEARBOX REAR CASING Genuine Lamborghini - New (to order)
      # 032
      MPN: 002725973
      INTERM.CASE
      CORPO INTERMEDIO TR.CASE
      Lamborghini PART 002725973 Genuine Lamborghini - New (to order)
      # 033
      MPN: 002725974
      FRONT CASE
      CORPO ANT. RIDUTTORE
      FRONT CASE Genuine Lamborghini - New (to order)
      # 034
      MPN: 086301141A
      PLUG
      TAPPO MAGNET. 22X1 ,5
      from £22.53
      from £22.53
      This part replaces part number TN-03165
      MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
      # 035
      MPN: 008851202
      DOWEL
      GRAND
      from £1.77
      from £1.77
      GRANO Genuine Lamborghini - New (to order)
      # 036
      MPN: 008850607
      DOWEL
      GRAND SCAT. CAMBIO
      from £3.70
      from £3.70
      REFERENCE PIN 6H6X18C40 Genuine Lamborghini - New (to order)
      # 037
      MPN: 008301020
      STUD
      PRISONER 10X1,5X20 10,0
      from £39.13
      from £39.13
      STUD M10X20 UNI 591110-0/ZD Genuine Lamborghini - New (to order)
      # 038
      MPN: 008411005
      WASHER
      RONDEL. AID, 5 UNI 1751
      from £0.51
      from £0.51
      WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
      # 039
      MPN: N10155210
      NUT
      Dado M10 UNI 5588-65A 8G
      from £1.25
      from £1.25
      This part replaces part number 008201001
      HEX.NUT Genuine Lamborghini - New In stock
      hex. nut - M 10 DIN 934-8 Genuine Porsche Part - New (to order)
      # 040
      MPN: 008200806
      NUT
      DADO M8 UNI 5588-65/8G
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 041
      MPN: 008410806
      LOCK WASHER
      ROND. EL. A8, 4 UNI 1751
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 042
      MPN: 005121632
      BUSH
      BOCCOLA EL.FLESS.X ATTACCO AMM
      from £41.25
      from £41.25
      SHOCK ABSORBER MOUNTBUSHING Genuine Lamborghini - New (to order)
      # 043
      MPN: 002721750
      MOUNTING
      SUPPORTO
      Lamborghini PART 002721750 Genuine Lamborghini - New (to order)
      # 044
      MPN: 008100840
      BOLT
      BULL.M8X18 UNI 5739/8G
      from £0.51
      from £0.51
      SCREW M8X1.25X18 UNI5739/ Genuine Lamborghini - New In stock
      # 045
      MPN: 008300803
      STUD
      PRIGIONIERO
      from £7.78
      from £7.78
      STUD M8X30 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
      # 046
      MPN: 002722872
      COVER
      COPERCHIO SUPP. LEVA COM.TRAZIO
      from £1,247.81
      from £1,247.81
      TRACTION CONTROL LEVER BRACKET COVER Genuine Lamborghini - New (to order)
      # 047
      MPN: 002722088
      COVER
      COPERCHIO INGR.RIDUTT.EPICICLO
      COVER Genuine Lamborghini - New (to order)
      # 048
      MPN: 008300859
      STUD
      PRIGIONIERO
      from £32.42
      from £32.42
      SPECIAL STUD M8X20 Genuine Lamborghini - New (to order)
