lamborghini lm002 (1988) power steering parts diagram

028 - POWER STEERING

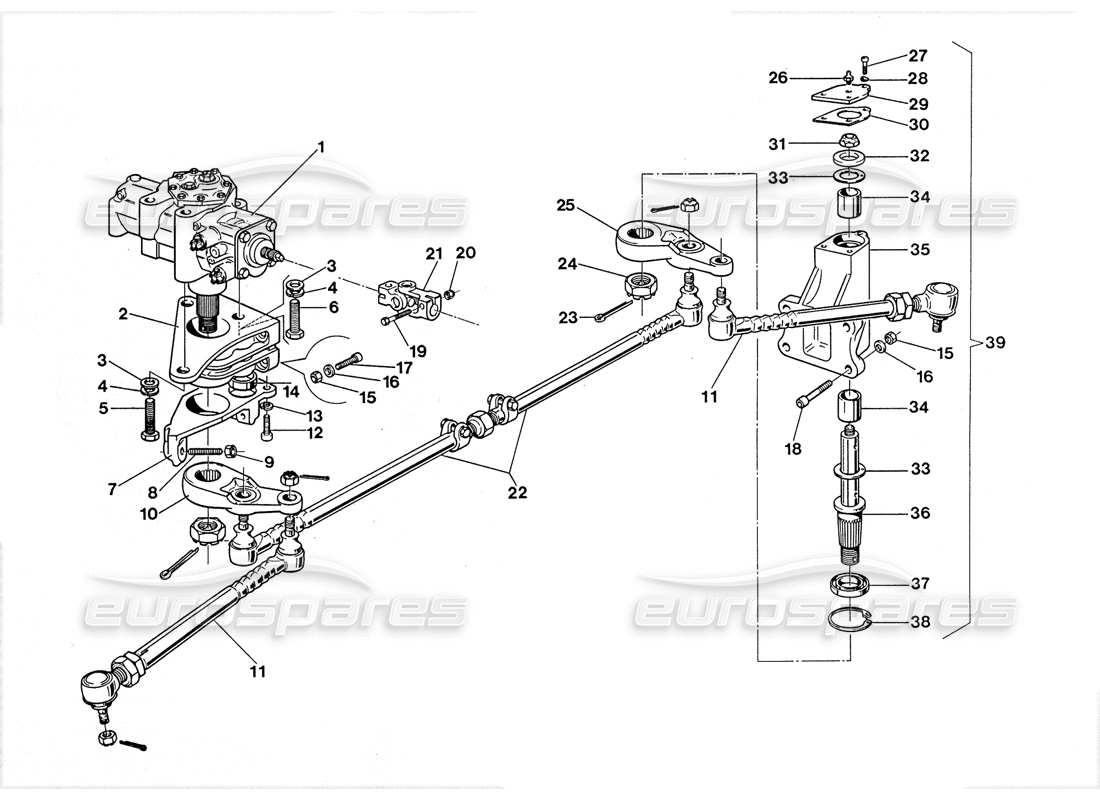

Lamborghini LM002 (1988) Power Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 004022456
IDROGUIDE
IDROGUIOA
from £3,610.78
from £3,610.78
POWER STEERING Genuine Lamborghini - New (to order)
# 002
MPN: 004022374
MOUNTING
SUPPORTO IOROGUIDA
from £617.36
from £617.36
POWER STEERING BRACKET Genuine Lamborghini - New (to order)
# 003
MPN: 008401611
WASHER
RONO. 17X29X3 55 UNI 16592
from £8.84
from £8.84
WASHER 17X29X3 5S UNI 16592 Genuine Lamborghini - New (to order)
# 004
MPN: 008411701
LOCK WASHER
ROB. EL, 17X27X3,5
from £1.62
from £1.62
SNAP RING 17X30X1.5 DIN137/B Genuine Lamborghini - New In stock
# 005
MPN: 008101631
BOLT
BULLONE
from £10.87
from £10.87
SCREW M16X1.5X40 UNI5740/ Genuine Lamborghini - New (to order)
# 006
MPN: 008101630
BOLT
BULLONE
from £10.87
from £10.87
SCREW M16X1.5X60 UNI5740/ Genuine Lamborghini - New (to order)
# 007
MPN: 004025269
SUPPORT
STEERING STOP BRACKET
from £118.56
from £118.56
STEERING STOP BRACKET Genuine Lamborghini - New (to order)
# 008
MPN: 006701016
SCREW
VITE
SCREW Genuine Lamborghini - New (to order)
# 009
MPN: 008201011
NUT
DADO M10 UNI 5589-65/8G
from £11.53
from £11.53
M10 UNI 5589-65/8G NUT Genuine Lamborghini - New (to order)
# 010
MPN: 004022458
LEVER
LEFT STEERING LEVER
from £257.86
from £257.86
LH STEERING LINKAGE Genuine Lamborghini - New (to order)
# 011
MPN: 004022459
TIE ROD
TIRANTE STERZO COMPL . 035 . 0245 .
from £539.75
from £539.75
STEERING LINKAGE ASSEMBLY Genuine Lamborghini - New (to order)
# 012
MPN: 008700827
SCREW
VITE FISS. INTER.
from £1.67
from £1.67
SCREW M8X70 UNI 5931/8G/ZD Genuine Lamborghini - New (to order)
# 012
MPN: N10518402
SCREW M8X30
from £3.85
from £3.85
12-POINT SOCKET Genuine Lamborghini - New In stock
# 013
MPN: 008410812
WASHER
ROND.DIN 6798
from £1.06
from £1.06
CORRUGATED WASHER D.8.15 UNI 3 704 Genuine Lamborghini - New In stock
# 014
MPN: 004027526
BUSH
BOCCOLA DI CENTR.X STAFFA
from £1.71
from £1.71
BRACKET CENTRING BUSHING Genuine Lamborghini - New (to order)
# 015
MPN: 008201206
NUT
DADO B70 212X1 , 2BM 8G
from £3.70
from £3.70
12X1.25X11.8/ NUT Genuine Lamborghini - New (to order)
# 016
MPN: 008401306
WASHER
WASHER R. 1 3X24X3 8G
from £1.49
from £1.49
WASHER D.13X24X3 8G Genuine Lamborghini - New (to order)
# 017
MPN: 008701212
SCREW
VITE
from £2.20
from £2.20
SCREW Genuine Lamborghini - New (to order)
# 018
MPN: 008701209
SCREW
Allen screw
from £12.82
from £12.82
ALLEN SCREW M12X1.25X7810K Genuine Lamborghini - New (to order)
# 019
MPN: N01033520
BOLT
BULL.M8X35 UNI 5739/BG
from £1.04
from £1.04
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
# 020
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 021
MPN: 004021492
JOINT
GIUNTO CARDANICO
JOINT Genuine Lamborghini - New (to order)
# 022
MPN: 004022463
ROD
COMPL. BARRA ACCOPP . 035 . 0245 . 0 1
from £595.74
from £595.74
TIEROD ASSEMBLY Genuine Lamborghini - New (to order)
# 023
MPN: 008820601
LOCK RING
COPPIGLIA'
LOCK RING Genuine Lamborghini - New (to order)
# 024
MPN: 008203003
NUT
DADO
NUT Genuine Lamborghini - New (to order)
# 025
MPN: 004022457
STEER LEVER
LEVA STERZO DES.
from £257.86
from £257.86
RH STEERING LINKAGE Genuine Lamborghini - New (to order)
# 026
MPN: 008880601
GREASE NIPP
Ingras. hydraulic 273 A
from £0.96
from £0.96
HYDRAULIC 273 A GREASE DISPENS ER Genuine Lamborghini - New (to order)
# 027
MPN: 008700627
SCREW
VITE M6X22 UNI 5931 86
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 028
MPN: WHT001197
LOCK WASHER
RONDELLA DI FERMO DIN 137/B
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 029
MPN: 004021489
COVER
COPERCHIO X SUPP.RINVIO IDROGU
from £15.59
from £15.59
TRANSMISSION BRACKETCOVER Genuine Lamborghini - New (to order)
# 030
MPN: 004026124
GASKET
GUARN.X COPERCHIO SUPP.RINVIO
GASKET Genuine Lamborghini - New (to order)
# 031
MPN: 008202006
NUT
NUT TO BEAT ON THE REINV. PIN
from £8.17
from £8.17
M20X1.5 SPECIAL NUT Genuine Lamborghini - New (to order)
# 032
MPN: 008402013
WASHER
ROND.X FISS. PERNO RINVIO IDRO
from £20.11
from £20.11
POWER STEERING PIN FASTENING W ASHER Genuine Lamborghini - New (to order)
# 033
MPN: 008403202
BEARING
CSN ASSIALI ANTIFRIZ.TRA ALB.E
from £14.35
from £14.35
AXIAL FRICTION BEARING Genuine Lamborghini - New (to order)
# 034
MPN: 008803201
BEARING
CSN RADIALI ANTIFRIZ.TRA ALB.E
from £26.54
from £26.54
BUSHING 32X36X40 MM Genuine Lamborghini - New (to order)
# 035
MPN: 004027717
SUPPORT
SUPP.RINVIO IDROGUIDA
from £252.06
from £252.06
POWER STEERING GEAR BRACKET Genuine Lamborghini - New (to order)
# 036
MPN: 004021493
PIN
STEERING RETURN PIN
Lamborghini PART 004021493 Genuine Lamborghini - New (to order)
# 037
MPN: 008613505
DUST COVER
PARAPOLV.TRA ALB.E SUPP.RINVIO
from £16.80
from £16.80
OIL SEAL 35X60X10 MM Genuine Lamborghini - New (to order)
# 038
MPN: 008576001
CIRCLIP
SEEGER SUL SUPP.RINVIO IDROGUI
Lamborghini PART 008576001 Genuine Lamborghini - New (to order)
# 039
MPN: 282600500
TRANSMISSIO
RINVIO IDROG. COMPL. LM USA I.
Lamborghini PART 282600500 Genuine Lamborghini - New (to order)
