029 - Steering Oil Pump

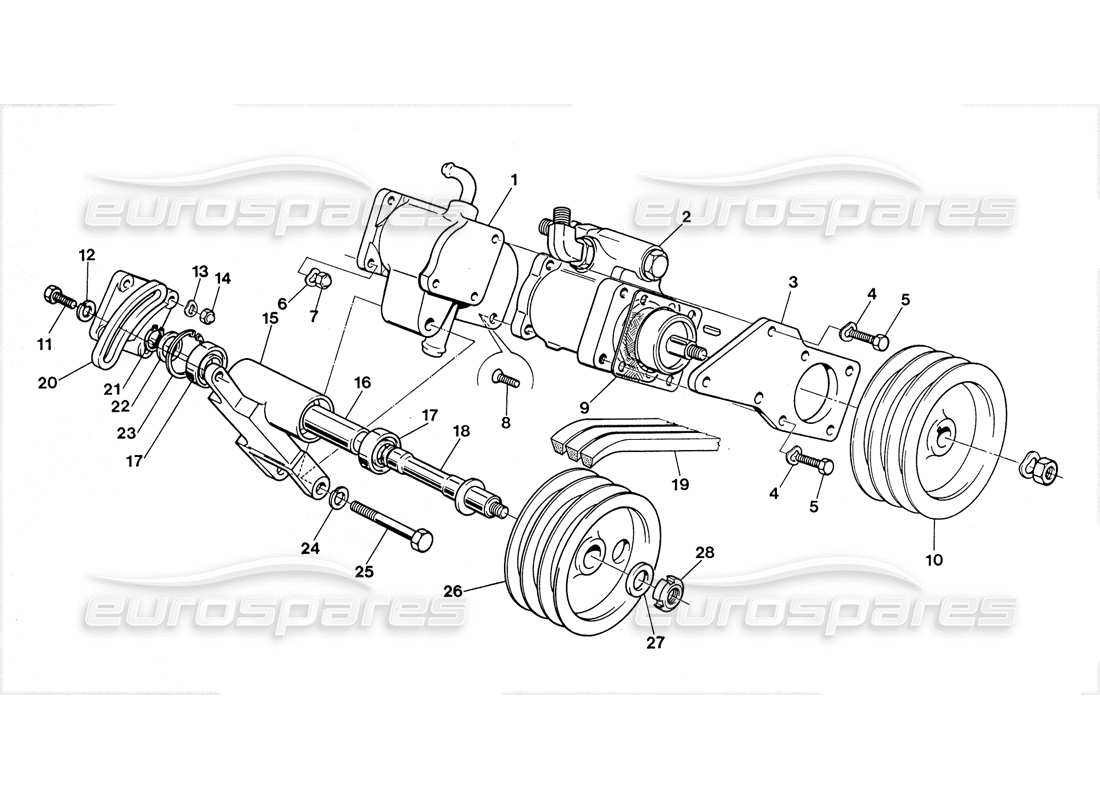

Lamborghini LM002 (1988) Steering Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001526626
PUMP HOLDER
SUPP.POMPA ZF SFIATO OLIO
# 002
MPN: 004022676
PUMP
POMPA ZF AD ALETTE X IDROGUIDA
from £288.54
from £288.54
# 003
MPN: 004024913
FIX PLATE
PIASTRA FISS. POMPA
from £40.63
from £40.63
# 004
MPN: 006410805
LOCK WASHER
HOS. EL. 8, 4X17X0, 8
# 005
MPN: 008100809
BOLT
BULL.M8X22 UNI 5739/8G
from £0.52
from £0.52
# 006
MPN: 008410806
LOCK WASHER
ROND.EL.A8,4 UNI 1751
Supersession
Supersession
# 007
MPN: 008200808
NUT
Dado MS UNI 5587-6S/8G
Supersession
Supersession
# 008
MPN: 008700813
SCREW
SCREW M8X30 WITH SOCKET HEX
from £1.23
from £1.23
# 009
MPN: 004024169
SHIM
SPESSORE X POMPA IDROGUIDA
from £6.89
from £6.89
# 010
MPN: 004024165
PULLEY
PULEGGIA X POMPA IDROGUIDA
from £127.28
from £127.28
# 011
MPN: 008101050
BOLT
BULLONE
from £1.71
from £1.71
# 012
MPN: 008411005
WASHER
RONDEL. A10, 5 UNI 1751
from £0.54
from £0.54
# 013
MPN: WHT001197
LOCK WASHER
RONDELLA DI FERMO DIN 137/B
Supersession
Supersession
# 014
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
# 015
MPN: 004024162
BELT ADJUST
TENDICINGHIA
from £143.03
from £143.03
# 016
MPN: 004024170
SPACER
DISTANZ.CSN X PULEGGIA TENDICI
from £32.34
from £32.34
# 017
MPN: 008502009
BEARING
CSN A SFERA RIV 2RS6204
from £27.50
from £27.50
# 018
MPN: 004024794
PULLEY SHAF
ALBERO X PULEGGIA TENDICINGHIA
# 019
MPN: 004024944
BELT
CINGHIA SECTOFLEX AV13 LUNGH.P
from £48.01
from £48.01
# 020
MPN: 001124922
SUPPORT
ASOLA FISS.FORCELLA SUPP.TENDI
from £142.19
from £142.19
# 021
MPN: WHT002646
CIRCLIP
SEEGER E 20
from £0.74
from £0.74
# 022
MPN: 006402015
WASHER
RONOELLA
# 023
MPN: 008575001
CIRCLIP
SEEGER AA 47 I
from £0.57
from £0.57
# 024
MPN: 008411303
LOCK WASHER
ROND.EL.A 13 UNI 1751
from £1.96
from £1.96
# 025
MPN: 008101236
BOLT
BULLONE
from £0.76
from £0.76
# 026
MPN: 004024795
PULLEY
BELT TENSIONER PULLEY
# 027
MPN: 008401417
WASHER
Rond. 15X25X2
from £2.05
from £2.05
# 028
MPN: 008251501
NUT
GHIERA GHK/70/1S MG
Supersession
Supersession
