031 - Stub Axle-Suspension Leavers
Lamborghini LM002 (1988) Stub Axle-Suspension Leavers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005121645
BRACKET
COMPL.BISCOT . BARRA STAB. 022.0
# 002
MPN: 008201219
NUT
DADO M12X1 ,75 8G
from £2.41
from £2.41
# 003
MPN: 005124126

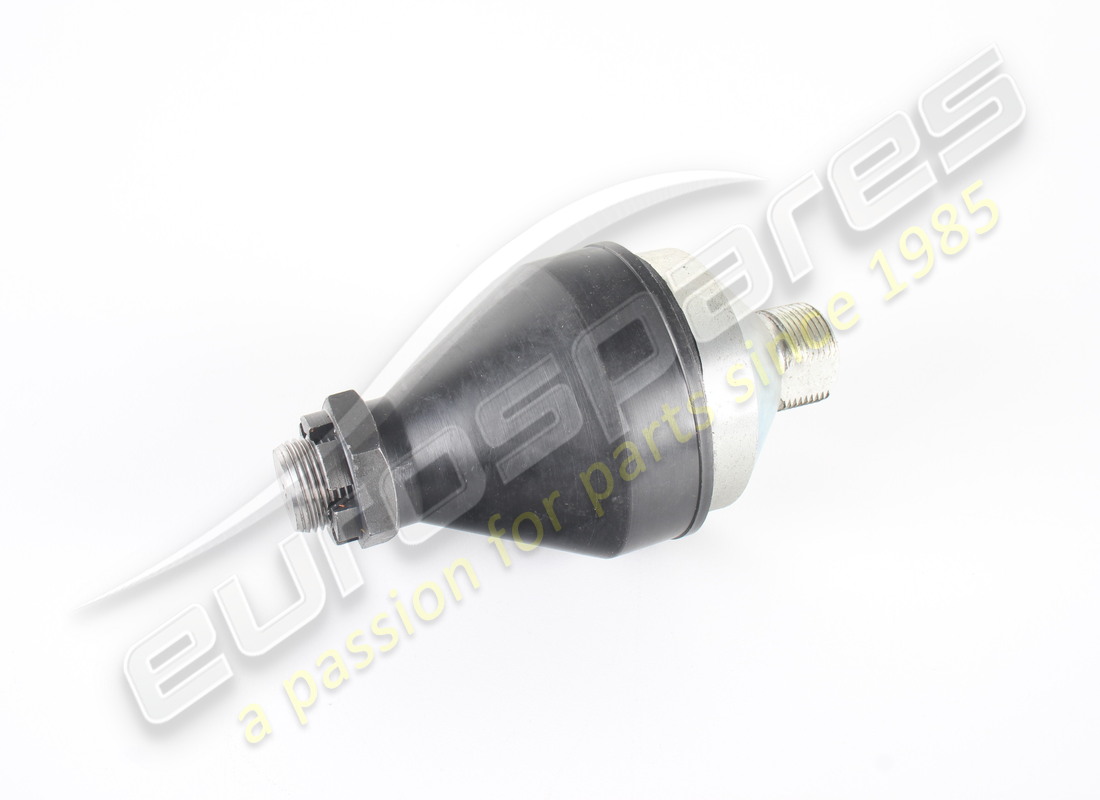

SPHER. JOIN
BALL JOINT 322-0146-563-512
from £139.29
from £139.29
# 004
MPN: 005124125
FERRULE
BOCCOLA X BISCOTTINO BARRA STA
from £20.88
from £20.88
# 005
MPN: 006201411
NUT
DADO M14 UNI 5589 8B
# 006
MPN: 005124127
BALL JOINT
BALL JOINT 322-0146-573-512
from £232.15
from £232.15
# 007
MPN: 005122198
R. TRAIL ARM
BRACCIO SUP.DES.
from £1,310.00
from £1,310.00
# 007
MPN: 005122199
L. TRAIL. ARM
BRACCIO SUP. SIN.
from £1,310.00
from £1,310.00
# 008
MPN: 005123927
STABIL.BAR
BARRA STABILIZZATRICE
from £354.03
from £354.03
# 009
MPN: 005122598
MOUNTING
SUPPORTS
from £74.96
from £74.96
# 010
MPN: 005113991
BRACKET
STAFFA FISS.SUPP.IN COMMA X BA
# 011
MPN: N01100632
NUT
DADO M6 UNI 5588 5S
from £2.81
from £2.81
# 012
MPN: WHT001197
LOCK WASHER
RONDELLA DI FERMO DIN 137/B
Supersession
Supersession
# 013
MPN: 005122597
BUSH
SEMIGUSCIO X BAHRA STABILIZZ.
from £52.57
from £52.57
# 014
MPN: 008100626
BOLT
BULL.M6X3S UNI 5737/86
Supersession
Supersession
# 015
MPN: 008411206
WASHER
ROND.EL. A 12 UNI 1751
from £1.58
from £1.58
# 016
MPN: 008101227
SCREW
VITI X FISS.STAF.SUPP.IN GOM . X
from £3.70
from £3.70
# 017
MPN: 005121657

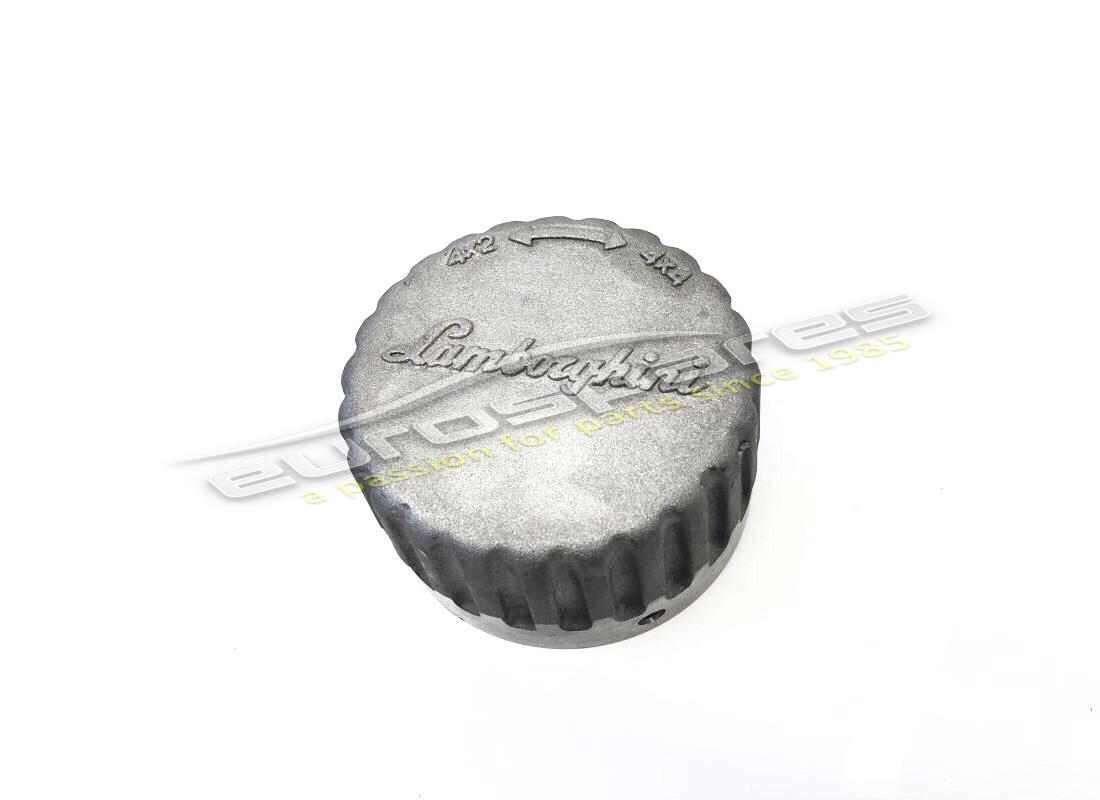

HUB CONTROL
COMANDO X MOZZO LIBERO
from £332.48
from £332.48
# 018
MPN: 008700639
SCREW
GRAND A BRUGOLA
from £21.66
from £21.66
# 019
MPN: 005121654
COUPLING HU
CAMMA INNESTO TRAZIONE ANT.
from £89.13
from £89.13
# 020
MPN: 005121656
SPRING
MOLLA X INNESTO TRAZIONE ANT . S
# 021
MPN: 008650405
PIN
PERNO X COMANDO MOZZO LIBERO
# 022
MPN: 005121655
SLEEVE
MANICOTTO X INNESTO TRAZ.ANT.
from £101.99
from £101.99
# 023
MPN: 005121653
GASKET
GOMM.DI FERMO SUL MOZZO SOSP.A
from £3.20
from £3.20
# 024
MPN: 008576601

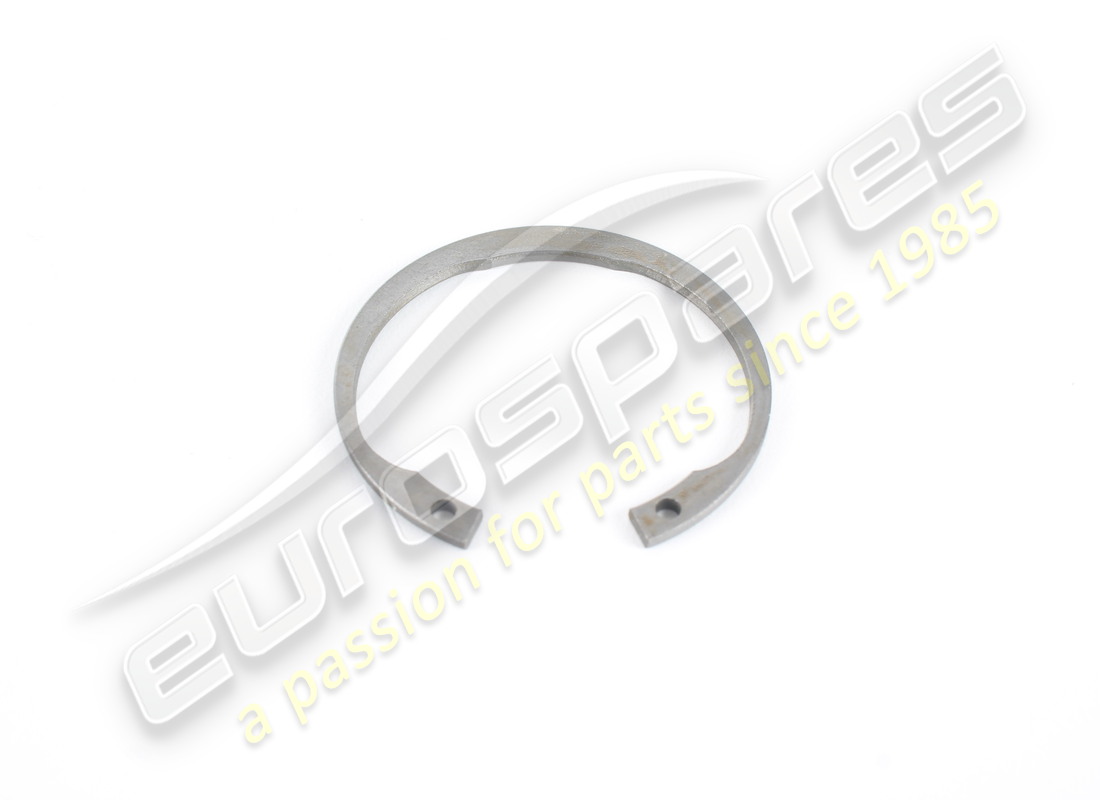

CIRCLIP
SEEGER AA 62 I
from £0.53
from £0.53
# 025
MPN: 008503509
BEARING
BEARING 6007
from £32.76
from £32.76
# 026
MPN: 008608001
OIL SEAL
GOMMINO
from £0.50
from £0.50
# 027
MPN: 005121524
HUB
FRONT HUB
from £529.81
from £529.81
# 028
MPN: 008524007
BEARING
ROLLER BEARING BETWEEN HUB AND
from £38.80
from £38.80
# 029
MPN: 008575000
CIRCLIP
SEEGER X FISS. CUSCINETTO A RUL
from £0.56
from £0.56
# 030
MPN: 008582701
RETAINER RING
SEEGER UNI 3653
from £1.42
from £1.42
# 031
MPN: 008403005
WASHER
RONDELLA
# 032
MPN: 002522320
PINION
PIGNONI INNESTO TRAZIONE ANT.
from £52.99
from £52.99
# 033
MPN: 005123659
R.HUB HOLDE
PORTAMOZZO DES.
from £519.85
from £519.85
# 033
MPN: 005123660
L.HUB HOLDE
PORTAMOZZO SIN.
from £519.85
from £519.85
# 034
MPN: 008619005
OIL SEAL
ANELLO TENUTA X ALBERI ROTANTI
from £13.69
from £13.69
# 035
MPN: 008619006
OIL SEAL
ANELLO TENUTA X ALBERI ROTANTI
from £12.82
from £12.82
# 036
MPN: 008507001
BEARING
CUSCINETTO 7214 BG
from £55.63
from £55.63
# 037
MPN: 005121522
COVER
COPERCHIO SUL PORTAMOZZO ANTER
from £194.85
from £194.85
# 038
MPN: 008614002
OIL SEAL
ANELLO DI TENUTA X ALBERI ROTA
from £14.38
from £14.38
# 039
MPN: 008614001
OIL SEAL
Paraolio 52X40X7 RP
from £31.55
from £31.55
# 040
MPN: 008202404
NUT
DADO X FISS. SNODO SUPP.AL SUPP
from £12.82
from £12.82
# 041
MPN: 005126116
RING NUT
GHIERA FISS. CUSCINETTO
from £257.86
from £257.86
# 042
MPN: 005121523
SHIM
SPESS. SFOGLIABILE X REGOLAZ.CU
from £30.06
from £30.06
# 043
MPN: 008609909
O RING
OR
from £0.65
from £0.65
# 044
MPN: 008700617
SCREW
VITE 6X1X18 BG
from £0.48
from £0.48
This part replaces part number 008700670
# 045
MPN: 005121976
BUSH
BOCCOLA X SNODO SUL PORTAMOZ.L
from £21.48
from £21.48
# 046
MPN: WHT003355
NUT USE (WHT003355)
DADO AUTOBLOC. 12X1 ,25
from £13.28
from £13.28
# 047
MPN: 005121601
JOINT
SNODO SFERICO INT . SUP . 040 . 0 1 45
from £1,024.60
from £1,024.60
# 048
MPN: 005121600
MOUNTING
SUPP.X SNODO SFERICO SUP. INF.
from £526.57
from £526.57
# 050
MPN: 008101213
SCREW
VITE X -FISS. SUPP. SNODO SUP . E I
# 051
MPN: 005122151
SUSP ARM
BRACCIO INF.SOSPENS. ANT.DX.
from £1,119.31
from £1,119.31
# 051
MPN: 005122152
SUSP ARM
BRACCIO INF.SOSPENS. ANT. SX.
from £1,119.31
from £1,119.31
# 052
MPN: 005121458
FERRULE
BOCCOLA EL.X BRACCI SOSPENSION
from £230.49
from £230.49
# 053
MPN: 005126522
BRACKET SUP
ASS. ATT .BRACCIO INF. SOSP.
from £50.09
from £50.09
# 054
MPN: 008102001
BOLT
BULL.X FISS. BRACCI SOSP . AL TEL
from £15.64
from £15.64
# 055
MPN: 008202008
NUT
DADO AUTOBLOCCANTE
from £7.55
from £7.55
# 056
MPN: 005121626
SHIM
SPESS. DI RAS.X LEVE INF. SOSP. A
# 057
MPN: WHT003355
NUT USE (WHT003355)
DADO AUTOBLOC. 12X1 ,25
from £13.28
from £13.28
