lamborghini lm002 (1988) shock absorber - hyda stop parts diagram

032 - Shock Absorber - Hyda Stop

Lamborghini LM002 (1988) Shock Absorber - Hyda Stop Parts Diagram

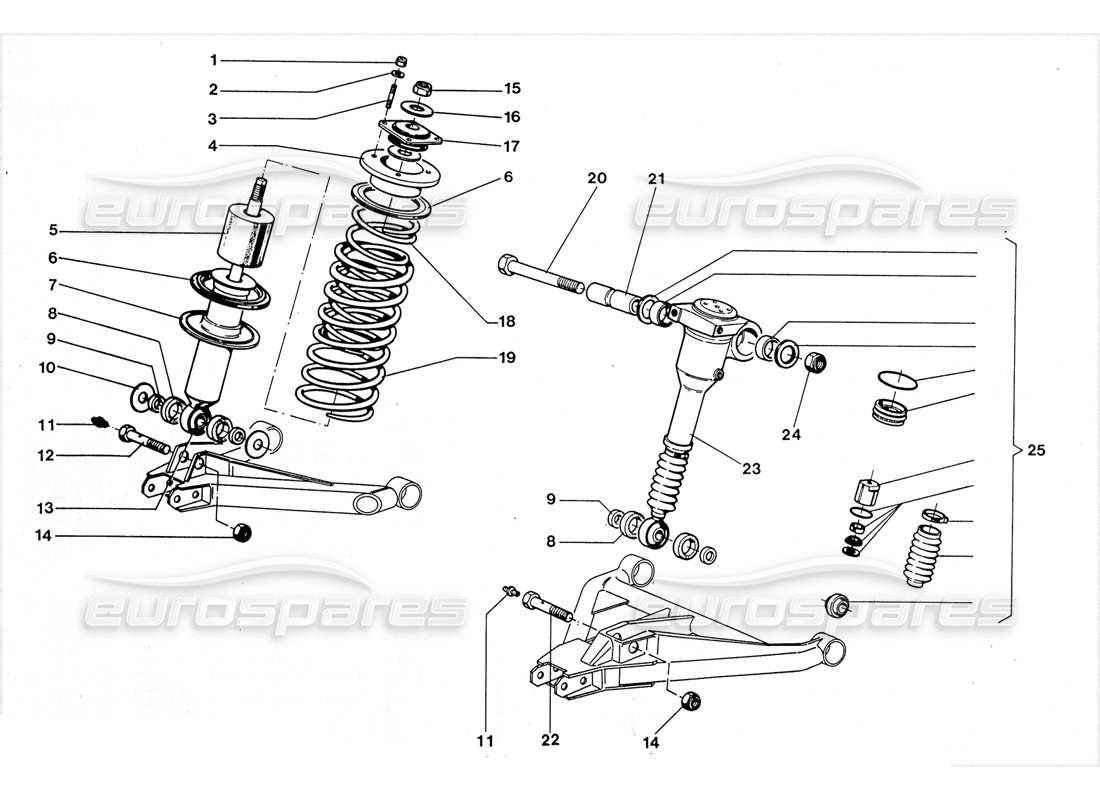

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200804
NUT
DADO N/70/108M
from £0.67
from £0.67
# 002
MPN: 008400806
WASHER
ROND.8,4X16
Supersession
Supersession
# 003
MPN: 008300803
STUD
PRIGIONIERO
from £7.78
from £7.78
# 004
MPN: 005121633
CAP
PIATTELLO DI FISS.MOLLE AMMORT
from £132.67
from £132.67
# 005
MPN: 005125886
RUBBER STOP
TAMPONE
# 006
MPN: 005121634
GASKET
GUARN.IN GOMMA X PI ATT . FISS . MO
from £115.66
from £115.66
# 007
MPN: 005121638
SHOCK ABS.
AMMORTIZZATORE ANTERIORE
# 008
MPN: 005225682
RING
ANELLO
# 009
MPN: 005225884
SPACER
DISTANZIALE
# 010
MPN: 005224414
WASHER
RONDELLA
from £14.72
from £14.72
# 011
MPN: 008880601
GREASE NIPP
Ingras. hydraulic 273 A
from £0.93
from £0.93
# 012
MPN: 008102005
BOLT
BULLONE
from £15.47
from £15.47
# 013
MPN: 005125879
BALL JOINT
SNODO GEH 20ES 2RS
from £52.57
from £52.57
# 014
MPN: 008202008
NUT
DADO AUTOBLOCCANTE
from £7.55
from £7.55
# 015
MPN: 008201603
NUT
DADO B/70/216X1 ,5M
from £2.25
from £2.25
# 016
MPN: 008401624
WHASHER
ROND.DI SPALL. HYPERBLOC X383
from £22.23
from £22.23
# 017
MPN: 005121632
BUSH
BOCCOLA EL.FLESS.X ATTACCO AMM
from £41.25
from £41.25
# 018
MPN: 005121636
SPRING
MOLLA INTERNA X AMMORTIZZ.
from £622.66
from £622.66
# 019
MPN: 005121635
SPRING
MOLLA ESTERNA X AMMORTIZZ.
from £472.60
from £472.60
# 020
MPN: 008102401
BOLT
BULLONE
from £30.81
from £30.81
# 021
MPN: 005122469
SPACER
DISTANZIALE
# 023
MPN: 005127505
L. SHOCK ABS
COMPL.FINE CORSA IDRAUL.SIN.
# 023
MPN: 008127504
R. SHOCK ABS
COMPL.FINE CORSA IDRAUL.DES.
# 024
MPN: 008202408
NUT
DADO AUTOBLOCCANTE
from £19.82
from £19.82
# 025
MPN: 005127506
repair kit
END SWITCH REVISION KIT
