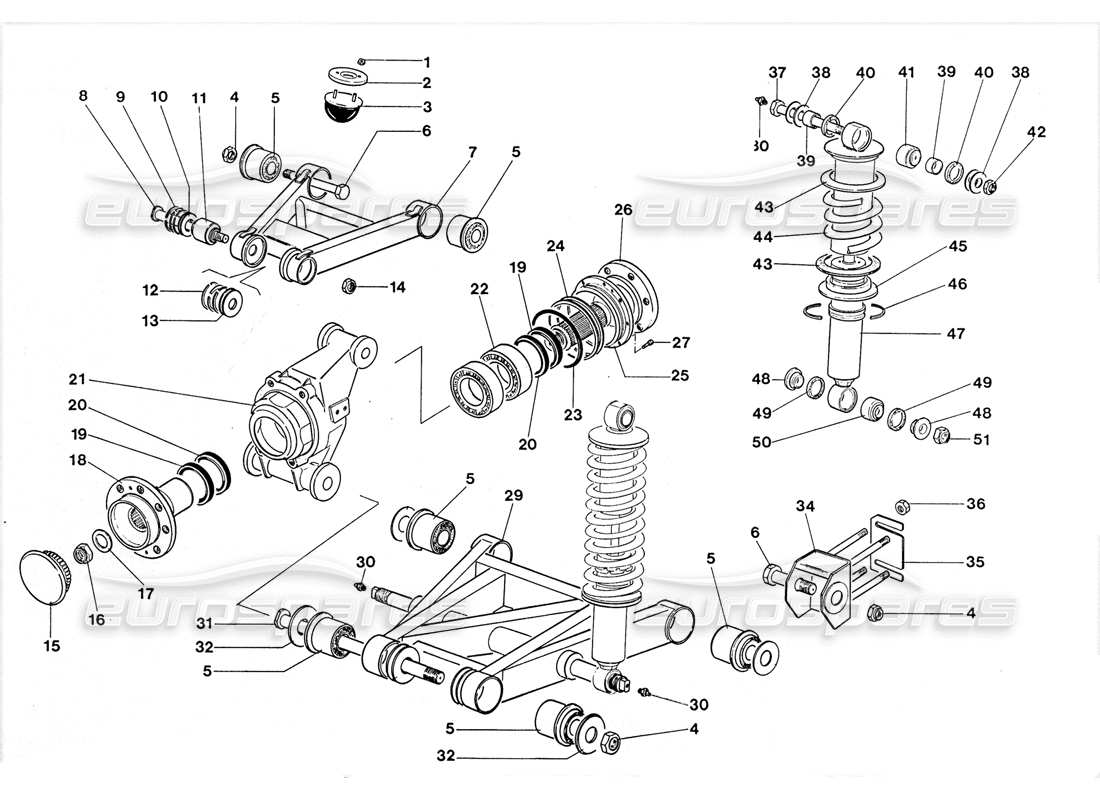

Lamborghini LM002 (1988) Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200801
NUT
DADO
Supersession
Supersession
# 002
MPN: 005223843
SPACER
DISTANZIALE
# 003
MPN: 005221916
BUFFER
TAMPONE X FINE CORSA BRACCIO S
from £266.15
from £266.15
# 004
MPN: 008202008
NUT
DADO AUTOBLOCCANTE '
from £7.55
from £7.55
# 005
MPN: 005121458
FERRULE
BOCCOLA EL.X BRACCI SOSPENSION
from £230.49
from £230.49
# 006
MPN: 008102001
BOLT
BULL.X FISS. BRACCI SOSP . AL TEL
from £15.64
from £15.64
# 007
MPN: 005222302
WISH BONE
BRACCIO SUP. SOSPENS. POST.
from £1,119.31
from £1,119.31
# 008
MPN: 008101706
BOLT
VITE X FISS. BRACCIO SUP . AL POR
from £79.18
from £79.18
# 009
MPN: 005221450
PISTON RING
SEGMENTI LAMELLARI SUL PORT . LA
from £8.92
from £8.92
# 010
MPN: 008401619
WASHER
ROND.X FISS. BRACCIO SUP.AL POR
from £11.69
from £11.69
# 011
MPN: 005109529
BALL JOINT
SNODO 0320148094206/B
from £77.62
from £77.62
# 012
MPN: 005221449
RING RETAIN
SEGMENTI LAMELLARI PORT . LATO I
from £8.92
from £8.92
# 013
MPN: 008401715
WASHER
ROND.X BRACCIO SUP . TRA PORTAMO
from £38.70
from £38.70
# 014
MPN: 008201608
NUT
DADO X FISS. BRACCIO SUP.AL POR
from £9.66
from £9.66
# 015
MPN: 005223461
COVER
COPERCHIETTO
from £16.44
from £16.44
# 016
MPN: 008203502
NUT
EXT. HUB FIXING NUT TO THE HUB F
from £51.97
from £51.97
# 017
MPN: 008403602
WASHER
RONDELLA X DADO FISS.MOZZO EST
from £15.96
from £15.96
# 018
MPN: 005221455
HUB
MOZZO X ATT.TAMB.FRENI E CERCH
from £457.68
from £457.68
# 019
MPN: 008619006
OIL SEAL
ANELLO TENUTA X ALBERI ROTANTI
from £12.82
from £12.82
# 020
MPN: 008619005
OIL SEAL
ANELLO TENUTA X ALBERI ROTANTI
from £13.69
from £13.69
# 021
MPN: 005221437
HUB HSNG
PORTAMOZZO
from £853.99
from £853.99
# 022
MPN: 008507502
BEARING
CUSCINETTO 721B BG
from £133.49
from £133.49
# 023
MPN: 008609910
O RING
OR
from £3.70
from £3.70
# 024
MPN: 005221438
SHIM
SPESS.SFOGLIABILE LAMINUM OTTO
from £88.31
from £88.31
# 025
MPN: 005221441
COVER
COPERCHIO SUL PORTAMOZZO POSTE
from £242.94
from £242.94
# 026
MPN: 005221885
HUB
MOZZO X ATTACCO SEMIASSE POST.
from £401.29
from £401.29
# 027
MPN: 008700617
SCREW
Vite 6X1X18 8G
from £0.48
from £0.48
This part replaces part number 008700670
# 029
MPN: 005222397
BRACKET
BRACCIO INF. SOSPENS. POST.
from £1,119.31
from £1,119.31
# 030
MPN: 008880601
GREASE NIPP
Ingras. hydraulic 273 A
from £0.88
from £0.88
# 031
MPN: 008102002
BOLT
VITE X FISS. BRACCIO INF.AL POR
from £158.78
from £158.78
# 032
MPN: 008402012
WASHER
RONDELLA X FISS. BRACCIO INF.AL
# 034
MPN: 005126522
BRACKET SUP
ASS. ATT. BRACCIO INF. SOSP.
from £50.09
from £50.09
# 035
MPN: 005121626
SHIM
SPESS.DI RAS.X LEVE INF. SOSP. A
# 035
MPN: 005121627
SHIM
SPESS.DI RAS.X LEVE INF. SOSP. A
from £22.31
from £22.31
# 036
MPN: WHT003355
NUT
DADO AUTOBLOC. 12X1 ,25
from £13.28
from £13.28
# 037
MPN: 008102005
BOLT
BULLONE
from £15.47
from £15.47
# 038
MPN: 005224414
WASHER
RONDELLA
from £14.72
from £14.72
# 039
MPN: 005225884
SPACER
DISTANZIALE
# 040
MPN: 005225862
RING
ANELLO
# 041
MPN: 005225879
SPHER. JOIN
SNODO SFERICO
# 042
MPN: 008202008
NUT
DADO AUTOBLOCCANTE
from £7.55
from £7.55
# 043
MPN: 005207451
SPRING RING
ANELLO SUPP.MOLLA AMMORT .
from £35.61
from £35.61
# 044
MPN: 005223405
SPRING
MOLLE X AMMORTIZZ.POST.
from £348.23
from £348.23
# 045
MPN: 005228615
SPRING SUPP
SPRING SUPPORT BASE
# 046
MPN: 005228616
LOCK RING
SEMIANELLO 01 FERMO
# 047
MPN: 005225880
SHOCK ABS.
AMMOHTIZZATORE POST.
# 049
MPN: 005225885
SPACER
DISTANZIALE
# 051
MPN: 008202408
NUT
DADO AUTOBLOCCANTE
from £19.82
from £19.82
