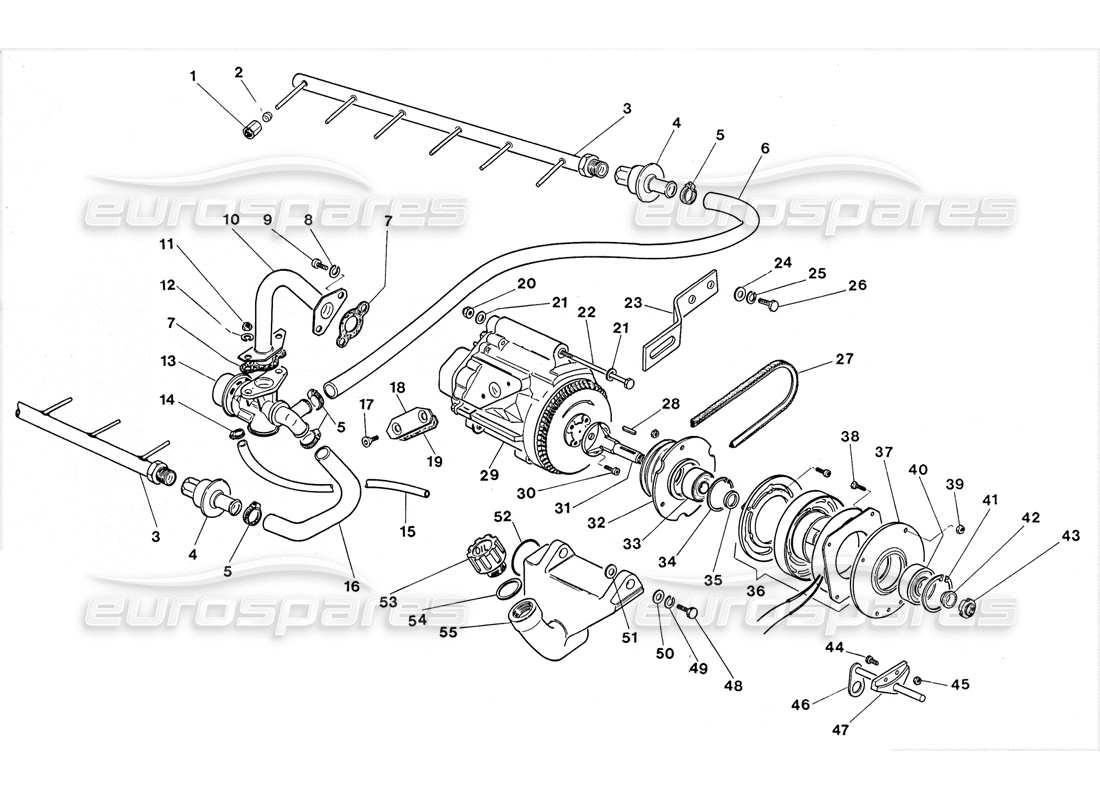

Lamborghini LM002 (1988) Air Pollution Hp Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004607189
NUT
DADO RACC.2971 GT
from £9.33
from £9.33
# 002
MPN: 004607166
FERRULE
Biconi 2956 GT
# 003
MPN: 004620278
EX. MANIFOLD
COLLETTORE ARIA X TESTE DES. S
from £281.08
from £281.08
# 004
MPN: 004607187
VALVE CER
CEK VALVE VS. 1/5354987
from £140.55
from £140.55
# 005
MPN: 008832003
CLAMP
FASCETTA 19-28
from £27.78
from £27.78
# 006
MPN: 004623044
UNION PIPE
TUBO COLL.GRUPPO DIVER. ALLA VA
from £45.27
from £45.27
# 007
MPN: 004607438
GASKET
GUARNIZ.FLANGIA DIVERTER
from £4.28
from £4.28
# 008
MPN: 008410806
LOCK WASHER
ROND.EL.A8,4 UNI 1751
Supersession
Supersession
# 009
MPN: 008700819
SCREW
VITE TCCE 8X1 , 25X16
from £0.53
from £0.53
# 010
MPN: 004628768
PIPE
TUBO CON FLANGE
# 011
MPN: 008200601
NUT
DADO M6 UNI 5S88-65/A
from £2.24
from £2.24
# 012
MPN: 008410603
LOCK WASHER
ROND.A6,4 UNI 1751 072
Supersession
Supersession
# 013
MPN: 004621116
DIVER VALVE
DIVERTER VALVE A 2 USCITE 1.70
from £281.08
from £281.08
# 014
MPN: 008830814
CLAMP RING
FASCETTA 8-14
# 015
MPN: 004625990
PIPE
TUBO DEPRESS. DA DIVERTER AL CO
# 016
MPN: 004625988
PIPE
DIVERTER HOSE TEE VALVE
from £45.27
from £45.27
# 017
MPN: 008700801
SCREW
Vite M8X16 UNI S933-67/A
from £0.53
from £0.53
# 018
MPN: 004626392
COVER
COP. CH I US. M AND. P. ARIA
from £52.57
from £52.57
# 019
MPN: 004606297
GASKET
GUARNIZ.TUBO POMPA ARIA
from £4.52
from £4.52
# 020
MPN: 008201008
NUT
DADO B/70/210M
from £0.57
from £0.57
# 021
MPN: 008401006
WASHER
ROND.A10,5 UNI 1734
from £0.53
from £0.53
# 022
MPN: 008101001
BOLT
BULL.M10X120UNI 5737/65 86
from £8.17
from £8.17
# 023
MPN: 004625584
PUMP ADJUST
Staffa X registro pompa aria
from £43.86
from £43.86
# 024
MPN: 008411006
LOCK WASHER
PIAST.FERMO SUPP.MOT.
from £4.94
from £4.94
# 025
MPN: 008411005
WASHER
RONDEL. A10.S UNI 1751
from £0.53
from £0.53
# 026
MPN: 008101011
BOLT
BULLONE
from £8.17
from £8.17
# 027
MPN: 004624813
BELT
CINGHIA PROFILTEX GATES 7M 925
from £123.96
from £123.96
# 028
MPN: 008860303
Key
LINGUETTA
from £0.54
from £0.54
# 029
MPN: 004624322
AIR PUMP
POMPA ARIA VS. 26.004.561
from £1,111.01
from £1,111.01
This part replaces part number 004607184
# 030
MPN: 0087008378
SCREW
VITE
# 031
MPN: 004624309
SHAFT
ALBERINO X GIUNTO FRIZIONE
from £204.93
from £204.93
# 032
MPN: 004624281
PULLEY
PULEGGIA
from £234.33
from £234.33
# 033
MPN: 008501707
BEARING
BEARING 62203-2RS1
from £11.61
from £11.61
# 034
MPN: 008574301
CIRCLIP
SEEGEH 40 I
from £1.70
from £1.70
# 035
MPN: 004623733
SPACER
DISTANZ.TRA CSN E FRIZIONE ELE
from £17.83
from £17.83
# 036
MPN: 004623728
clutch
FRIZIONE ELETTROMAGN.X POMPA A
from £509.08
from £509.08
# 037
MPN: 004623729
RING
ANELLO X CENTRAGGIO GRUPPO MAG
from £125.62
from £125.62
# 038
MPN: N01020717
BOLT
BULL.M5X12 UNI 5739/SS
from £0.47
from £0.47
This part replaces part number 008100504
# 039
MPN: 006200503
NUT
DADO N/70/105M

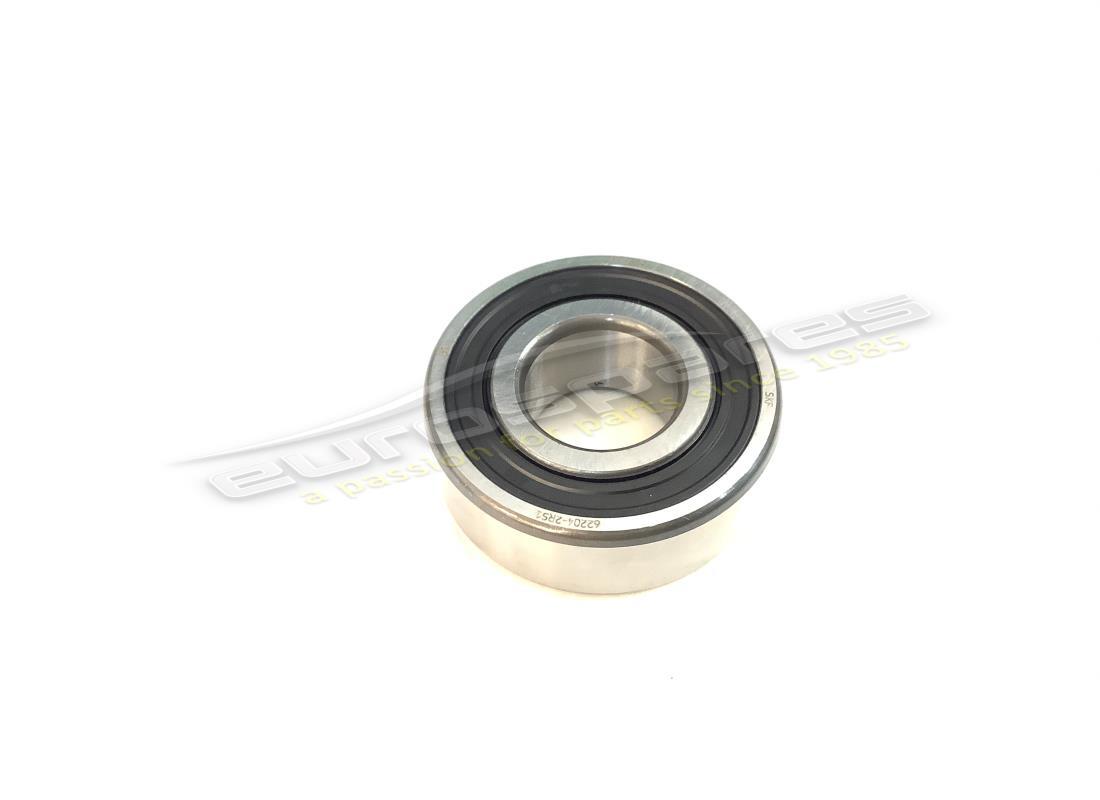

# 040
MPN: 008502010
BEARING
BEARING 62204-2RS1
from £159.60
from £159.60
# 041
MPN: 008575001
CIRCLIP
SEEGER AA 47 I
from £0.57
from £0.57
# 042
MPN: 004623732
BUSH
BOCCOLA SULL 'ALBERINO TENUTA C
from £28.71
from £28.71
# 043
MPN: 008251402
RING NUT
RING HERE 14X1
from £3.70
from £3.70
# 044
MPN: 008100514
SCREW
VITE FISSAGGIO ARRESTO
from £1.67
from £1.67
# 045
MPN: N0211963
NUT
DADO N/70/105M
from £0.53
from £0.53
# 046
MPN: 004622630
RETAINER
Fermo X giunto elettromagn.
from £60.02
from £60.02
# 047
MPN: 004623328
STOP
ARRESTO X GRUPPO MAGNET . FRIZ . C
from £266.97
from £266.97
# 048
MPN: 008101022
BOLT
BULL.M10X35 UNI 5737 1 0K
from £2.66
from £2.66
# 049
MPN: 008411005
WASHER
RONDEL. A10, 5 UNI 1751
from £0.53
from £0.53
# 050
MPN: 008401021
WASHER
WASHERS
from £1.67
from £1.67
# 051
MPN: 008401025
WASHER
RONDELLA
from £20.94
from £20.94

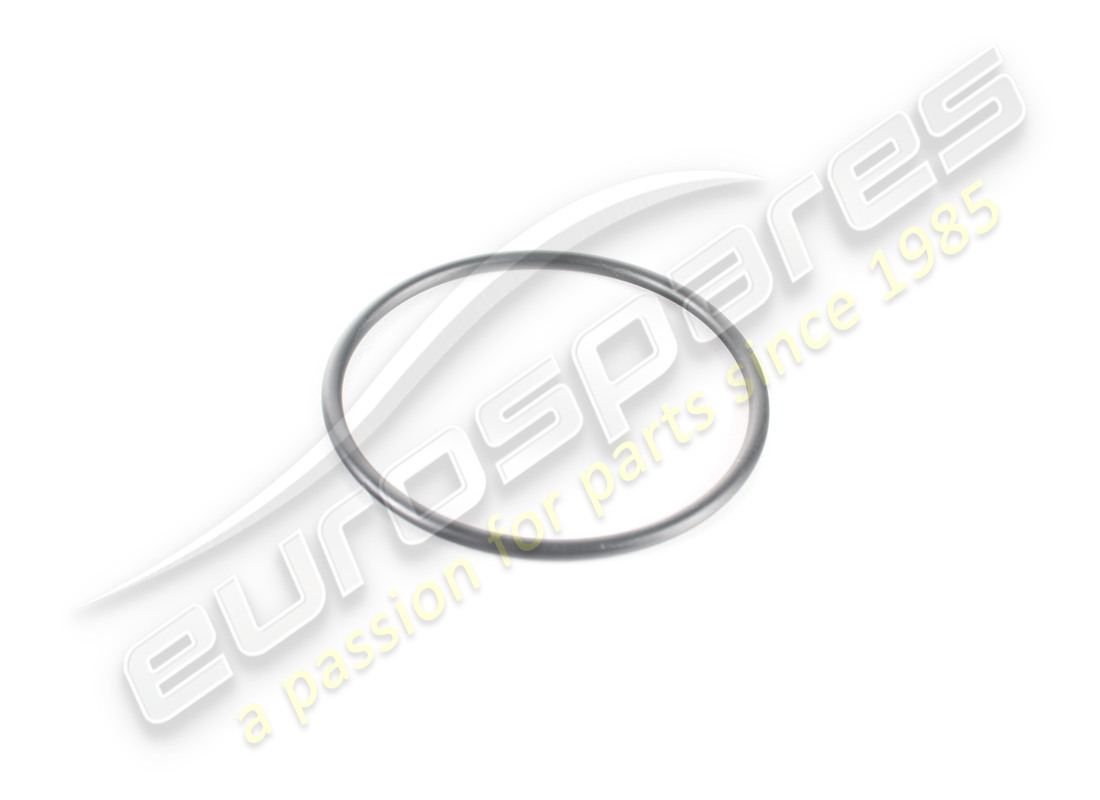

# 052
MPN: 008605001
O RING
ANELLO OR 3200
from £0.82
from £0.82
# 053
MPN: 001127028
OIL PLUG
TAPPO INTRODUZIONE OLIO
# 054
MPN: 001101401
OIL GASKET
GUARNIZ. X TAPPO INTRODUZ . OLIO
from £2.25
from £2.25
# 055
MPN: 004624278
MOUNTING
SUPP. POMPA ARIA
from £249.57
from £249.57
