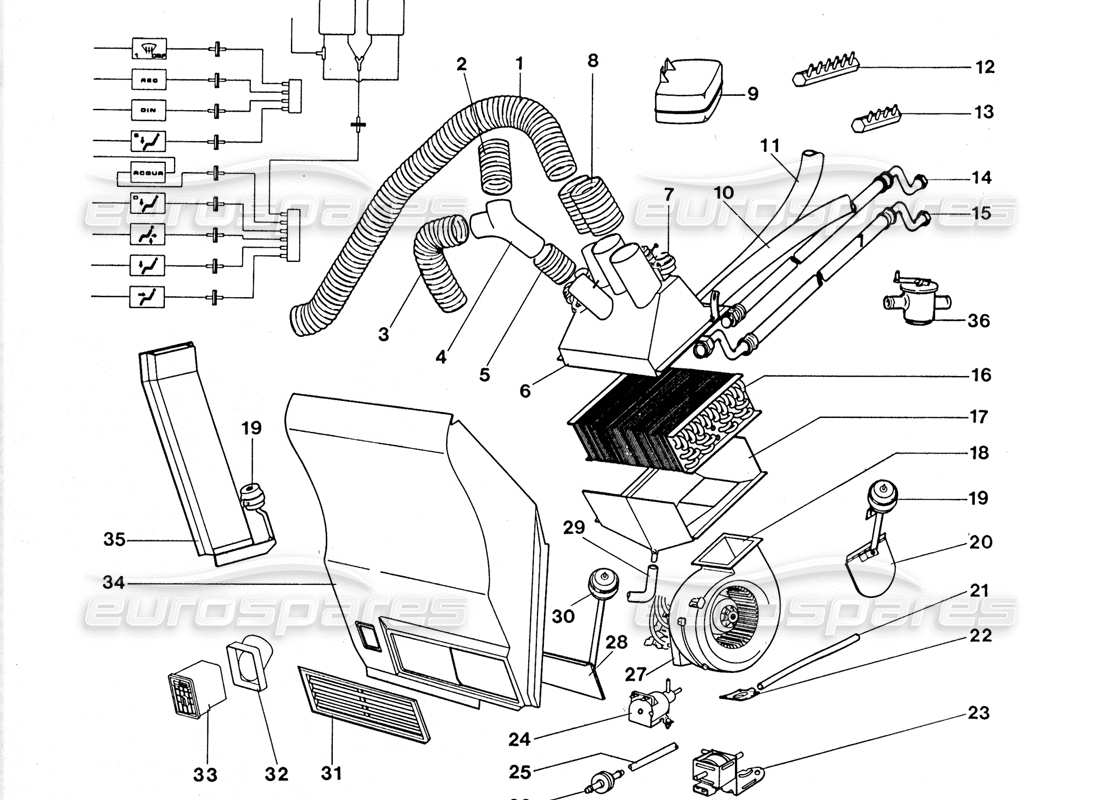

Lamborghini LM002 (1988) Air Conditioning Condesor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009240015
PIPE
TUBO MAND.ARIA POST.ABITAC.
# 002
MPN: 009240020
PIPE
TUBO DA 3 VIE A TEL.CRUSC.
# 003
MPN: 009240019
PIPE
TUBO DA 3 VIE A BOCCH . ANT . INF .
# 004
MPN: 009240018
T .UNION
3 VIE AL BOCCH. ANT . INF .
from £219.72
from £219.72
# 005
MPN: 009240016
COOLER
TUBO MAND.ARIA AL 3 VIE
# 006
MPN: 009240001
COOLER
COMPL .COP.PACCO RAD.
# 006
MPN: 009240014
PIPE
TUBO MAND.ARIA DEFROSTER
# 007
MPN: 007014137
ACTUATOR
ATTUATORI SOTTO BOCCH. DEF E
from £70.23
from £70.23
# 008
MPN: 009240013
PIPE
TUBO MAND.ARIA ANT.CENTR.
# 009
MPN: 001323406
Tank
SERBATOIO PER VUOTO ORIG.APE 1
from £28.65
from £28.65
# 010
MPN: 004725844
PIPE
TUBO DA RUBINETTO PNEUMAT . AL P
from £31.91
from £31.91
# 011
MPN: 004725845
PIPE
RUBI RADIANT PACKAGE TUBE
# 012
MPN: 009240040
MANIFOLD
4 WAY MANIFOLD
# 013
MPN: 009240041
MANIFOLD
6 WAY MANIFOLD
# 016
MPN: 009240047
COOLER
COMPL. PACCO RADIANTE EVAP.
# 017
MPN: 009240012
Sump
RACCOGL.COND. PACCO RAD.
# 018
MPN: 004724949
FANMOTOR
ELETT. COMPL. CHIOCC. VS. 004- A27-
from £264.89
from £264.89
# 019
MPN: 009240038
ACTUATOR
ATT . APERT .PORT . COND . ARIA
from £65.76
from £65.76
# 021
MPN: 009240024
PIPE
TUBO SCAR. COND. DA ELETTROV.
# 022
MPN: 009240039
SUPPORT
PIASTR.TUBO SCAR. COND.
# 023
MPN: 009240048
ELECTRIC VA
WATER SOLENOID VALVE
from £219.72
from £219.72
# 024
MPN: 004624010
SOLENOID
SOLENOIDE
from £140.55
from £140.55
# 025
MPN: 009240049
HOSE
TUBO IN GOMMA
# 026
MPN: 004621574
VALVE
VALVOLA D 3 VEAA CEK-VALVE
from £12.27
from £12.27
# 027
MPN: 009240042
SUPPORT
SUPPORtO SOLENOIDI
# 028
MPN: 009240045
DOOR
PORT.SU PANN.COPRICOND.
# 030
MPN: 009240043
ACTUATOR
ATT. AP. PORT. P ANN. COPRICOND.
from £152.15
from £152.15
# 031
MPN: 009253011
GRILLE
GRIGLIA PANN.COPRI CONDIZ.
from £140.55
from £140.55
# 032
MPN: 007014119
UNION
RACCORDI X BOCCHETTE ARIA SUI
from £187.39
from £187.39
# 033
MPN: 007014180
AIR INLET
BOCCHETTE ORIG. 211025
# 034
MPN: 009258031
PANEL
PARATIA COPRICONDIZ.
# 036
MPN: 004728452
TAP
TAP H36C-227B
