lamborghini lm002 (1988) front door parts diagram

104 - FRONT DOOR

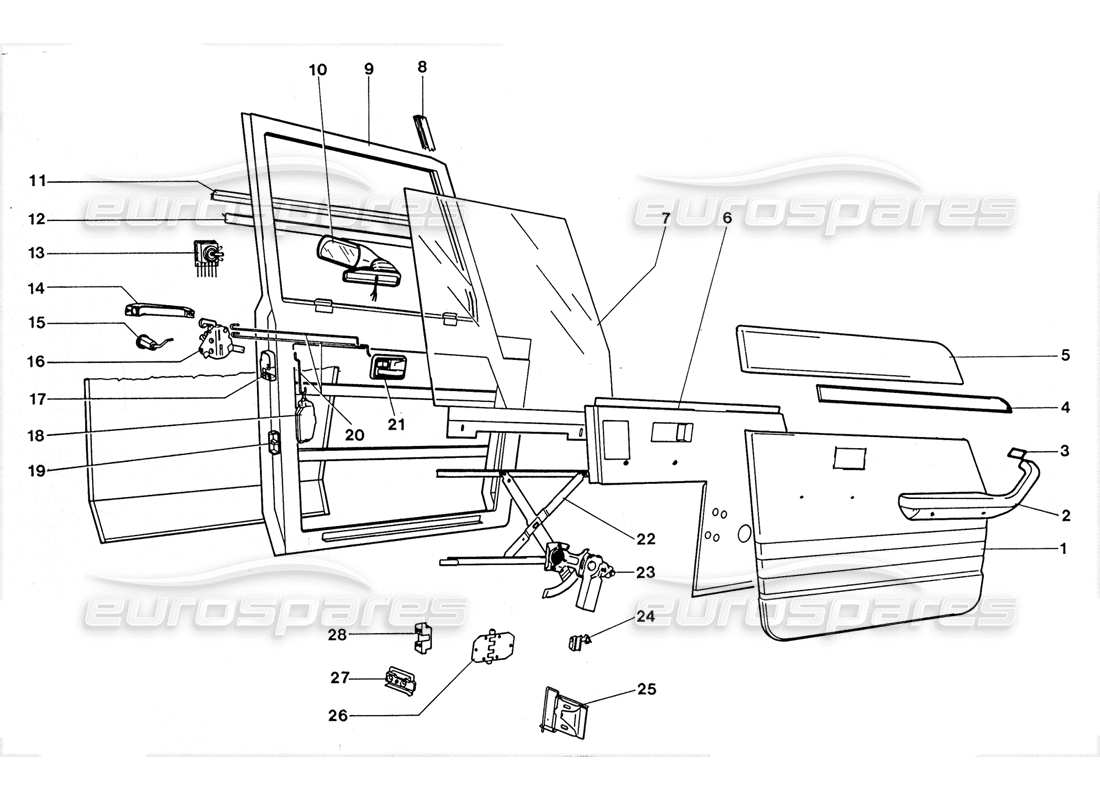

Lamborghini LM002 (1988) Front Door Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 009256011
    COVERING
    RIV.PARTE INF .MONT. PORTA OX
    # 001
    MPN: 009258012
    COVERING
    RIV.PARTE INF .MONT .PORTA EX
    # 002
    MPN: 009221029
    RH HANDLE
    MANIGLIA OX
    from £438.61
    from £438.61
    # 002
    MPN: 009221030
    LH HANDLE
    MANIGLIA SX
    from £438.61
    from £438.61
    # 003
    MPN: 009221031
    GASKET
    GUARNIZIONE DX
    from £252.88
    from £252.88
    # 003
    MPN: 009221032
    GASKET
    GUARNIZIONE SX
    from £252.88
    from £252.88
    # 004
    MPN: 009221027
    HOOD FRAME
    RIGHT WOODEN FRAME
    from £242.10
    from £242.10
    # 004
    MPN: 009221028
    HOOD FRAME
    CORNICE IN LEGNO SX
    from £242.10
    from £242.10
    # 005
    MPN: 009256010
    COVERING
    HIV.PARTE SUP. MONT. PORTA SX
    # 005
    MPN: 009258009
    COVERING
    RIVEST . BUP. MONT. PORTA DX
    from £156.51
    from £156.51
    # 006
    MPN: 009221012
    RH PANEL
    INTERNAL PANEL RIGHT DOOR
    from £443.58
    from £443.58
    # 006
    MPN: 009221013
    LH PANEL
    PANNELLO INTERNO PORTA BX
    from £1,102.72
    from £1,102.72
    # 007
    MPN: 009221022
    Door Glass
    CRISTALLO ANT.DES.
    from £410.41
    from £410.41
    # 007
    MPN: 009221023
    Door Glass
    CRISTALLO ANT. SIN.
    from £410.41
    from £410.41
    # 008
    MPN: 009221035
    CHANNEL
    PROFILE IN COMMA
    from £148.72
    from £148.72
    # 009
    MPN: 009221007
    Door Frame
    RIGHT DOOR STRUCTURE
    from £5,408.34
    from £5,408.34
    # 009
    MPN: 009221008
    Door Frame
    STRUTTURA PORTIERA SX
    from £5,144.63
    from £5,144.63
    # 010
    MPN: 006119374
    RH OUTER MIRROR
    from £1,327.05
    from £1,327.05
    # 010
    MPN: 006119375
    LH OUTER MIRROR
    # 011
    MPN: 009221036
    CHANNEL
    GUARNIZIONE X CRISTALLI ( EST]
    # 012
    MPN: 009221037
    CHANNEL
    GUARNIZIONE X CRISTALLI ( INT)
    # 013
    MPN: 006119118
    SWITCH
    INTERR.X VISION. 162.2.824
    from £545.97
    from £545.97
    # 014
    MPN: 009221044
    HANDLE
    MANIGLIA ESTERNA PORTA ANT.
    from £308.69
    from £308.69
    # 015
    MPN: 009221147
    DOOR LOOK
    SERftATURA PORTE ANT.LM
    # 016
    MPN: 009221049
    DOOR LOCK
    INTERNAL LOCKING OF RIGHT DOOR.
    from £216.17
    from £216.17
    # 016
    MPN: 009221050
    DOOR LOCK
    CHIUSURA INTERNA PORTA SX
    from £216.17
    from £216.17
    # 017
    MPN: 009221045
    DOOR LOCK
    EXTERNAL LOCKING OF THE RIGHT DOOR.
    from £306.77
    from £306.77
    # 017
    MPN: 009221046
    DOOR LOCK
    CHIUSURA ESTERNA PORTA SX .
    from £306.77
    from £306.77
    # 018
    MPN: 009221041
    ELECT. LOCK
    MOTORE CHIUSURA CENTR.
    from £438.61
    from £438.61
    # 019
    MPN: 009221034
    STRYKEH
    DOOR FEEDBACK
    from £131.42
    from £131.42
    # 020
    MPN: 009221040
    ROD
    TIE ROD ASSEMBLY
    from £219.72
    from £219.72
    # 021
    MPN: 009221038
    HANDLE
    INTERNAL RIGHT DOOR HANDLE.
    from £438.61
    from £438.61
    # 021
    MPN: 009221039
    HANDLE
    MANIGLIA INTERNA PORTA SX .
    from £438.61
    from £438.61
    # 022
    MPN: 009221018
    GLASS ELEV.
    DISPOS. ALZACRIST. PORTA DX.
    from £1,543.39
    from £1,543.39
    # 022
    MPN: 009221019
    GLASS ELEV.
    DISPOS.ALZACRIST. PORTA SX
    from £2,193.00
    from £2,193.00
    # 023
    MPN: 009221020
    ELEV. ENGINE
    MOTORE ELETTR. PORTA DX .
    # 023
    MPN: 009221021
    ELEV. ENGINE
    MOTORE ELETTR. PORTA SX .
    from £368.36
    from £368.36
    # 024
    MPN: 009221042
    SWITCH
    INTERRUTT. PORTA ANT.
    from £43.86
    from £43.86
    # 025
    MPN: 009221014
    STOP DOOR
    DOOR STOP
    # 026
    MPN: 009221009
    DOOR HINGE
    DOOR HINGE
    from £438.61
    from £438.61
    # 027
    MPN: 009221051
    STRYKER
    RISCONTRO PORTA ANT.DX.
    from £154.35
    from £154.35
    # 027
    MPN: 009221052
    STRYKER
    RISCONTRO PORTA ANT.SX.
    from £154.35
    from £154.35
    # 028
    MPN: 009221033
    STRYIKER
    RISCONTRO PORTA ANT.
    from £131.42
    from £131.42
