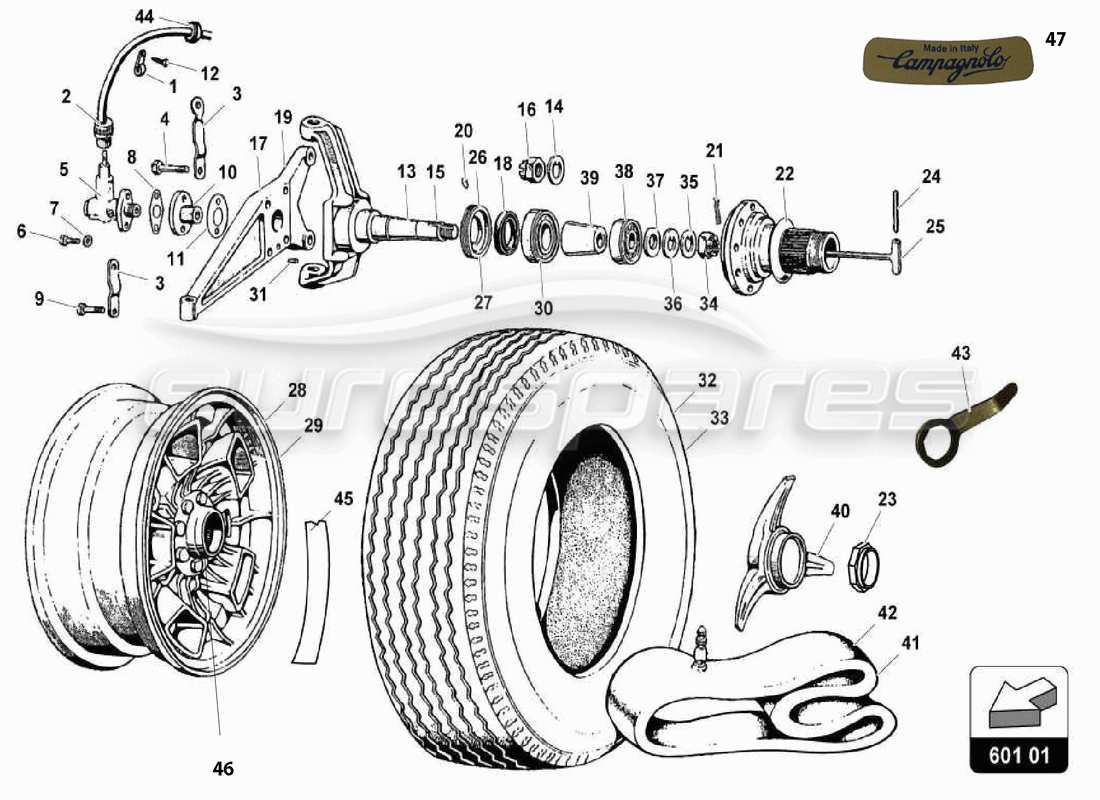

Lamborghini Miura P400 Tyres Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 005100548/A
RIGHT SUSPENSION KIT
(Valid For SV) Complete Without Levers
from £4,250.00
from £4,250.00
# 000
MPN: 005103780/A
LEFT SUSPENSION KIT (VALID FOR SV) COMPLETE WITHOUT LEVERS
# 002
MPN: 001101407
SPEED SENSOR CABLE
from £329.34
from £329.34
# 003
MPN: 008411003
LOCK PLATE
from £33.35
from £33.35
# 004
MPN: 008101019
SCREW M10X1.5X45 UNI 5737/
from £2.89
from £2.89
# 005
MPN: 005105332
ANGLE DRIVE (RHD MODEL)
# 005
MPN: 005106107
ANGLE DRIVE
from £695.00
from £695.00
# 006
MPN: 008700617
SCREW M6X18 UNI 5931/8G/Z
from £0.53
from £0.53
This part replaces part number 008700670
# 007
MPN: 008410602
WASHER 12X6.4X0.5 DIN 137/B
from £29.39
from £29.39
# 008
MPN: 005103782
ODOMETER RETURN SEAL
from £7.79
from £7.79
# 009
MPN: 008101022
SCREW ML10X.1.5X35 UNI 5737/
from £2.73
from £2.73
# 010
MPN: 005103259
ODOMETER CENTRING BUSHING
from £52.70
from £52.70
# 011
MPN: 005103781
GASKET
from £4.98
from £4.98

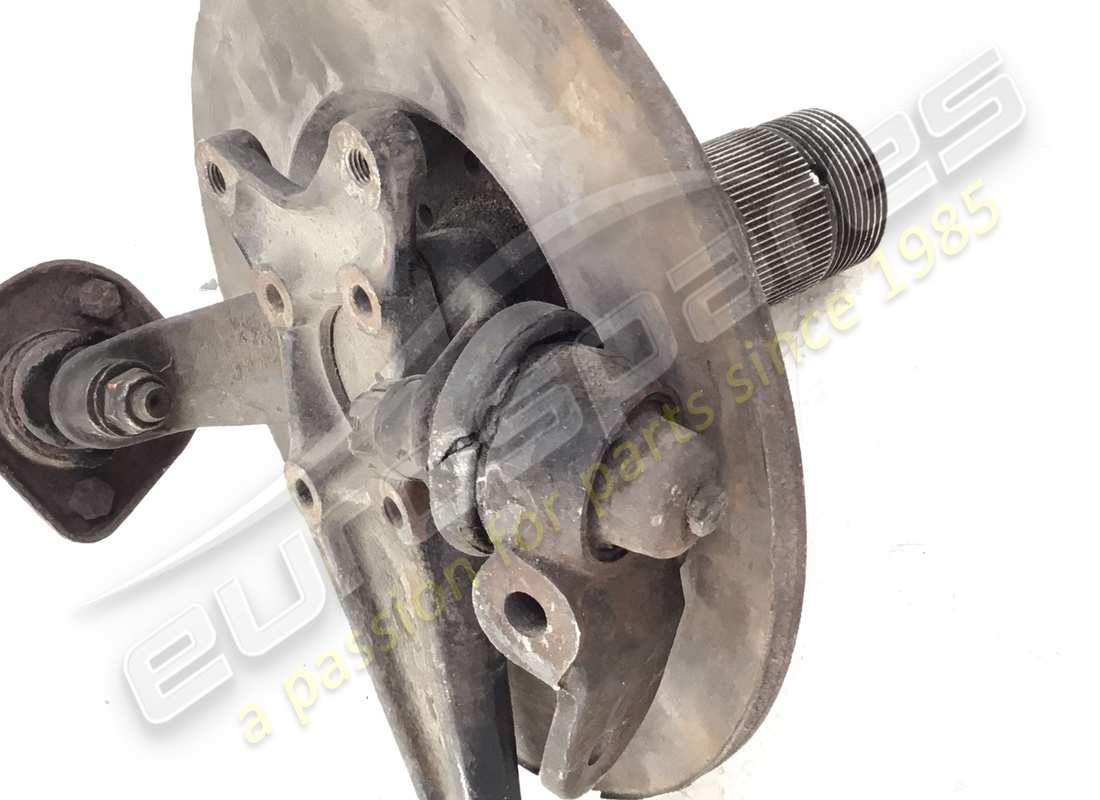

# 013
MPN: 005100548
RH WHEEL STUB AXLE
from £414.60
from £414.60
# 014
MPN: 008411802
LH WHEEL RETAINING WASHER
from £19.60
from £19.60
# 015
MPN: 005103780
LH WHEEL STUB AXLE
from £430.17
from £430.17
# 016
MPN: 008201809
M18X1.5 'UNI 5594/8G' NUT
from £11.95
from £11.95
# 017
MPN: 005102960
LH STEERING ARM
from £1,315.05
from £1,315.05
# 018
MPN: 008614001
OIL SEAL 40X52X7 MM
from £32.10
from £32.10
# 019
MPN: 005102961
RH WHEEL STEERING ARM
from £5,145.52
from £5,145.52
# 020
MPN: 008700505
SCREW ESLOK 5X10 8G 2384
from £3.78
from £3.78
# 021
MPN: 008820302
PIN
from £1.79
from £1.79
# 022
MPN: 005100702
RH FRONT HUB
from £1,809.32
from £1,809.32
This part replaces part number SA-00702
# 022
MPN: 005103779
LH FRONT HUB SHAFT
# 023
MPN: 005107164
LH THREADED NUT
from £744.22
from £744.22
# 023
MPN: 005107165
RH THREADED NUT
from £496.14
from £496.14
# 024
MPN: 008900601
ELASTIC PIN 6X55 DIN1481
from £0.54
from £0.54
# 025
MPN: 005103258
ODOMETER SHAFT
from £31.29
from £31.29
# 026
MPN: 005100965
LH FRONT HUB RING
from £104.39
from £104.39
# 027
MPN: 005100964
RH FRONT HUB RING
from £104.39
from £104.39

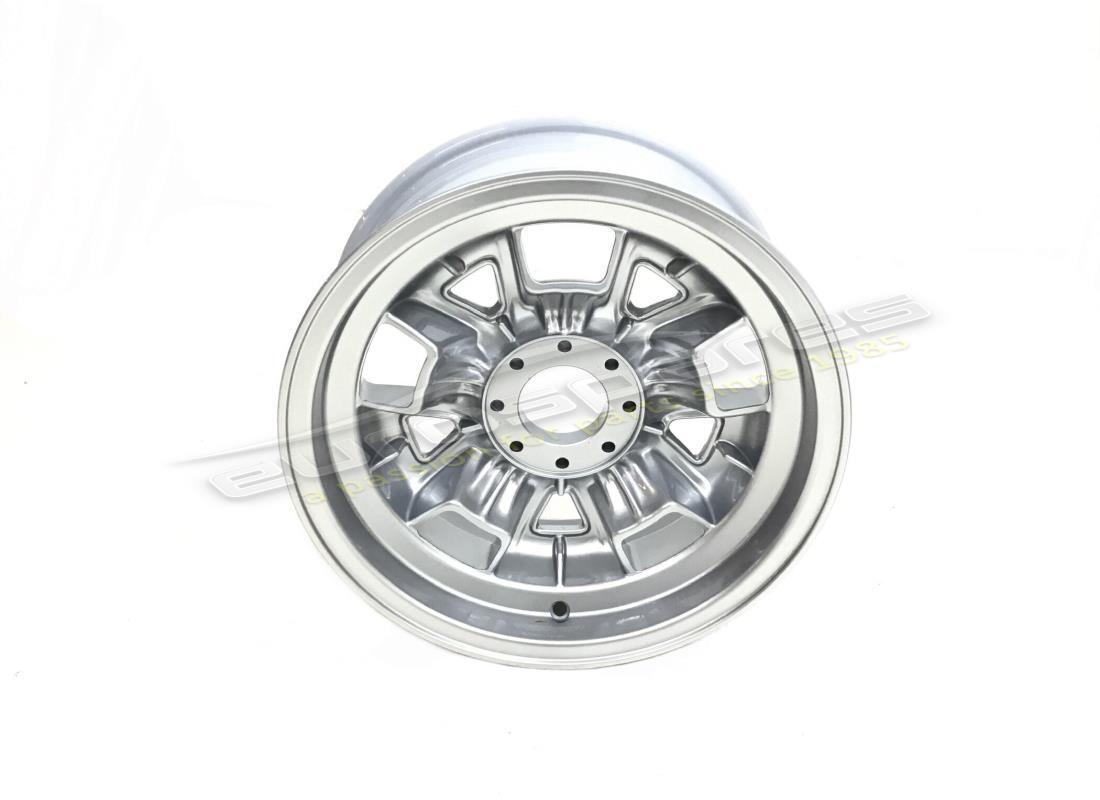

# 028
MPN: 005102997
WHEEL RIM
7 x 15 - Silver
from £1,500.00
from £1,500.00
# 028
MPN: 005108078G
FRONT WHEEL RIM
7½ x 15 - GOLD
# 028
MPN: 005207918G
REAR WHEEL RIM
9x15 - GOLD
from £1,884.75
from £1,884.75

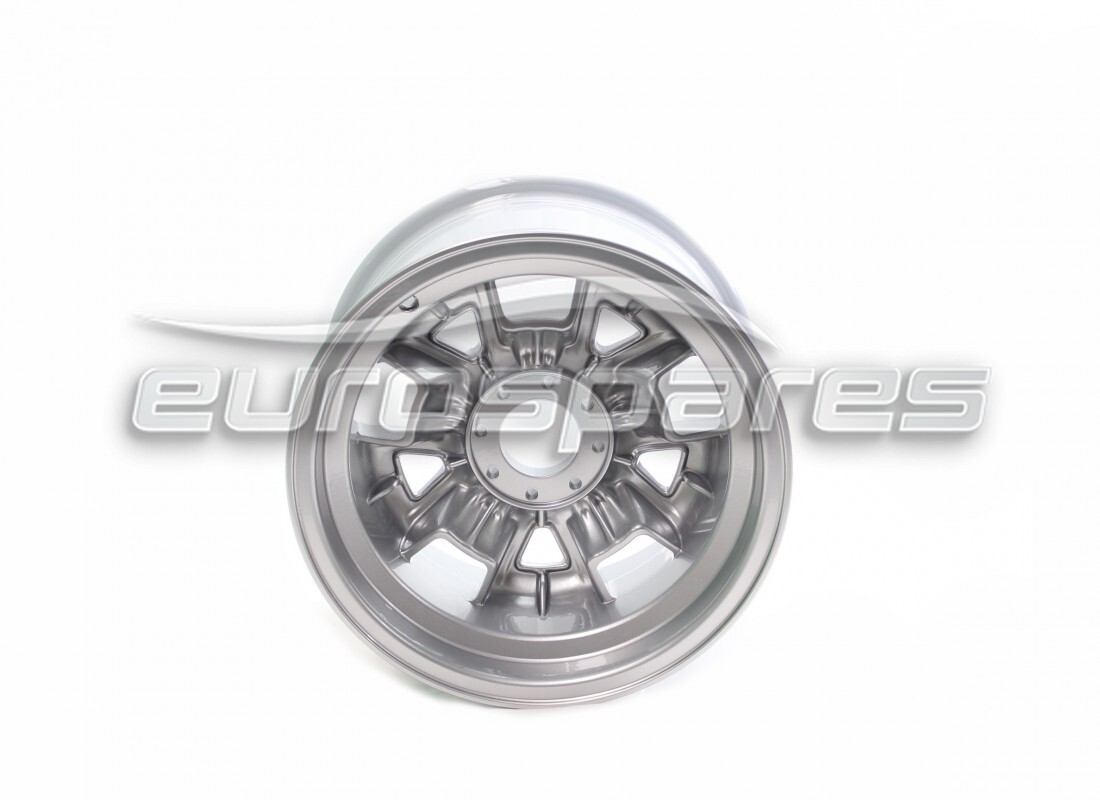

# 028
MPN: 005207918S
REAR WHEEL RIM
9x15 - Silver
from £1,695.00
from £1,695.00

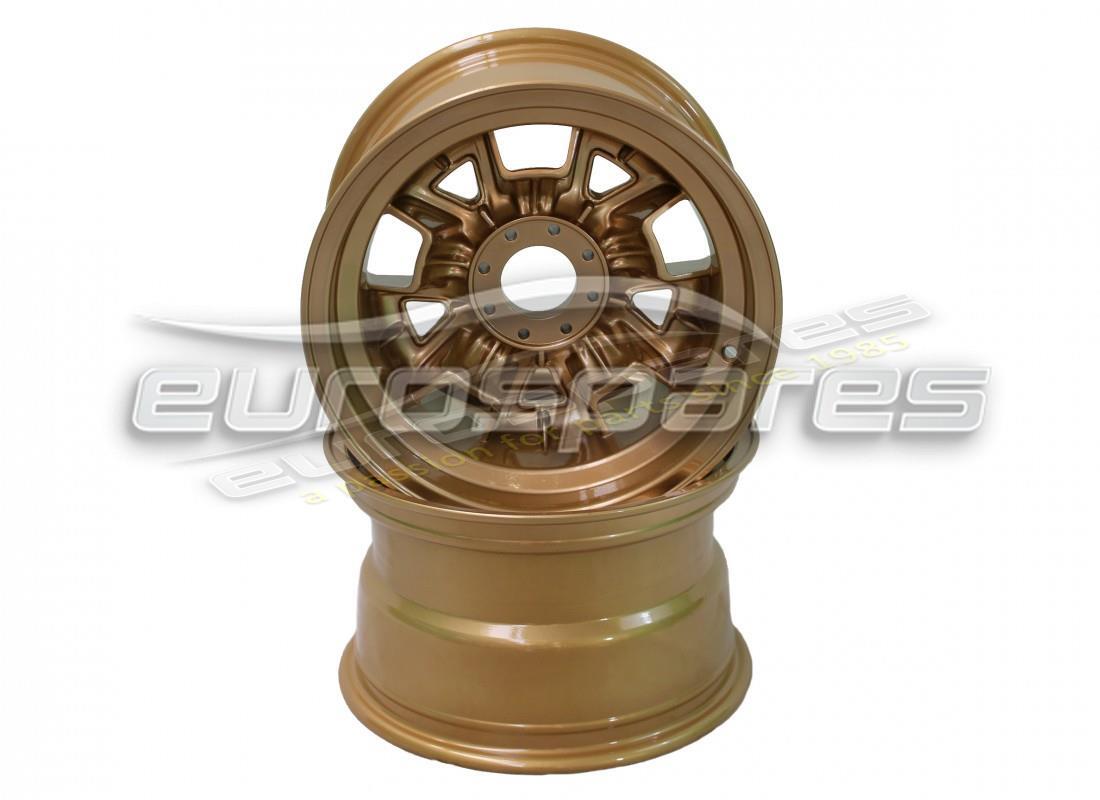

# 028
MPN: LWHE007
WHEEL SET SV - GOLD
Consisting of 2x Front Wheel Rim (7½ x 15 - 005108078G) and 2x Rear Wheel Rim (9 x 15 - 005207918G)
# 029
MPN: 005108078S
FRONT WHEEL RIM
7½ x 15 - Silver
from £1,395.00
from £1,395.00
# 029
MPN: LWHE008
WHEEL SET SV - SILVER
Consisting of 2x Front Wheel Rim (7½ x 15 - 005108078S) and 2x Rear Wheel Rim (9 x 15 - 005207918S)
# 029
MPN: LWHE010
WHEEL SET - P400
Consisting of 4x Wheel Rims (7x15 - 005102997)
# 030
MPN: 008503201
BEARING
from £1,009.47
from £1,009.47
# 031
MPN: 008850502
DOWEL 5X11 MM
from £3.78
from £3.78
# 032
MPN: 005201354
COPERTURA VETTURE U.S.A
# 033
MPN: 005201354
COPERTURA VETTURE U.S.A
# 034
MPN: 008201810
18X1.5 LEFT NUT
from £13.96
from £13.96
# 035
MPN: 008411802
WASHER
from £19.60
from £19.60
# 036
MPN: 008411801
SNAP RING 18.5X30X2.5
from £3.78
from £3.78
# 037
MPN: 008401807
WASHER 18.5X30X2.5
from £13.16
from £13.16
# 038
MPN: 008502004
see 008502010
from £73.45
from £73.45
# 039
MPN: 005100966
SPACER
from £53.11
from £53.11
# 040
MPN: 005103033
WHEEL WING NUT (TO BE USED ONLY FOR CONCOURSE AND EVENT)
Supersession
Supersession

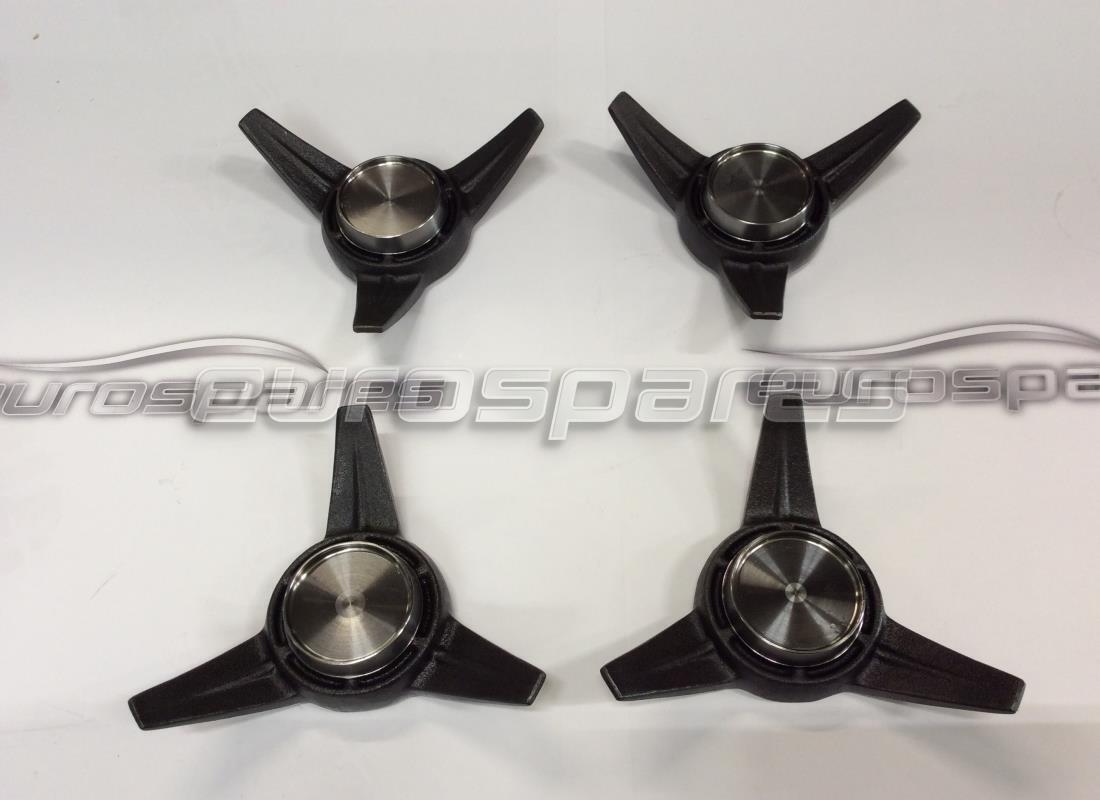

# 040
MPN: 005103033A
WHEEL SPINNER SET
(consists of 4x 005103033)
from £1,996.51
from £1,996.51
This part replaces part number 005103033
# 040
MPN: 005107164
LEFT WHEEL WING NUT (TO BE USED ON THE ROAD)
from £744.22
from £744.22
# 040
MPN: 005107165
RIGHT WHEEL WING NUT (TO BE USED ON THE ROAD)
from £496.14
from £496.14
# 041
MPN: 005301355
CAMERA 47S 15 SS
from £92.83
from £92.83
# 043
MPN: 006107166
WRENCH
from £248.26
from £248.26
# 044
MPN: 008611602
GRQMMET 16X25X1.5MM
from £9.02
from £9.02
# 045
MPN: 005201356
INNER TUBE SHIELD 1 51

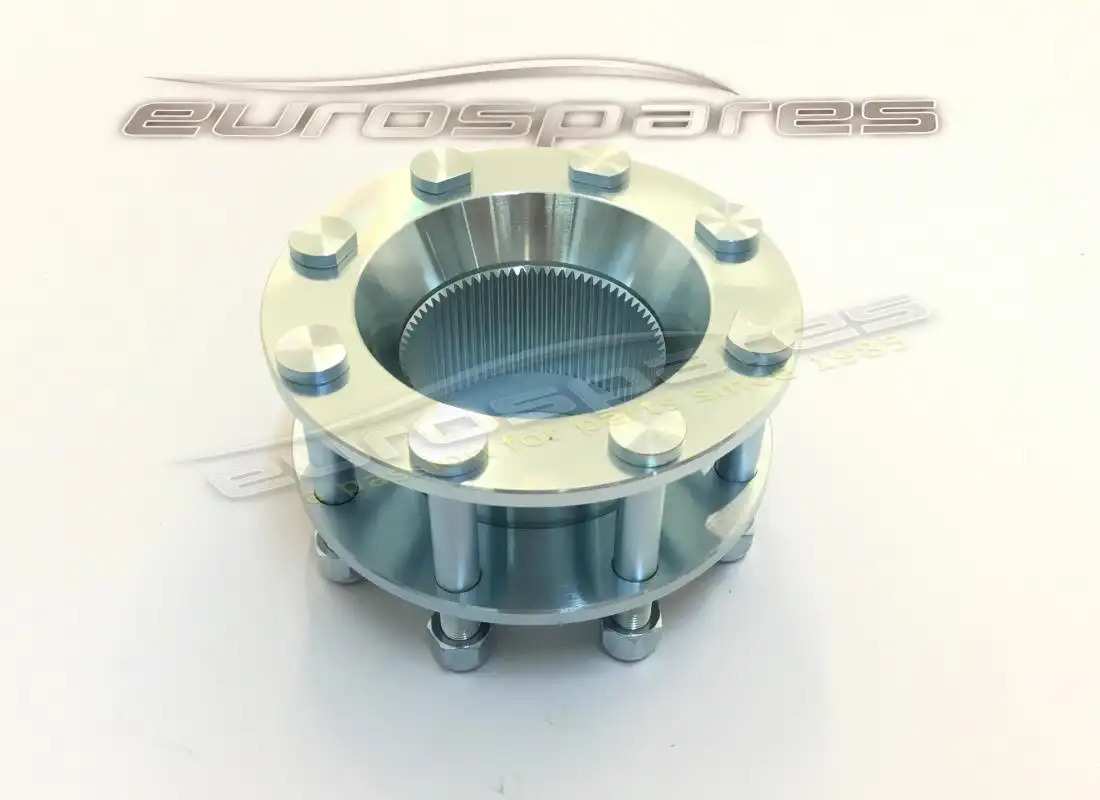

# 046
MPN: LWHUB001
SPLINED WHEEL HUB
from £395.00
from £395.00
# 047
MPN: LST001
CAMPAGNOLO WHEEL STICKER
GOLD
from £4.20
from £4.20
