032 - BODY

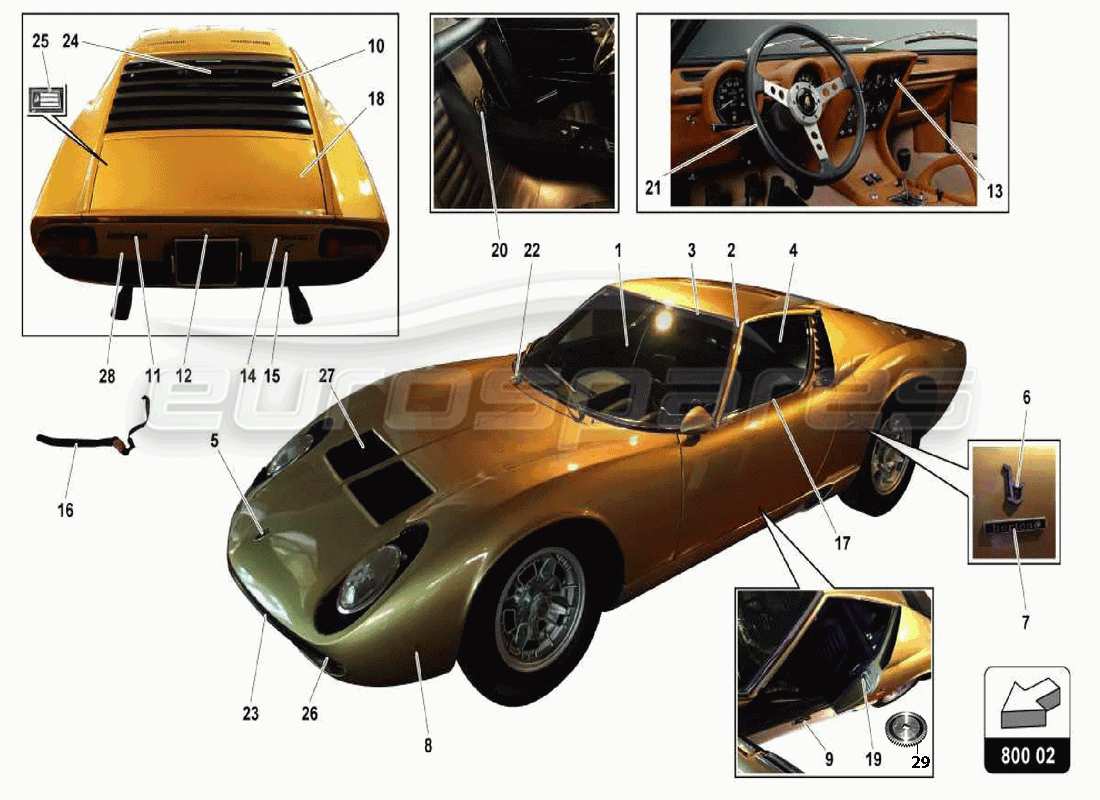

Lamborghini Miura P400 Body Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
-
DUCT
# 000
MPN: 001129098

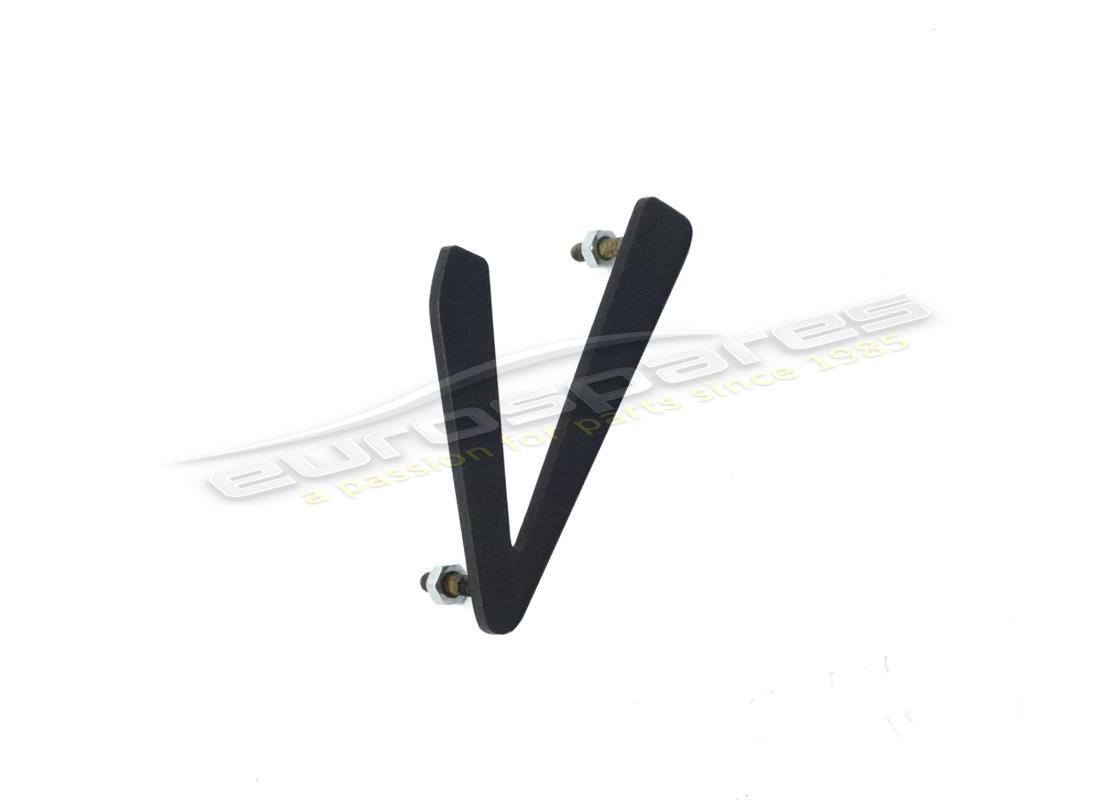

V badge
in black
from £40.43
from £40.43
# 000
MPN: 001876623

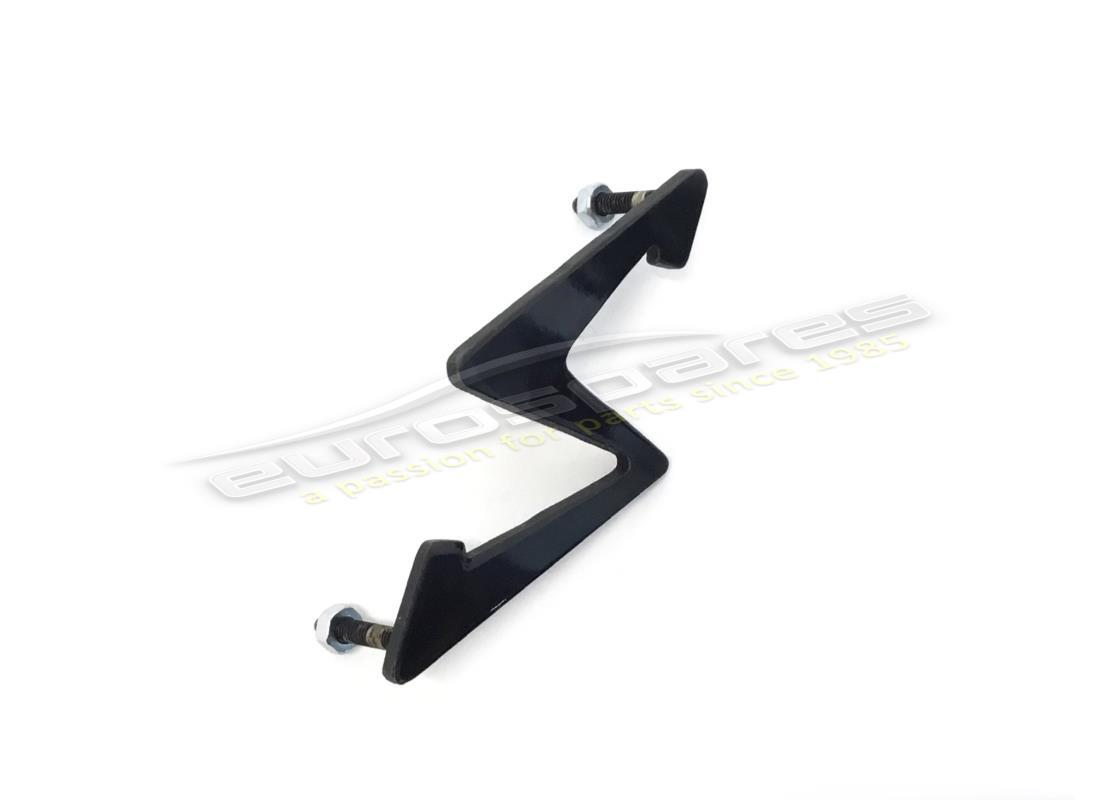

S BADGE
in black
from £44.63
from £44.63
# 000
MPN: LSCR001

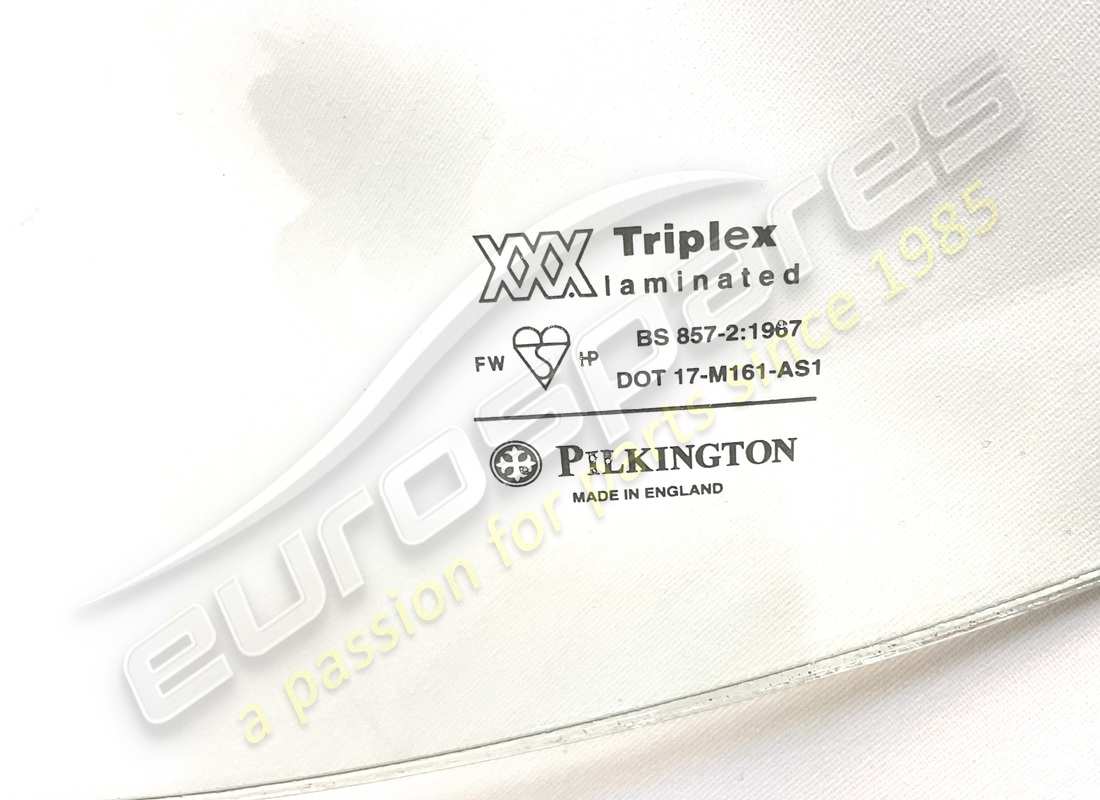

FRONT SCREEN
from £1,895.00
from £1,895.00
# 001
MPN: 006009016
Windscreen 'sv
# 001
MPN: 006515050
LIGHT BLUE WINDSCREEN BAND (PARABREZZA FASCIA AZZURRATA)
from £2,699.62
from £2,699.62
# 001
MPN: LSCR002
FRONT SCREEN (GREEN TINT)
from £1,304.34
from £1,304.34
# 002
MPN: 0065151500
WINDSCREEN FRAME
from £2,726.25
from £2,726.25
# 003
MPN: 14300100
FRONT SCREEN RUBBER
from £467.48
from £467.48
# 003
MPN: 14300100
WINDSCREEN SEAL
from £467.48
from £467.48
# 004
MPN: 006121268
RH DOOR BLUE GLASS (VETRO DESTRO)
from £695.64
from £695.64
# 004
MPN: 006121269
LH DOOR BLUE GLASS (VETRO SINISTRO)
from £695.64
from £695.64
# 004
MPN: 006521268
RHS DOOR GLASS (5 HOLE TYPE)
from £3,644.26
from £3,644.26
# 004
MPN: 006521269
LHS DOOR GLASS (3 HOLE TYPE)
from £1,252.20
from £1,252.20
# 004
MPN: 008635249852
RHS DOOR GLASS (3 HOLES)
from £1,252.20
from £1,252.20
# 005
MPN: 006102515
BONNET BADGE
from £585.95
from £585.95
This part replaces part number 006119379
# 006
MPN: 006790058
SIDE'S 'B' BERTONE NAME PLATE
from £70.96
from £70.96
# 007
MPN: 006790060
PLATE BERTONE FOR SIDE PART
from £61.95
from £61.95
# 007
MPN: 006790061
BERTONE BADGE
(Early Model)
from £50.93
from £50.93
# 008
MPN: 006744060
TURNING SIGNAL LAMP
from £20.30
from £20.30
# 009
MPN: 006138700
PAIR OF KICKPLATES
# 010
MPN: 006517010
YELLOW GLASS
from £869.56
from £869.56
# 011
MPN: 006105532
Lamborghini BLACK PLATE
from £139.70
from £139.70
# 012
-
REAR BONNET LOCK
# 013
MPN: 006007489
see 006009166
from £476.37
from £476.37
# 013
MPN: 006009133
GREEN LIGHT OIL PRESSURE GAUGE
from £695.00
from £695.00
# 014
MPN: 006590070
MIURA NAME PLATE
from £332.68
from £332.68
# 015
MPN: 006101271
V PLATE
# 015
MPN: 006106008
S BLACK BADGE
from £44.63
from £44.63
# 015
MPN: 006106009
S CHROME BADGE
from £78.75
from £78.75
# 015
MPN: 006106569
CHROME S PLATE
from £101.37
from £101.37
# 016
-
BELT
# 017
MPN: 006921122
INTERNAL BEL WATER SCRAPER
from £75.38
from £75.38
# 018
MPN: 006510348
REAR UNDERBODY HALF
from £2,956.84
from £2,956.84
# 019
-
MATCHING PART
# 021
MPN: 006004394
ODOMETER
# 021
MPN: 006005401
ODOMETER MPH
# 022
MPN: 009220016
WINDSCREEN WIPER MOTOR
# 023
MPN: 006563022
FRONT BUMPER
from £2,495.00
from £2,495.00
# 024
MPN: 006101525
MIURAPLATE
from £139.86
from £139.86
# 024
MPN: 006917010
YELLOW GLASS
# 026
MPN: 006590160
FRONT BUMPER (PLASTICA PRIMA SERIE)
from £1,193.36
from £1,193.36
# 026
MPN: 006590161
REAR BUMPER (FERRO ULTIMA SERIE)
from £1,290.42
from £1,290.42
# 027
MPN: 006530094
LH BONNET GRILLE
from £884.88
from £884.88
# 028
MPN: 006563122
REAR BUMPER
# 029
MPN: 001125490

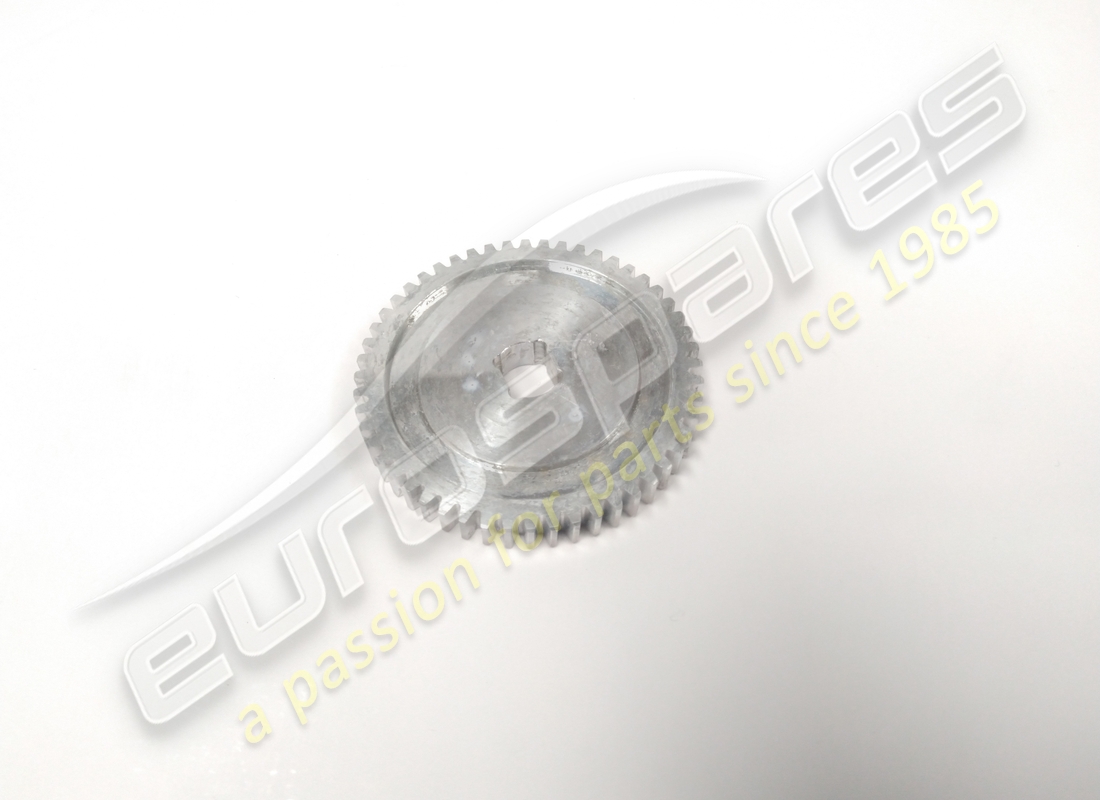

DOOR MECHANISM GEAR
from £99.75
from £99.75
