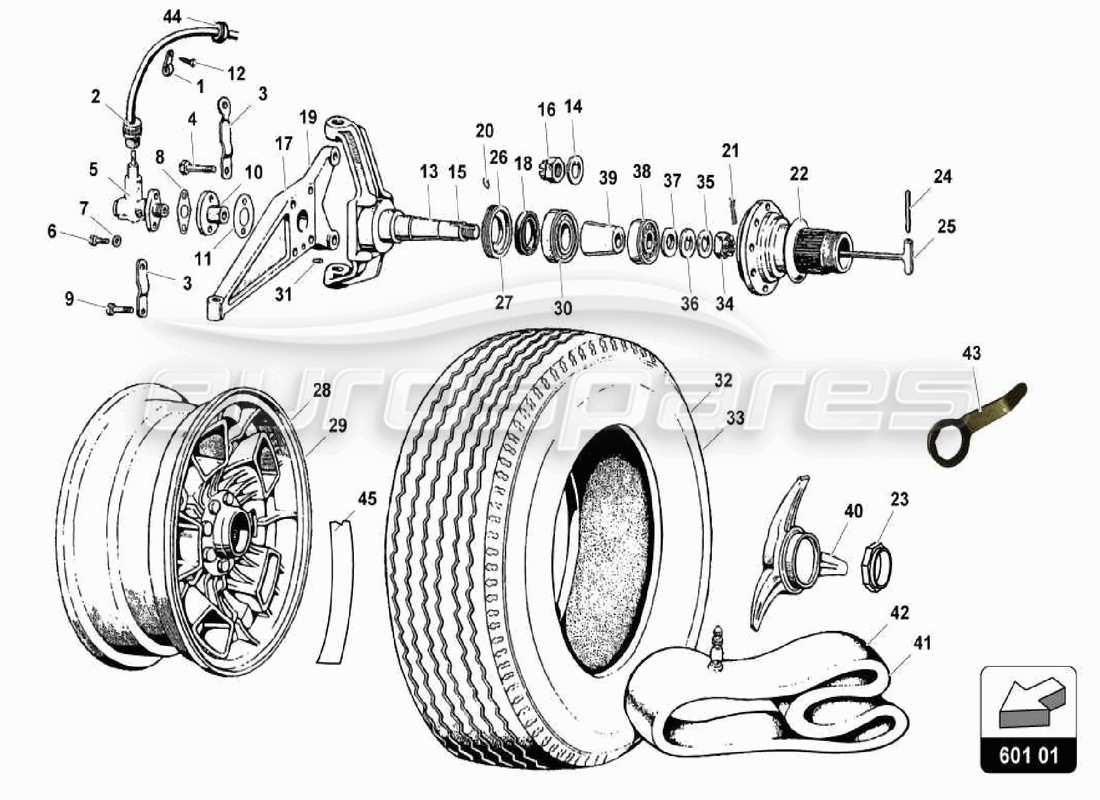

Lamborghini Miura P400S Tyres Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008830112
PIPE CLAMP
from £84.82
from £84.82
# 002
MPN: 005104351
ODOMETER WIRE
from £267.77
from £267.77
# 003
MPN: 008411003
LOCK PLATE
from £33.35
from £33.35
# 004
MPN: 008101019
SCREW M10X1.5X45 UNI5737/
from £2.89
from £2.89
# 005
MPN: 005106107

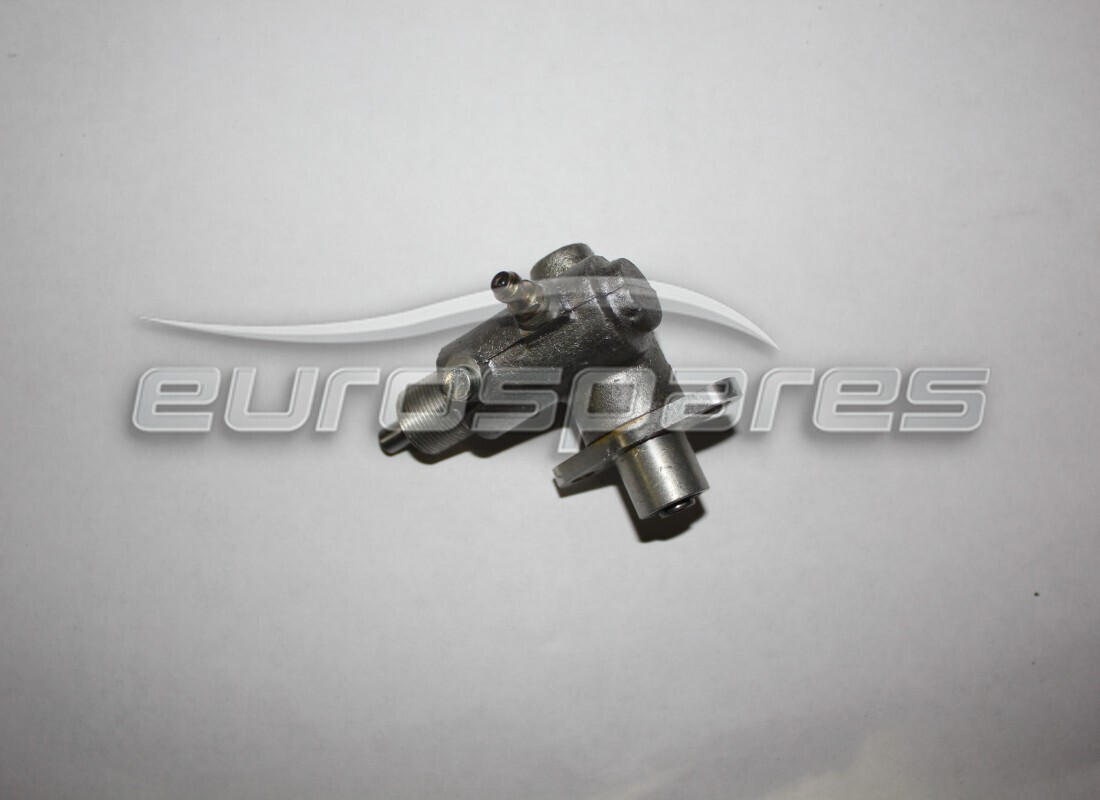

ANGLE DRIVE
from £695.00
from £695.00
# 006
MPN: 008700617
SCREW M6X18 UNI 5931/8G/Z
from £0.53
from £0.53
This part replaces part number 008700670
# 007
MPN: 008410602
WASHER 12X6.4X0.5 DIN 137/B
from £29.39
from £29.39
# 008
MPN: 005103782
ODOMETER RETURN SEAL
from £7.79
from £7.79
# 009
MPN: 008101022
SCREW M10X1.5X35 UNI5737/
from £2.73
from £2.73
# 010
MPN: 005103259
ODOMETER CENTRING BUSHING
from £52.70
from £52.70
# 011
MPN: 005103781
GASKET
from £4.98
from £4.98
# 012
MPN: 008700506
SCREW KNIP 4.8X16DIN7971 BLACK STEEL
from £0.52
from £0.52
# 013
MPN: 005100548
RH WHEEL STUB AXLE
from £414.60
from £414.60
# 014
MPN: 0084118001
WASHER
# 015
MPN: 005103780
LH WHEEL STUB AXLE
from £430.17
from £430.17
# 016
MPN: 008201809
M18X1.5 'UNI 5594/8G' NUT
from £11.95
from £11.95
# 017
MPN: 005102960
LH WHEEL STEERING ARM
from £1,315.05
from £1,315.05
# 018
MPN: 008614001
OIL SEAL 40X52X7 MM
from £32.10
from £32.10
# 019
MPN: 005102961
RH WHEEL STEERING ARM
from £5,145.52
from £5,145.52
# 020
MPN: 008700505
SCREW ESLOK 5X10 8G 2384
from £3.78
from £3.78
# 021
MPN: 008820302
SPLIT PINN 3.7X30 UNI 1336A
from £1.79
from £1.79
# 022
MPN: 005100702
RH FRONT HUB
from £1,809.32
from £1,809.32
This part replaces part number SA-00702
# 022
MPN: 005103779
LH FRONT HUB SHAFT
# 023
MPN: 005107164
LH THREADED NUT
from £744.22
from £744.22
# 023
MPN: 005107165
RH THREADED NUT
from £496.14
from £496.14
# 024
MPN: 008900601

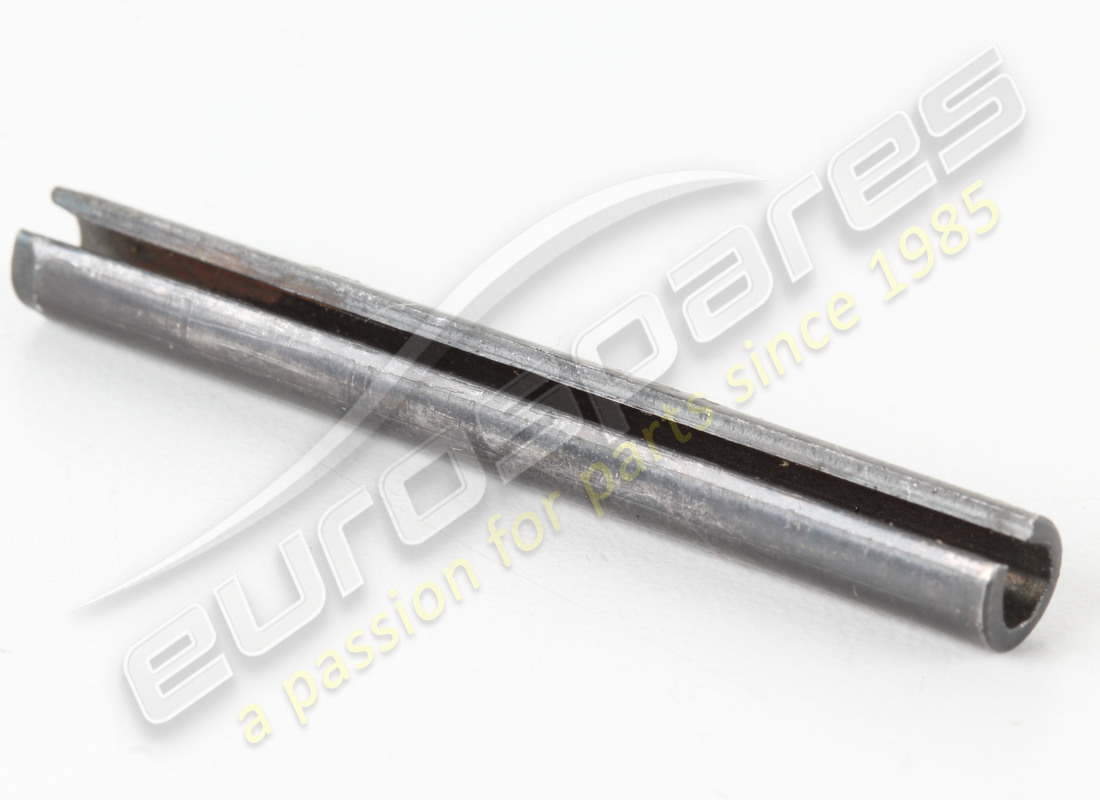

ELASTIC PIN 6X55 DIN1481
from £0.54
from £0.54
# 025
MPN: 005103258
ODOMETER SHAFT
from £31.29
from £31.29
# 026
MPN: 005100965

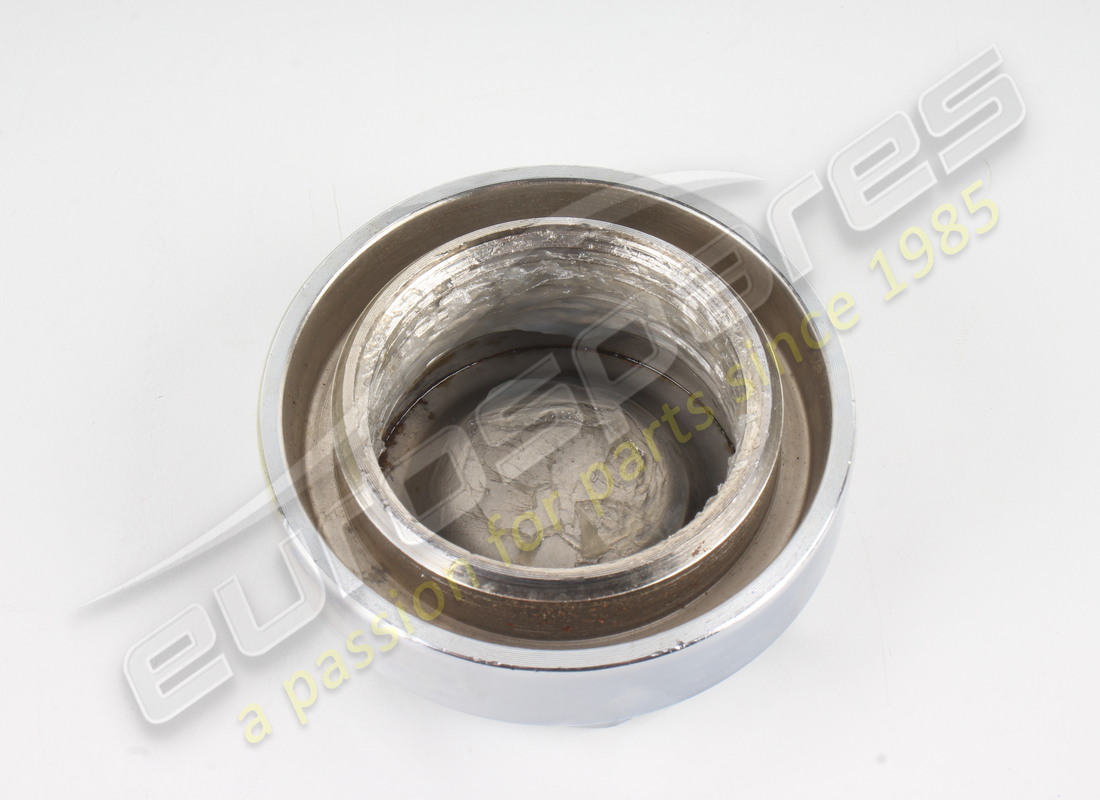

LH FRONT HUB RING
from £104.39
from £104.39
# 027
MPN: 005100964
RH FRONT HUB RING
from £104.39
from £104.39
# 028
MPN: 005102997

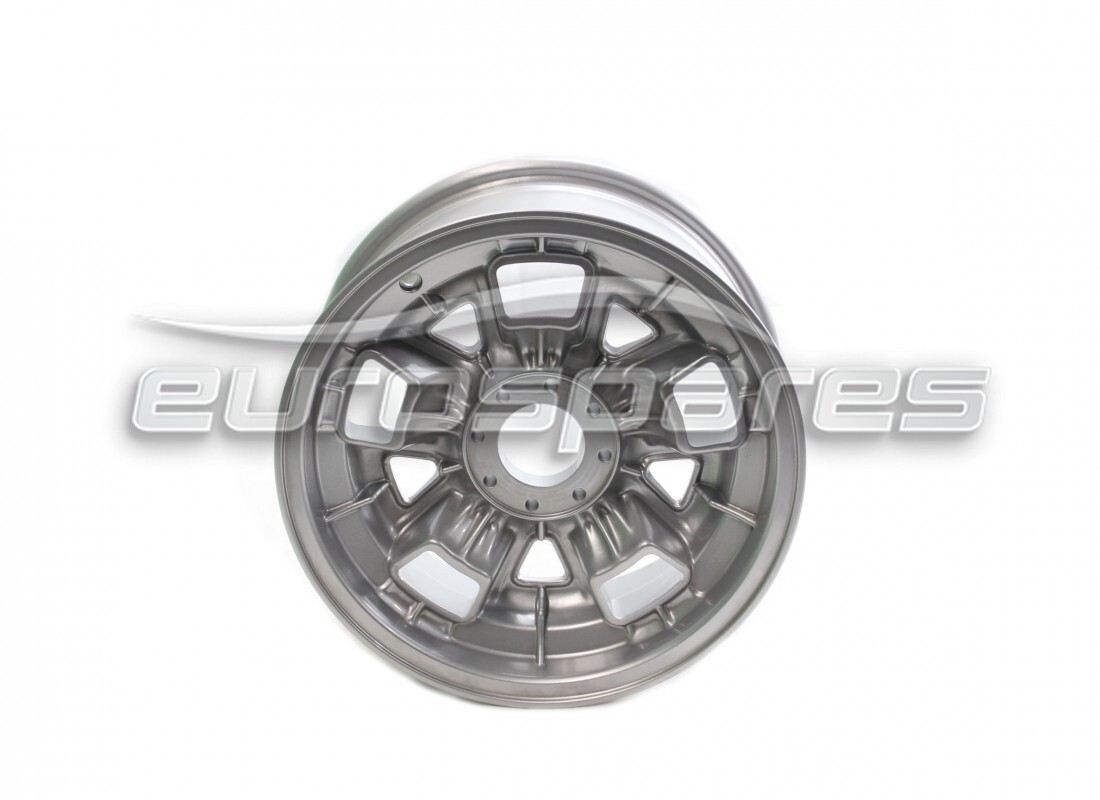

FRONT WHEEL RIM
from £1,500.00
from £1,500.00
# 029
MPN: 005102997

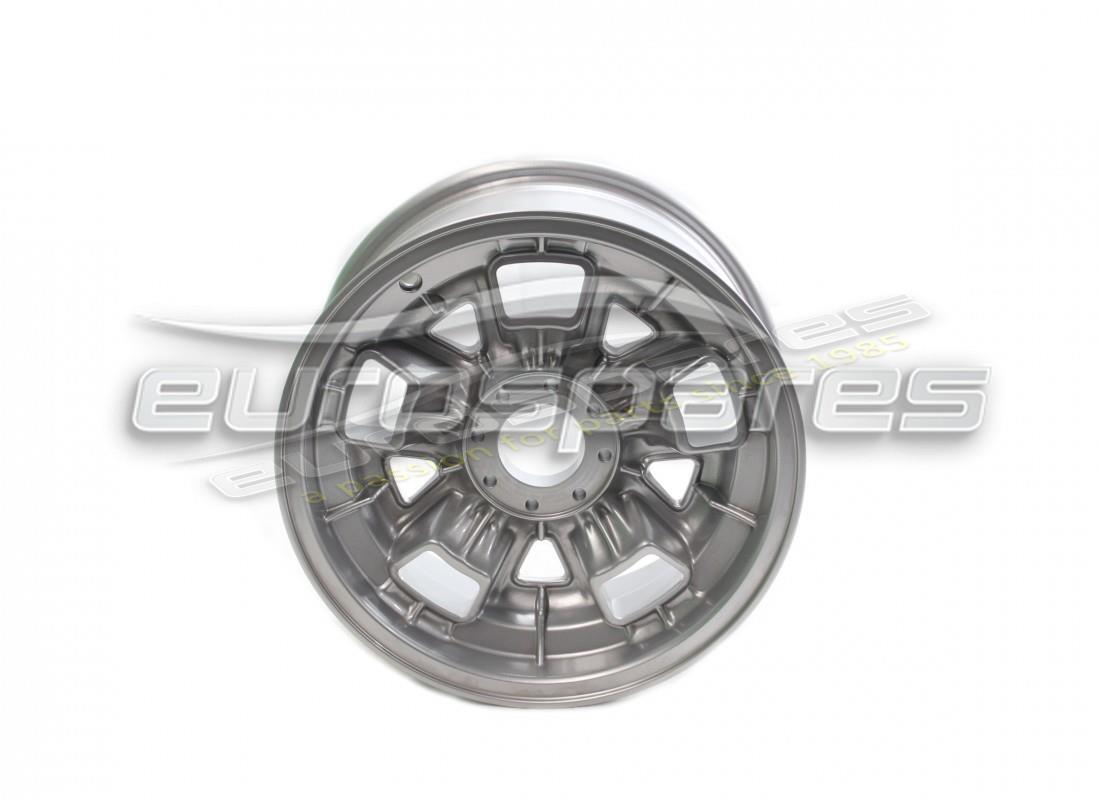

FRONT WHEEL RIM
from £1,500.00
from £1,500.00
# 030
MPN: 008503201
BEARING
from £1,009.47
from £1,009.47
# 031
MPN: 008850502
DOWEL 5X11 MM
from £3.78
from £3.78
# 032
MPN: 005201354
COPERTURA VETTURE U.S.A
# 033
MPN: 005201354
COPERTURA VETTURE U.S.A
# 034
MPN: 008201810
18X1.5 LEFT NUT
from £13.96
from £13.96
# 035
MPN: 008411802
LH WHEEL RETAINING WASHER
from £19.60
from £19.60
# 036
MPN: 008411801
SNAP RING 18.5X30X2.5
from £3.78
from £3.78
# 037
MPN: 008401807
WASHER 18.5X30X2.5
from £13.16
from £13.16
# 038
MPN: 008502004
see 008502010
from £73.45
from £73.45
# 039
MPN: 005100966
SPACER
from £53.11
from £53.11
# 040
MPN: 005103033
WHEEL WING NUT (TO BE USED ONLY FOR CONCOURSE AND EVENT)
Supersession
Supersession
# 040
MPN: 005107164
LEFT WHEEL WING NUT (TO BE USED ON THE ROAD)
from £744.22
from £744.22
# 040
MPN: 005107165
RIGHT WHEEL WING NUT (TO BE USED ON THE ROAD)
from £496.14
from £496.14
# 041
MPN: 005301355
CAMERA 47S 15 SS
from £92.83
from £92.83
# 043
MPN: 006107166
WRENCH
from £248.26
from £248.26
