lamborghini lp640 coupe (2007) chassis (self-level. system) front parts diagram

412.01.00 - CHASSIS (SELF-LEVEL. SYSTEM) FRONT

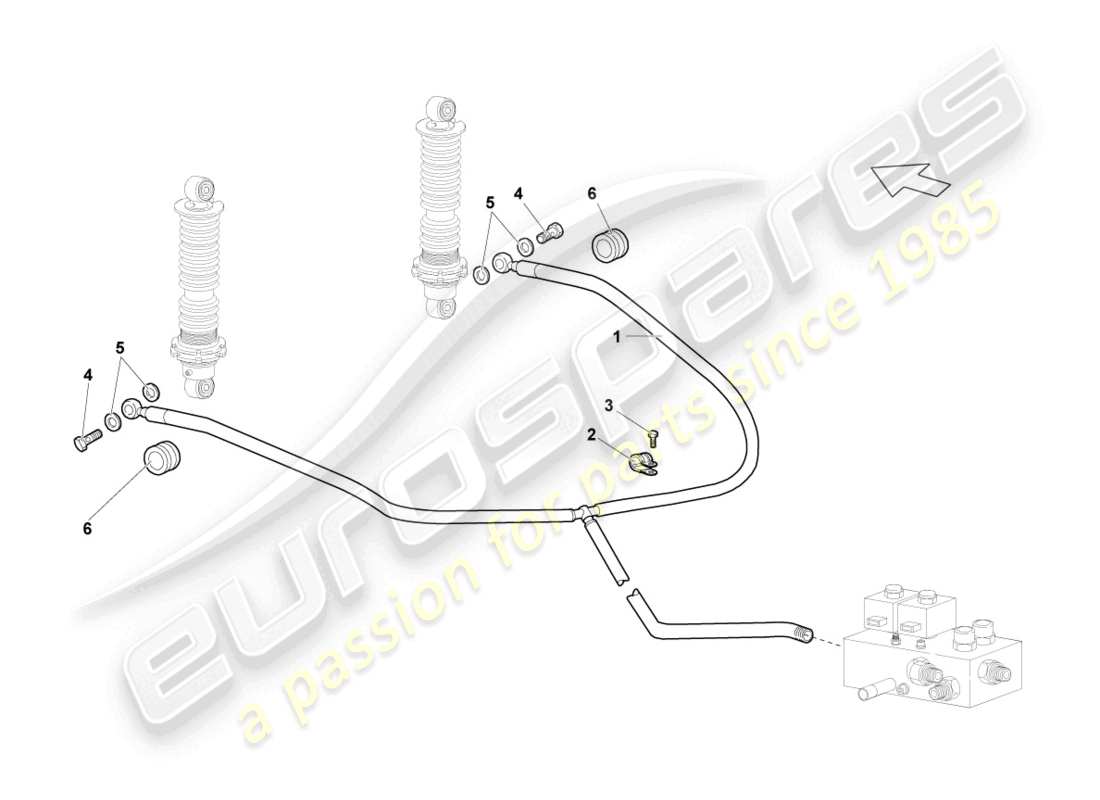

Lamborghini LP640 Coupe (2007) CHASSIS (SELF-LEVEL. SYSTEM) FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 410616733B
        PRESSURE HOSE
        from £540.40
        from £540.40
        # 002
        MPN: N0206026
        CLAMP
        15X15
        from £1.11
        from £1.11
        # 003
        MPN: 008700614
        OVAL SOCKET HEAD BOLT WITH HEX DRIVE
        M6X16
        Supersession
        Supersession
        # 004
        MPN: WHT000861
        BANJO BOLT
        Supersession
        Supersession
        # 005
        MPN: 400616817A
        SEAL RING
        10,7X16X1,5 (EUROPE, UK spec vehicles)
        from £1.82
        from £1.82
        # 006
        MPN: 400820287
        GROMMET
        from £5.85
        from £5.85
