lamborghini lp640 coupe (2010) sound absorbers parts diagram

825.04.00 - SOUND ABSORBERS

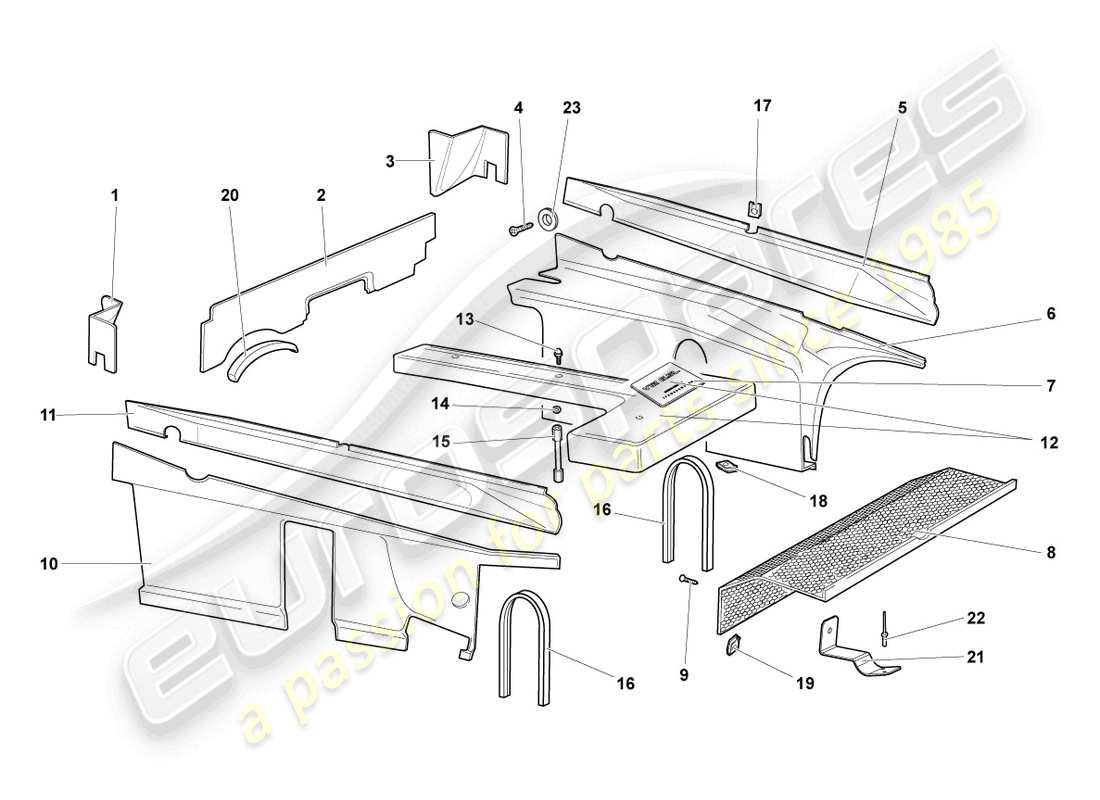

Lamborghini LP640 Coupe (2010) SOUND ABSORBERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 418103781A
HEAT SHIELD
LEFT (EUROPE, UK spec vehicles)
from £354.40
from £354.40
PARAT.VERN.LAT.SXLUNOTT.L.MOT. Genuine Lamborghini - New (to order)
PARAT.VERN.LAT.SXLUNOTT.L.MOT. Genuine Lamborghini - Used In stock
PARAT.VERN.LAT.SXLUNOTT.L.MOT. Genuine Lamborghini - New (other) In stock
NEW OLD STOCK WITH SCRATCHES
# 002
MPN: 418103747A
HEAT SHIELD
E-GEAR-FRONT CENTER (EUROPE, UK spec vehicles)
from £577.50
from £577.50
SHIELD Genuine Lamborghini - New (to order)
SHIELD Genuine Lamborghini - Used In stock
CARBON FIBRE
# 002
MPN: 418103747B
HEAT SHIELD
MANUAL GEARBOX-FRONT CENTER (EUROPE, UK spec vehicles)
from £1,062.73
from £1,062.73
SHIELD Genuine Lamborghini - New (to order)
# 003
MPN: 418103555A
HEAT SHIELD
RIGHT (EUROPE, UK spec vehicles)
from £354.40
from £354.40
SHIELD Genuine Lamborghini - New (to order)
SHIELD Genuine Lamborghini - Used In stock
SHIELD Genuine Lamborghini - New (other) In stock
NEW OLD STOCK WITH SCRATCHES
# 004
MPN: N0902661
PANEL SCREW
ST4,2X13 (EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 005
MPN: 418103730A
HEAT SHIELD
RIGHT (EUROPE, UK spec vehicles)
from £816.42
from £816.42
SHIELD Genuine Lamborghini - New (to order)
SHIELD Genuine Lamborghini - Used In stock
SHIELD Genuine Lamborghini - New (other) In stock
# 006
MPN: 418103729B
HEAT SHIELD
RIGHT LOWER (EUROPE, UK spec vehicles)
from £1,254.78
from £1,254.78
SHIELD Genuine Lamborghini - New In stock
SHIELD Genuine Lamborghini - Used In stock
SHIELD Genuine Lamborghini - New (other) In stock
NEW OLD STOCK WITH SCRATCHES
# 007
-
EMBLEM
(EUROPE, UK spec vehicles)
# 007
MPN: 07M103115G
EMBLEM
(EUROPE, UK spec vehicles)
from £280.58
from £280.58
PLATE Genuine Lamborghini - New (to order)
# 008
MPN: 418864878
VENT GRILLE
REAR (EUROPE, UK spec vehicles)
from £473.95
from £473.95
GRID Genuine Lamborghini - New (to order)
# 009
MPN: N0902661
PANEL SCREW
ST4,2X13 (EUROPE, UK spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: N10621601
HEX SOCKET OVAL HEAD COLLARED
M4X12 (EUROPE, UK spec vehicles)
from £1.47
from £1.47
HEXALOBULAR SOCKETM4X12 Genuine Lamborghini - New In stock
HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
# 010
MPN: 418103754B
HEAT SHIELD
LEFT LOWER (EUROPE, UK spec vehicles)
from £1,254.78
from £1,254.78
SHIELD Genuine Lamborghini - New (to order)
SHIELD Genuine Lamborghini - Used In stock
CARBON
SHIELD Genuine Lamborghini - New (other) In stock
NEW OLD STOCK WITH SCRATCHES
# 011
MPN: 418103753A
HEAT SHIELD
LEFT (EUROPE, UK spec vehicles)
from £682.50
from £682.50
SHIELD Genuine Lamborghini - New In stock
SHIELD Genuine Lamborghini - Used In stock
CARBON FIBRE
SHIELD Genuine Lamborghini - New (other) In stock
NEEDS TO BE LACQUERED
# 012
-
COVER
(EUROPE, UK spec vehicles)
# 012
MPN: 07M103926N
COVER
(EUROPE, UK spec vehicles)
from £735.00
from £735.00
COVER, ENGINE Genuine Lamborghini - New (to order)
COVER, ENGINE Genuine Lamborghini - Used In stock
CARBON FIBRE
COVER, ENGINE Genuine Lamborghini - New (other) In stock
OLD STOCK WITH SCRATCHES
# 013
MPN: N90842903
HEX SOCKET HEAD COLLARED BOLT
M6X12 (EUROPE, UK spec vehicles)
from £0.73
from £0.73
SCREW Genuine Lamborghini - New In stock
HEX SOCKET HEAD COLLARED BOLT Genuine Porsche Part - New (to order)
# 015
-
SECURING ELEMENT
(EUROPE, UK spec vehicles)
# 015
MPN: 07M103728B
SECURING ELEMENT
(EUROPE, UK spec vehicles)
from £40.72
from £40.72
SUPPORT Genuine Lamborghini - New (to order)
# 016
MPN: 410103121
SEAL
(EUROPE, UK spec vehicles)
from £55.54
from £55.54
GASKET Genuine Lamborghini - New (to order)
# 017
MPN: N0154523
SPEED NUT
(EUROPE, UK spec vehicles)
from £0.51
from £0.51
This part replaces part number N154523
SPEED NUT Genuine Lamborghini - New (to order)
# 019
MPN: WHT003383
SPEED NUT
4,2X24,5X11 (EUROPE, UK spec vehicles)
from £9.55
from £9.55
This part replaces part number 008220505
SPEED NUT Genuine Lamborghini - New (to order)
# 020
MPN: 410103727
SEAL
(EUROPE, UK spec vehicles)
from £31.00
from £31.00
GASKET Genuine Lamborghini - New (to order)
# 021
MPN: 410813988
BRACKET
(EUROPE, UK spec vehicles)
from £5.45
from £5.45
WIRE NET BRACKET MUFFLER COVER Genuine Lamborghini - New (to order)
# 022
MPN: 410809864
RIVET
(EUROPE, UK spec vehicles)
from £0.51
from £0.51
RIVET 4X8,5 AT ROUND T. Genuine Lamborghini - New In stock
# 023
MPN: N90531001
WASHER
5,5X16X2 (EUROPE, UK spec vehicles)
from £0.68
from £0.68
WASHER Genuine Lamborghini - New In stock
