lamborghini lp640 roadster (2008) dashboard parts diagram

919.01.00 - DASHBOARD

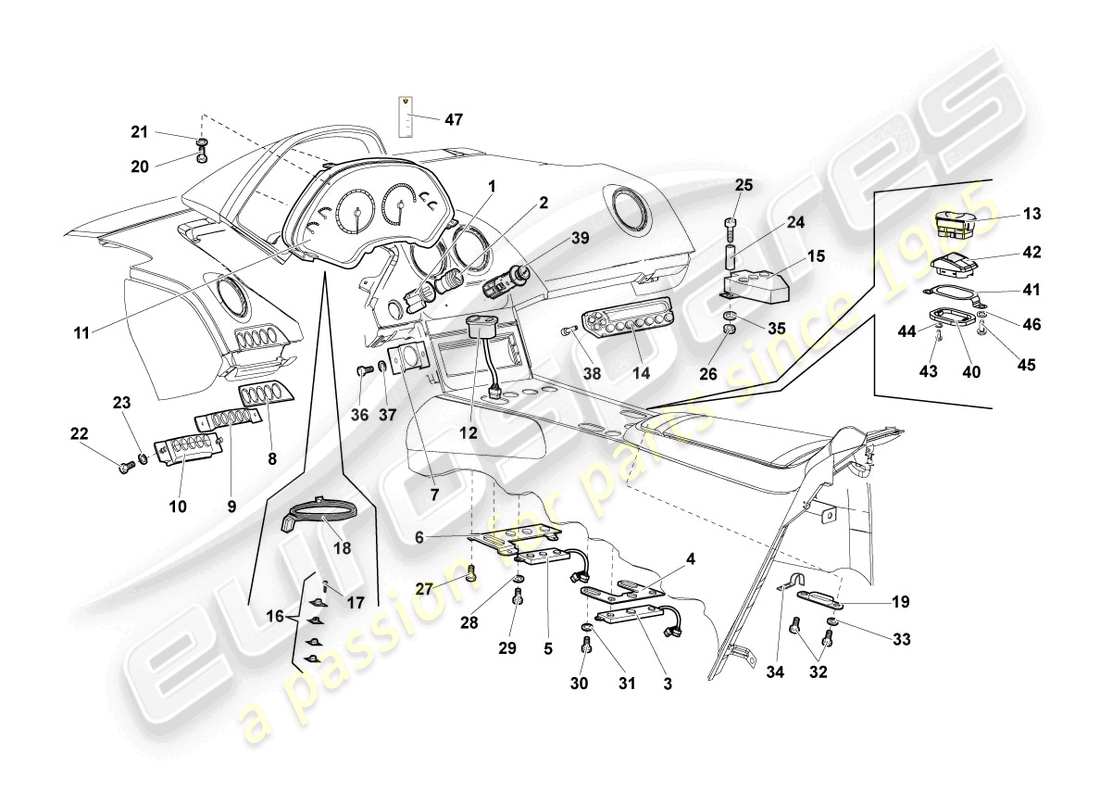

Lamborghini LP640 Roadster (2008) DASHBOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 410857529
                              SUPPORT WITH SOCKET
                              from £55.68
                              from £55.68
                              CAR LIGHTER FRAME Genuine Lamborghini - New In stock
                              # 002
                              MPN: 410919307
                              CLAMPING SLEEVE WITH LED
                              from £26.25
                              from £26.25
                              CAR LIGHTER Genuine Lamborghini - New In stock
                              CAR LIGHTER Genuine Lamborghini - Used In stock
                              WITH BRACKET
                              # 003
                              MPN: 417927127A
                              CONTROL PANEL WITH PUSHBUTTONS
                              from £998.67
                              from £998.67
                              SWITCH Genuine Lamborghini - New (to order)
                              # 004
                              MPN: 417858092
                              TRIM FOR SWITCH MODULE
                              MANUAL GEARBOX
                              from £549.92
                              from £549.92
                              Frame Genuine Lamborghini - New (to order)
                              # 004
                              MPN: 417858092A
                              TRIM FOR SWITCH MODULE
                              E-Gear
                              from £230.64
                              from £230.64
                              Frame Genuine Lamborghini - New (to order)
                              Frame Genuine Lamborghini - Used In stock
                              # 005
                              MPN: 413927143A
                              CONTROL PANEL WITH PUSHBUTTONS
                              (EUROPE, USA spec vehicles)
                              from £195.41
                              from £195.41
                              SWITCH BOARD Genuine Lamborghini - New (to order)
                              # 005
                              MPN: 414927143A
                              CONTROL PANEL WITH PUSHBUTTONS
                              (UK spec vehicles)
                              from £256.80
                              from £256.80
                              SWITCH BOARD Genuine Lamborghini - New (to order)
                              # 006
                              MPN: 417858091
                              TRIM FOR SWITCH MODULE
                              (EUROPE, USA spec vehicles)
                              from £243.01
                              from £243.01
                              Frame Genuine Lamborghini - New (to order)
                              Frame Genuine Lamborghini - Used In stock
                              # 006
                              MPN: 417858091A
                              TRIM FOR SWITCH MODULE
                              (UK spec vehicles)
                              from £459.13
                              from £459.13
                              Frame Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 410858023
                              BRACKET
                              from £40.12
                              from £40.12
                              BRACKET Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 413863365A
                              TRIM FOR SWITCH MODULE
                              CARBON INTERIOR DARK (EUROPE, USA spec vehicles)
                              from £1,179.38
                              from £1,179.38
                              TRIM Genuine Lamborghini - New In stock
                              TRIM Genuine Lamborghini - Used In stock
                              # 008
                              MPN: 413863365B
                              TRIM FOR SWITCH MODULE
                              CARBON INTERIOR DARK (EUROPE, USA spec vehicles)
                              from £683.07
                              from £683.07
                              TRIM Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 413863365C
                              TRIM FOR SWITCH MODULE
                              KLAVIERLACK INTERIOR (EUROPE, USA spec vehicles)
                              from £711.61
                              from £711.61
                              TRIM Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 413864147
                              TRIM FOR SWITCH MODULE
                              (EUROPE, USA spec vehicles)
                              from £71.10
                              from £71.10
                              Frame Genuine Lamborghini - New (to order)
                              Frame Genuine Lamborghini - Used In stock
                              # 008
                              MPN: 414863365A
                              TRIM FOR SWITCH MODULE
                              CARBON INTERIOR DARK (UK spec vehicles)
                              from £2,144.32
                              from £2,144.32
                              TRIM Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 414863365B
                              TRIM FOR SWITCH MODULE
                              CARBON INTERIOR LIGHT (UK spec vehicles)
                              from £623.42
                              from £623.42
                              TRIM Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 414863365C
                              TRIM FOR SWITCH MODULE
                              KLAVIERLACK INTERIOR (UK spec vehicles)
                              from £711.61
                              from £711.61
                              TRIM Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 414864147
                              TRIM FOR SWITCH MODULE
                              (UK spec vehicles)
                              from £129.27
                              from £129.27
                              SWITCHBOARD FRAME Genuine Lamborghini - New In stock
                              # 009
                              MPN: 413864107
                              BRACKET FOR SWITCH
                              (EUROPE, USA spec vehicles)
                              from £165.97
                              from £165.97
                              SWITCHBOARD FASTENING BRACKET Genuine Lamborghini - New (to order)
                              SWITCHBOARD FASTENING BRACKET Genuine Lamborghini - Used In stock
                              # 009
                              MPN: 414864107
                              BRACKET FOR SWITCH
                              (UK spec vehicles)
                              from £299.18
                              from £299.18
                              BRACKET Genuine Lamborghini - New (to order)
                              # 010
                              MPN: 413941567
                              CONTROL PANEL WITH PUSHBUTTONS
                              MANUAL GEARBOX (EUROPE, USA spec vehicles)
                              from £532.62
                              from £532.62
                              SWITCH BOARD ANSOR Genuine Lamborghini - New (to order)
                              SWITCH BOARD ANSOR Genuine Lamborghini - Used In stock
                              # 010
                              MPN: 413941567A
                              CONTROL PANEL WITH PUSHBUTTONS
                              E-GEAR (EUROPE, USA spec vehicles)
                              from £1,474.22
                              from £1,474.22
                              SWITCHBOARD (413941567A) Genuine Ferrari Part - New (to order)
                              SWITCHBOARD Genuine Lamborghini - New (to order)
                              # 010
                              MPN: 414941567
                              CONTROL PANEL WITH PUSHBUTTONS
                              MANUAL GEARBOX (UK spec vehicles)
                              from £968.40
                              from £968.40
                              SWITCH BOARD ANSOR Genuine Lamborghini - New (to order)
                              # 010
                              MPN: 414941567A
                              CONTROL PANEL WITH PUSHBUTTONS
                              E-GEAR (UK spec vehicles)
                              from £1,093.78
                              from £1,093.78
                              SWITCHBOARD Genuine Lamborghini - New In stock
                              # 011
                              MPN: 410920900H
                              COMBI-INSTRUMENT
                              WARNING USE REF. 47-360KM/H (EUROPE spec vehicles)
                              from £2,879.26
                              from £2,879.26
                              INSTRUMENT CLUSTER Genuine Lamborghini - New (to order)
                              # 011
                              MPN: 410920900K
                              COMBI-INSTRUMENT
                              E-GEAR - WARNING USE REF. 47-220MPH (USA spec vehicles)
                              from £3,030.58
                              from £3,030.58
                              INSTRUMENT CLUSTER Genuine Lamborghini - New (to order)
                              # 011
                              MPN: 410920900L
                              COMBI-INSTRUMENT
                              MANUAL GEARBOX - WARNING USE REF. 47-220MPH (UK, USA spec vehicles)
                              from £3,030.58
                              from £3,030.58
                              INSTRUMENT CLUSTER Genuine Lamborghini - New (to order)
                              # 011
                              MPN: 410920900L
                              COMBI-INSTRUMENT
                              WARNING USE REF. 47-220MPH (UK, USA spec vehicles)
                              from £3,030.58
                              from £3,030.58
                              INSTRUMENT CLUSTER Genuine Lamborghini - New (to order)
                              # 012
                              MPN: 410959565A
                              SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT
                              from £300.07
                              from £300.07
                              SWITCH,OTR MIRROR Genuine Lamborghini - New (to order)
                              SWITCH,OTR MIRROR Genuine Lamborghini - Used In stock
                              # 013
                              MPN: 410919815
                              SWITCH FOR ELECTRIC WINDOW REGULATOR
                              from £90.36
                              from £90.36
                              WINDOW SWITCH Genuine Lamborghini - New In stock
                              # 014
                              MPN: 410820043A
                              DISPLAY AND CONTROL PANEL WITH CU FOR ELECTRONICALLY CONTROLLED AIR-CONDITIONING
                              from £1,534.74
                              from £1,534.74
                              A/C CONTROL Genuine Lamborghini - New (to order)
                              # 015
                              MPN: 417919823
                              CONTROL PANEL
                              from £419.35
                              from £419.35
                              SWITCH BOARD Genuine Lamborghini - New (to order)
                              # 016
                              MPN: 410919225
                              PUSH BUTTON SET
                              from £261.99
                              from £261.99
                              SWITCH KIT Genuine Lamborghini - New (to order)
                              # 017
                              MPN: WHT003297
                              COUNTERSUNK BOLT
                              2,2X6,5
                              from £0.51
                              from £0.51
                              FLAT HEAD BOLT Genuine Lamborghini - New In stock
                              # 018
                              MPN: 410971315B
                              WIRING HARNESS FOR INSTRUMENT HOUSING
                              from £108.52
                              from £108.52
                              HARNESS,DASHBOARD Genuine Lamborghini - New In stock
                              # 019
                              MPN: 410857851
                              SWITCH MOUNTING
                              E-Gear
                              from £95.83
                              from £95.83
                              Frame Genuine Lamborghini - New (to order)
                              Frame Genuine Lamborghini - Used In stock
                              # 020
                              MPN: N90455205
                              FILLISTER HD. BOLT
                              M4X10
                              from £0.47
                              from £0.47
                              SCREW Genuine Lamborghini - New (to order)
                              fillister hd. screw (N 90455205) Genuine Porsche Part - New (to order)
                              # 020
                              MPN: WHT003088
                              HEXAGON SOCKET FLAT HEAD BOLT
                              M4X16
                              from £0.53
                              from £0.53
                              This part replaces part number 008700430
                              SCREW M4X16.0 Genuine Lamborghini - New In stock
                              # 021
                              MPN: N01152221
                              WASHER
                              4,3X9X0,8
                              from £0.53
                              from £0.53
                              This part replaces part number 008400401
                              WASHER 4.3X9X0.8 Genuine Lamborghini - New (to order)
                              # 022
                              MPN: N01020717
                              HEXAGON BOLT
                              M5X12
                              from £0.47
                              from £0.47
                              This part replaces part number 008100504
                              HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
                              screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
                              # 023
                              MPN: N91109201
                              WASHER
                              5,3X20X1
                              from £1.04
                              from £1.04
                              This part replaces part number 008400508
                              WASHER Genuine Lamborghini - New In stock
                              # 024
                              MPN: 410857441
                              DISTANCE PIECE
                              from £131.43
                              from £131.43
                              SPACER Genuine Lamborghini - New (to order)
                              # 025
                              MPN: N91078401
                              SOCKET HEAD BOLT
                              M6X50
                              from £5.42
                              from £5.42
                              CHEESE HEAD SCREW Genuine Lamborghini - New (to order)
                              CHEESE HEAD SCREW Genuine Lamborghini - Used In stock
                              # 026
                              MPN: WHT002953
                              CLAMPING NUT
                              M6
                              from £2.31
                              from £2.31
                              CLAMPING NUT Genuine Lamborghini - New In stock
                              # 027
                              MPN: WHT003067
                              COUNTERSUNK BOLT
                              M4X10
                              from £2.06
                              from £2.06
                              SCREW Genuine Lamborghini - New (to order)
                              # 028
                              MPN: N0115359
                              WASHER
                              from £29.14
                              from £29.14
                              WASHER Genuine Lamborghini - New (to order)
                              # 029
                              MPN: WHT003084
                              CYLINDER HEAD BOLT
                              M3X12
                              from £7.13
                              from £7.13
                              SCREW Genuine Lamborghini - New In stock
                              # 030
                              MPN: WHT003110
                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (COMBI)
                              from £3.42
                              from £3.42
                              HEXAGON SOCKET Genuine Lamborghini - New (to order)
                              # 032
                              MPN: WHT003110
                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (COMBI)
                              M4X10
                              from £3.42
                              from £3.42
                              HEXAGON SOCKET Genuine Lamborghini - New (to order)
                              # 033
                              MPN: N01152221
                              WASHER
                              4,3X9X0,8
                              from £0.54
                              from £0.54
                              This part replaces part number 008400401
                              WASHER 4.3X9X0.8 Genuine Lamborghini - New (to order)
                              # 034
                              MPN: 410864191
                              HAND STRAP
                              E-Gear
                              from £33.12
                              from £33.12
                              SHEET Genuine Lamborghini - New (to order)
                              # 035
                              MPN: WHT002961
                              WASHER
                              6,5X18X1,5
                              from £0.53
                              from £0.53
                              This part replaces part number 008400607
                              WASHER Genuine Lamborghini - New In stock
                              # 036
                              MPN: N10580702
                              HEXAGON SOCKET HEAD BOLT
                              M5X8
                              from £3.68
                              from £3.68
                              CHEESE HEAD SCREW Genuine Lamborghini - New (to order)
                              # 037
                              MPN: N10612001
                              WASHER
                              5,3X15X1
                              from £0.53
                              from £0.53
                              WASHER 5.3X15X1 Genuine Lamborghini - New In stock
                              # 038
                              MPN: N10613301
                              HEXAGON SOCKET FLAT HEAD BOLT
                              M3X8
                              from £0.47
                              from £0.47
                              SCREW Genuine Lamborghini - New (to order)
                              IN-6RD-FL-KOPF-SHR M3X8 (N 10613301) Genuine Porsche Part - New (to order)
                              # 039
                              MPN: 7M3919311
                              CIGARETTE LIGHTER COVER
                              NON SMOKING VERSION
                              from £4.15
                              from £4.15
                              CAP Genuine Lamborghini - New (to order)
                              # 040
                              -
                              RETAINING PLATE
                              # 041
                              -
                              RETAINING FRAME FOR SWITCH BRACKET
                              # 042
                              -
                              TRIM FOR SWITCH
                              # 043
                              -
                              HEXAGON SOCKET FLAT HEAD BOLT
                              # 044
                              -
                              WASHER
                              # 045
                              -
                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (COMBI)
                              # 046
                              -
                              WASHER
                              # 047
                              MPN: 063000337
                              NOTICE
                              from £2.73
                              from £2.73
                              ADES.X SOSTIT.STRUM./ODOMETRO Genuine Lamborghini - New In stock
