863.09.00 - TUNNEL

Lamborghini Murcielago LP670 Tunnel Parts Diagram

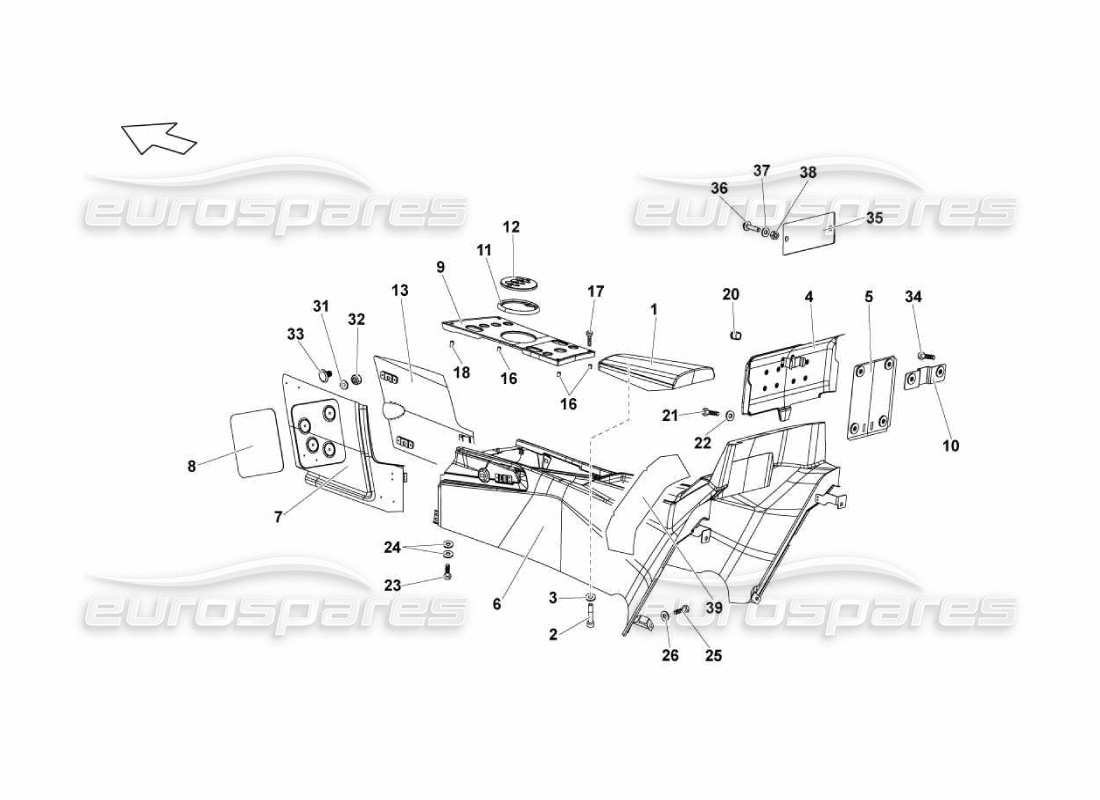

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 429864263
                                                                  ARMREST CUSHION ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)
                                                                  from £1,526.10
                                                                  from £1,526.10
                                                                  # 002
                                                                  MPN: WHT003088
                                                                  SCREW M4X16
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 008700430
                                                                  # 003
                                                                  MPN: N10663401
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 004
                                                                  MPN: 418858670A
                                                                  SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 3 POINTS BELTS - SUPPLY VIN)
                                                                  from £187.20
                                                                  from £187.20
                                                                  # 004
                                                                  MPN: 429858670
                                                                  SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 4 POINTS BELTS - SUPPLY VIN)
                                                                  from £366.62
                                                                  from £366.62
                                                                  # 005
                                                                  MPN: 410857350
                                                                  SHEET (WITH 3 POINTS BELTS)
                                                                  from £92.09
                                                                  from £92.09

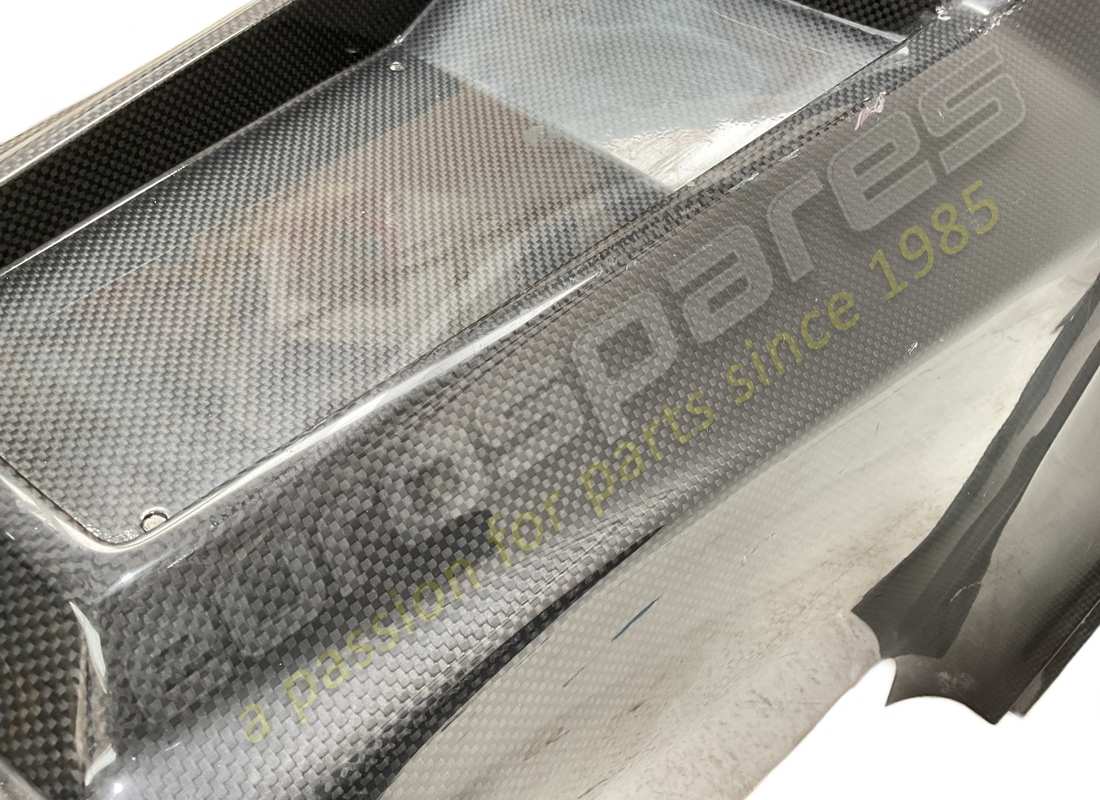

                                                                  # 006
                                                                  MPN: 429863242B
                                                                  TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS)
                                                                  from £13,734.84
                                                                  from £13,734.84
                                                                  # 006
                                                                  MPN: 429863242C
                                                                  TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS)
                                                                  from £13,449.52
                                                                  from £13,449.52
                                                                  # 006
                                                                  MPN: 429863242F
                                                                  TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS - I-POD - USB)
                                                                  from £13,048.10
                                                                  from £13,048.10
                                                                  # 006
                                                                  MPN: 429863242G
                                                                  TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS - I-POD - USB)
                                                                  from £13,449.52
                                                                  from £13,449.52
                                                                  # 007
                                                                  MPN: 429863667
                                                                  TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)
                                                                  # 008
                                                                  -
                                                                  PLATE (VALID FOR A DIFFERENT MARKET)
                                                                  # 009
                                                                  MPN: 429863315B
                                                                  ORNAMENT (MANUAL GEARBOX)
                                                                  from £1,993.01
                                                                  from £1,993.01
                                                                  # 009
                                                                  MPN: 429863315C
                                                                  ORNAMENT (E-GEAR)
                                                                  from £1,223.89
                                                                  from £1,223.89
                                                                  # 010
                                                                  MPN: 429857350
                                                                  BRACKET (WITH 4 POINTS BELTS)
                                                                  from £195.41
                                                                  from £195.41
                                                                  # 011
                                                                  MPN: 410711139
                                                                  FRAME (E-GEAR)
                                                                  from £537.81
                                                                  from £537.81
                                                                  # 011
                                                                  MPN: 410711139
                                                                  FRAME (MANUAL GEARBOX)
                                                                  from £537.81
                                                                  from £537.81
                                                                  # 013
                                                                  MPN: 414863668B
                                                                  TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)
                                                                  # 016
                                                                  MPN: 429861864
                                                                  SPACER 10MM
                                                                  from £6.48
                                                                  from £6.48
                                                                  # 017
                                                                  MPN: WHT004801
                                                                  SCREW M4X22
                                                                  from £6.40
                                                                  from £6.40
                                                                  # 018
                                                                  MPN: 429862525
                                                                  SPACER 15MM
                                                                  from £7.45
                                                                  from £7.45
                                                                  # 020
                                                                  MPN: 410919242
                                                                  LED FRAME
                                                                  from £19.07
                                                                  from £19.07
                                                                  # 021
                                                                  MPN: WHT003114
                                                                  SCREW
                                                                  from £3.34
                                                                  from £3.34
                                                                  This part replaces part number WHT000766
                                                                  # 022
                                                                  MPN: N90840802
                                                                  WASHER
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 008400804 - and 1 more. Click to view details
                                                                  # 023
                                                                  MPN: WHT003069
                                                                  SCREW M6X20
                                                                  from £29.60
                                                                  from £29.60
                                                                  # 024
                                                                  MPN: WHT003040
                                                                  WASHER
                                                                  from £4.55
                                                                  from £4.55
                                                                  # 025
                                                                  MPN: WHT003069
                                                                  SCREW M6X20
                                                                  from £27.97
                                                                  from £27.97
                                                                  # 026
                                                                  MPN: WHT002961
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 008400607
                                                                  # 031
                                                                  MPN: N91109201
                                                                  WASHER
                                                                  from £0.98
                                                                  from £0.98
                                                                  This part replaces part number 008400508
                                                                  # 032
                                                                  MPN: WHT002959
                                                                  NUT M4
                                                                  from £0.55
                                                                  from £0.55
                                                                  # 033
                                                                  MPN: 400863119
                                                                  PLUG
                                                                  from £0.52
                                                                  from £0.52
                                                                  This part replaces part number 008930807
                                                                  # 034
                                                                  MPN: N90166803
                                                                  SCREW M8X28 (WITH 4 POINTS BELTS)
                                                                  from £1.00
                                                                  from £1.00
                                                                  # 035
                                                                  MPN: 429010545
                                                                  CAR NUMBER PLATE (SUPPLY VIN)
                                                                  from £737.55
                                                                  from £737.55
                                                                  # 036
                                                                  MPN: WHT003067
                                                                  SCREW M4X10
                                                                  from £2.18
                                                                  from £2.18
                                                                  # 038
                                                                  MPN: WHT002959
                                                                  NUT M4
                                                                  from £0.56
                                                                  from £0.56
                                                                  # 039
                                                                  MPN: 429863145
                                                                  LH PROTECTION (WITH 3 POINTS BELTS)
                                                                  from £792.88
                                                                  from £792.88
                                                                  # 039
                                                                  MPN: 429863145
                                                                  RH PROTECTION (WITH 3 POINTS BELTS)
                                                                  from £792.88
                                                                  from £792.88
