lamborghini murcielago lp670 sports seats parts diagram

881.02.00 - Sports Seats

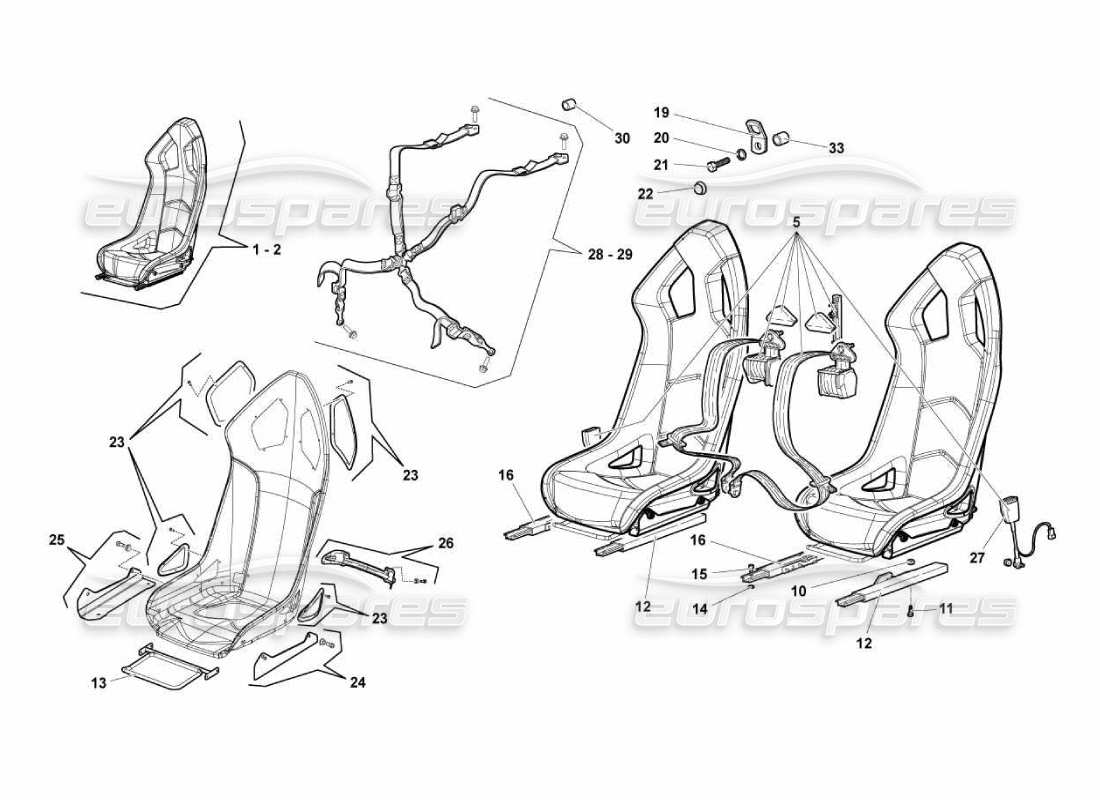

Lamborghini Murcielago LP670 Sports Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 429860671
                                                LEFT SEAT (ALCANTARA UPHOLSTERY - SUPPLY VIN)
                                                from £6,770.15
                                                from £6,770.15
                                                # 001
                                                MPN: 4790638920
                                                PAIR OF FRONT SEATS IN BLUE
                                                # 001
                                                MPN: 4790638921
                                                PAIR OF FRONT SEATS IN GREEN
                                                # 001
                                                MPN: 4790638922

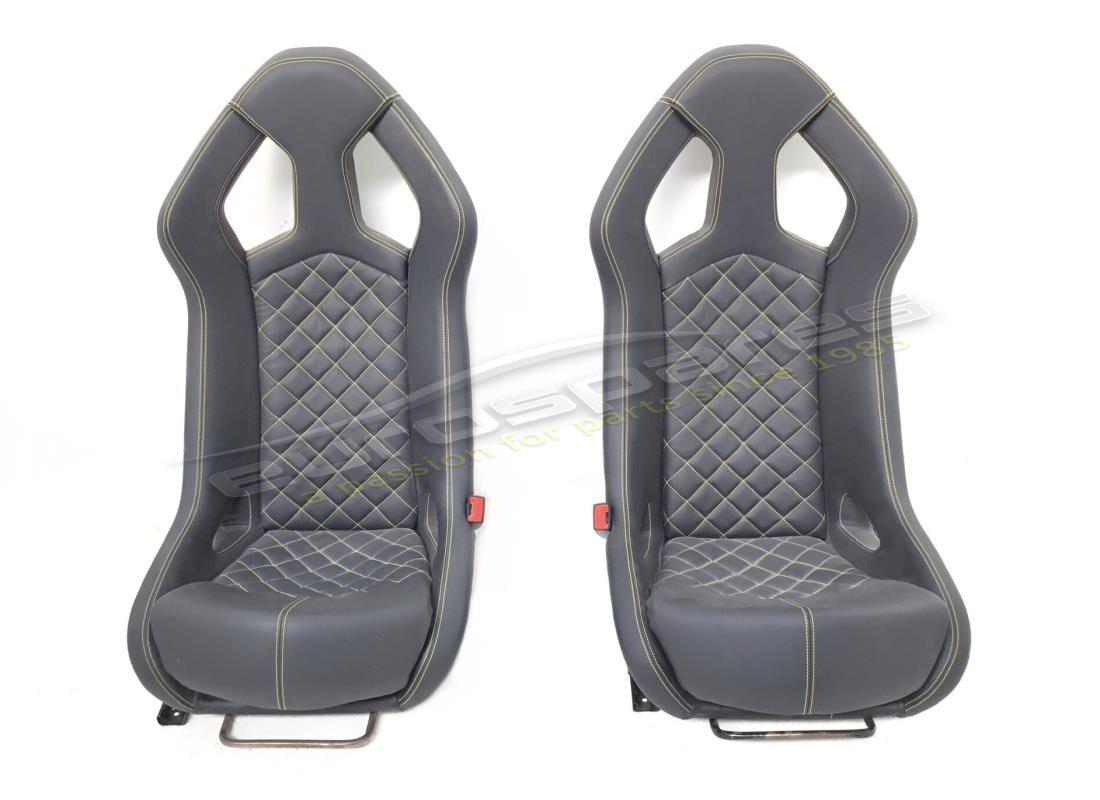

                                                PAIR OF FRONT SEATS IN BLACK WITH BADGE
                                                # 001
                                                MPN: 4790638929
                                                Pair of front seats in black
                                                from £9,995.00
                                                from £9,995.00
                                                # 002
                                                MPN: 429860672
                                                RIGHT SEAT (ALCANTARA UPHOLSTERY - SUPPLY VIN)
                                                from £6,770.15
                                                from £6,770.15
                                                # 005
                                                -
                                                ELECTRICALLY-CONTROLLED SEAT BELTS SET (SEE TABLE 881.01.00)
                                                # 010
                                                -
                                                WASHER (SEE TABLE 881.01.00)
                                                # 011
                                                -
                                                SCREW (SEE TABLE 881.01.00)
                                                # 012
                                                -
                                                LH GUIDE (SEE TABLE 881.01.00)
                                                # 013
                                                MPN: 410881093
                                                SEAT LEVER
                                                from £197.57
                                                from £197.57
                                                # 014
                                                -
                                                SPACER (SEE TABLE 881.01.00)
                                                # 015
                                                -
                                                SCREW (SEE TABLE 881.01.00)
                                                # 016
                                                -
                                                RH GUIDE (SEE TABLE 881.01.00)
                                                # 019
                                                -
                                                CHILD RESTRAINT ANCHOR (VALID FOR A MARKET USA/CANADA)
                                                # 020
                                                -
                                                WASHER (VALID FOR A MARKET USA/CANADA)
                                                # 021
                                                -
                                                SCREW (VALID FOR A MARKET USA/CANADA)
                                                # 022
                                                -
                                                BELT SCREW CAP (VALID FOR A MARKET USA/CANADA)
                                                # 023
                                                MPN: 429881457
                                                FRAME (KIT)
                                                from £689.99
                                                from £689.99
                                                # 024
                                                MPN: 410881537
                                                LH GUIDE
                                                from £226.55
                                                from £226.55
                                                # 025
                                                MPN: 410881538
                                                RH GUIDE
                                                from £226.55
                                                from £226.55
                                                # 026
                                                -
                                                BRACKET (VALID FOR A MARKET USA/CANADA)
                                                # 027
                                                -
                                                BUCKLE (SEE TABLE 881.01.00)
                                                # 028
                                                MPN: 429857706
                                                Seat Belt Rh 4 Points
                                                from £1,048.83
                                                from £1,048.83
                                                # 029
                                                MPN: 429857705
                                                Seat Belt Lh 4 Points
                                                from £1,048.83
                                                from £1,048.83
                                                # 030
                                                MPN: 403857515
                                                SEAT BELT SPACER 4 POINTS
                                                from £30.22
                                                from £30.22
                                                # 033
                                                -
                                                BUSHING (VALID FOR A MARKET USA/CANADA)
