905.01.00 - System Ignition

Lamborghini Murcielago LP670 System Ignition Parts Diagram

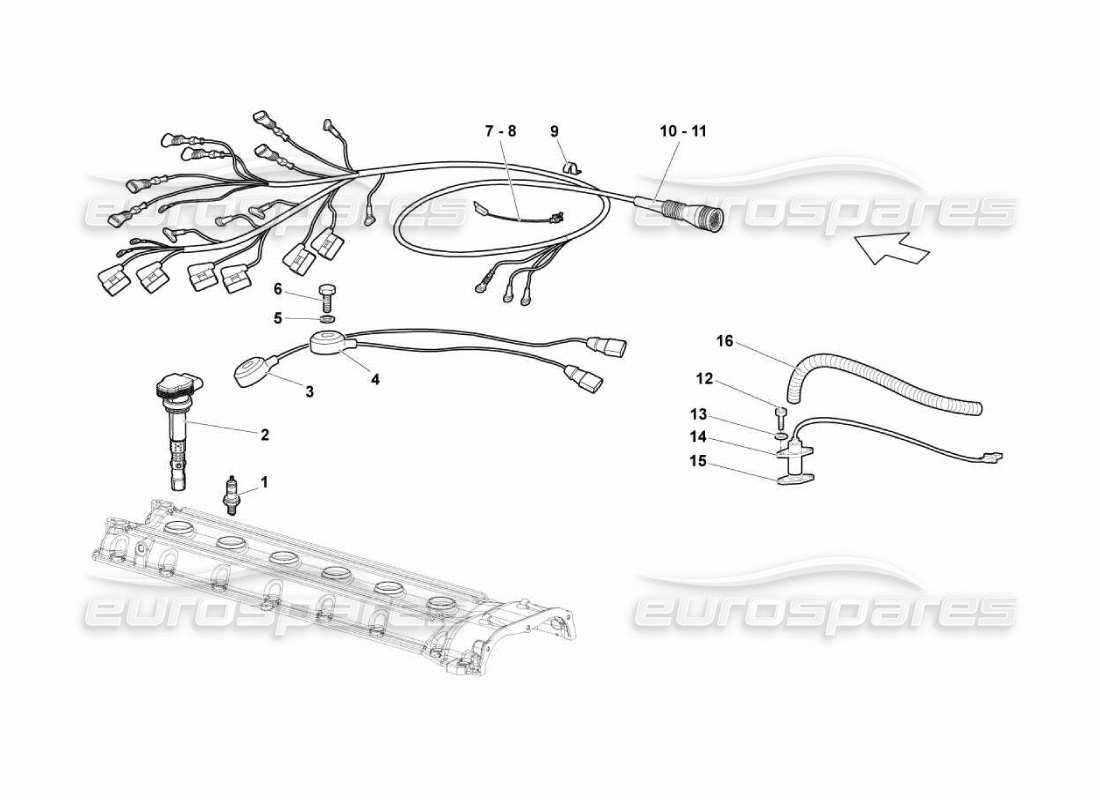

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 410905619
                                SPARK PLUG
                                Alternative Denso Iridium use 0016003036/A
                                from £29.52
                                from £29.52
                                This part replaces part number 101905602
                                # 002
                                MPN: 07M905115B
                                COIL
                                from £105.05
                                from £105.05
                                # 003
                                MPN: 07M905377A
                                SENSOR
                                from £79.11
                                from £79.11
                                # 004
                                MPN: 07M905377
                                SENSOR
                                from £76.35
                                from £76.35
                                # 005
                                MPN: WHT002962
                                WASHER
                                from £0.53
                                from £0.53
                                This part replaces part number 008400816
                                # 006
                                MPN: N10518402
                                SCREW M8X30
                                from £3.85
                                from £3.85
                                # 007
                                MPN: 400971164
                                WIRING HARNESS (WIRING HARNESS 1-6)
                                from £68.31
                                from £68.31
                                # 008
                                MPN: 400971164
                                WIRING HARNESS (WIRING HARNESS 7-12)
                                from £68.31
                                from £68.31
                                # 009
                                MPN: 410868630A
                                SUPPORT
                                from £35.24
                                from £35.24
                                # 010
                                MPN: 07M971087C
                                WIRING HARNESS 40330
                                from £399.47
                                from £399.47
                                # 011
                                MPN: 07M971088C
                                WIRING HARNESS 40519
                                from £726.30
                                from £726.30
                                # 012
                                MPN: N10648502
                                SCREW M5X10
                                from £0.90
                                from £0.90
                                This part replaces part number 008700512
                                # 013
                                MPN: N90247901
                                WASHER
                                from £34.42
                                from £34.42
                                This part replaces part number 008410503
                                # 014
                                MPN: 07M905381
                                FLYWHEEL TIMING SENSOR
                                from £393.41
                                from £393.41
                                This part replaces part number 001628403
                                # 015
                                MPN: 07M103899
                                ADJUSTMENT SHIM 0,2 MM (0,2 MM)
                                from £3.34
                                from £3.34
                                # 015
                                MPN: 07M103899A
                                ADJUSTMENT SHIM 0,4 MM (0,4 MM)
                                from £5.31
                                from £5.31
                                This part replaces part number 001628602
                                # 016
                                MPN: 07M905387
                                PROTECTION
                                from £0.62
                                from £0.62
