43.02.00 - Steering Column

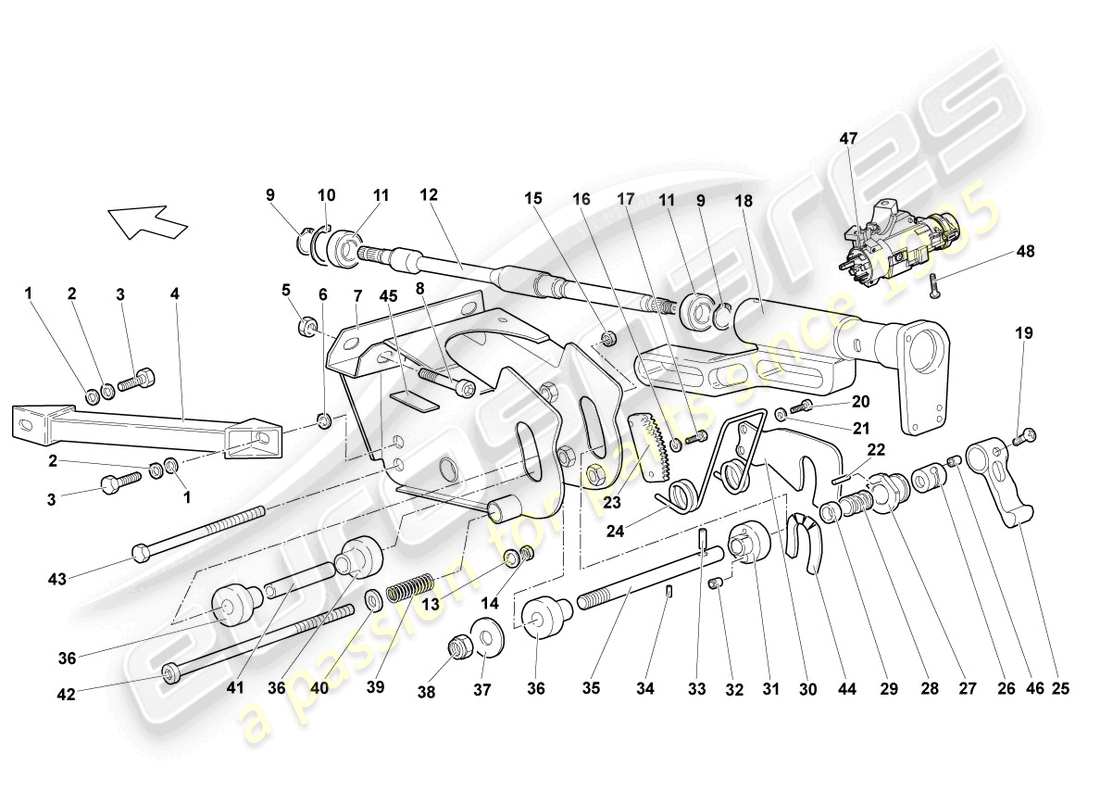

Lamborghini Murcielago Roadster (2006) STEERING COLUMN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N90179103
WASHER
8,2X18X3
from £1.04
from £1.04
This part replaces part number 008400801
# 002
MPN: WHT000771
SPRING RING
15X8,4X0,5
from £0.81
from £0.81
This part replaces part number 008410810
# 003
MPN: 008100830
HEXAGON BOLT
M8X20
from £0.53
from £0.53
# 004
MPN: 0043003444
BRACE
LHD (EUROPE, USA spec vehicles)
from £143.54
from £143.54
# 004
MPN: 0043010688
BRACE
RHD (UK spec vehicles)
from £174.23
from £174.23
# 005
MPN: N10609202
HEXAGON COLLAR NUT
M8
from £0.47
from £0.47
# 006
MPN: 410407295
COMPENSATION WASHER
1,0
from £2.73
from £2.73
# 007
MPN: 0043014108
BRACKET FOR STEERING COLUMN
LHD (EUROPE, USA spec vehicles)
from £372.67
from £372.67
# 007
MPN: 414419087
BRACKET FOR STEERING COLUMN
RHD (UK spec vehicles)
from £247.77
from £247.77
# 008
MPN: N10651701
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X45
from £2.28
from £2.28
# 009
MPN: 008581801
SECURING RING
20X1,2
from £0.53
from £0.53
# 010
MPN: 008573701
RETAINING RING
37
from £0.54
from £0.54
# 011
MPN: 008502011
MOUNTING
20X37X9
from £36.19
from £36.19
# 013
MPN: WHT000771
SPRING RING
15X8,4X0,5
from £0.82
from £0.82
This part replaces part number 008410810
# 014
MPN: N01100845
HEXAGON NUT
M8
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 015
MPN: N01100845
HEXAGON NUT
M8
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 016
MPN: WHT001187
WASHER
5,3X10X1
from £0.55
from £0.55
This part replaces part number 008400502
# 017
MPN: 008700522
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M5X16
from £0.53
from £0.53
# 018
MPN: 410419561
STEERING TUBE
MANUAL GEARBOX
from £546.89
from £546.89
# 018
MPN: 410419561A
STEERING TUBE
E-Gear
from £546.89
from £546.89
# 020
MPN: N10580702
HEXAGON SOCKET HEAD BOLT
M5X8
from £3.68
from £3.68
# 021
MPN: N10612001
WASHER
5,3X15X1
from £0.53
from £0.53
# 022
MPN: 004338318
CYLINDER PIN
M6X18
from £6.43
from £6.43
# 023
MPN: 004337941
TOOTHED QUADRANT
from £36.15
from £36.15
# 024
MPN: 0043004084
SPRING
from £92.45
from £92.45
# 025
MPN: 410419355
CLAMPING LEVER
from £223.99
from £223.99
# 026
MPN: 0043005387
BUSH
from £331.64
from £331.64
# 027
MPN: 004337948
TOOTHED WASHER
from £90.79
from £90.79
# 028
MPN: 004337947
PRESSURE SPRING
from £7.76
from £7.76
# 029
MPN: 004337952
SPACER SLEEVE
from £31.26
from £31.26
# 030
MPN: 0043006655
GUIDE PLATE
from £25.64
from £25.64
# 031
MPN: 004337946
GUIDE SECTION
from £156.70
from £156.70
# 032
MPN: 004338060
BALL
from £20.57
from £20.57
# 033
MPN: 004338065
CYLINDER PIN
6X18
from £4.64
from £4.64
# 034
MPN: WHT003591
CYLINDER PIN
4X12,5
from £8.13
from £8.13
# 035
MPN: 410419645
ADJUSTING ELEMENT
from £116.99
from £116.99
# 036
MPN: 004337939
GUIDE SECTION
from £28.11
from £28.11
# 037
MPN: 410407295D
COMPENSATION WASHER
3,0
from £17.99
from £17.99
# 038
MPN: 008201231
HEXAGON COLLAR NUT SELF-LOCKING
M12
from £0.99
from £0.99
# 039
MPN: 410419598
SPRING
from £14.62
from £14.62
# 041
MPN: 004337944
SPACER SLEEVE
from £35.04
from £35.04
# 042
MPN: 008700694
HEXAGON SOCKET HEAD BOLT, COUNTERSUNK
M6X90
from £0.93
from £0.93
# 043
MPN: 008100824
HEXAGON BOLT
M8X75
from £0.93
from £0.93
# 044
MPN: 410419780
SEAL
from £5.63
from £5.63
# 045
MPN: 400422850
RUBBER BUSH
from £11.63
from £11.63
This part replaces part number 004331587
# 046
MPN: 009907111
BALL
from £6.76
from £6.76
# 047
MPN: 4B0905851Q
STEERING LOCK WITH IGNITION/ STARTER SWITCH WITHOUT LOCK CYLINDER
from £56.59
from £56.59
# 048
MPN: 0043015513
SHEER BOLT
M8X22
from £6.36
from £6.36
