827.05.00 - FLAP FOR ENGINE COVER

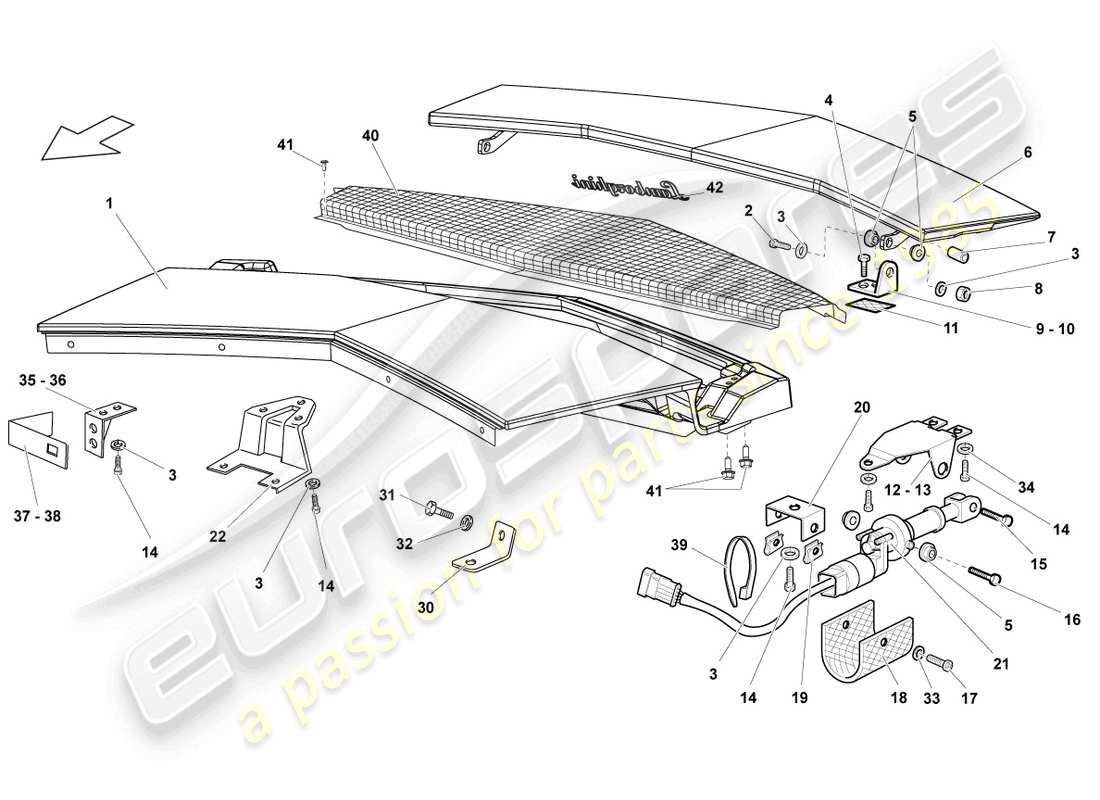

Lamborghini Reventon FLAP FOR ENGINE COVER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 410827027A
FLAP FOR ENGINE COVER
from £26,726.09
from £26,726.09
# 003
MPN: N01166623
WASHER
6,4X18X1,6
from £0.89
from £0.89
This part replaces part number WHT000909
# 005
MPN: 410827547
BUSH
from £4.55
from £4.55
# 006
MPN: 410827948A
SPOILER
rear
from £16,307.15
from £16,307.15
# 007
MPN: 410813669
BUSH
from £11.94
from £11.94
# 008
MPN: WHT003672
DOMED CAP NUT
M6
from £3.34
from £3.34
# 009
MPN: 410813451
BRACKET
LEFT
from £123.64
from £123.64
# 009
MPN: 410813452
BRACKET
RIGHT
from £123.64
from £123.64
# 010
-
BRACKET
# 011
MPN: 410827259
SPACER
from £3.60
from £3.60
# 012
MPN: 410814513
BRACKET
LEFT
from £70.39
from £70.39
# 012
MPN: 410814514
BRACKET
RIGHT
from £70.39
from £70.39
# 013
-
BRACKET
# 014
MPN: N90319404
HEX COLLARED BOLT
M6X12
from £1.21
from £1.21
This part replaces part number 008700674
# 015
MPN: 410827855
BALL STUD
from £22.01
from £22.01
# 016
MPN: 410813876
HEXAGON SOCKET HEAD BOLT
from £16.17
from £16.17
# 017
MPN: N91049601
OVAL HEAD PANEL SCREW (COMBI)
4,2X15
from £0.53
from £0.53
This part replaces part number 008700455
# 018
MPN: 410827992
COVER
from £201.64
from £201.64
# 019
MPN: WHT003383
SPEED NUT
4,2X24,5X11
from £9.34
from £9.34
This part replaces part number 008220505
# 020
MPN: 410827393
BRACKET
from £3.16
from £3.16
# 022
MPN: 418827277
HINGE COVER
from £327.70
from £327.70
# 030
MPN: 418827909
BRACKET
LEFT A. RIGHT
from £27.33
from £27.33
# 031
MPN: N10536103
HEX COLLARED BOLT
M8X16
from £0.71
from £0.71
# 032
MPN: N01166623
WASHER
6,4X18X1,6
from £0.96
from £0.96
This part replaces part number WHT000909
# 033
MPN: N01166623
WASHER
6,4X18X1,6
from £0.96
from £0.96
This part replaces part number WHT000909
# 034
MPN: WHT003407
WASHER
6,4X16X2
from £0.53
from £0.53
# 035
MPN: 410813535
BRACKET
LEFT
from £9.48
from £9.48
# 035
MPN: 410813536
BRACKET
RIGHT
from £9.48
from £9.48
# 036
-
BRACKET
# 037
MPN: 410827199
BRACKET
LEFT
from £46.96
from £46.96
# 037
MPN: 410827200
BRACKET
RIGHT
from £46.96
from £46.96
# 038
-
BRACKET
# 039
MPN: N10562301
CABLE TIES
4,7X194
from £0.88
from £0.88
# 040
MPN: 410827974
PROTECTIVE GRILLE
from £4,215.14
from £4,215.14
# 041
MPN: N90944603
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
from £0.65
from £0.65
# 042
MPN: 418853712
TRIM
from £222.22
from £222.22
