863.06.00 - CENTRE CONSOLE

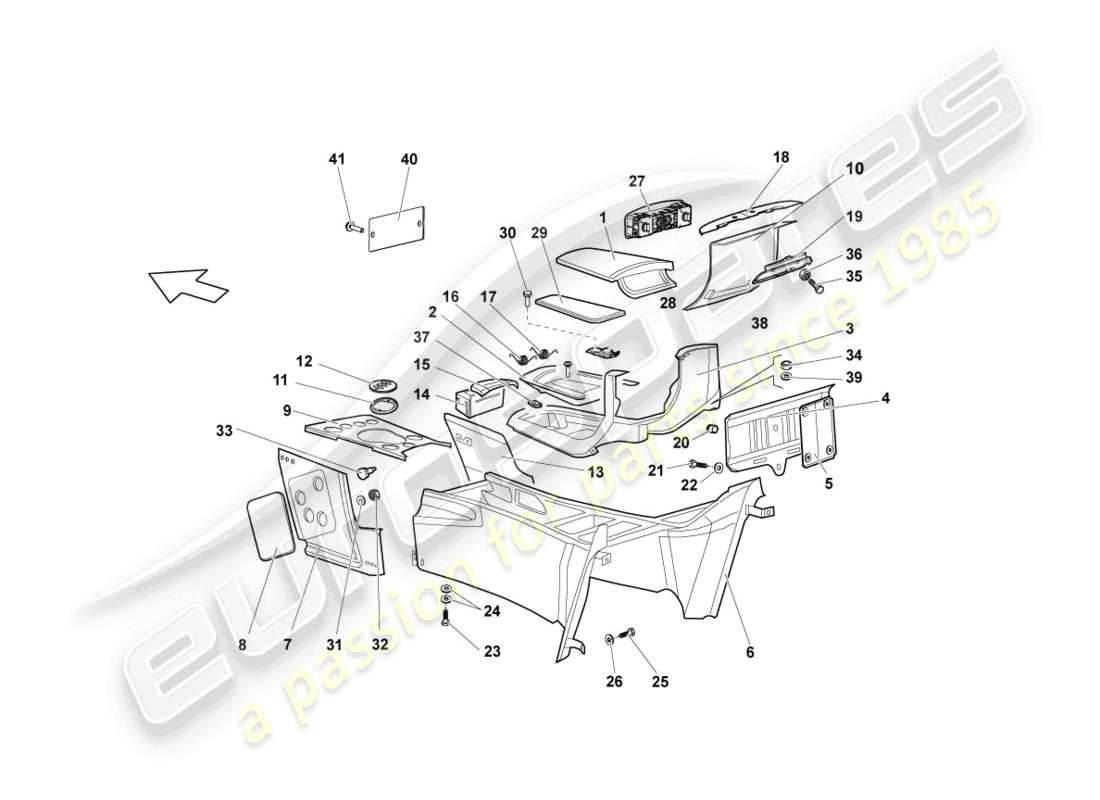

Lamborghini Reventon Roadster CENTRE CONSOLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 410863761L
COVER FOR STOWAGE COMPARTMENT
E-GEAR - NON SMOKING - ALCANTARA UPHOLSTERY - SUPPLY VIN
from £1,317.45
from £1,317.45
# 002
MPN: 410863300M
STOWAGE COMPARTMENT
E-GEAR - NON SMOKING - I-POD/USB
from £381.58
from £381.58
# 003
MPN: 410864205L
INSERT
E-GEAR - NON SMOKING - CARBON INTERIOR DARK
from £2,068.88
from £2,068.88
# 004
MPN: 417858670
TRIM PLATE FOR SEAT BELT GUIDE
LEATHER INTERIOR - SUPPLY VIN
# 005
MPN: 410857350
MOUNTING PLATE
from £94.08
from £94.08
# 006
MPN: 413863240E
CENTRE CONSOLE
E-GEAR - ALCANTARA UPHOLSTERY - SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
from £6,527.13
from £6,527.13
# 006
MPN: 414863240E
CENTRE CONSOLE
E-GEAR - ALCANTARA UPHOLSTERY - SUPPLY VIN- RHD (UK spec vehicles)
# 007
MPN: 413863667B
SIDE PANEL TRIM FOR CENTRE CONSOLE
ALCANTARA UPHOLSTERY - SUPPLY VIN-LEFT LHD (EUROPE, USA spec vehicles)
from £239.53
from £239.53
# 007
MPN: 414863667B
SIDE PANEL TRIM FOR CENTRE CONSOLE
ALCANTARA UPHOLSTERY - SUPPLY VIN-LEFT RHD (UK spec vehicles)
# 008
MPN: 413868681
TRIM
LHD (EUROPE, USA spec vehicles)
from £35.27
from £35.27
# 009
MPN: 418863315E
TRIM FOR SWITCH
E-GEAR - CARBON INTERIOR DARK- LHD (EUROPE, USA spec vehicles)
from £1,858.87
from £1,858.87
# 009
MPN: 418863315G
TRIM FOR SWITCH
E-GEAR - CARBON INTERIOR DARK - SUPPLY VIN- RHD (UK spec vehicles)
from £1,577.16
from £1,577.16
# 010
MPN: 417864263E
ARMREST
E-GEAR - PERFORATED LEATHER INTERIOR - SUPPLY VIN-REAR
# 011
MPN: 410713221
GEARSHIFT LEVER TRIM
E-Gear
from £340.66
from £340.66
# 012
MPN: 400713110K
OPERATING UNIT PANEL AUTOMATIC TRANSMISSION
E-Gear
from £750.67
from £750.67
# 013
MPN: 413863668B
SIDE PANEL TRIM FOR CENTRE CONSOLE
ALCANTARA UPHOLSTERY - SUPPLY VIN-RIGHT LHD (EUROPE, USA spec vehicles)
# 013
MPN: 414863668B
SIDE PANEL TRIM FOR CENTRE CONSOLE
ALCANTARA UPHOLSTERY - SUPPLY VIN-RIGHT RHD (UK spec vehicles)
# 014
-
ASHTRAY
NOT FOR REVENTÓN MODEL
# 015
-
COVER FOR ASHTRAY
NOT FOR REVENTÓN MODEL
# 016
MPN: 410863285C
SPRING
E-GEAR - NON SMOKING-LEFT
from £36.19
from £36.19
# 017
MPN: 410863286C
SPRING
E-GEAR - NON SMOKING-RIGHT
from £36.19
from £36.19
# 018
MPN: 418863274
TRIM FOR ARMREST
LEATHER INTERIOR - SUPPLY VIN
# 019
MPN: 417867970
TRIM
from £35.52
from £35.52
# 020
MPN: 410919242
CLAMPING SLEEVE WITH LED
from £19.43
from £19.43
# 021
MPN: WHT003114
OVAL HEAD PANEL SCREW
2,9X9,5
from £3.35
from £3.35
This part replaces part number WHT000766
# 022
MPN: N90840802
WASHER
8,3X21,3X2
from £0.51
from £0.51
This part replaces part number 008400804 - and 1 more. Click to view details
# 023
MPN: WHT003069
HEXAGON FLANGE SCREW
M6X20
from £30.14
from £30.14
# 024
MPN: WHT003040
WASHER
5,3X1,5X15
from £4.70
from £4.70
# 025
MPN: WHT003069
HEXAGON FLANGE SCREW
M6X20
from £28.48
from £28.48
# 026
MPN: WHT002961
WASHER
6,5X18X1,5
from £0.53
from £0.53
This part replaces part number 008400607
# 027
MPN: 410947103
INTERIOR AND READING LIGHT
from £52.94
from £52.94
# 028
MPN: 410864510B
COVER CAP
E-GEAR - I- POD - USB
from £59.73
from £59.73
# 029
MPN: 410864451
INSERT FOR STOWAGE COMPARTMENT
I-POD/USB
from £140.75
from £140.75
# 030
MPN: N90807405
HEX SOCKET OVAL HEAD COLLARED
M5X18
from £0.53
from £0.53
This part replaces part number N90807401 which we have in stock - and 1 more. Click to view details
# 031
MPN: N91109201
WASHER
5,3X20X1
from £1.03
from £1.03
This part replaces part number 008400508
# 032
MPN: WHT002959
CLAMPING NUT
M4
from £0.56
from £0.56
# 033
MPN: 400863119
BUNGS
8X14,5
from £0.52
from £0.52
This part replaces part number 008930807
# 034
MPN: WHT002959
CLAMPING NUT
M4
from £0.56
from £0.56
# 035
MPN: N01020717
HEXAGON BOLT
M5X12
from £0.47
from £0.47
This part replaces part number 008100504
# 036
MPN: WHT003112
HEXAGON NUT
M5
from £0.53
from £0.53
This part replaces part number 008200513
# 037
MPN: N91104501
SPEED NUT
M5X21X14
from £25.64
from £25.64
# 038
MPN: WHT001190
ROUND HD. SCREW
M5X12
from £0.52
from £0.52
This part replaces part number 008700539
# 039
MPN: N91109202
WASHER
5,3X20X1
from £0.53
from £0.53
# 040
MPN: 417010545A
TRIM WITH INSCRIPTION
FOR REVENTON ROADSTER MODEL - SUPPLY VIN
from £289.27
from £289.27
# 041
MPN: WHT003065
COUNTERSUNK BOLT
FOR REVENTON ROADSTER MODEL-2,9X16
from £0.94
from £0.94
