lamborghini revuelto coupe (2024) oil pump parts diagram

115.04.00 - oil pump

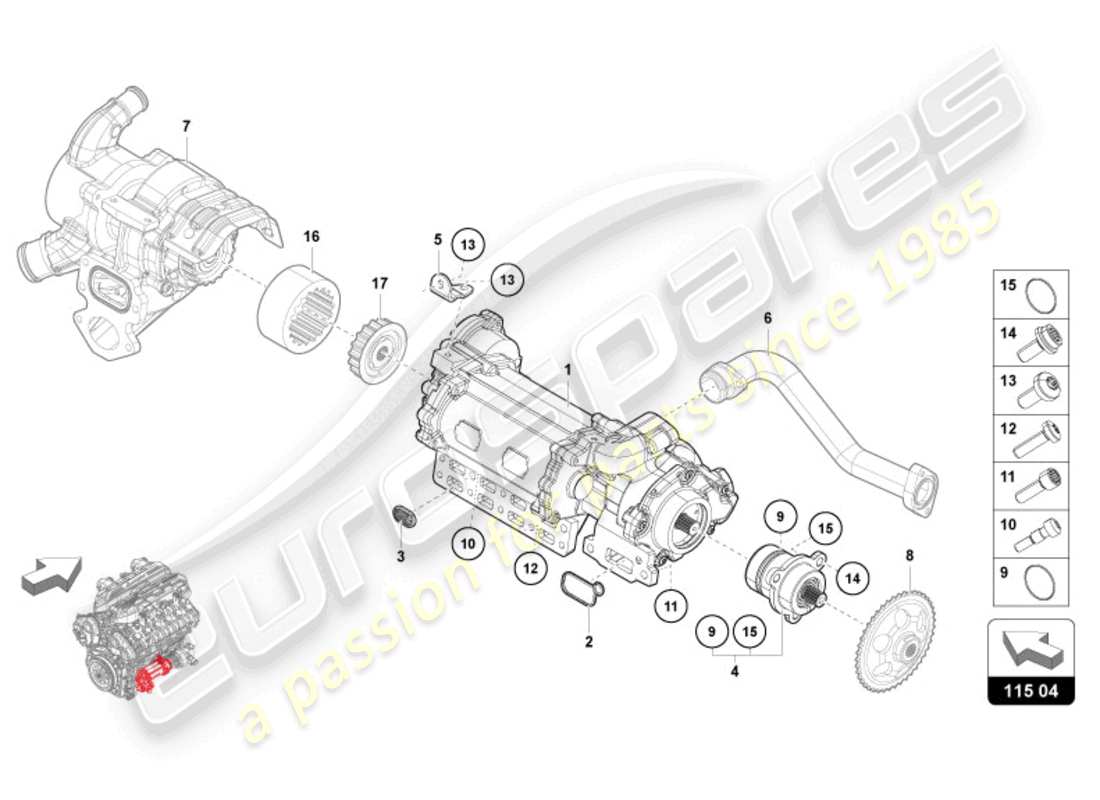

Lamborghini Revuelto Coupe (2024) OIL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 07M115105AF
                        oil pump
                        from £7,906.92
                        from £7,906.92
                        74X OIL PUMP Genuine Lamborghini - New (to order)
                        # 002
                        MPN: 07M103583G
                        SEAL FOR OIL PUMP
                        from £10.94
                        from £10.94
                        SEAL Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 07M103081A
                        OIL STRAINER
                        from £5.15
                        from £5.15
                        OIL STRAINER Genuine Lamborghini - New (to order)
                        # 004
                        MPN: 07M115241
                        CHAIN SPROCKET
                        from £766.71
                        from £766.71
                        BRACKET Genuine Lamborghini - New (to order)
                        # 005
                        MPN: 07M115318
                        BRACKET MOUNT
                        from £14.18
                        from £14.18
                        BRACKET Genuine Lamborghini - New (to order)
                        # 006
                        -
                        PIPE
                        # 007
                        -
                        COOLANT PUMP
                        # 008
                        -
                        CHAIN SPROCKET
                        # 009
                        MPN: N91020601
                        O-RING
                        44.17X1.78-N
                        from £8.59
                        from £8.59
                        O RING 44.17X1.78 Genuine Lamborghini - New (to order)
                        # 010
                        MPN: 07M103537
                        SCREWED SOCKET
                        M6X27
                        from £31.35
                        from £31.35
                        HOUSING Genuine Lamborghini - New (to order)
                        # 011
                        MPN: N91005902
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                        M8X25
                        from £1.45
                        from £1.45
                        12-POINT SOCKET Genuine Lamborghini - New In stock
                        HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                        # 012
                        MPN: N10700202
                        ROUND HD. SCREW
                        VITE M6X22-M6X22
                        from £1.03
                        from £1.03
                        HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                        # 013
                        MPN: N10405604
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X14
                        from £0.59
                        from £0.59
                        HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                        # 014
                        MPN: N10717001
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                        M8X18
                        from £1.38
                        from £1.38
                        12-POINT SOCKET M8X18 Genuine Lamborghini - New In stock
                        BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                        # 015
                        MPN: 07M115329
                        O-RING
                        from £8.12
                        from £8.12
                        O-RING Genuine Lamborghini - New (to order)
                        # 016
                        -
                        CURRENT RAIL
                        # 017
                        -
                        PULLEY
