121.01.00 - COOLANT COOLING SYSTEM WATER SYSTEM

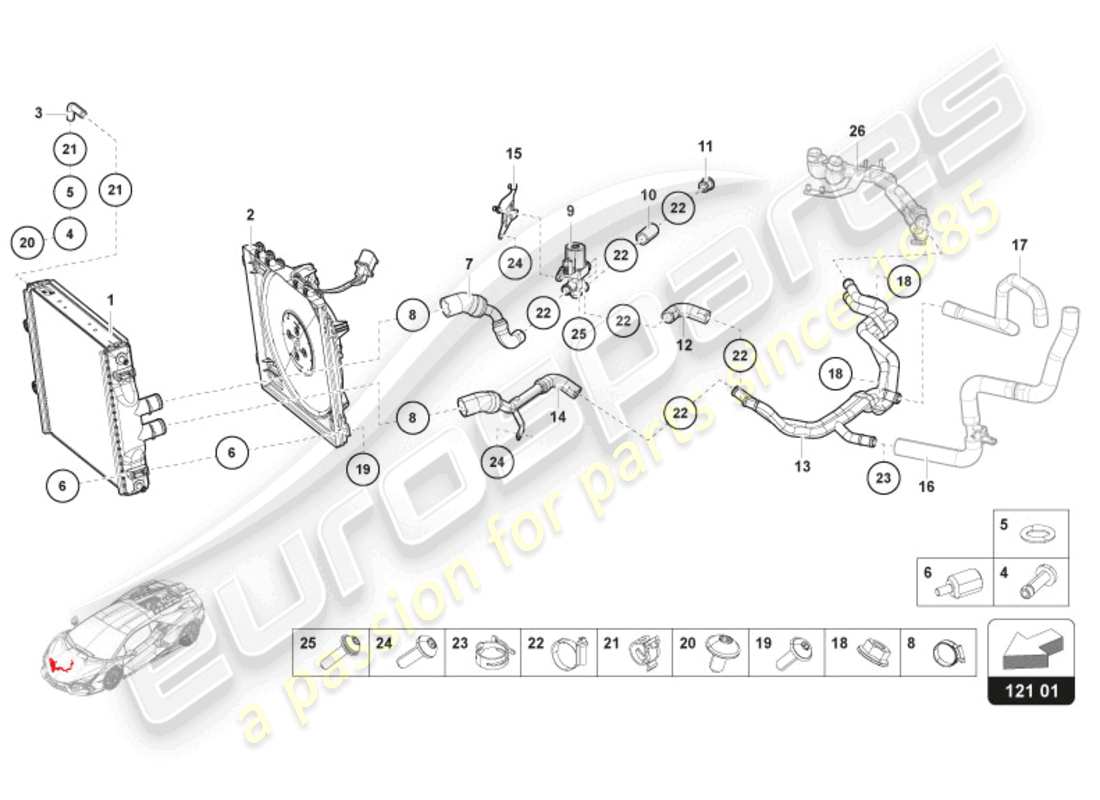

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM WATER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 47B121252A
                              COOLER FOR COOLANT
                              from £634.72
                              from £634.72
                              AUXILIARY RADIATOR Genuine Lamborghini - New (to order)
                              # 002
                              MPN: 4S0121203C
                              RADIATOR FAN WITH FAN RING
                              400W
                              from £569.70
                              from £569.70
                              This part replaces part number 4S0121203B
                              RADIATOR SHROUD AND FAN LEFT Genuine Lamborghini - New In stock
                              # 003
                              MPN: 47B121473A
                              breather line
                              from £18.76
                              from £18.76
                              BREATHER HOSE Genuine Lamborghini - New (to order)
                              # 004
                              MPN: 47B121421B
                              VALVE
                              from £25.13
                              from £25.13
                              VALVE BODY Genuine Lamborghini - New (to order)
                              # 005
                              MPN: 47B121437
                              SEALING RING
                              from £2.68
                              from £2.68
                              SEALING RING Genuine Lamborghini - New (to order)
                              # 006
                              MPN: 47B121179A
                              SPACER
                              from £8.38
                              from £8.38
                              CONNECTING PART Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 47B121180B
                              RETURN PIPE
                              from £162.96
                              from £162.96
                              RETURN PIPE Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 47B971851
                              BRACKET
                              from £8.97
                              from £8.97
                              BRACKET,SENSOR Genuine Lamborghini - New (to order)
                              # 009
                              MPN: 1T0820036D
                              SOLENOID VALVE
                              from £109.50
                              from £109.50
                              SOLENOID VALVE Genuine Lamborghini - New (to order)
                              # 010
                              MPN: 47B121445B
                              COOLANT HOSE
                              from £16.08
                              from £16.08
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 011
                              MPN: 47B121448A
                              COOLANT HOSE
                              from £12.65
                              from £12.65
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 012
                              MPN: 47B121057S
                              COOLANT HOSE
                              from £17.26
                              from £17.26
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 013
                              MPN: 47B121088B
                              COOLANT HOSE
                              from £384.98
                              from £384.98
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 014
                              MPN: 47B121151B
                              COOLANT PIPE
                              from £198.48
                              from £198.48
                              COOLANT PIPE Genuine Lamborghini - New (to order)
                              # 015
                              MPN: 47B121383A
                              BRACKET
                              from £16.25
                              from £16.25
                              BRACKET, RADIATOR Genuine Lamborghini - New (to order)
                              # 016
                              -
                              HOSE
                              SEE ILLUSTRATION : 819.01
                              # 017
                              -
                              HOSE
                              SEE ILLUSTRATION : 819.01
                              # 018
                              MPN: N10017304
                              HEXAGON COLLAR NUT
                              M5
                              from £1.08
                              from £1.08
                              HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
                              shouldered hex. nut Genuine Porsche Part - New (to order)
                              # 019
                              MPN: N10714801
                              OVAL HEXAGON SOCKET HEAD BOLT
                              M6X18
                              from £0.54
                              from £0.54
                              HEXALOBULAR SOCKETM6X18 Genuine Lamborghini - New In stock
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                              # 020
                              MPN: N10786201
                              HEX SOCKET OVAL HEAD COLLARED
                              M6X12
                              from £0.59
                              from £0.59
                              HEXALOBULAR SOCKET M6 X 12 Genuine Lamborghini - New In stock
                              HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
                              # 021
                              MPN: N90986501
                              SPRING BAND CLAMP
                              14,5X12
                              from £1.13
                              from £1.13
                              SPRING CLAMP Genuine Lamborghini - New (to order)
                              SPRING CLIP Genuine Porsche Part - New (to order)
                              # 022
                              MPN: N91115401
                              SPRING BAND CLAMP
                              A20-32X9
                              from £3.43
                              from £3.43
                              HOSE CLAMP Genuine Lamborghini - New (to order)
                              # 023
                              MPN: N90687001
                              SPRING BAND CLAMP
                              27X12
                              from £4.70
                              from £4.70
                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                              SPRING CLIP Genuine Porsche Part - New (to order)
                              # 024
                              MPN: N10196103
                              OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                              M6X18
                              from £0.78
                              from £0.78
                              HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                              oval socket head bolt Genuine Porsche Part - New In stock
                              # 025
                              MPN: N91054101
                              OVAL HEXAGON SOCKET HEAD BOLT
                              M6X25
                              from £0.65
                              from £0.65
                              HEXALOBULAR SOCKETM6X25-S11 Genuine Lamborghini - New (to order)
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                              # 026
                              -
                              PIPE
                              SEE ILLUSTRATION : 121.02
