121.02.00 - COOLANT COOLING SYSTEM WATER SYSTEM

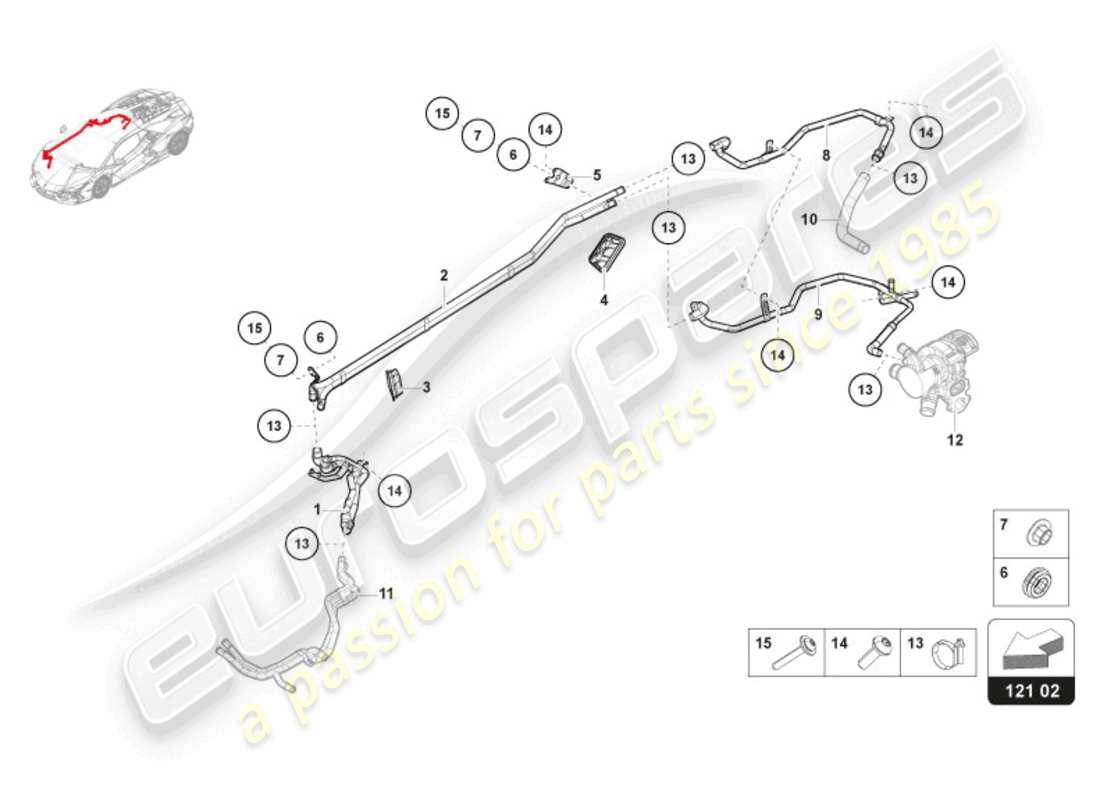

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM WATER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 47B121086A
                          COOLANT HOSE
                          from £332.77
                          from £332.77
                          COOLANT HOSE Genuine Lamborghini - New (to order)
                          # 002
                          MPN: 47B121082A
                          COOLANT HOSE
                          from £316.52
                          from £316.52
                          COOLANT HOSE Genuine Lamborghini - New (to order)
                          # 003
                          MPN: 47B121078A
                          RETAINING PIECE
                          from £21.78
                          from £21.78
                          RETAINING PART Genuine Lamborghini - New (to order)
                          # 004
                          MPN: 47B121077A
                          RETAINING PIECE
                          from £22.37
                          from £22.37
                          RETAINING PART Genuine Lamborghini - New (to order)
                          # 005
                          MPN: 47B121094A
                          HOSE BRACKET
                          from £22.11
                          from £22.11
                          HOSE BRACKET Genuine Lamborghini - New (to order)
                          # 006
                          MPN: 4S0129669A
                          GROMMET
                          from £2.60
                          from £2.60
                          GROMMET Genuine Lamborghini - New (to order)
                          # 007
                          MPN: 8K0129734C
                          BUSH
                          from £4.97
                          from £4.97
                          SPACER Genuine Lamborghini - New (to order)
                          # 008
                          MPN: 47B121070A
                          COOLANT PIPE
                          from £188.67
                          from £188.67
                          COOLANT PIPE Genuine Lamborghini - New (to order)
                          # 009
                          MPN: 47B121507A
                          COOLANT PIPE
                          from £255.78
                          from £255.78
                          COOLANT PIPE Genuine Lamborghini - New (to order)
                          # 010
                          -
                          COOLANT HOSE
                          # 011
                          -
                          COOLANT HOSE
                          # 012
                          -
                          COOLANT PUMP
                          # 013
                          MPN: N91115401
                          SPRING BAND CLAMP
                          A20-32X9
                          from £3.43
                          from £3.43
                          HOSE CLAMP Genuine Lamborghini - New (to order)
                          # 014
                          MPN: N10196103
                          OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                          M6X18
                          from £0.78
                          from £0.78
                          HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                          oval socket head bolt Genuine Porsche Part - New In stock
                          # 015
                          MPN: N10442204
                          HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                          M6X40
                          from £1.28
                          from £1.28
                          HEXALOBULAR SOCKETM6X40-S11-L Genuine Lamborghini - New In stock
