121.03.00 - COOLANT COOLING SYSTEM WATER SYSTEM

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM WATER SYSTEM Parts Diagram

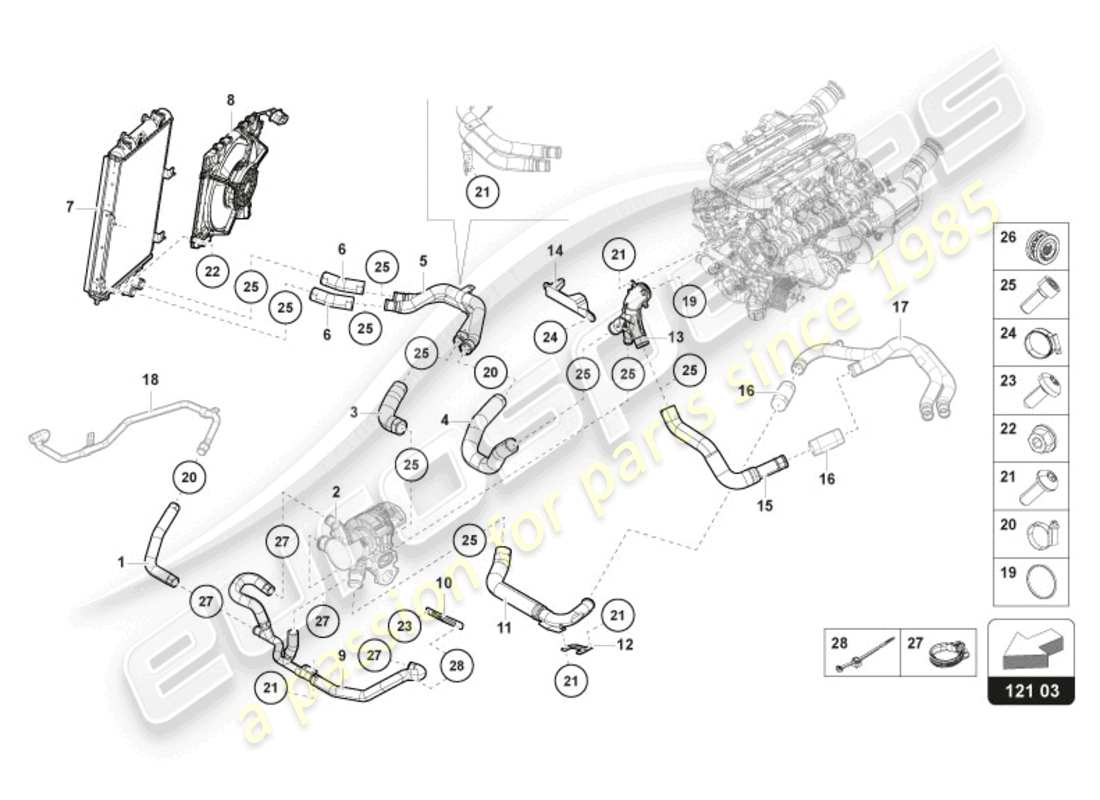

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 47B121057P
                                            COOLANT HOSE
                                            from £60.99
                                            from £60.99
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 002
                                            -
                                            COOLANT PUMP
                                            # 003
                                            MPN: 47B121055E
                                            COOLANT HOSE
                                            from £51.53
                                            from £51.53
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 004
                                            MPN: 47B121058G
                                            COOLANT HOSE
                                            from £60.99
                                            from £60.99
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 005
                                            MPN: 47B121062A
                                            COOLANT HOSE
                                            from £221.60
                                            from £221.60
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 006
                                            MPN: 47B121058E
                                            COOLANT HOSE
                                            from £21.45
                                            from £21.45
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 007
                                            MPN: 47B121254A
                                            COOLER FOR COOLANT
                                            from £769.10
                                            from £769.10
                                            AUXILIARY RADIATOR Genuine Lamborghini - New (to order)
                                            # 008
                                            MPN: 4S0121203C
                                            RADIATOR FAN WITH FAN RING
                                            400W
                                            from £569.70
                                            from £569.70
                                            This part replaces part number 4S0121203B
                                            RADIATOR SHROUD AND FAN LEFT Genuine Lamborghini - New In stock
                                            # 009
                                            MPN: 47B121064B
                                            COOLANT PIPE
                                            from £315.69
                                            from £315.69
                                            BY PASS PIPE ASSEMBLY Genuine Lamborghini - New (to order)
                                            # 010
                                            MPN: 47B121522A
                                            BRACKET
                                            from £12.65
                                            from £12.65
                                            BRACKET Genuine Lamborghini - New (to order)
                                            # 011
                                            MPN: 47B121609A
                                            COOLANT HOSE
                                            from £190.77
                                            from £190.77
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 012
                                            MPN: 47B121093A
                                            BRACKET
                                            from £10.73
                                            from £10.73
                                            BRACKET Genuine Lamborghini - New (to order)
                                            # 013
                                            MPN: 07M121071E
                                            COOLANT PIPE
                                            from £258.37
                                            from £258.37
                                            COOLANT PIPE Genuine Lamborghini - New (to order)
                                            # 014
                                            MPN: 07M199632D
                                            BRACKET
                                            from £102.21
                                            from £102.21
                                            BRACKET Genuine Lamborghini - New (to order)
                                            # 015
                                            MPN: 47B121049A
                                            COOLANT HOSE
                                            from £180.96
                                            from £180.96
                                            COOLANT HOSE Genuine Lamborghini - New (to order)
                                            # 016
                                            -
                                            COOLANT HOSE
                                            # 017
                                            -
                                            COOLANT HOSE
                                            # 018
                                            -
                                            COOLANT HOSE
                                            # 019
                                            MPN: N91019101
                                            O-RING
                                            50X3
                                            from £4.35
                                            from £4.35
                                            O-RING Genuine Lamborghini - New (to order)
                                            O-RING Genuine Porsche Part - New (to order)
                                            # 020
                                            MPN: N91115401
                                            SPRING BAND CLAMP
                                            A20-32X9
                                            from £3.43
                                            from £3.43
                                            HOSE CLAMP Genuine Lamborghini - New (to order)
                                            # 021
                                            MPN: N10196103
                                            OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                                            M6X18
                                            from £0.78
                                            from £0.78
                                            HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                                            oval socket head bolt Genuine Porsche Part - New In stock
                                            # 022
                                            MPN: N90488004
                                            HEX. NUT WITH WASHER
                                            M6
                                            from £0.47
                                            from £0.47
                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                            # 023
                                            MPN: N91096701
                                            OVAL HEXAGON SOCKET HEAD BOLT
                                            M6X16
                                            from £0.78
                                            from £0.78
                                            HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                            # 024
                                            MPN: N10409603
                                            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                                            from £2.01
                                            from £2.01
                                            TRIPLE SQUARE BOLTM12X1.5X30 Genuine Lamborghini - New (to order)
                                            # 025
                                            MPN: 47B971851
                                            BRACKET
                                            from £8.97
                                            from £8.97
                                            BRACKET,SENSOR Genuine Lamborghini - New (to order)
                                            # 026
                                            MPN: 050129669C
                                            GROMMET
                                            from £5.86
                                            from £5.86
                                            GROMMET Genuine Lamborghini - New (to order)
                                            # 027
                                            MPN: 47B971850B
                                            CABLE TIES
                                            from £10.89
                                            from £10.89
                                            CABLE TIES Genuine Lamborghini - New (to order)
                                            # 028
                                            MPN: 3W0971838
                                            CABLE TIES
                                            4,6X193MM 6,5/0,3-3,0MM
                                            from £0.86
                                            from £0.86
                                            CABLE TIE BASE 6.50X200 Genuine Lamborghini - New (to order)
