121.04.00 - COOLANT PUMP WATER SYSTEM

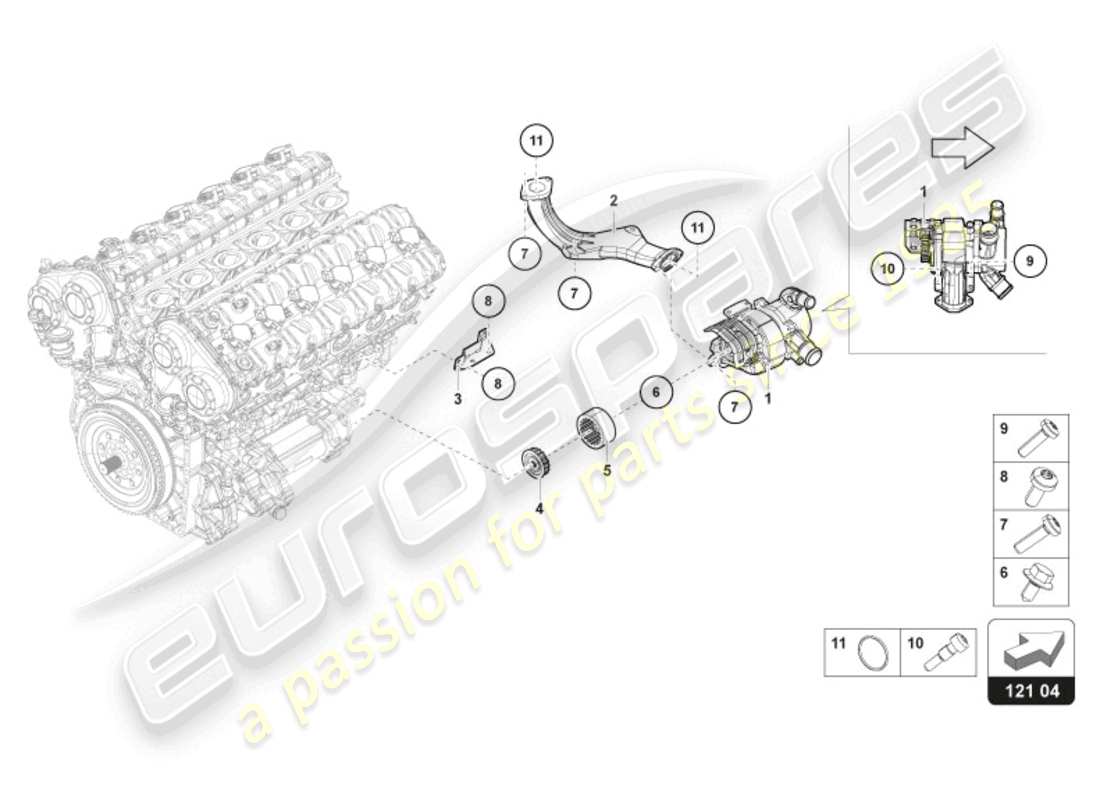

Lamborghini Revuelto Coupe (2024) COOLANT PUMP WATER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 07M121011M
              COOLANT PUMP
              from £1,971.85
              from £1,971.85
              COOLANT PUMP Genuine Lamborghini - New (to order)
              # 002
              MPN: 07M121071F
              COOLANT PIPE
              from £268.60
              from £268.60
              COOLANT PIPE Genuine Lamborghini - New (to order)
              # 003
              MPN: 07M121079
              BRACKET
              from £33.43
              from £33.43
              BRACKET Genuine Lamborghini - New (to order)
              # 004
              MPN: 07M103731
              PULLEY
              from £266.09
              from £266.09
              PULLEY Genuine Lamborghini - New (to order)
              # 005
              MPN: 070903327D
              COUPLING
              from £90.65
              from £90.65
              clutch Genuine Lamborghini - New (to order)
              # 006
              MPN: N91079301
              HEX COLLARED BOLT
              M8X16
              from £0.61
              from £0.61
              HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
              BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
              # 007
              MPN: N10700203
              ROUND HD. SCREW
              from £0.52
              from £0.52
              SCREW Genuine Lamborghini - New (to order)
              ROUND HD. SCREW Genuine Porsche Part - New (to order)
              # 008
              MPN: N10405604
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X14
              from £0.72
              from £0.72
              HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
              # 009
              MPN: N10700202
              ROUND HD. SCREW
              VITE M6X22-M6X22
              from £1.12
              from £1.12
              HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
              # 010
              MPN: 07M103537
              SCREWED SOCKET
              M6X27
              from £30.75
              from £30.75
              HOUSING Genuine Lamborghini - New (to order)
              # 011
              MPN: N90344501
              O-RING
              45X3
              from £2.84
              from £2.84
              O-RING Genuine Lamborghini - New (to order)
              O-RING Genuine Porsche Part - New (to order)
