121.20.00 - COOLANT COOLING SYSTEM HIGH VOLTAGE COOLING

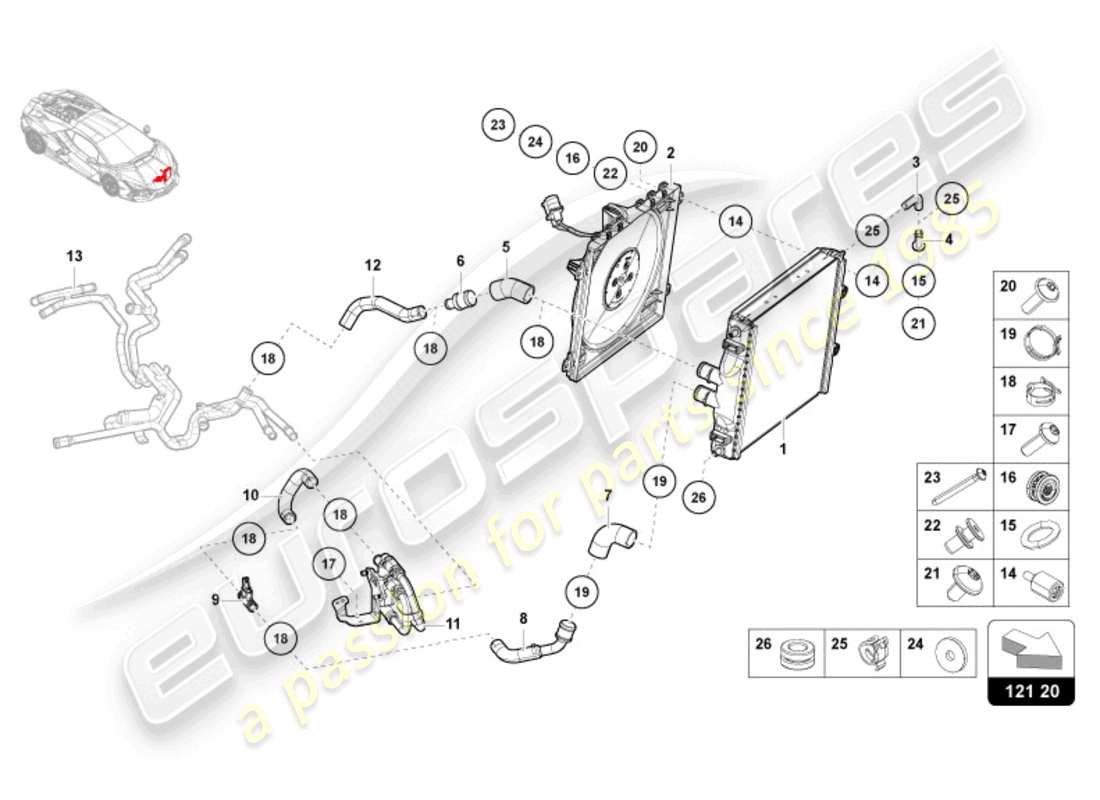

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM HIGH VOLTAGE COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 47B121251A
                                      COOLER FOR COOLANT
                                      from £633.05
                                      from £633.05
                                      COOLER FOR COOLANT Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 4S0121203C
                                      RADIATOR FAN WITH FAN RING
                                      400W
                                      from £569.70
                                      from £569.70
                                      This part replaces part number 4S0121203B
                                      RADIATOR SHROUD AND FAN LEFT Genuine Lamborghini - New In stock
                                      # 003
                                      MPN: 47B121473A
                                      breather line
                                      from £18.76
                                      from £18.76
                                      BREATHER HOSE Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 47B121421B
                                      VALVE
                                      from £25.13
                                      from £25.13
                                      VALVE BODY Genuine Lamborghini - New (to order)
                                      # 005
                                      MPN: 47B122255A
                                      HOSE
                                      from £31.25
                                      from £31.25
                                      HOSE Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 47B121561A
                                      COOLANT PIPE
                                      from £41.72
                                      from £41.72
                                      COOLANT PIPE Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 47B122253A
                                      HOSE
                                      from £31.92
                                      from £31.92
                                      HOSE Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 47B121391B
                                      SOLENOID VALVE
                                      from £198.05
                                      from £198.05
                                      SOLENOID VALVE Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 4G0121140S
                                      HOSE CONNECTOR
                                      from £24.54
                                      from £24.54
                                      HOSE CONNECTOR PL57 PHEV Genuine Lamborghini - New (to order)
                                      # 010
                                      MPN: 47B121562A
                                      COOLANT PIPE
                                      from £31.59
                                      from £31.59
                                      COOLANT PIPE Genuine Lamborghini - New (to order)
                                      # 011
                                      MPN: 47B121411A
                                      SOLENOID VALVE
                                      from £627.94
                                      from £627.94
                                      SOLENOID VALVE Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 47B121548B
                                      COOLANT HOSE
                                      from £30.67
                                      from £30.67
                                      COOLANT HOSE Genuine Lamborghini - New (to order)
                                      # 013
                                      -
                                      breather line
                                      SEE ILLUSTRATION 121.21
                                      # 014
                                      MPN: 47B121179A
                                      SPACER
                                      from £8.38
                                      from £8.38
                                      CONNECTING PART Genuine Lamborghini - New (to order)
                                      # 015
                                      MPN: 47B121437
                                      SEALING RING
                                      from £2.68
                                      from £2.68
                                      SEALING RING Genuine Lamborghini - New (to order)
                                      # 016
                                      MPN: 050129669C
                                      GROMMET
                                      from £5.86
                                      from £5.86
                                      GROMMET Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: N10196103
                                      OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                                      M6X18
                                      from £0.78
                                      from £0.78
                                      HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                                      oval socket head bolt Genuine Porsche Part - New In stock
                                      # 018
                                      MPN: N90687001
                                      SPRING BAND CLAMP
                                      27X12
                                      from £4.70
                                      from £4.70
                                      SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                      SPRING CLIP Genuine Porsche Part - New (to order)
                                      # 019
                                      MPN: N90687201
                                      SPRING BAND CLAMP
                                      40X12
                                      from £1.98
                                      from £1.98
                                      SPRING CLAMP B40X12 Genuine Lamborghini - New In stock
                                      SPRING CLIP Genuine Porsche Part - New (to order)
                                      # 020
                                      MPN: N10714801
                                      OVAL HEXAGON SOCKET HEAD BOLT
                                      M6X18
                                      from £0.54
                                      from £0.54
                                      HEXALOBULAR SOCKETM6X18 Genuine Lamborghini - New In stock
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      # 021
                                      MPN: N10786201
                                      HEX SOCKET OVAL HEAD COLLARED
                                      M6X12
                                      from £0.59
                                      from £0.59
                                      HEXALOBULAR SOCKET M6 X 12 Genuine Lamborghini - New In stock
                                      HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
                                      # 022
                                      MPN: 47B121173A
                                      INSERT NUT
                                      from £10.97
                                      from £10.97
                                      INSERT NUT Genuine Lamborghini - New (to order)
                                      # 023
                                      MPN: N10551403
                                      HEXAGON SOCKET FLAT HEAD BOLT
                                      from £0.84
                                      from £0.84
                                      HEXAGON SOCKET FLAT HEAD BOLT Genuine Lamborghini - New (to order)
                                      # 024
                                      MPN: N90543602
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      WASHER Genuine Lamborghini - New (to order)
                                      WASHER Genuine Porsche Part - New (to order)
                                      # 025
                                      MPN: N90986501
                                      SPRING BAND CLAMP
                                      14,5X12
                                      from £1.13
                                      from £1.13
                                      SPRING CLAMP Genuine Lamborghini - New (to order)
                                      SPRING CLIP Genuine Porsche Part - New (to order)
                                      # 026
                                      MPN: 4D0317867A
                                      RUBBER BUSH
                                      from £5.27
                                      from £5.27
                                      RUBBER MOUNT Genuine Lamborghini - New In stock
