121.21.00 - COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING Parts Diagram

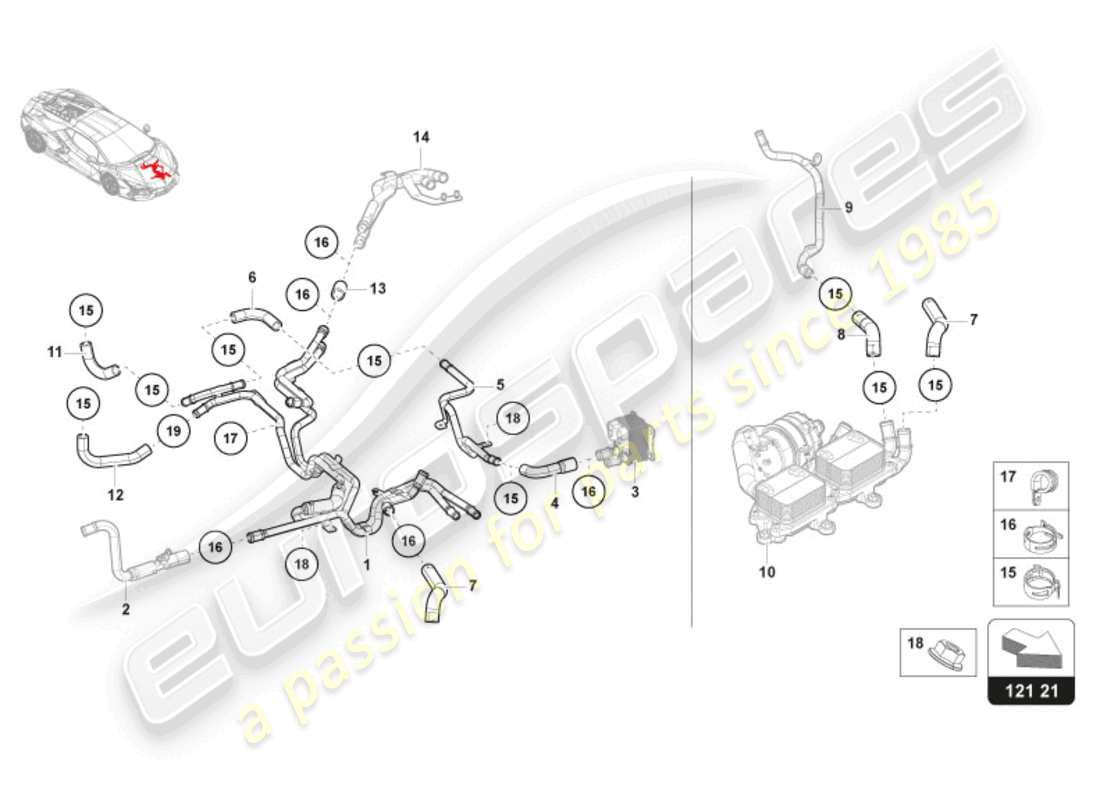

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 47B121478A
                              breather line
                              from £1,167.73
                              from £1,167.73
                              BREATHER PIPE Genuine Lamborghini - New (to order)
                              # 002
                              -
                              PIPE
                              # 003
                              -
                              HEAT EXCHANGER
                              # 004
                              MPN: 47B122086B
                              COOLANT HOSE
                              from £35.52
                              from £35.52
                              OUTLET CHILLER HOSE Genuine Lamborghini - New (to order)
                              # 005
                              MPN: 47B121563A
                              COOLANT PIPE
                              from £142.01
                              from £142.01
                              COOLANT PIPE Genuine Lamborghini - New (to order)
                              # 006
                              MPN: 47B121649A
                              COOLANT HOSE
                              from £26.22
                              from £26.22
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 47B121499A
                              COOLANT HOSE
                              from £19.78
                              from £19.78
                              WATER FEED LINE Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 47B121500
                              COOLANT HOSE
                              from £17.92
                              from £17.92
                              WATER RETURN LINE Genuine Lamborghini - New (to order)
                              # 009
                              -
                              PIPE
                              # 010
                              -
                              COOLER MODULE
                              # 011
                              MPN: 47B121545A
                              COOLANT HOSE
                              from £27.81
                              from £27.81
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 012
                              MPN: 47B121641A
                              COOLANT HOSE
                              from £22.87
                              from £22.87
                              COOLANT HOSE Genuine Lamborghini - New (to order)
                              # 013
                              MPN: 47B121365B
                              BEARING SLEEVE
                              from £20.86
                              from £20.86
                              BEARING SLEEVE Genuine Lamborghini - New (to order)
                              # 014
                              -
                              COOLANT PIPE
                              # 015
                              MPN: N90686901
                              SPRING BAND CLAMP
                              23X12
                              from £0.60
                              from £0.60
                              SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                              SPRING CLIP Genuine Porsche Part - New (to order)
                              # 016
                              MPN: N90687001
                              SPRING BAND CLAMP
                              27X12
                              from £4.70
                              from £4.70
                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                              SPRING CLIP Genuine Porsche Part - New (to order)
                              # 017
                              MPN: N0206405
                              CLAMP
                              18X15
                              from £1.38
                              from £1.38
                              HOLDING CLIP Genuine Lamborghini - New (to order)
                              CLAMP Genuine Porsche Part - New (to order)
                              # 018
                              MPN: N10017304
                              HEXAGON COLLAR NUT
                              M5
                              from £1.08
                              from £1.08
                              HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
                              shouldered hex. nut Genuine Porsche Part - New (to order)
