121.23.00 - COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING Parts Diagram

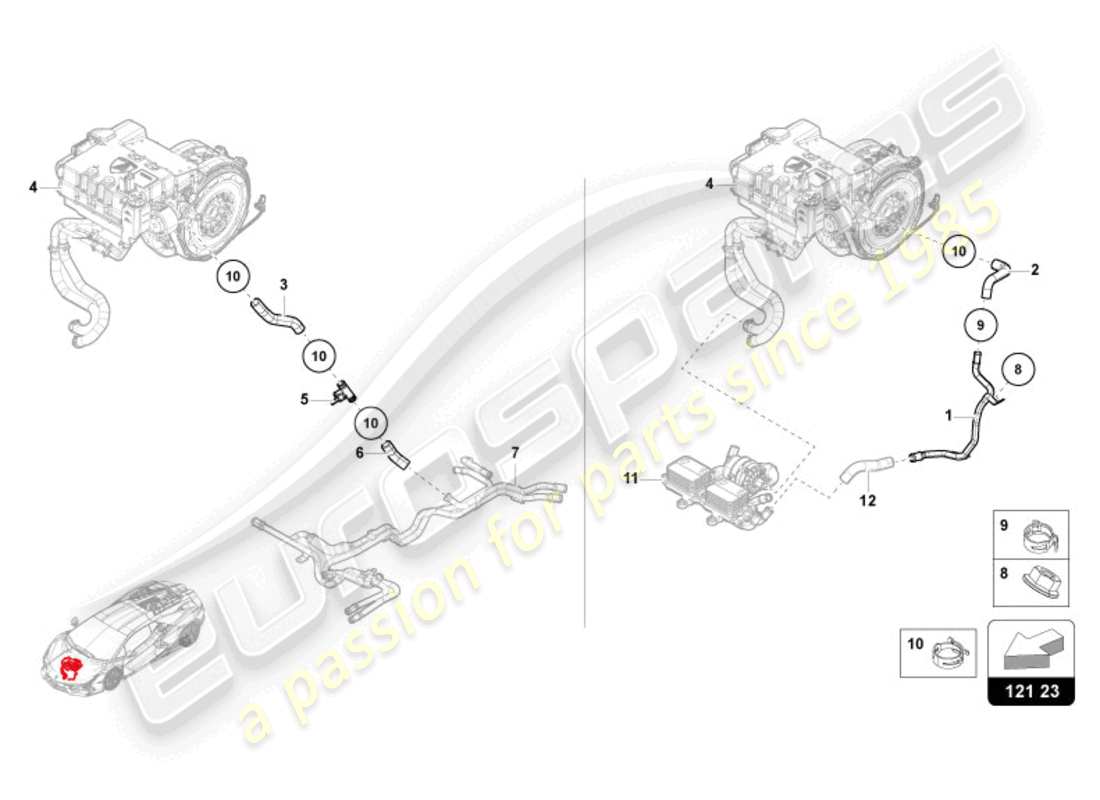

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 47B122051B
            COOLANT HOSE
            from £127.94
            from £127.94
            COOLANT HOSE Genuine Lamborghini - New (to order)
            # 002
            MPN: 47B122055A
            COOLANT HOSE
            from £19.78
            from £19.78
            COOLANT HOSE Genuine Lamborghini - New (to order)
            # 003
            MPN: 47B121199A
            REFRIGERANT HOSE
            from £17.68
            from £17.68
            SLEEVE Genuine Lamborghini - New (to order)
            # 004
            -
            ELECTRIC DRIVE
            SEE ILLUSTRATION : 901.01
            # 005
            MPN: 4G0121140S
            HOSE CONNECTOR
            from £24.54
            from £24.54
            HOSE CONNECTOR PL57 PHEV Genuine Lamborghini - New (to order)
            # 006
            MPN: 47B121315B
            SECURING SLEEVE
            from £19.27
            from £19.27
            SLEEVE INLET INVERTER RUB Genuine Lamborghini - New (to order)
            # 007
            -
            BREATHER HOSE WITH COOLANT HOSE
            SEE ILLUSTRATION : 121.21
            # 008
            MPN: N10017304
            HEXAGON COLLAR NUT
            M5
            from £1.08
            from £1.08
            HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
            shouldered hex. nut Genuine Porsche Part - New (to order)
            # 009
            MPN: N90686901
            SPRING BAND CLAMP
            23X12
            from £0.67
            from £0.67
            SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
            SPRING CLIP Genuine Porsche Part - New (to order)
            # 010
            MPN: N90687001
            SPRING BAND CLAMP
            27X12
            from £4.70
            from £4.70
            SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
            SPRING CLIP Genuine Porsche Part - New (to order)
            # 011
            -
            COOLER MODULE
            SEE ILLUSTRATION : 901.02
            # 012
            -
            F. COOLANT PUMP RETURN
            SEE ILLUSTRATION : 121.21
