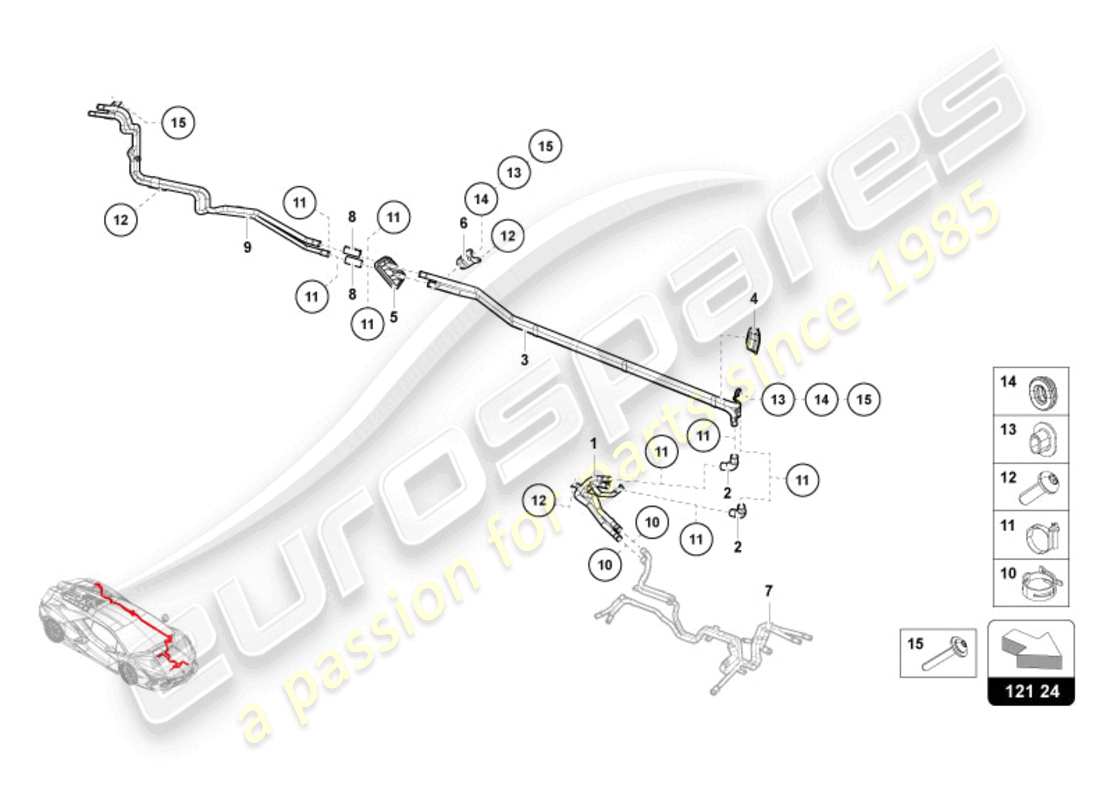

121.24.00 - COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING

Lamborghini Revuelto Coupe (2024) COOLANT COOLING SYSTEM - HIGH VOLTAGE COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 47B121083A
                        COOLANT PIPE
                        from £183.90
                        from £183.90
                        COOLANT PIPE Genuine Lamborghini - New (to order)
                        # 002
                        MPN: 47B121101A
                        COOLANT HOSE
                        from £25.38
                        from £25.38
                        COOLANT HOSE Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 47B121075A
                        COOLANT PIPE
                        from £306.30
                        from £306.30
                        COOLANT PIPE Genuine Lamborghini - New (to order)
                        # 004
                        MPN: 47B121739A
                        DOUBLE GROMMET
                        from £34.60
                        from £34.60
                        DOUBLE GROMMET Genuine Lamborghini - New (to order)
                        # 005
                        MPN: 47B121585A
                        GROMMET
                        from £35.52
                        from £35.52
                        GROMMET Genuine Lamborghini - New (to order)
                        # 006
                        MPN: 47B121217A
                        BRACKET
                        from £21.11
                        from £21.11
                        BRACKET Genuine Lamborghini - New (to order)
                        # 007
                        -
                        breather line
                        # 008
                        MPN: 47B121365B
                        BEARING SLEEVE
                        from £20.86
                        from £20.86
                        BEARING SLEEVE Genuine Lamborghini - New (to order)
                        # 009
                        MPN: 47B121399A
                        COOLANT PIPE
                        from £542.39
                        from £542.39
                        COOLANT PIPE Genuine Lamborghini - New (to order)
                        # 010
                        MPN: N90687001
                        SPRING BAND CLAMP
                        27X12
                        from £4.70
                        from £4.70
                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                        SPRING CLIP Genuine Porsche Part - New (to order)
                        # 011
                        MPN: N91115401
                        SPRING BAND CLAMP
                        A20-32X9
                        from £3.43
                        from £3.43
                        HOSE CLAMP Genuine Lamborghini - New (to order)
                        # 012
                        MPN: N10196103
                        OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                        M6X18
                        from £0.78
                        from £0.78
                        HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                        oval socket head bolt Genuine Porsche Part - New In stock
                        # 013
                        MPN: 8K0129734C
                        BUSH
                        from £4.97
                        from £4.97
                        SPACER Genuine Lamborghini - New (to order)
                        # 014
                        MPN: 4S0129669A
                        GROMMET
                        from £2.60
                        from £2.60
                        GROMMET Genuine Lamborghini - New (to order)
                        # 015
                        MPN: N10442204
                        HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                        M6X40
                        from £1.28
                        from £1.28
                        HEXALOBULAR SOCKETM6X40-S11-L Genuine Lamborghini - New In stock
