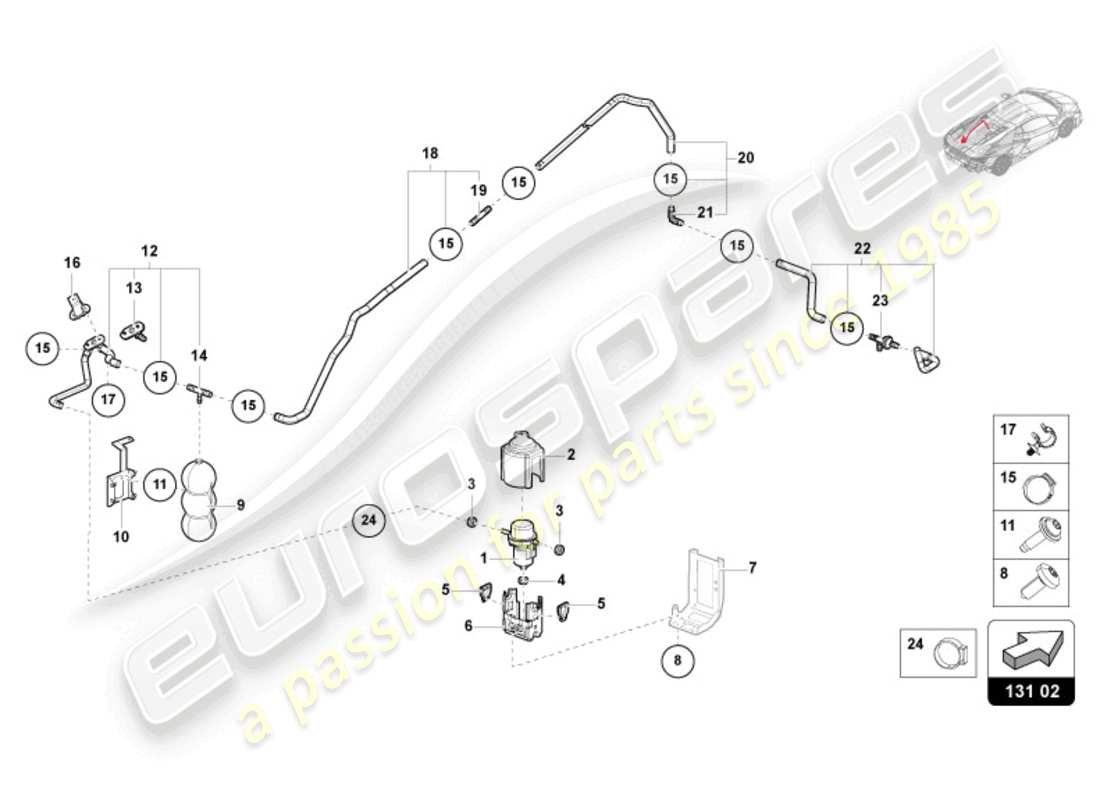

131.02.00 - VACUUM LINE

Lamborghini Revuelto Coupe (2024) VACUUM LINE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 8E0927317K
                            ELECTRIC VACUUM PUMP FOR BRAKE
                            from £162.63
                            from £162.63
                            VACUUM PUMP UP28 REDESIGN Genuine Lamborghini - New In stock
                            VACUUM PUMP UP28 REDESIGN Genuine Lamborghini - Used In stock
                            # 002
                            MPN: 470611357
                            COVER
                            from £14.20
                            from £14.20
                            SCREW COVER TAPPO POMPA Genuine Lamborghini - New (to order)
                            SCREW COVER TAPPO POMPA Genuine Lamborghini - Used In stock
                            # 003
                            MPN: 8E0614177B
                            STOP BUFFER
                            from £2.39
                            from £2.39
                            BUFFER Genuine Lamborghini - New In stock
                            STOP BUFFER Genuine Bentley Part - New (to order)
                            # 004
                            MPN: 8E0614177A
                            STOP BUFFER
                            from £2.45
                            from £2.45
                            BUFFER Genuine Lamborghini - New In stock
                            STOP BUFFER Genuine Bentley Part - New (to order)
                            # 005
                            MPN: 4B0614145
                            CLIP
                            from £0.48
                            from £0.48
                            LOCKING CLIP Genuine Lamborghini - New In stock
                            CLIP Genuine Bentley Part - New (to order)
                            LOCKING CLIP Genuine Lamborghini - Used In stock
                            # 006
                            MPN: 47B614143
                            BRACKET
                            from £132.58
                            from £132.58
                            BRACKET Genuine Lamborghini - New (to order)
                            # 007
                            -
                            BRACKET
                            SEE ILLUSTRATION : 805.03
                            # 008
                            MPN: N91096701
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £0.64
                            from £0.64
                            HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                            # 009
                            MPN: 420131541
                            VACUUM RESERVOIR
                            from £21.42
                            from £21.42
                            VACUUM TANK Genuine Lamborghini - New (to order)
                            VACUUM RESERVOIR Genuine Bentley Part - New (to order)
                            VACUUM TANK Genuine Lamborghini - Used In stock
                            # 010
                            MPN: 47B131429
                            BRACKET
                            from £32.14
                            from £32.14
                            BRACKET Genuine Lamborghini - New (to order)
                            # 011
                            MPN: N90939303
                            HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING
                            M5X20
                            from £1.44
                            from £1.44
                            SCREW AND WASHER M5X20-S11 Genuine Lamborghini - New In stock
                            # 012
                            MPN: 47B131385
                            VACUUM LINE
                            from £94.64
                            from £94.64
                            VACUUM LINE Genuine Lamborghini - New (to order)
                            # 013
                            -
                            HOSE WITH CHECK VALVE
                            ORDER REF 12
                            # 014
                            -
                            HOSE CONNECTOR
                            NOT AVAILABLE SEPARATELY - ORDER REF 13
                            # 015
                            MPN: N10201901
                            CLAMP
                            22,6X7X0,60
                            from £1.42
                            from £1.42
                            EAR HOSE CLAMP 22.6X7X0.6 Genuine Lamborghini - New In stock
                            # 016
                            MPN: 03C906051F
                            PRESSURE SENSOR
                            from £77.97
                            from £77.97
                            PRESSURE SENSOR Genuine Lamborghini - New (to order)
                            # 017
                            MPN: N10515801
                            CLIP
                            A01-18XC13-6,5
                            from £2.09
                            from £2.09
                            SWIVEL-TYPE OMEGA A01-18XC13-6.5 Genuine Lamborghini - New (to order)
                            # 018
                            MPN: 47B131375
                            VACUUM LINE
                            from £38.50
                            from £38.50
                            VACUUM LINE Genuine Lamborghini - New (to order)
                            # 019
                            -
                            HOSE CONNECTOR
                            NOT AVAILABLE SEPARATELY - ORDER REF 18
                            # 020
                            MPN: 47B131373
                            VACUUM HOSE
                            from £45.45
                            from £45.45
                            MOLDED HOSE Genuine Lamborghini - New (to order)
                            # 021
                            -
                            HOSE CONNECTOR
                            NOT AVAILABLE SEPARATELY - ORDER REF 20
                            # 022
                            MPN: 47B131371
                            HOSE
                            from £68.65
                            from £68.65
                            HOSE Genuine Lamborghini - New (to order)
                            # 023
                            -
                            HOSE WITH CHECK VALVE
                            ORDER REF 22
                            # 024
                            MPN: N10098001

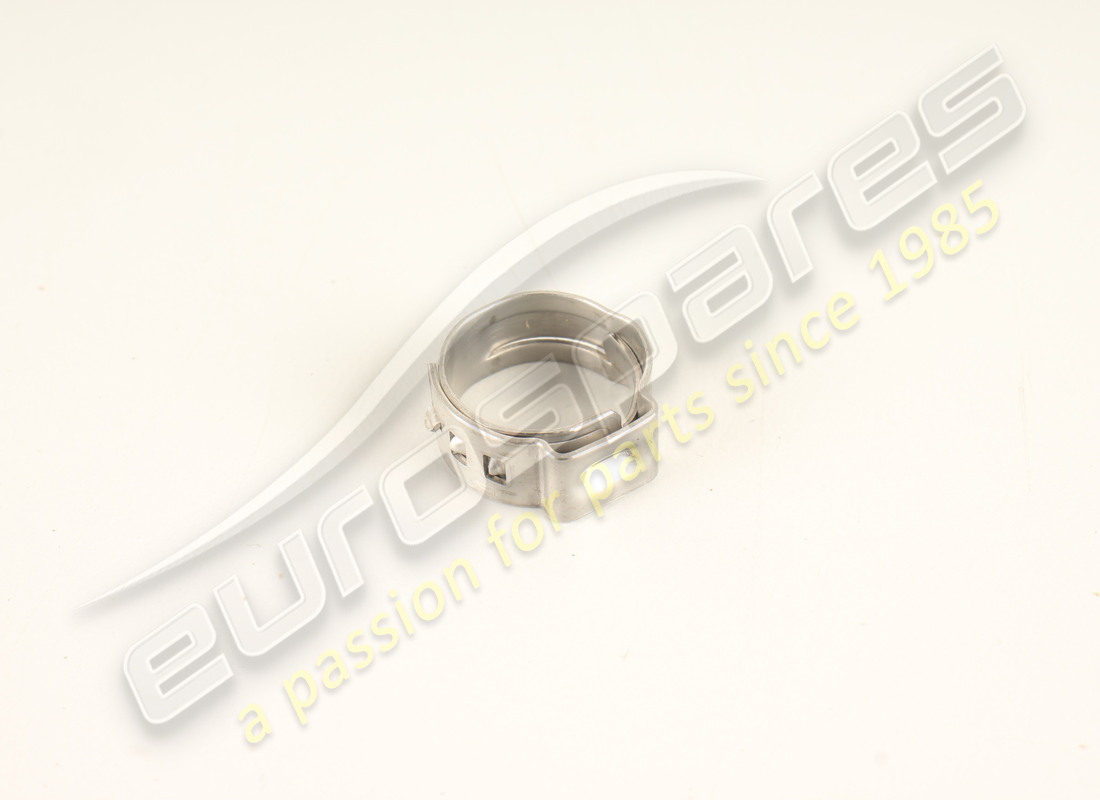

                            CLAMP
                            18,5X7X0,6
                            from £1.12
                            from £1.12
                            EAR HOSE CLAMP 18.5X7X0.6 Genuine Lamborghini - New In stock
                            CLAMP Genuine Bentley Part - New (to order)
