lamborghini revuelto coupe (2024) shock absorber rear parts diagram

511.01.00 - SHOCK ABSORBER REAR

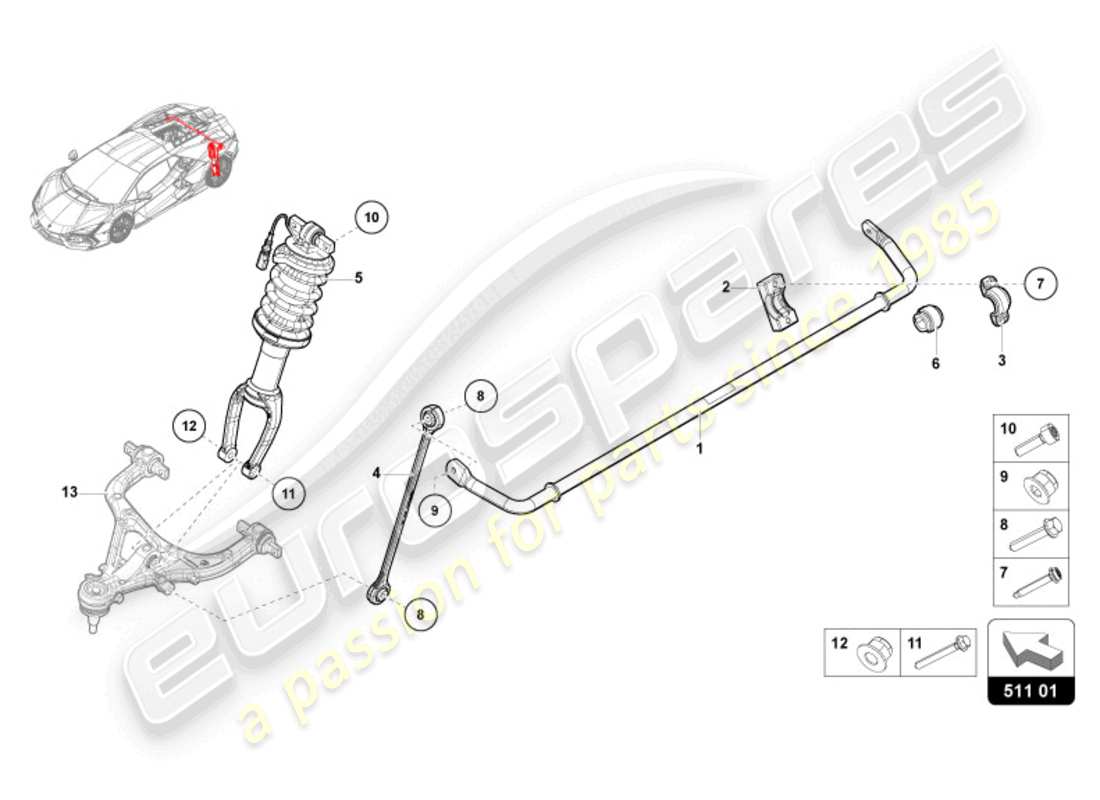

Lamborghini Revuelto Coupe (2024) SHOCK ABSORBER REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 47B511409B
              ANTI-ROLL BAR
              rear
              from £309.66
              from £309.66
              STABILIZER BAR Genuine Lamborghini - New (to order)
              # 002
              MPN: 420411031A
              ANTI-ROLL BAR BEARING BRACKET
              from £8.89
              from £8.89
              stabilizer Genuine Lamborghini - New (to order)
              stabilizer Genuine Lamborghini - Used In stock
              # 003
              MPN: 4H0411336A
              CLAMP
              FRONT
              from £2.10
              from £2.10
              CLIP Genuine Lamborghini - New (to order)
              CLIP Genuine Lamborghini - Used In stock
              # 004
              MPN: 47B505465
              COUPLING ROD
              from £272.88
              from £272.88
              BIELLA,COLLEGAM. Genuine Lamborghini - New (to order)
              # 005
              MPN: 47B512019C
              SHOCK ABSORBER
              from £5,966.81
              from £5,966.81
              SHOCK ABSORBER Genuine Lamborghini - New (to order)
              # 006
              MPN: 8K0411327B
              RUBBER BUSH
              from £5.86
              from £5.86
              BEARING Genuine Lamborghini - New (to order)
              # 007
              MPN: N10682501
              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
              M8X50
              from £1.81
              from £1.81
              12-POINT SOCKET M8X50 Genuine Lamborghini - New (to order)
              # 008
              MPN: N10706901
              HEX COLLARED BOLT
              from £2.17
              from £2.17
              HEXAGON FLANGE M10X55 Genuine Lamborghini - New (to order)
              BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
              # 009
              MPN: N10272302
              HEXAGON COLLAR NUT SELF-LOCKING
              M10
              from £1.32
              from £1.32
              PREV.TORQUE TYPE M10 Genuine Lamborghini - New In stock
              SHOULDERED HEX. NUT, Genuine Porsche Part - New In stock
              # 010
              MPN: N91021403
              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
              from £1.84
              from £1.84
              TRIPLE SQUARE BOLT Genuine Lamborghini - New (to order)
              BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
              # 011
              MPN: N10640301
              HEX COLLARED BOLT
              M12X1,5X100
              from £3.68
              from £3.68
              HEXAGON FLANGE BM12X1.5X100X90 Genuine Lamborghini - New In stock
              BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
              # 012
              MPN: N10106403
              HEXAGON COLLAR NUT SELF-LOCKING
              M12X1,5
              from £1.65
              from £1.65
              PREV.TORQUE TYPE M12X1.5 Genuine Lamborghini - New In stock
              SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
              # 013
              -
              WHEEL BEARING HOUSING
              SEE ILLUSTRATION : 505.01
