lamborghini revuelto coupe (2024) wheels/tyres parts diagram

601.01.00 - WHEELS/TYRES

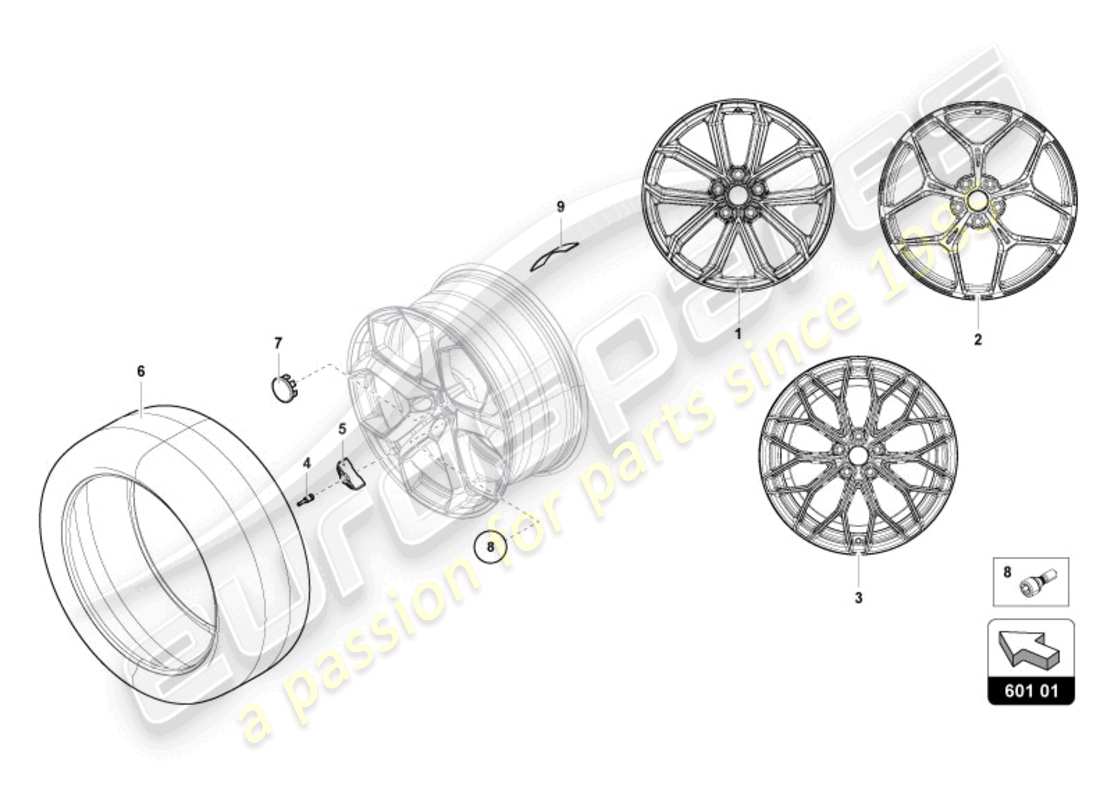

Lamborghini Revuelto Coupe (2024) WHEELS/TYRES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 47B601017
ALUMINIUM RIM
VENANCIO, 9. 5J X 20, SHINY SILVER-FRONT
from £1,522.71
from £1,522.71
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 001
MPN: 47B601017M
ALUMINIUM RIM
VENANCIO, 9. 5J X 20, MATT TITANIUM-FRONT
from £1,522.71
from £1,522.71
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 001
MPN: 47B601017P
ALUMINIUM RIM
VENANCIO, 9. 5J X 20, SHINY BLACK-FRONT
from £1,522.71
from £1,522.71
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 002
MPN: 47B601017AB
ALUMINIUM RIM
ALTANERO, 9.5J X 21, SHINY BRONZE DIAMOND CUT-FRONT
from £3,734.07
from £3,734.07
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 002
MPN: 47B601017R
ALUMINIUM RIM
ALTANERO, 9.5J X 21, SHINY BLACK-FRONT
from £3,438.92
from £3,438.92
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 002
MPN: 47B601017T
ALUMINIUM RIM
ALTANERO, 9.5J X 21, SHINY BLACKDIAMOND CUT-FRONT
from £5,012.98
from £5,012.98
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 003
MPN: 47B601017AD
ALUMINIUM RIM
TRIGUERO, 9. 5J X 20, MATT BLACK-FRONT
from £3,049.67
from £3,049.67
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 003
MPN: 47B601017AF
ALUMINIUM RIM
TRIGUERO, 9. 5J X 20, MATT TITANIUM-FRONT
from £5,419.32
from £5,419.32
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 003
MPN: 47B601017AH
ALUMINIUM RIM
TRIGUERO, 9. 5J X 20, MATT BRONZE-FRONT
from £4,773.45
from £4,773.45
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 003
MPN: 47B601017AP
ALUMINIUM RIM
TRIGUERO, 9. 5J X 20, SHINY SILVER-FRONT
from £4,773.45
from £4,773.45
ALLOY WHEEL Genuine Lamborghini - New (to order)
# 004
MPN: 9P1601361D
METAL VALVE
ONLY FOR TPMS EQUIPMENT - SILVER-433 MHZ
from £18.43
from £18.43
VALVE Genuine Lamborghini - New (to order)
VALVE Genuine Porsche Part - New (to order)
# 005
MPN: 5Q0907275F
TYRE PRESSURE SENSOR
ONLY FOR TPMS EQUIPMENT-433MHZ
from £85.96
from £85.96
TIRE PRESSURE Genuine Lamborghini - New In stock
# 006
MPN: 47B601301
1 SET TYRES
2 X BRIDGESTONE SUMMER RUN FLAT 20, 265/35 ZR20-FRONT
from £1,600.04
from £1,600.04
1 SET TYRES Genuine Lamborghini - New (to order)
# 006
MPN: 47B601301B
1 SET TYRES
2 X BRIDGESTONE SUMMER RUN FLAT 20, 265/35 ZR20 + 2 X BRIDGEST ONE SUMMER RUN FLAT 21, 345/ 30 ZR21-FRONT AND REAR
from £4,530.22
from £4,530.22
1 SET TYRES Genuine Lamborghini - New (to order)
# 006
MPN: 47B601301C
1 SET TYRES
2 X BRIDGESTONE SUMMER RUN FLAT 21, 265/30 ZR21-FRONT
from £1,300.05
from £1,300.05
1 SET TYRES Genuine Lamborghini - New (to order)
# 006
MPN: 47B601301E
1 SET TYRES
2 X BRIDGESTONE SUMMER RUN FLAT 21, 265/30 ZR21 + 2 X BRIDGEST ONE SUMMER RUN FLAT 22, 355/ 25 ZR22-FRONT AND REAR
from £2,920.09
from £2,920.09
1 SET TYRES Genuine Lamborghini - New (to order)
# 006
MPN: 47B601305
1 SET TYRES
WINTER TYRES KIT - FRONT 20 AND REAR 21-FRONT AND REAR
from £3,140.16
from £3,140.16
1 SET TYRES Genuine Lamborghini - New (to order)
# 006
MPN: 47B601305A
1 SET TYRES
WINTER TYRES KIT - FRONT 20-FRONT
from £1,215.05
from £1,215.05
1 SET TYRES Genuine Lamborghini - New (to order)
# 007
MPN: 470601147B
COVER CAP
SHINY BLACK
from £54.85
from £54.85
This part replaces part number 470601147
WHEEL TRIM Genuine Lamborghini - New In stock
# 007
MPN: 470601147C
HUP CAP
MATT BLACK
from £373.60
from £373.60
WHEEL TRIM Genuine Lamborghini - New (to order)
# 008
MPN: 403601295D
WHEEL BOLT WITH TORX
TITANIUM
from £112.51
from £112.51
FASTENER RUOTA (COLON.TIT.) Genuine Lamborghini - New (to order)
# 008
MPN: WHT001161B
WHEEL BOLT WITH TORX
STANDARD
from £6.36
from £6.36
WHEEL BOLT M14 X 1.5 Genuine Lamborghini - New (to order)
WHEEL BOLT M14 X 1.5 Genuine Lamborghini - Used In stock
# 009
-
LABEL FOR TYRE INFLATION PRESSURE
SEE ILLUSTRATION : 010.01
