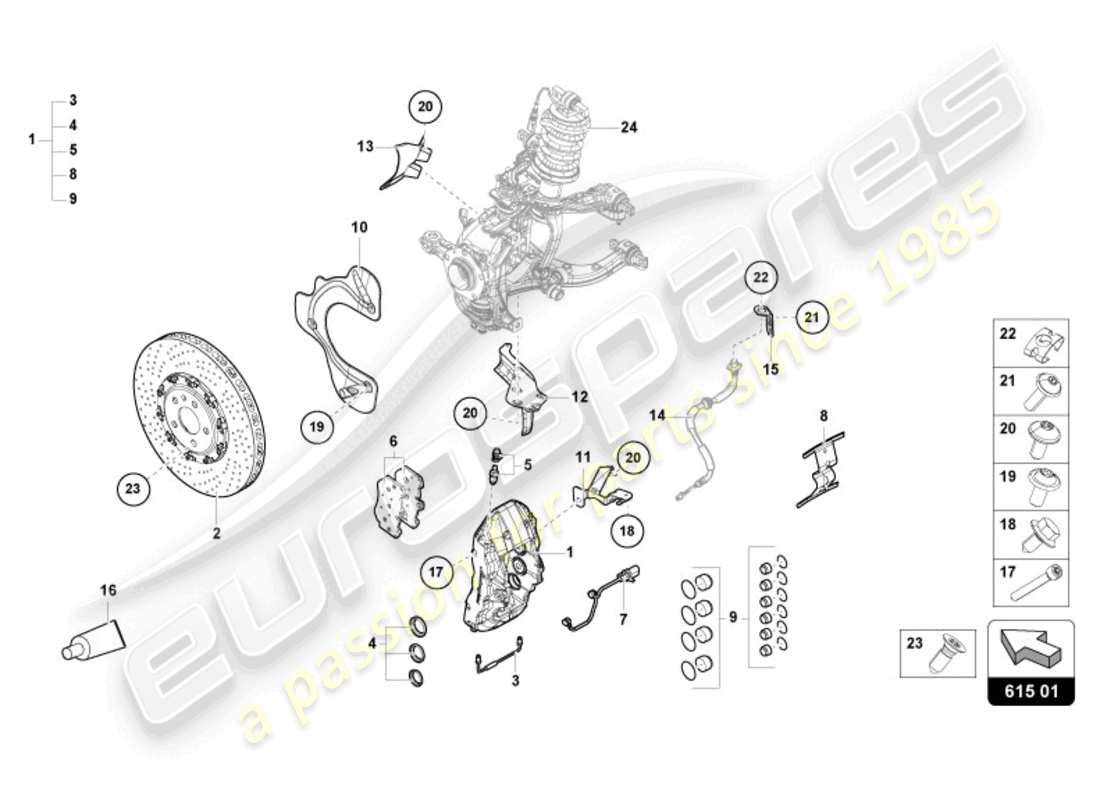

615.01.00 - FIXED-CALLIPER BRAKE FRONT

Lamborghini Revuelto Coupe (2024) FIXED-CALLIPER BRAKE FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 47B615107K
                    BRAKE CALIPER HOUSING
                    BLACK-LEFT BLACK
                    from £3,031.06
                    from £3,031.06
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107L
                    BRAKE CALIPER HOUSING
                    GIALLO BELENUS-LEFT YELLOW
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107M
                    BRAKE CALIPER HOUSING
                    ROSSO MARS-LEFT RED
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107N
                    BRAKE CALIPER HOUSING
                    VERDE SELVANS-LEFT SELVANS GREEN
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107P
                    BRAKE CALIPER HOUSING
                    SILVER-LEFT SILVER
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107Q
                    BRAKE CALIPER HOUSING
                    ARANCIO XANTO-LEFT ORANGE
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107R
                    BRAKE CALIPER HOUSING
                    SHINY BLACK-LEFT SHINY BLACK
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615107S
                    BRAKE CALIPER HOUSING
                    VERDE SCANDAL-LEFT SCANDAL GREEN
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108K
                    BRAKE CALIPER HOUSING
                    BLACK-RIGHT BLACK
                    from £3,031.06
                    from £3,031.06
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108L
                    BRAKE CALIPER HOUSING
                    GIALLO BELENUS-RIGHT YELLOW
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108M
                    BRAKE CALIPER HOUSING
                    ROSSO MARS-RIGHT RED
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108N
                    BRAKE CALIPER HOUSING
                    VERDE SELVANS-RIGHT SELVANS GREEN
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108P
                    BRAKE CALIPER HOUSING
                    SILVER-RIGHT SILVER
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108Q
                    BRAKE CALIPER HOUSING
                    ARANCIO XANTO-RIGHT ORANGE
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108R
                    BRAKE CALIPER HOUSING
                    SHINY BLACK-RIGHT SHINY BLACK
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 001
                    MPN: 47B615108S
                    BRAKE CALIPER HOUSING
                    VERDE SCANDAL-RIGHT SCANDAL GREEEN
                    from £3,837.89
                    from £3,837.89
                    BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 002
                    MPN: 47B615301
                    CERAMIC BRAKE DISC (VENTED)
                    LEFT
                    from £8,325.60
                    from £8,325.60
                    CERAMIC BRAKE DISC (VENTED) Genuine Lamborghini - New (to order)
                    # 002
                    MPN: 47B615302
                    CERAMIC BRAKE DISC (VENTED)
                    RIGHT
                    from £8,325.60
                    from £8,325.60
                    CERAMIC BRAKE DISC (VENTED) Genuine Lamborghini - New (to order)
                    # 003
                    MPN: 47B698307
                    BRAKE PIPE
                    LEFT
                    from £54.25
                    from £54.25
                    BRAKE PIPE Genuine Lamborghini - New (to order)
                    # 003
                    MPN: 47B698308
                    BRAKE PIPE
                    RIGHT
                    from £54.25
                    from £54.25
                    BRAKE PIPE Genuine Lamborghini - New (to order)
                    # 004
                    MPN: 47B698507
                    SET OF GASKETS FOR BRAKE CALIPER HOUSING
                    from £201.93
                    from £201.93
                    SET OF GASKETS FOR BRAKE CALIPER HOUSING Genuine Lamborghini - New (to order)
                    # 005
                    MPN: 8A0615273
                    1 SET BLEEDER VALVES WITH DUST CAP
                    from £9.05
                    from £9.05
                    BLEEDER SCREW Genuine Lamborghini - New (to order)
                    BLEEDER VALVE Genuine Porsche Part - New (to order)
                    1 SET BLEEDER VALVES WITH DUST CAP Genuine Bentley Part - New (to order)
                    # 006
                    MPN: 47B698151
                    1 SET OF BRAKE PADS FOR DISK BRAKE
                    from £2,792.35
                    from £2,792.35
                    1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Lamborghini - New (to order)
                    # 007
                    MPN: 9P1907637B

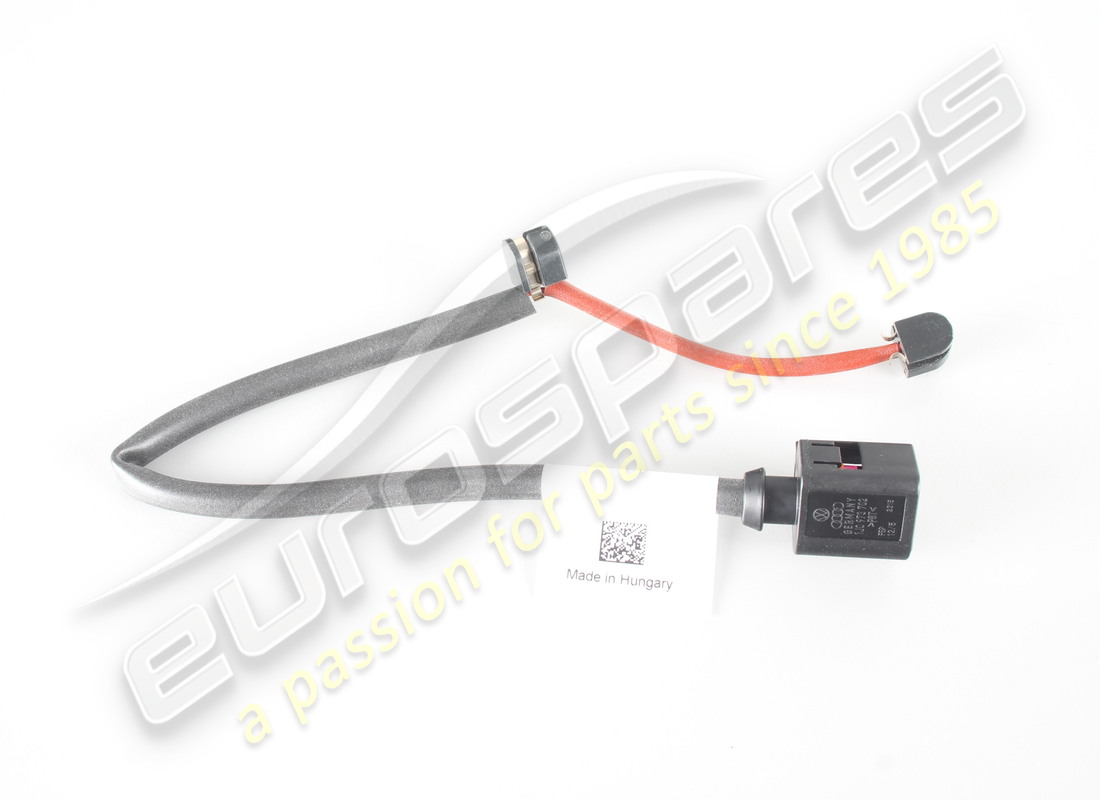

                    SENDER WIRE (PAD WEAR INDICATOR)
                    from £36.51
                    from £36.51
                    SENDER WIRE (PAD WEAR INDICATOR) Genuine Lamborghini - New (to order)
                    SENDER WIRE Genuine Porsche Part - New (to order)
                    # 008
                    MPN: 47B698135A
                    1 SET SPRINGS
                    from £95.08
                    from £95.08
                    1 SET SPRINGS Genuine Lamborghini - New (to order)
                    # 009
                    MPN: 47B698010
                    1 SET: CYLINDER LINERS WITH PISTONS AND PISTON RINGS
                    from £785.02
                    from £785.02
                    1 SET: CYLINDER LINERS WITH PISTONS AND PISTON RINGS Genuine Lamborghini - New (to order)
                    # 010
                    MPN: 47B615311
                    COVER
                    LEFT
                    from £58.71
                    from £58.71
                    COVER Genuine Lamborghini - New (to order)
                    # 010
                    MPN: 47B615312
                    COVER
                    RIGHT
                    from £58.71
                    from £58.71
                    COVER Genuine Lamborghini - New (to order)
                    # 011
                    MPN: 47B611793
                    BRACKET
                    LEFT
                    from £107.29
                    from £107.29
                    BRACKET Genuine Lamborghini - New (to order)
                    # 011
                    MPN: 47B611794
                    BRACKET
                    RIGHT
                    from £107.29
                    from £107.29
                    BRACKET Genuine Lamborghini - New (to order)
                    # 012
                    MPN: 47B615161A
                    WARM AIR DEFLECTOR
                    LEFT
                    from £45.80
                    from £45.80
                    WARM AIR DEFLECTOR Genuine Lamborghini - New (to order)
                    # 012
                    MPN: 47B615162A
                    WARM AIR DEFLECTOR
                    RIGHT
                    from £45.80
                    from £45.80
                    WARM AIR DEFLECTOR Genuine Lamborghini - New (to order)
                    # 013
                    MPN: 47B615159A
                    WARM AIR DEFLECTOR
                    LEFT
                    from £25.69
                    from £25.69
                    WARM AIR DEFLECTOR Genuine Lamborghini - New (to order)
                    # 013
                    MPN: 47B615160A
                    WARM AIR DEFLECTOR
                    RIGHT
                    from £25.69
                    from £25.69
                    WARM AIR DEFLECTOR Genuine Lamborghini - New (to order)
                    # 014
                    -
                    BRAKE HOSE
                    SEE ILLUSTATION: 611.01
                    # 015
                    MPN: 47B611799
                    BRACKET
                    LEFT
                    from £18.89
                    from £18.89
                    BRACKET Genuine Lamborghini - New (to order)
                    # 015
                    MPN: 47B611800
                    BRACKET
                    RIGHT
                    from £18.89
                    from £18.89
                    BRACKET Genuine Lamborghini - New (to order)
                    # 016
                    MPN: 47B698705
                    GREASE
                    from £62.54
                    from £62.54
                    GREASE Genuine Lamborghini - New (to order)
                    # 017
                    MPN: WHT007585
                    SOCKET HEAD BOLT
                    from £1.34
                    from £1.34
                    SOCKET HEAD BOLT Genuine Lamborghini - New (to order)
                    IN-6RD-FLSH-SHR M12X1.5X85 Genuine Porsche Part - New (to order)
                    # 018
                    MPN: N91079301
                    HEX COLLARED BOLT
                    M8X16
                    from £0.64
                    from £0.64
                    HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                    # 019
                    MPN: N10406504
                    OVAL HEXAGON SOCKET HEAD BOLT
                    M6X12
                    from £0.79
                    from £0.79
                    HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                    # 020
                    MPN: N10741402
                    HEXAGON SOCKET FLAT HEAD BOLT
                    M6X14
                    from £0.64
                    from £0.64
                    HEXALOBULAR SOCKETM6X14 Genuine Lamborghini - New In stock
                    HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                    HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                    # 021
                    MPN: N10714801
                    OVAL HEXAGON SOCKET HEAD BOLT
                    M6X18
                    from £0.48
                    from £0.48
                    HEXALOBULAR SOCKETM6X18 Genuine Lamborghini - New In stock
                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                    # 022
                    MPN: 8K0611715
                    RETAINING SPRING
                    from £0.55
                    from £0.55
                    RETAINING SPRING Genuine Lamborghini - New In stock
                    RETAINING SPRING Genuine Porsche Part - New (to order)
                    RETAINING SPRING Genuine Bentley Part - New (to order)
                    # 023
                    MPN: N10648301
                    HEX SOCKET COUNTERSUNK BOLT
                    M6X16
                    from £0.64
                    from £0.64
                    HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                    HEX SOCKET COUNTERSUNK BOLT Genuine Porsche Part - New (to order)
                    HEX SOCKET COUNTERSUNK BOLT Genuine Bentley Part - New (to order)
                    # 024
                    -
                    WHEEL BEARING HOUSING
                    SEE ILLUSTATION: 407.01
