616.01.00 - LIFTING DEVICE

Lamborghini Revuelto Coupe (2024) LIFTING DEVICE Parts Diagram

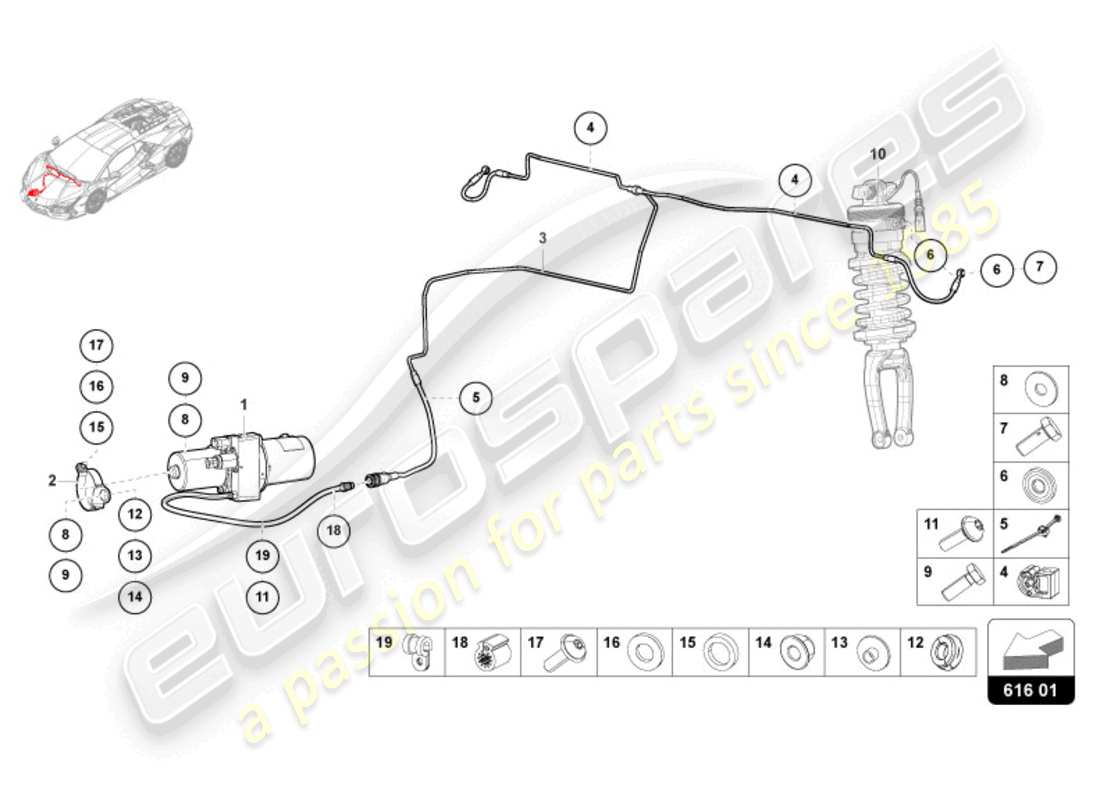

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 47B616591A
                              POWER SUPPLY UNIT
                              from £3,379.95
                              from £3,379.95
                              POWER UNIT ASSEMBLY Genuine Lamborghini - New (to order)
                              # 002
                              MPN: 47B616781
                              BRACKET - PRESSURE ACCUMULATOR
                              from £39.55
                              from £39.55
                              LIFTING SYSTEM PUMP BRACKET Genuine Lamborghini - New (to order)
                              # 003
                              MPN: 47B616719A
                              PRESSURE LINE
                              from £724.84
                              from £724.84
                              LIFTING SYSTEM PIPE Genuine Lamborghini - New (to order)
                              # 004
                              MPN: 95B611797
                              CLIP
                              1 POINT
                              from £1.28
                              from £1.28
                              BRACKET ANTRIEB Genuine Lamborghini - New (to order)
                              CLIP Genuine Porsche Part - New (to order)
                              CLIP Genuine Bentley Part - New (to order)
                              # 005
                              MPN: 3D0971838N
                              CABLE TIES WITH BRACKET
                              from £0.49
                              from £0.49
                              CABLE TIE BASE 6.50X193.00 Genuine Lamborghini - New In stock
                              Genuine Bentley Part (no longer available to order)
                              # 006
                              MPN: 47B616817
                              SEALING WASHER
                              from £8.07
                              from £8.07
                              SEALING RING Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 47B616023
                              fasteners
                              from £42.27
                              from £42.27
                              FASTENER Genuine Lamborghini - New (to order)
                              # 008
                              MPN: N01167210
                              WASHER
                              from £0.68
                              from £0.68
                              WASHER 10X30X2.5 Genuine Lamborghini - New (to order)
                              # 009
                              MPN: N10011105
                              HEXAGON BOLT
                              from £1.35
                              from £1.35
                              HEXAGON HEAD BOLT M10X28 Genuine Lamborghini - New (to order)
                              # 010
                              -
                              SHOCK ABSORBER
                              # 011
                              MPN: N91032702
                              ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
                              M6X20
                              from £0.72
                              from £0.72
                              HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                              SCREW, BUTTON HD. WITH Genuine Porsche Part - New (to order)
                              ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                              # 012
                              MPN: 47B616337A
                              DISTANCE PIECE
                              from £6.55
                              from £6.55
                              SILENT BLOCK Genuine Lamborghini - New (to order)
                              # 013
                              MPN: WHT010101
                              SHOULDERED WASHER
                              from £23.25
                              from £23.25
                              SHOULDERED WASHER 10.3X35X2 Genuine Lamborghini - New (to order)
                              # 014
                              MPN: N10286110
                              HEXAGON COLLAR NUT SELF-LOCKING
                              M10
                              from £1.04
                              from £1.04
                              This part replaces part number N10286102
                              PREV.TORQUE TYPE M10 Genuine Lamborghini - New In stock
                              Genuine Porsche Part (no longer available to order)
                              HEXAGON COLLAR NUT SELF-LOCKING Genuine Bentley Part - New (to order)
                              # 015
                              MPN: WHT010190
                              WASHER
                              from £7.42
                              from £7.42
                              WASHER 6.5X12X3.5 Genuine Lamborghini - New (to order)
                              # 016
                              MPN: N01152427
                              WASHER
                              6,4X12,5X1,6
                              from £0.47
                              from £0.47
                              This part replaces part number 008400606 - and 1 more. Click to view details
                              WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                              Washer - R 6,6 Genuine Porsche Part - New (to order)
                              # 017
                              MPN: N10714801
                              OVAL HEXAGON SOCKET HEAD BOLT
                              M6X18
                              from £0.48
                              from £0.48
                              HEXALOBULAR SOCKETM6X18 Genuine Lamborghini - New In stock
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                              # 018
                              MPN: N10716201
                              SPACER RING
                              from £1.34
                              from £1.34
                              SPLINED SLEEVE B8X18X20 Genuine Lamborghini - New (to order)
                              SPACER RING Genuine Porsche Part - New (to order)
                              # 019
                              MPN: N10782501
                              CLAMP
                              from £3.01
                              from £3.01
                              RETAINING CLAMP G1-9X15 Genuine Lamborghini - New (to order)
