lamborghini revuelto coupe (2024) front frame parts diagram

803.01.00 - FRONT FRAME

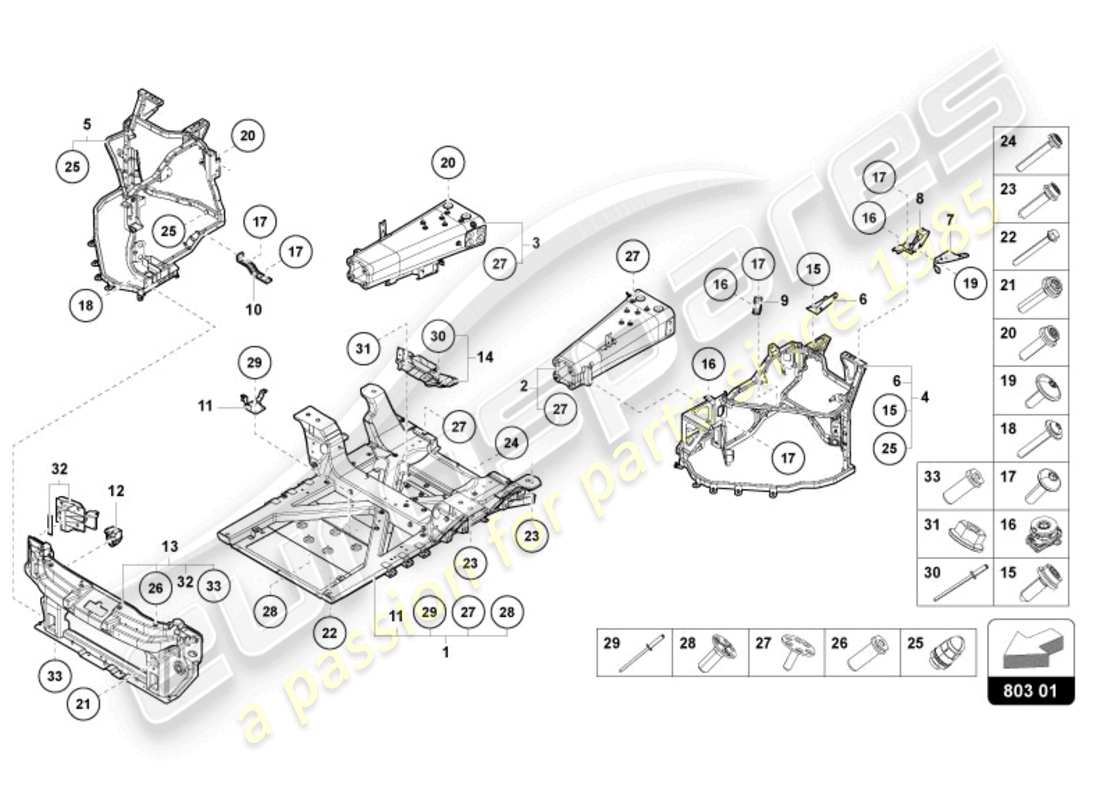

Lamborghini Revuelto Coupe (2024) FRONT FRAME Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 47B805101
                              Frame
                              from £11,600.89
                              from £11,600.89
                              FRONT FRAME Genuine Lamborghini - New (to order)
                              # 002
                              MPN: 47B805111
                              CRASH MEMBER
                              LEFT
                              from £6,188.60
                              from £6,188.60
                              FRONT CRASH CONE ASSEMBLY LH Genuine Lamborghini - New (to order)
                              # 003
                              MPN: 47B805112
                              CRASH MEMBER
                              RIGHT
                              from £6,520.05
                              from £6,520.05
                              FRONT CRASH CONE ASSEMBLY RH Genuine Lamborghini - New (to order)
                              # 004
                              MPN: 47B806191A
                              FRAME PART
                              LEFT
                              from £2,141.37
                              from £2,141.37
                              RETAINING PART SIDE FRONT FRAME Genuine Lamborghini - New (to order)
                              # 005
                              MPN: 47B806192A
                              FRAME PART
                              RIGHT
                              from £2,036.69
                              from £2,036.69
                              RETAINING PART SIDE FRONT FRAME Genuine Lamborghini - New (to order)
                              # 006
                              MPN: 47B806507A
                              BRACKET
                              LEFT
                              from £168.34
                              from £168.34
                              BRACKET Genuine Lamborghini - New (to order)
                              # 006
                              MPN: 47B806508A
                              BRACKET
                              RIGHT
                              from £168.34
                              from £168.34
                              BRACKET Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 47B821021A
                              BRACKET
                              LEFT
                              from £14.26
                              from £14.26
                              FENDER Genuine Lamborghini - New (to order)
                              # 007
                              MPN: 47B821022A
                              BRACKET
                              RIGHT
                              from £14.26
                              from £14.26
                              FENDER Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 47B821017A
                              BRACKET
                              LEFT
                              from £20.29
                              from £20.29
                              FENDER Genuine Lamborghini - New (to order)
                              # 008
                              MPN: 47B821018A
                              BRACKET
                              RIGHT
                              from £20.29
                              from £20.29
                              FENDER Genuine Lamborghini - New (to order)
                              # 009
                              MPN: 47B806359A
                              BRACKET
                              from £18.32
                              from £18.32
                              BRACKET,TRIM Genuine Lamborghini - New (to order)
                              # 010
                              MPN: 47B805201A
                              BRACKET
                              from £11.99
                              from £11.99
                              BRACKET Genuine Lamborghini - New (to order)
                              # 011
                              -
                              BRACKET
                              SEE ILLUSTRATION : 901.02
                              # 012
                              MPN: 4KE959345A
                              ACCELERATOR SENSOR
                              from £107.29
                              from £107.29
                              SENSOR Genuine Lamborghini - New (to order)
                              # 013
                              MPN: 47B807051
                              front end
                              from £15,334.10
                              from £15,334.10
                              front end Genuine Lamborghini - New (to order)
                              # 014
                              MPN: 47B805343
                              AIR DUCT
                              from £107.73
                              from £107.73
                              AIR CHANNEL Genuine Lamborghini - New (to order)
                              # 015
                              MPN: N10753102
                              INT. SERRATION FLANGE SCREW
                              from £3.71
                              from £3.71
                              12-POINT SOCKET M8X22 Genuine Lamborghini - New (to order)
                              # 016
                              MPN: 8P7806305
                              COMPENSATING PIECE
                              from £8.94
                              from £8.94
                              COMPENSATING Genuine Lamborghini - New (to order)
                              SPACER Genuine Porsche Part - New (to order)
                              # 017
                              MPN: N10661002
                              HEX SOCKET OVAL HEAD COLLARED
                              M6X20
                              from £0.47
                              from £0.47
                              HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
                              HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
                              HEX SOCKET OVAL HEAD COLLARED Genuine Bentley Part - New (to order)
                              # 018
                              MPN: N10483102
                              HEX SOCKET HEAD BOLT (COMBI)
                              M6X50
                              from £1.00
                              from £1.00
                              HEX. SOCKET SCREW W.WASHER M6X50 Genuine Lamborghini - New In stock
                              # 019
                              MPN: N91188301
                              HEXAGON SOCKET HEAD BOLT
                              M6X20
                              from £0.79
                              from £0.79
                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                              HEXAGONAL SOCKET HEAD Genuine Porsche Part - New In stock
                              HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                              # 020
                              MPN: N10827301
                              FLAT HEAD MULTI-POINT SOCKET BOLT
                              from £0.97
                              from £0.97
                              12-POINT SOCKET Genuine Lamborghini - New (to order)
                              Flat head multi-point Genuine Porsche Part - New (to order)
                              FLAT HEAD MULTI-POINT SOCKET BOLT Genuine Bentley Part - New (to order)
                              # 021
                              MPN: N91174401
                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                              M8X35
                              from £0.95
                              from £0.95
                              12 POINT SOCKET FLANGE SCREW M8X35 Genuine Lamborghini - New In stock
                              BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                              # 022
                              MPN: N10699501
                              HEX COLLARED BOLT
                              M10X95
                              from £2.27
                              from £2.27
                              HEXAGON FLANGE Genuine Lamborghini - New In stock
                              6KT-FLANSCHSHR M10X95 Genuine Porsche Part - New (to order)
                              HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                              # 023
                              MPN: N91303101
                              12-POINT SOCKET HEAD BOLT (COMBI)
                              from £6.23
                              from £6.23
                              12-POINT SOCKET M12X1.5X50 Genuine Lamborghini - New (to order)
                              # 024
                              MPN: N91174301
                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                              from £2.27
                              from £2.27
                              12-POINT SOCKET M8X50 Genuine Lamborghini - New (to order)
                              # 025
                              MPN: WHT003401
                              WELD STUDS WITH CAP NUTS
                              M8
                              from £3.08
                              from £3.08
                              WELD STUD PS-M8 Genuine Lamborghini - New (to order)
                              WELD STUDS WITH CAP NUTS Genuine Bentley Part - New (to order)
                              # 026
                              MPN: 8H0806221
                              COMPENSATING PIECE
                              from £6.42
                              from £6.42
                              ADJUSTMENT PART Genuine Lamborghini - New In stock
                              COMPENSATING PIECE Genuine Bentley Part - New (to order)
                              # 027
                              MPN: 476803938
                              INSERT
                              M5
                              from £9.86
                              from £9.86
                              FASTENING PART Genuine Lamborghini - New (to order)
                              # 028
                              MPN: 47B804311
                              fasteners
                              from £64.98
                              from £64.98
                              fasteners Genuine Lamborghini - New (to order)
                              # 029
                              MPN: WHT006115
                              BELT RIVET
                              3,2X14
                              from £0.90
                              from £0.90
                              BLIND RIVET 3.2X14 Genuine Lamborghini - New In stock
                              # 030
                              MPN: WHT005628
                              BELT RIVET
                              3,2X9,2
                              from £0.81
                              from £0.81
                              BLIND RIVET A3.2X9.2 Genuine Lamborghini - New (to order)
                              # 031
                              MPN: N10017304
                              HEXAGON COLLAR NUT
                              M5
                              from £0.79
                              from £0.79
                              HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
                              shouldered hex. nut Genuine Porsche Part - New (to order)
                              HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                              # 032
                              MPN: 47B805327
                              1 RETAINING BRACKET KIT
                              LEFT
                              from £2,324.53
                              from £2,324.53
                              1 RETAINING BRACKET KIT Genuine Lamborghini - New (to order)
                              # 032
                              MPN: 47B805328
                              1 RETAINING BRACKET KIT
                              RIGHT
                              from £2,176.26
                              from £2,176.26
                              1 RETAINING BRACKET KIT Genuine Lamborghini - New (to order)
                              # 033
                              MPN: 47B311397
                              ADJUSTMENT PART
                              from £31.05
                              from £31.05
                              ADJUSTMENT PART Genuine Lamborghini - New (to order)
