805.03.00 - CHASSIS REAR

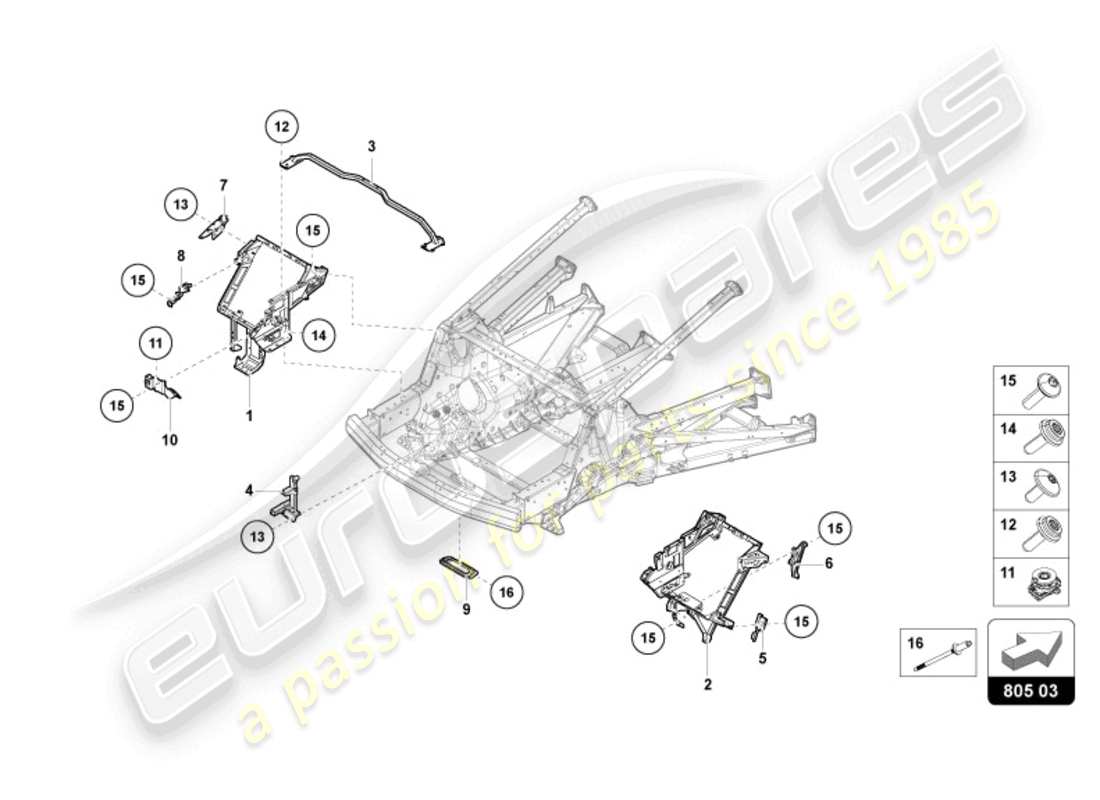

Lamborghini Revuelto Coupe (2024) CHASSIS REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 47B814157A
          Frame
          LEFT
          from £1,163.46
          from £1,163.46
          OUTER PANEL,REAR CAST WITH MACH Genuine Lamborghini - New (to order)
          # 002
          MPN: 47B814158A
          Frame
          RIGHT
          from £1,325.99
          from £1,325.99
          OUTER PANEL,REAR CAST WITH MACH Genuine Lamborghini - New (to order)
          # 003
          MPN: 47B814463A
          Frame
          from £308.82
          from £308.82
          FRAME CAST WITH MACH Genuine Lamborghini - New (to order)
          # 004
          MPN: 47B813753B
          SUPPORT FOR BUMPER
          LEFT
          from £251.51
          from £251.51
          SUPPORT FOR BUMPER Genuine Lamborghini - New (to order)
          # 004
          MPN: 47B813754B
          SUPPORT FOR BUMPER
          RIGHT
          from £251.51
          from £251.51
          SUPPORT FOR BUMPER Genuine Lamborghini - New (to order)
          # 005
          MPN: 47B813643
          BRACKET
          from £18.68
          from £18.68
          MOUNTING BRACKET Genuine Lamborghini - New (to order)
          # 006
          MPN: 47B813391
          BRACKET
          from £24.21
          from £24.21
          MOUNTING PART,REAR Genuine Lamborghini - New (to order)
          # 007
          MPN: 47B813745A
          HOLDER FOR BUMPER BRACKET
          LEFT
          from £24.30
          from £24.30
          BRACKET,REAR Genuine Lamborghini - New (to order)
          # 007
          MPN: 47B813746A
          HOLDER FOR BUMPER BRACKET
          RIGHT
          from £24.30
          from £24.30
          BRACKET,REAR Genuine Lamborghini - New (to order)
          # 008
          MPN: 47B813695B
          BRACKET
          LEFT
          from £80.35
          from £80.35
          BRACKET Genuine Lamborghini - New (to order)
          # 008
          MPN: 47B813696B
          BRACKET
          RIGHT
          from £80.35
          from £80.35
          BRACKET Genuine Lamborghini - New (to order)
          # 009
          MPN: 47B813415A
          AIR DUCT
          from £30.40
          from £30.40
          HINGE REINFORCEMENT Genuine Lamborghini - New (to order)
          # 010
          MPN: 47B813743A
          HOLDER FOR BUMPER BRACKET
          LEFT
          from £51.27
          from £51.27
          BRACKET,REAR Genuine Lamborghini - New (to order)
          # 010
          MPN: 47B813744A
          HOLDER FOR BUMPER BRACKET
          RIGHT
          from £51.27
          from £51.27
          BRACKET,REAR Genuine Lamborghini - New (to order)
          # 011
          MPN: 8P7806305
          COMPENSATING PIECE
          0,8MM
          from £8.94
          from £8.94
          COMPENSATING Genuine Lamborghini - New (to order)
          SPACER Genuine Porsche Part - New (to order)
          # 012
          MPN: N91128001
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M8X25
          from £0.84
          from £0.84
          12-POINT SOCKET M8X25 Genuine Lamborghini - New In stock
          BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
          # 013
          MPN: N91042302
          OVAL HEXAGON SOCKET HEAD BOLT
          M6X16
          from £0.61
          from £0.61
          HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New (to order)
          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
          # 014
          MPN: N91128001
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M8X25
          from £0.84
          from £0.84
          12-POINT SOCKET M8X25 Genuine Lamborghini - New In stock
          BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
          # 015
          MPN: N10661002
          HEX SOCKET OVAL HEAD COLLARED
          M6X20
          from £0.49
          from £0.49
          HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
          HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
          # 016
          MPN: N90692402
          POP RIVET
          4,8X10 N906924
          from £1.12
          from £1.12
          BLIND RIVET 4.8X11.3 Genuine Lamborghini - New (to order)
