807.03.00 - BUMPER REAR

Lamborghini Revuelto Coupe (2024) BUMPER REAR Parts Diagram

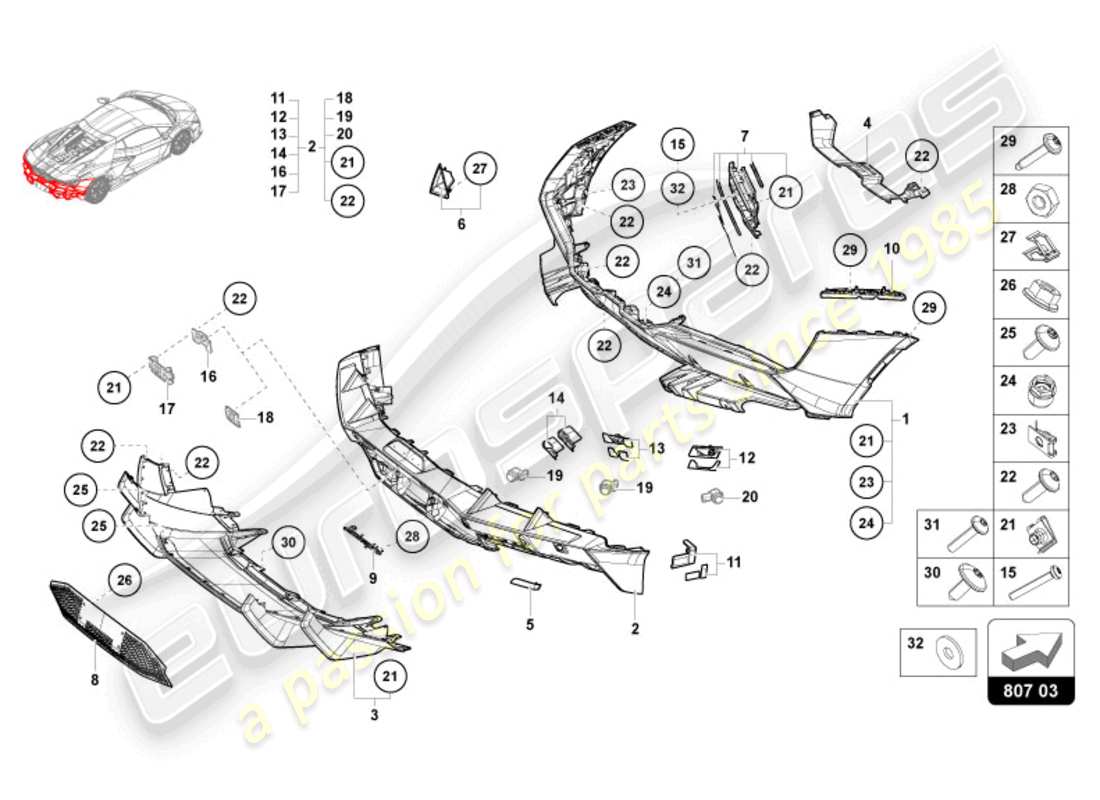

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 47B807497AGRU
                      PRIMED
                      from £2,839.16
                      from £2,839.16
                      PRIMED Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501AAB98
                      SATIN BLACK
                      UPPER, RVC MATT BLACK
                      from £3,811.72
                      from £3,811.72
                      SATIN BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501ABY9B
                      BRILLIANT BLACK
                      UPPER, BASE SHINY BLACK
                      from £4,675.24
                      from £4,675.24
                      BRILLIANT BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501ACY9B
                      BRILLIANT BLACK
                      UPPER, RVC SHINY BLACK
                      from £4,810.44
                      from £4,810.44
                      BRILLIANT BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501AF
                      REAR DIFFUSER
                      UPPER, CARBON - BASE - MATT
                      from £22,743.84
                      from £22,743.84
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501MB98
                      SATIN BLACK
                      UPPER, PLA TVC MATT BLACK
                      from £4,164.98
                      from £4,164.98
                      SATIN BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501NY9B
                      BRILLIANT BLACK
                      UPPER, PLA TVC SHINY BLACK
                      from £5,168.06
                      from £5,168.06
                      BRILLIANT BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501R
                      REAR DIFFUSER
                      UPPER, CARBON - RVC - MATT
                      from £23,262.82
                      from £23,262.82
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501S
                      REAR DIFFUSER
                      UPPER, CARBON - PLA TVC - MATT
                      from £23,672.77
                      from £23,672.77
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807501TB98
                      SATIN BLACK
                      UPPER, BASE MATT BLACK
                      from £3,676.52
                      from £3,676.52
                      SATIN BLACK Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807532
                      REAR DIFFUSER
                      UPPER, CARBON - BASE - SHINY
                      from £6,114.45
                      from £6,114.45
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807532A
                      REAR DIFFUSER
                      UPPER, CARBON - RVC - SHINY
                      from £6,607.27
                      from £6,607.27
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 47B807532B
                      REAR DIFFUSER
                      UPPER, CARBON - PLA TVC - SHINY
                      from £6,982.34
                      from £6,982.34
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 003
                      MPN: 47B807542R
                      REAR DIFFUSER
                      CARBON, SHINY
                      from £5,159.34
                      from £5,159.34
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 003
                      MPN: 47B807542S
                      REAR DIFFUSER
                      CARBON, MATT
                      from £19,669.16
                      from £19,669.16
                      REAR DIFFUSER Genuine Lamborghini - New (to order)
                      # 003
                      MPN: 47B807546BGRU
                      PRIMED
                      LOWER, PRIMED
                      from £2,533.87
                      from £2,533.87
                      PRIMED Genuine Lamborghini - New (to order)
                      # 003
                      MPN: 47B807546CTRA
                      CARBON
                      CARBON - LIVERY
                      from £12,180.92
                      from £12,180.92
                      CARBON Genuine Lamborghini - New (to order)
                      # 004
                      MPN: 47B807527
                      BUMPER COVER
                      from £210.21
                      from £210.21
                      BUMPER COVER Genuine Lamborghini - New (to order)
                      # 005
                      MPN: 47B807795
                      COVER
                      from £32.31
                      from £32.31
                      COVER Genuine Lamborghini - New (to order)
                      # 005
                      MPN: 47B807796
                      COVER
                      from £32.31
                      from £32.31
                      COVER Genuine Lamborghini - New (to order)
                      # 006
                      MPN: 47B807173
                      TRIM
                      from £38.12
                      from £38.12
                      TRIM Genuine Lamborghini - New (to order)
                      # 006
                      MPN: 47B807174
                      TRIM
                      from £38.12
                      from £38.12
                      TRIM Genuine Lamborghini - New (to order)
                      # 007
                      MPN: 47B807165A
                      REINFORCEMENT
                      from £223.29
                      from £223.29
                      REINFORCEMENT Genuine Lamborghini - New (to order)
                      # 007
                      MPN: 47B807166A
                      REINFORCEMENT
                      from £223.29
                      from £223.29
                      REINFORCEMENT Genuine Lamborghini - New (to order)
                      # 008
                      MPN: 47B807639A
                      GRILLE
                      from £498.92
                      from £498.92
                      BUMPER GRILLE Genuine Lamborghini - New (to order)
                      # 009
                      MPN: 4T0853742B
                      LETTERING
                      'LAMBORGHINI '
                      from £169.21
                      from £169.21
                      NAME BADGE Genuine Lamborghini - New (to order)
                      # 009
                      MPN: 4T0853742C
                      LETTERING
                      'Lamborghini ' MATT BLACK
                      from £184.92
                      from £184.92
                      Lamborghini NAME BADGE Genuine Lamborghini - New (to order)
                      # 009
                      MPN: 4T0853742D
                      LETTERING
                      'Lamborghini ' SHINY BLACK
                      from £184.92
                      from £184.92
                      Lamborghini NAME BADGE Genuine Lamborghini - New (to order)
                      # 010
                      MPN: 47B807055
                      BRACKET
                      from £28.18
                      from £28.18
                      BRACKET Genuine Lamborghini - New (to order)
                      # 010
                      MPN: 47B807056
                      BRACKET
                      from £28.18
                      from £28.18
                      BRACKET Genuine Lamborghini - New (to order)
                      # 011
                      -
                      REINFORCEMENT
                      FOR CARBON VERSION ORDER REF 2-LEFT
                      # 011
                      -
                      REINFORCEMENT
                      FOR CARBON VERSION ORDER REF 2-RIGHT
                      # 011
                      MPN: 47B807327
                      REINFORCEMENT
                      NOT FOR CARBON VERSION-LEFT
                      from £42.27
                      from £42.27
                      REINFORCEMENT Genuine Lamborghini - New (to order)
                      # 011
                      MPN: 47B807328
                      REINFORCEMENT
                      NOT FOR CARBON VERSION-RIGHT
                      from £42.27
                      from £42.27
                      REINFORCEMENT Genuine Lamborghini - New (to order)
                      # 012
                      -
                      BRACKET FOR RADAR SENSOR
                      FOR CARBON VERSION ORDER REF 2-LEFT
                      # 012
                      -
                      BRACKET FOR RADAR SENSOR
                      FOR CARBON VERSION ORDER REF 2-RIGHT
                      # 012
                      MPN: 47B807125B98
                      SATIN BLACK
                      USE ONLY FOR BUMPER IN PLASTIC-LEFT
                      from £225.03
                      from £225.03
                      SATIN BLACK Genuine Lamborghini - New (to order)
                      # 012
                      MPN: 47B807125Y9B
                      BRILLIANT BLACK
                      USE ONLY FOR BUMPER IN PLASTIC-LEFT
                      from £225.03
                      from £225.03
                      BRILLIANT BLACK Genuine Lamborghini - New (to order)
                      # 012
                      MPN: 47B807126B98
                      SATIN BLACK
                      USE ONLY FOR BUMPER IN PLASTIC-RIGHT
                      from £225.03
                      from £225.03
                      SATIN BLACK Genuine Lamborghini - New (to order)
                      # 012
                      MPN: 47B807126Y9B
                      BRILLIANT BLACK
                      USE ONLY FOR BUMPER IN PLASTIC-RIGHT
                      from £225.03
                      from £225.03
                      BRILLIANT BLACK Genuine Lamborghini - New (to order)
                      # 013
                      -
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      FOR CARBON VERSION ORDER REF 2-LEFT
                      # 013
                      -
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      FOR CARBON VERSION ORDER REF 2-RIGHT
                      # 013
                      MPN: 47B919329
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      NOT FOR CARBON VERSION-LEFT
                      from £139.56
                      from £139.56
                      BRACKET FOR DISTANCE MEASURING SENSOR Genuine Lamborghini - New (to order)
                      # 013
                      MPN: 47B919330
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      NOT FOR CARBON VERSION-RIGHT
                      from £139.56
                      from £139.56
                      BRACKET FOR DISTANCE MEASURING SENSOR Genuine Lamborghini - New (to order)
                      # 014
                      -
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      FOR CARBON VERSION ORDER REF 2-LEFT
                      # 014
                      -
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      FOR CARBON VERSION ORDER REF 2-RIGHT
                      # 014
                      MPN: 47B919289
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      NOT FOR CARBON VERSION-LEFT
                      from £104.24
                      from £104.24
                      BRACKET FOR DISTANCE MEASURING SENSOR Genuine Lamborghini - New (to order)
                      # 014
                      MPN: 47B919290
                      BRACKET FOR DISTANCE MEASURING SENSOR
                      NOT FOR CARBON VERSION-RIGHT
                      from £104.24
                      from £104.24
                      BRACKET FOR DISTANCE MEASURING SENSOR Genuine Lamborghini - New (to order)
                      # 015
                      MPN: N10405702
                      HEXAGON SOCKET HEAD BOLT
                      M6X45
                      from £0.62
                      from £0.62
                      HEXALOBULAR SOCKET M6X45 Genuine Lamborghini - New In stock
                      HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                      HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                      # 016
                      -
                      BRACKET
                      SEE ILLUSTRATION : 907.01-RVC
                      # 017
                      -
                      SUPPORT
                      SEE ILLUSTRATION : 907.01-RVC
                      # 018
                      -
                      COVER
                      SEE ILLUSTRATION : 907.01-TV CAM
                      # 019
                      -
                      PDC SUPPLIED
                      SEE ILLUSTRATION : 919.01-12 CHANNELS
                      # 019
                      -
                      PDC SUPPLIED
                      SEE ILLUSTRATION : 919.01-8 CHANNELS
                      # 020
                      -
                      PLASTIC ADHESIVE FOR RIGID PLASTICS
                      SEE ILLUSTRATION : 919.01-LATERAL
                      # 021
                      MPN: N90475903
                      SPEED NUT
                      M5X13,6X11,5
                      from £0.64
                      from £0.64
                      SNAP NUT CLAMP M5 X 13.6 X 11.5 Genuine Lamborghini - New In stock
                      SPEED NUT Genuine Porsche Part - New (to order)
                      SPEED NUT Genuine Bentley Part - New (to order)
                      # 022
                      MPN: N91074201
                      HEXAGON SOCKET HEAD BOLT
                      from £0.48
                      from £0.48
                      HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                      HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                      HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                      # 023
                      MPN: N90688703
                      SPEED NUT
                      M6X24X16
                      from £0.64
                      from £0.64
                      SNAP NUT CLAMP M6 x 23.8 x 16 Genuine Lamborghini - New In stock
                      SPEED NUT Genuine Porsche Part - New (to order)
                      SPEED NUT Genuine Bentley Part - New (to order)
                      # 024
                      MPN: 5J0941141B
                      ADJUSTING SCREW
                      from £7.50
                      from £7.50
                      ADJUSTING SCREW Genuine Lamborghini - New (to order)
                      # 025
                      MPN: N10651801
                      HEXAGON SOCKET FLAT HEAD BOLT
                      M5X14
                      from £0.47
                      from £0.47
                      VITE ESAG. SCREW WM5GFX14 Genuine Lamborghini - New (to order)
                      HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                      # 026
                      MPN: N10017304
                      HEXAGON COLLAR NUT
                      M5
                      from £0.79
                      from £0.79
                      HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
                      shouldered hex. nut Genuine Porsche Part - New (to order)
                      HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                      # 027
                      MPN: 1J0858137A
                      CLIP
                      from £0.64
                      from £0.64
                      CLIP Genuine Lamborghini - New (to order)
                      Genuine Bentley Part (no longer available to order)
                      # 028
                      MPN: N0110027
                      HEXAGON NUT
                      M3
                      from £0.53
                      from £0.53
                      This part replaces part number 008200301
                      HEX.NUT M3 Genuine Lamborghini - New In stock
                      # 029
                      MPN: N91182301
                      HEXAGON SOCKET FLAT HEAD BOLT
                      M6X35
                      from £1.14
                      from £1.14
                      HEXALOBULAR SOCKETM6X35 Genuine Lamborghini - New (to order)
                      HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                      # 030
                      MPN: N91042301
                      OVAL HEXAGON SOCKET HEAD BOLT
                      M6X16
                      from £0.55
                      from £0.55
                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                      # 031
                      MPN: N10632202
                      ROUND HD. SCREW
                      M6X30
                      from £0.79
                      from £0.79
                      This part replaces part number N90965801
                      HEXAL.SOCKET SCREW W. FLANGE M6X30 8.8 Genuine Lamborghini - New In stock
                      ROUND HD. SCREW Genuine Bentley Part - New (to order)
                      # 032
                      MPN: N01166623
                      WASHER
                      6,4X18X1,6
                      from £0.83
                      from £0.83
                      This part replaces part number 008400510 - and 2 more. Click to view details
                      WASHER Genuine Lamborghini - New In stock
