lamborghini revuelto coupe (2024) wing protector parts diagram

821.01.00 - WING PROTECTOR

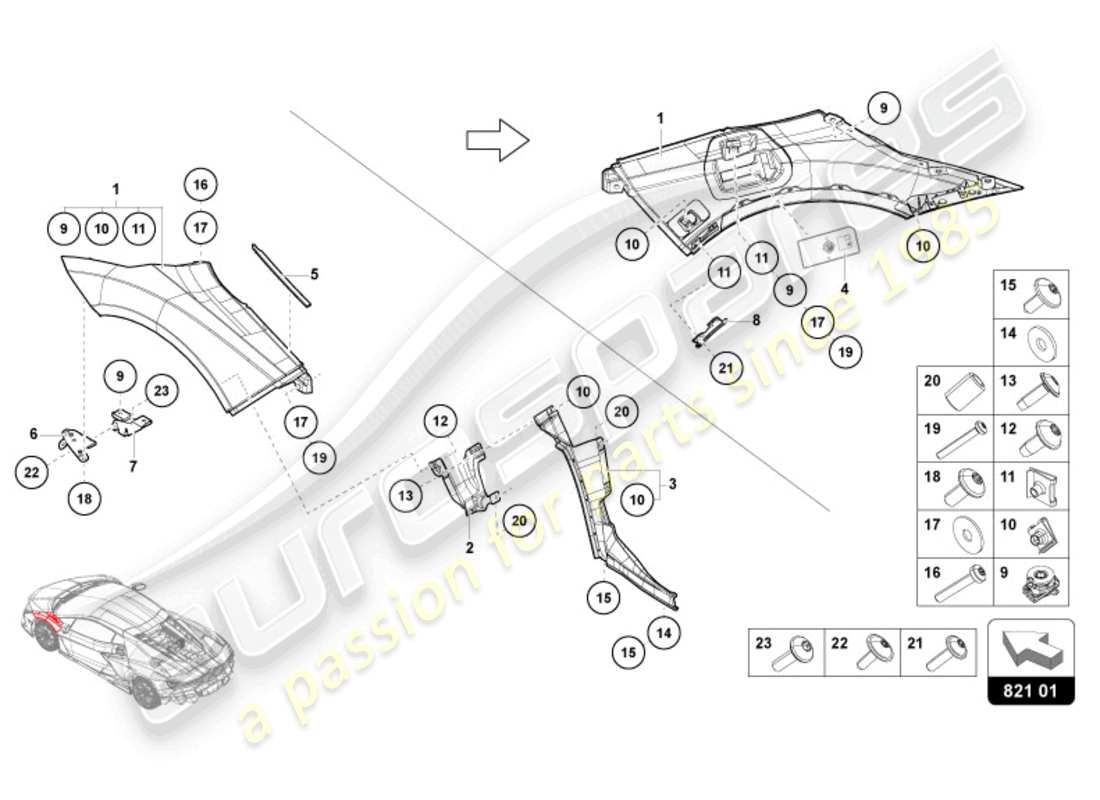

Lamborghini Revuelto Coupe (2024) WING PROTECTOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 47B821105
            WING PROTECTOR
            from £1,238.60
            from £1,238.60
            PARAFANGO ANT. KOTFLUGEL VORNE Genuine Lamborghini - New (to order)
            # 001
            MPN: 47B821105012
            PRIMED
            LEFT
            from £1,029.26
            from £1,029.26
            WING PROTECTOR PRIMED Genuine Lamborghini - New (to order)
            # 001
            MPN: 47B821106
            WING PROTECTOR
            from £1,203.69
            from £1,203.69
            PARAFANGO ANT. KOTFLUGEL VORNE Genuine Lamborghini - New (to order)
            # 001
            MPN: 47B821106012
            PRIMED
            RIGHT
            from £1,029.26
            from £1,029.26
            WING PROTECTOR PRIMED Genuine Lamborghini - New (to order)
            # 002
            MPN: 47B821129
            BRACKET FOR WHEEL HOUSING
            LEFT
            from £69.70
            from £69.70
            BRACKET,WHEEL Genuine Lamborghini - New (to order)
            # 002
            MPN: 47B821130
            BRACKET FOR WHEEL HOUSING
            RIGHT
            from £69.70
            from £69.70
            BRACKET,WHEEL Genuine Lamborghini - New (to order)
            # 003
            MPN: 47B821179
            SUPPORT
            from £143.05
            from £143.05
            PARTE AGGIUNT. Genuine Lamborghini - New (to order)
            # 003
            MPN: 47B821180
            SUPPORT
            from £143.05
            from £143.05
            PARTE AGGIUNT. Genuine Lamborghini - New (to order)
            # 004
            -
            ANTENNA FOR VEHICLE POSITIONING SYSTEM
            SEE ILLUSTRATION : 035.03
            # 005
            MPN: 47B831437
            COVER
            MATT BLACK-LEFT
            from £52.60
            from £52.60
            COVER Genuine Lamborghini - New (to order)
            # 005
            MPN: 47B831437A
            COVER
            SHINY BLACK-LEFT
            from £52.60
            from £52.60
            COPERCHIO Genuine Lamborghini - New (to order)
            # 005
            MPN: 47B831438
            COVER
            MATT BLACK-RIGHT
            from £52.60
            from £52.60
            COVER Genuine Lamborghini - New (to order)
            # 005
            MPN: 47B831438A
            COVER
            SHINY BLACK-RIGHT
            from £52.60
            from £52.60
            COPERCHIO Genuine Lamborghini - New (to order)
            # 006
            MPN: 47B821021A
            BRACKET
            LEFT
            from £14.26
            from £14.26
            FENDER Genuine Lamborghini - New (to order)
            # 006
            MPN: 47B821022A
            BRACKET
            RIGHT
            from £14.26
            from £14.26
            FENDER Genuine Lamborghini - New (to order)
            # 007
            MPN: 47B821017A
            BRACKET
            LEFT
            from £20.29
            from £20.29
            FENDER Genuine Lamborghini - New (to order)
            # 007
            MPN: 47B821018A
            BRACKET
            RIGHT
            from £20.29
            from £20.29
            FENDER Genuine Lamborghini - New (to order)
            # 008
            -
            BRACKET
            NOT FOR THIS COUNTRY
            # 008
            MPN: 47B821431
            BRACKET
            LEFT
            from £7.77
            from £7.77
            JAPAN LIP FRONT FENDER Genuine Lamborghini - New (to order)
            # 008
            MPN: 47B821432
            BRACKET
            RIGHT
            from £7.77
            from £7.77
            JAPAN LIP FRONT FENDER Genuine Lamborghini - New (to order)
            # 009
            MPN: 8P7806305
            COMPENSATING PIECE
            0,8MM
            from £8.94
            from £8.94
            COMPENSATING Genuine Lamborghini - New (to order)
            SPACER Genuine Porsche Part - New (to order)
            # 010
            MPN: N90475903
            SPEED NUT
            M5X13,6X11,5
            from £0.64
            from £0.64
            SNAP NUT CLAMP M5 X 13.6 X 11.5 Genuine Lamborghini - New In stock
            SPEED NUT Genuine Porsche Part - New (to order)
            SPEED NUT Genuine Bentley Part - New (to order)
            # 011
            MPN: N90526602
            SPEED NUT
            M4X13,6X15
            from £0.80
            from £0.80
            SNAP NUT CLAMP Genuine Lamborghini - New In stock
            # 012
            MPN: N10669501
            FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD
            M5X12
            from £0.53
            from £0.53
            HEXALOBULAR SOCKETM5GFX12 Genuine Lamborghini - New (to order)
            FILLISTER HD. SCREW WITH Genuine Porsche Part - New (to order)
            Genuine Bentley Part (no longer available to order)
            # 013
            MPN: N91208501
            FLAT HEAD BOLT WITH HEXAGON SOCKET HEAD, THREAD FORMING
            from £1.20
            from £1.20
            HEXALOBULAR SOCKETM5GFX16 Genuine Lamborghini - New (to order)
            Genuine Bentley Part (no longer available to order)
            # 014
            MPN: N01166623
            WASHER
            from £0.83
            from £0.83
            This part replaces part number 008400510 - and 2 more. Click to view details
            WASHER Genuine Lamborghini - New In stock
            # 015
            MPN: N91042302
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.59
            from £0.59
            HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
            # 016
            MPN: N10554005
            ROUND HD. SCREW
            M6X35
            from £1.12
            from £1.12
            SCREW M6X35 Genuine Lamborghini - New In stock
            Genuine Porsche Part (no longer available to order)
            ROUND HD. SCREW Genuine Bentley Part - New (to order)
            # 017
            MPN: N0116945
            WASHER
            7X22
            from £0.51
            from £0.51
            This part replaces part number N0116946
            WASHER 7.1X22X1.3 Genuine Lamborghini - New In stock
            # 018
            MPN: N90944604
            OVAL HEXAGON SOCKET HEAD BOLT
            M5X12
            from £0.95
            from £0.95
            HEXALOBULAR SOCKETM5X12 Genuine Lamborghini - New In stock
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
            # 019
            MPN: N10405702
            HEXAGON SOCKET HEAD BOLT
            M6X45
            from £0.60
            from £0.60
            HEXALOBULAR SOCKET M6X45 Genuine Lamborghini - New In stock
            HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
            HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
            # 020
            MPN: N10740801
            THREADED INSERT
            from £3.01
            from £3.01
            THREADED INSERT Genuine Lamborghini - New (to order)
            # 021
            MPN: N91121101
            HEXALOBULAR FLANGE SCREW
            from £1.14
            from £1.14
            12-POINT SOCKET FLANGE BOLT Genuine Lamborghini - New (to order)
            HEXALOBULAR FLANGE SCREW Genuine Porsche Part - New (to order)
            HEXALOBULAR FLANGE SCREW Genuine Bentley Part - New (to order)
            # 022
            MPN: N91188301
            HEXAGON SOCKET HEAD BOLT
            M6X20
            from £0.79
            from £0.79
            HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
            HEXAGONAL SOCKET HEAD Genuine Porsche Part - New In stock
            HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
            # 023
            MPN: N10661002
            HEX SOCKET OVAL HEAD COLLARED
            M6X20
            from £0.51
            from £0.51
            HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
            HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
            HEX SOCKET OVAL HEAD COLLARED Genuine Bentley Part - New (to order)
