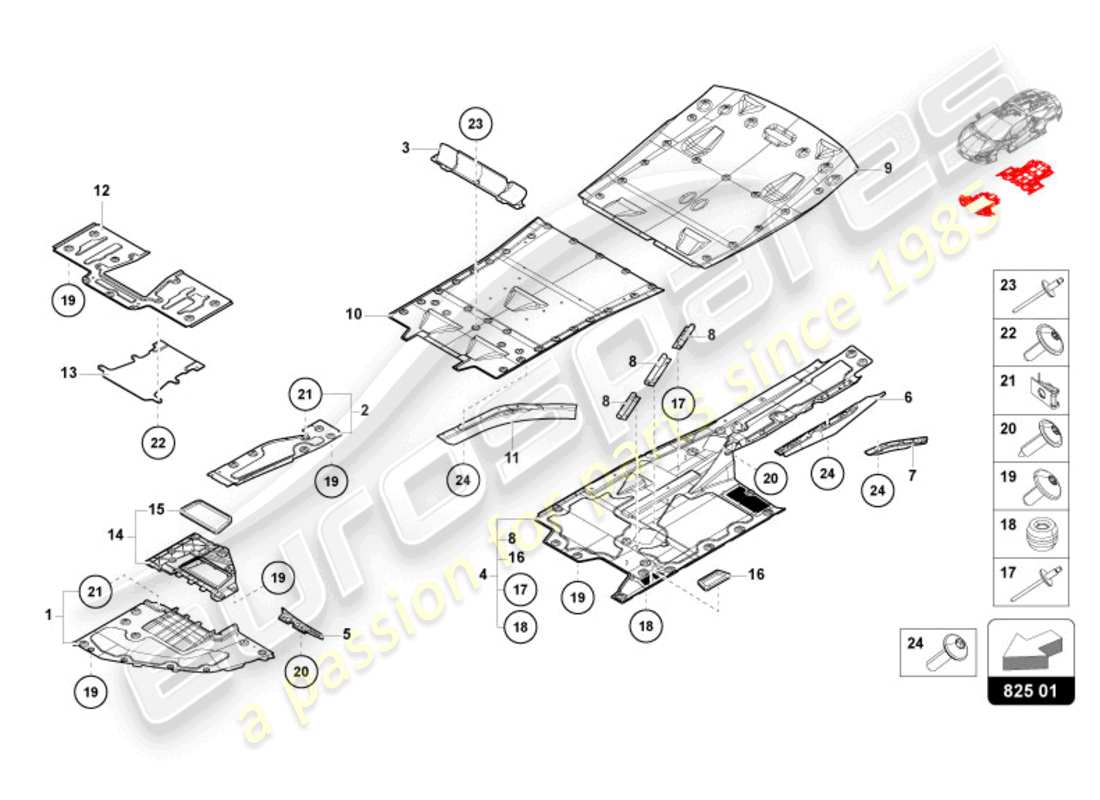

825.01.00 - UNDERBODY TRIM

Lamborghini Revuelto Coupe (2024) UNDERBODY TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 47B825189
                                UNDERBODY TRIM
                                from £133.90
                                from £133.90
                                CX-COVERING Genuine Lamborghini - New (to order)
                                # 001
                                MPN: 47B825190
                                UNDERBODY TRIM
                                from £133.90
                                from £133.90
                                CX-COVERING Genuine Lamborghini - New (to order)
                                # 002
                                MPN: 47B825191
                                UNDERBODY TRIM
                                from £124.73
                                from £124.73
                                CX-COVERING Genuine Lamborghini - New (to order)
                                # 002
                                MPN: 47B825192
                                UNDERBODY TRIM
                                from £124.73
                                from £124.73
                                CX-COVERING Genuine Lamborghini - New (to order)
                                # 003
                                MPN: 47B825193
                                UNDERBODY TRIM
                                from £63.60
                                from £63.60
                                RIVEST. AERODINAM. Genuine Lamborghini - New (to order)
                                # 004
                                MPN: 47B825207A
                                UNDERBODY TRIM
                                from £3,144.45
                                from £3,144.45
                                CD-ENHANCING Genuine Lamborghini - New (to order)
                                # 004
                                MPN: 47B825208A
                                UNDERBODY TRIM
                                from £3,144.45
                                from £3,144.45
                                CD-ENHANCING Genuine Lamborghini - New (to order)
                                # 005
                                MPN: 47B825211
                                UNDERBODY TRIM
                                from £42.87
                                from £42.87
                                CX-RIVEST.PIANALE Genuine Lamborghini - New (to order)
                                # 005
                                MPN: 47B825212
                                UNDERBODY TRIM
                                from £42.87
                                from £42.87
                                CX-RIVEST.PIANALE Genuine Lamborghini - New (to order)
                                # 006
                                MPN: 47B825215A
                                UNDERBODY TRIM
                                from £70.47
                                from £70.47
                                CD-ENHANCING Genuine Lamborghini - New (to order)
                                # 006
                                MPN: 47B825216A
                                UNDERBODY TRIM
                                from £70.47
                                from £70.47
                                CD-ENHANCING Genuine Lamborghini - New (to order)
                                # 007

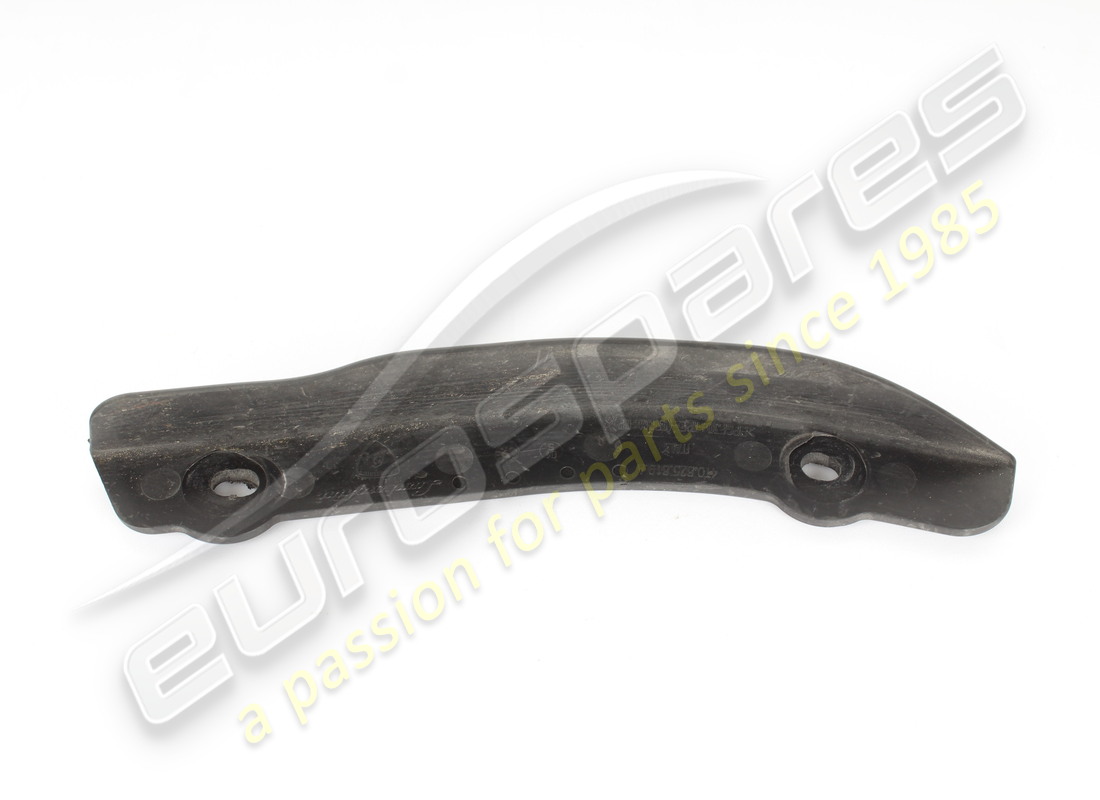

                                MPN: 4T0825819A
                                CLOSING ELEMENT
                                from £7.19
                                from £7.19
                                GUIDE Genuine Lamborghini - New (to order)
                                GUIDE Genuine Lamborghini - Used In stock
                                # 007
                                MPN: 4T0825820A
                                CLOSING ELEMENT
                                from £7.19
                                from £7.19
                                GUIDE Genuine Lamborghini - New (to order)
                                GUIDE Genuine Lamborghini - Used In stock
                                Slight marks
                                # 008
                                -
                                SEALING FLANGE W/ SEALING RING
                                NOT AVAILABLE SEPARATELY
                                # 009
                                MPN: 47B825203C
                                UNDERBODY TRIM
                                from £520.73
                                from £520.73
                                CD-ENHANCING Genuine Lamborghini - New (to order)
                                # 010
                                MPN: 47B825219B
                                UNDERBODY TRIM
                                from £693.44
                                from £693.44
                                UNDERBODY CLADDING Genuine Lamborghini - New (to order)
                                # 011
                                MPN: 4T0853887C
                                SPOILER
                                from £85.22
                                from £85.22
                                SPOILER LEFT NOLDER Genuine Lamborghini - New (to order)
                                # 011
                                MPN: 4T0853888C
                                SPOILER
                                from £85.22
                                from £85.22
                                SPOILER RIGHT NOLDER Genuine Lamborghini - New (to order)
                                # 012
                                MPN: 47B807044
                                UNDERBODY TRIM
                                from £173.58
                                from £173.58
                                UNDERRIDE PROTECTI Genuine Lamborghini - New (to order)
                                # 013
                                MPN: 47B807531
                                UNDERBODY TRIM
                                from £330.58
                                from £330.58
                                UNDERBODY CLADDING Genuine Lamborghini - New (to order)
                                # 014
                                MPN: 47B807061
                                UNDERBODY SPOILER
                                from £112.97
                                from £112.97
                                SPOILER ANT. FRONT AERO ACTIVE Genuine Lamborghini - New (to order)
                                # 014
                                MPN: 47B807062
                                UNDERBODY SPOILER
                                from £112.97
                                from £112.97
                                SPOILER ANT. FRONT AERO ACTIVE Genuine Lamborghini - New (to order)
                                # 015
                                -
                                SEALING FLANGE W/ SEALING RING
                                NOT AVAILABLE SEPARATELY
                                # 016
                                -
                                SEALING FLANGE W/ SEALING RING
                                NOT AVAILABLE SEPARATELY
                                # 017
                                -
                                RIVET
                                NOT AVAILABLE SEPARATELY
                                # 018
                                MPN: 4D0614177A
                                STOP BUFFER
                                from £2.44
                                from £2.44
                                BUFFER Genuine Lamborghini - New (to order)
                                JOUNCE BUMPER Genuine Porsche Part - New (to order)
                                STOP BUFFER Genuine Bentley Part - New (to order)
                                # 019
                                MPN: N91042302
                                OVAL HEXAGON SOCKET HEAD BOLT
                                M6X16
                                from £0.59
                                from £0.59
                                HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                # 020
                                MPN: N90698606
                                HEXAGON SOCKET HEAD PANEL BOLT
                                4,2X16
                                from £0.49
                                from £0.49
                                FLANGE TAPPING Genuine Lamborghini - New In stock
                                HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                # 021
                                MPN: N90688703
                                SPEED NUT
                                M6X24X16
                                from £0.64
                                from £0.64
                                SNAP NUT CLAMP M6 x 23.8 x 16 Genuine Lamborghini - New In stock
                                SPEED NUT Genuine Porsche Part - New (to order)
                                SPEED NUT Genuine Bentley Part - New (to order)
                                # 022
                                MPN: N91188301
                                HEXAGON SOCKET HEAD BOLT
                                M6X20
                                from £0.79
                                from £0.79
                                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                HEXAGONAL SOCKET HEAD Genuine Porsche Part - New In stock
                                HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                # 023
                                MPN: N90287601
                                POP RIVET
                                from £0.47
                                from £0.47
                                BLIND RIVET 4.8X10 Genuine Lamborghini - New (to order)
                                POP-RIVET Genuine Porsche Part - New (to order)
                                Genuine Bentley Part (no longer available to order)
                                # 024
                                MPN: N10661002
                                HEX SOCKET OVAL HEAD COLLARED
                                M6X20
                                from £0.51
                                from £0.51
                                HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
                                HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
                                HEX SOCKET OVAL HEAD COLLARED Genuine Bentley Part - New (to order)
