825.03.00 - HEAT SHIELD

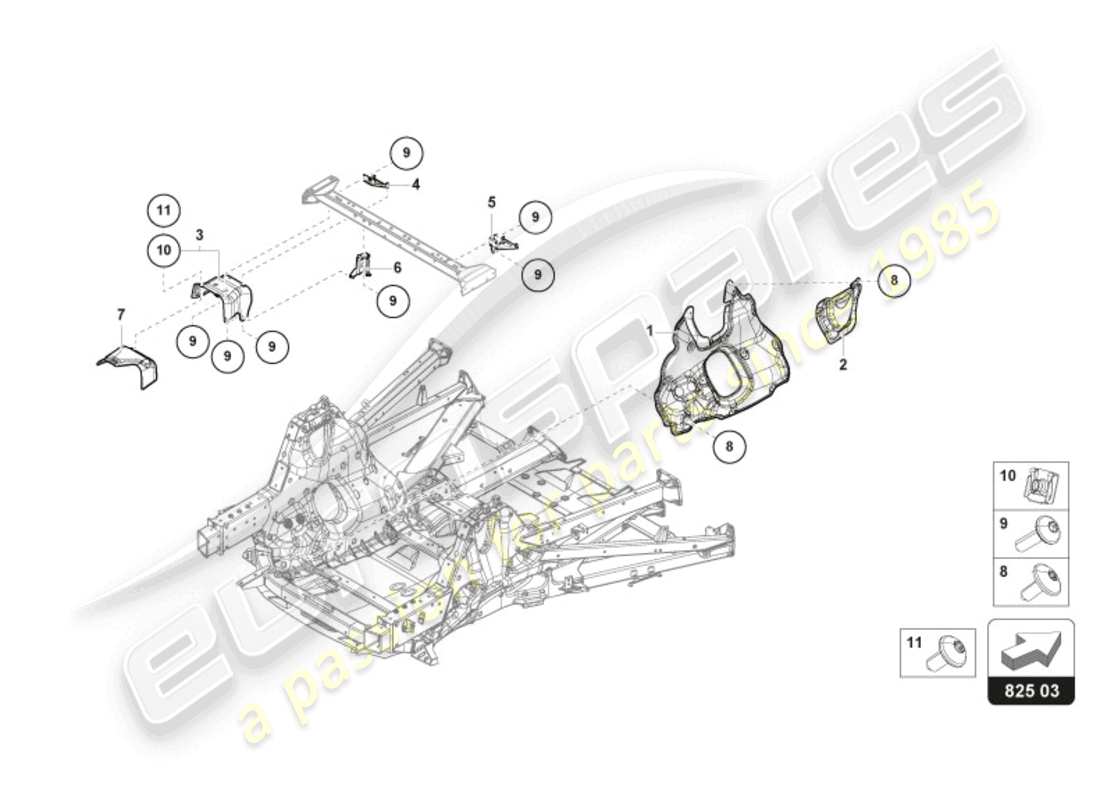

Lamborghini Revuelto Coupe (2024) HEAT SHIELD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 47B814283B
        FRAME PART
        LEFT
        from £310.52
        from £310.52
        Rear Frame Genuine Lamborghini - New (to order)
        # 001
        MPN: 47B814284B
        FRAME PART
        RIGHT
        from £310.52
        from £310.52
        Rear Frame Genuine Lamborghini - New (to order)
        # 002
        MPN: 47B813357A
        FRAME PART
        LEFT
        from £103.37
        from £103.37
        OUTER PANEL,REAR SIDE RADIATOR FRAM Genuine Lamborghini - New (to order)
        # 002
        MPN: 47B813358A
        FRAME PART
        RIGHT
        from £103.37
        from £103.37
        OUTER PANEL,REAR SIDE RADIATOR FRAM Genuine Lamborghini - New (to order)
        # 003
        MPN: 47B813359A
        HEAT SHIELD
        LEFT
        from £126.05
        from £126.05
        INSERT Genuine Lamborghini - New (to order)
        # 003
        MPN: 47B813360A
        HEAT SHIELD
        RIGHT
        from £126.47
        from £126.47
        INSERT Genuine Lamborghini - New (to order)
        # 004
        MPN: 47B813987A
        BRACKET
        from £18.41
        from £18.41
        BRACKET Genuine Lamborghini - New (to order)
        # 005
        MPN: 47B813988A
        BRACKET
        from £28.56
        from £28.56
        BRACKET Genuine Lamborghini - New (to order)
        # 006
        MPN: 47B814589A
        BRACKET
        from £54.00
        from £54.00
        BRACKET Genuine Lamborghini - New (to order)
        # 006
        MPN: 47B814590A
        BRACKET
        from £38.65
        from £38.65
        BRACKET Genuine Lamborghini - New (to order)
        # 007
        MPN: 47B813725A
        HEAT SHIELD
        LEFT
        from £113.39
        from £113.39
        COVER Genuine Lamborghini - New (to order)
        # 007
        MPN: 47B813726A
        HEAT SHIELD
        RIGHT
        from £112.52
        from £112.52
        COVER Genuine Lamborghini - New (to order)
        # 008
        MPN: N91042302
        OVAL HEXAGON SOCKET HEAD BOLT
        M6X16
        from £0.59
        from £0.59
        HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
        # 009
        MPN: N10661002
        HEX SOCKET OVAL HEAD COLLARED
        M6X20
        from £0.49
        from £0.49
        HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
        HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
        HEX SOCKET OVAL HEAD COLLARED Genuine Bentley Part - New (to order)
        # 010
        MPN: N90342502
        SPEED NUT
        M6X19,5X18
        from £0.82
        from £0.82
        SNAP NUT CLAMP Genuine Lamborghini - New In stock
        SPEED NUT Genuine Porsche Part - New (to order)
        SPEED NUT Genuine Bentley Part - New (to order)
        # 011
        MPN: N10741402
        HEXAGON SOCKET FLAT HEAD BOLT
        M6X14
        from £0.64
        from £0.64
        HEXALOBULAR SOCKETM6X14 Genuine Lamborghini - New In stock
        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
