lamborghini revuelto coupe (2024) doors parts diagram

831.01.00 - Doors

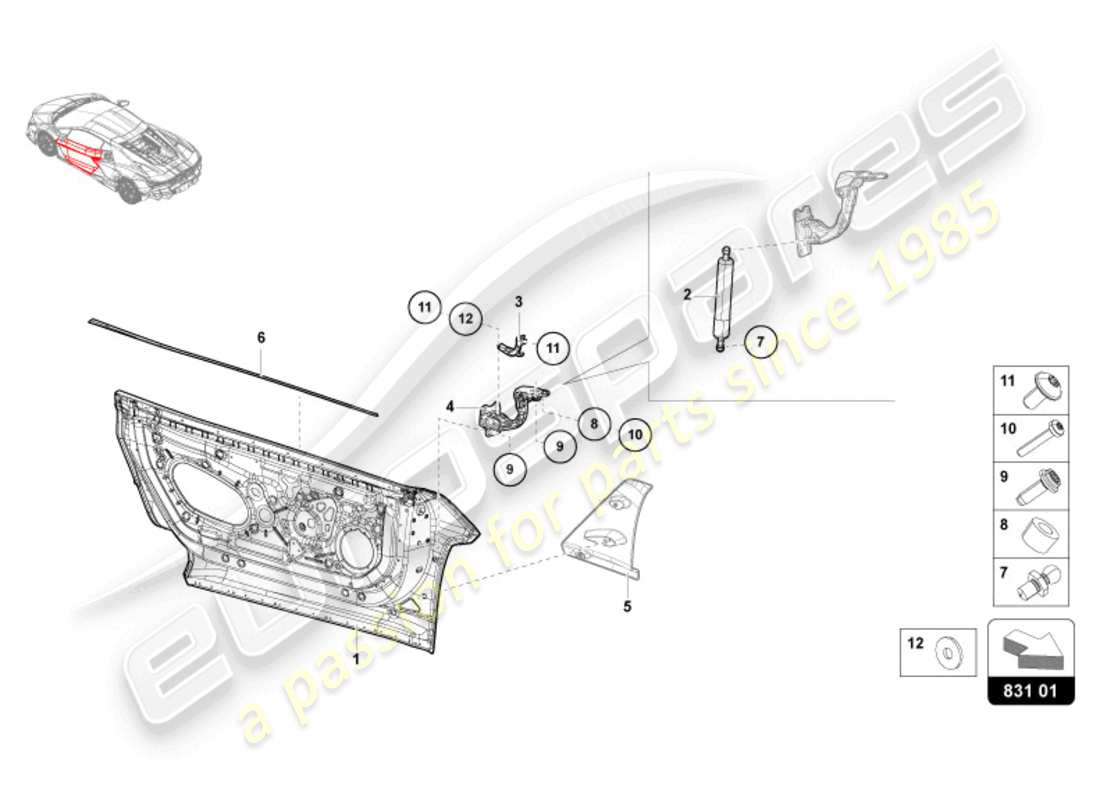

Lamborghini Revuelto Coupe (2024) DOORS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 47B831051
          DOOR SHELL
          LEFT
          from £11,689.74
          from £11,689.74
          RAW DOOR Genuine Lamborghini - New (to order)
          # 001
          MPN: 47B831052
          DOOR SHELL
          RIGHT
          from £11,689.74
          from £11,689.74
          RAW DOOR Genuine Lamborghini - New (to order)
          # 002
          MPN: 47B837723
          SPRING
          from £137.32
          from £137.32
          MOLLA Genuine Lamborghini - New (to order)
          # 003
          MPN: 470831547D
          COVER
          LEFT
          from £9.35
          from £9.35
          COVER Genuine Lamborghini - New (to order)
          COVER Genuine Lamborghini - Used In stock
          # 003
          MPN: 470831548D
          COVER
          RIGHT
          from £10.64
          from £10.64
          COVER Genuine Lamborghini - New (to order)
          COVER Genuine Lamborghini - Used In stock
          # 004
          MPN: 47B831411
          DOOR HINGE
          LEFT
          from £1,043.65
          from £1,043.65
          DOOR HINGE Genuine Lamborghini - New (to order)
          # 004
          MPN: 47B831412
          DOOR HINGE
          RIGHT
          from £1,043.65
          from £1,043.65
          DOOR HINGE Genuine Lamborghini - New (to order)
          # 005
          -
          WING DOORS
          SEE ILLUSTRATION : 853.03
          # 006
          MPN: 47B831547
          COVER FOR DOOR
          MATT BLACK-LEFT
          from £83.70
          from £83.70
          COVER Genuine Lamborghini - New (to order)
          # 006
          MPN: 47B831547A
          COVER FOR DOOR
          SHINY BLACK-LEFT
          from £83.70
          from £83.70
          COPERTURA Genuine Lamborghini - New (to order)
          # 006
          MPN: 47B831548
          COVER FOR DOOR
          MATT BLACK-RIGHT
          from £83.70
          from £83.70
          COVER Genuine Lamborghini - New (to order)
          # 006
          MPN: 47B831548A
          COVER FOR DOOR
          SHINY BLACK-RIGHT
          from £83.70
          from £83.70
          COPERTURA Genuine Lamborghini - New (to order)
          # 007
          MPN: WHT010281
          BALL STUD
          from £8.30
          from £8.30
          BALL STUD 13-M10X14 Genuine Lamborghini - New (to order)
          # 008
          MPN: 470831400A
          GROMMET
          from £10.97
          from £10.97
          SUPPORT PART Genuine Lamborghini - New (to order)
          # 009
          MPN: N91309401
          INT. SERRATION FLANGE SCREW
          from £7.29
          from £7.29
          12-POINT SOCKET M10X30 Genuine Lamborghini - New (to order)
          # 010
          MPN: N10554005
          ROUND HD. SCREW
          M6X35
          from £1.81
          from £1.81
          SCREW M6X35 Genuine Lamborghini - New (to order)
          Genuine Porsche Part (no longer available to order)
          # 011
          MPN: N10586403
          OVAL HEXAGON SOCKET HEAD BOLT
          M5X10
          from £0.47
          from £0.47
          HEXALOBULAR SOCKETM5X10 Genuine Lamborghini - New (to order)
          IN-6RD-LI-FLSH-SHR M5X10 Genuine Porsche Part - New (to order)
          # 012
          MPN: WHT000778
          WASHER
          30X36X1
          from £0.53
          from £0.53
          WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
