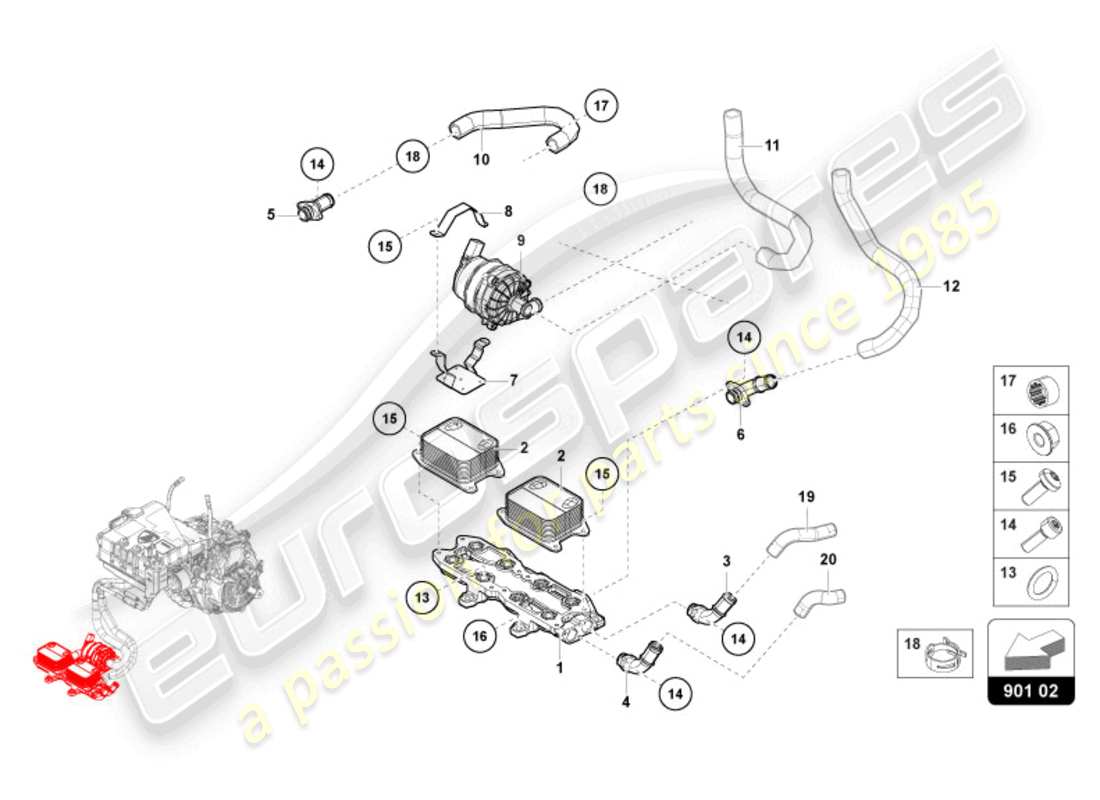

901.02.00 - DRIVE COOLING

Lamborghini Revuelto Coupe (2024) DRIVE COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 0EQ965563
                            PLATE
                            from £429.15
                            from £429.15
                            OIL COOLER PLATE Genuine Lamborghini - New (to order)
                            # 002
                            MPN: 04E117021L
                            OIL COOLER
                            from £194.08
                            from £194.08
                            OIL COOLER EA211 Genuine Lamborghini - New (to order)
                            # 003
                            MPN: 0EQ965587
                            SLEEVE
                            from £67.25
                            from £67.25
                            INLET COOLANT COOLER PORT Genuine Lamborghini - New (to order)
                            # 004
                            MPN: 0EQ965587A
                            SLEEVE
                            from £67.25
                            from £67.25
                            OULET COOLANT COOLER PORT Genuine Lamborghini - New (to order)
                            # 005
                            MPN: 0EQ965587B
                            SLEEVE
                            from £56.44
                            from £56.44
                            INLET OIL COOLER PORT Genuine Lamborghini - New (to order)
                            # 006
                            MPN: 0EQ965587C
                            SLEEVE
                            from £67.25
                            from £67.25
                            OULET OIL COOLER PORT Genuine Lamborghini - New (to order)
                            # 007
                            MPN: 0EQ965527
                            BRACKET
                            from £54.87
                            from £54.87
                            BRACKET FRONT OIL PUMP Genuine Lamborghini - New (to order)
                            # 008
                            MPN: 0EQ965528
                            BRACKET
                            from £14.74
                            from £14.74
                            BRACKET 2 FRONT OIL PUMP Genuine Lamborghini - New (to order)
                            # 009
                            MPN: 0EQ965567
                            COOLANT PUMP
                            from £398.61
                            from £398.61
                            DIALA OIL PUMP Genuine Lamborghini - New (to order)
                            # 010
                            MPN: 0EQ901143
                            COOLANT PIPE
                            from £45.62
                            from £45.62
                            PREFORMED PIPE OIL PUMP-OIL COOLER Genuine Lamborghini - New (to order)
                            # 011
                            -
                            PIPE
                            # 012
                            -
                            PIPE
                            # 013
                            MPN: 04E115111D
                            SEAL RING
                            from £4.45
                            from £4.45
                            SEAL RING Genuine Lamborghini - New (to order)
                            # 014
                            MPN: N10727301
                            HEXAGON SOCKET HEAD BOLT
                            M5X15
                            from £0.47
                            from £0.47
                            HEXALOBULAR SOCKETM5X14 Genuine Lamborghini - New (to order)
                            IN-6RD-ZYL-SHR M5X14 Genuine Porsche Part - New (to order)
                            HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                            # 015
                            MPN: N10451405
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £0.70
                            from £0.70
                            This part replaces part number N10451402
                            HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                            # 016
                            MPN: N10609201
                            HEXAGON COLLAR NUT
                            M8
                            from £0.52
                            from £0.52
                            HEXAGON FLANGE NUT M8 Genuine Lamborghini - New In stock
                            shouldered hex. nut Genuine Porsche Part - New (to order)
                            HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                            # 017
                            MPN: N10519301
                            SPACER RING
                            25X35X20
                            from £14.82
                            from £14.82
                            SPACER RING Genuine Lamborghini - New (to order)
                            # 018
                            MPN: N90687001
                            SPRING BAND CLAMP
                            27X12
                            from £4.75
                            from £4.75
                            SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                            SPRING CLIP Genuine Porsche Part - New (to order)
                            Genuine Bentley Part (no longer available to order)
                            # 019
                            -
                            PIPE
                            SEE ILLUSTRATION : 121.21
                            # 020
                            -
                            PIPE
                            SEE ILLUSTRATION : 121.21
                            # 021
                            -
                            COOLER MODULE
                            NOT AVAILABLE AT THE MOMENT
