lamborghini revuelto coupe (2024) onboard supply control unit parts diagram

907.07.00 - ONBOARD SUPPLY CONTROL UNIT

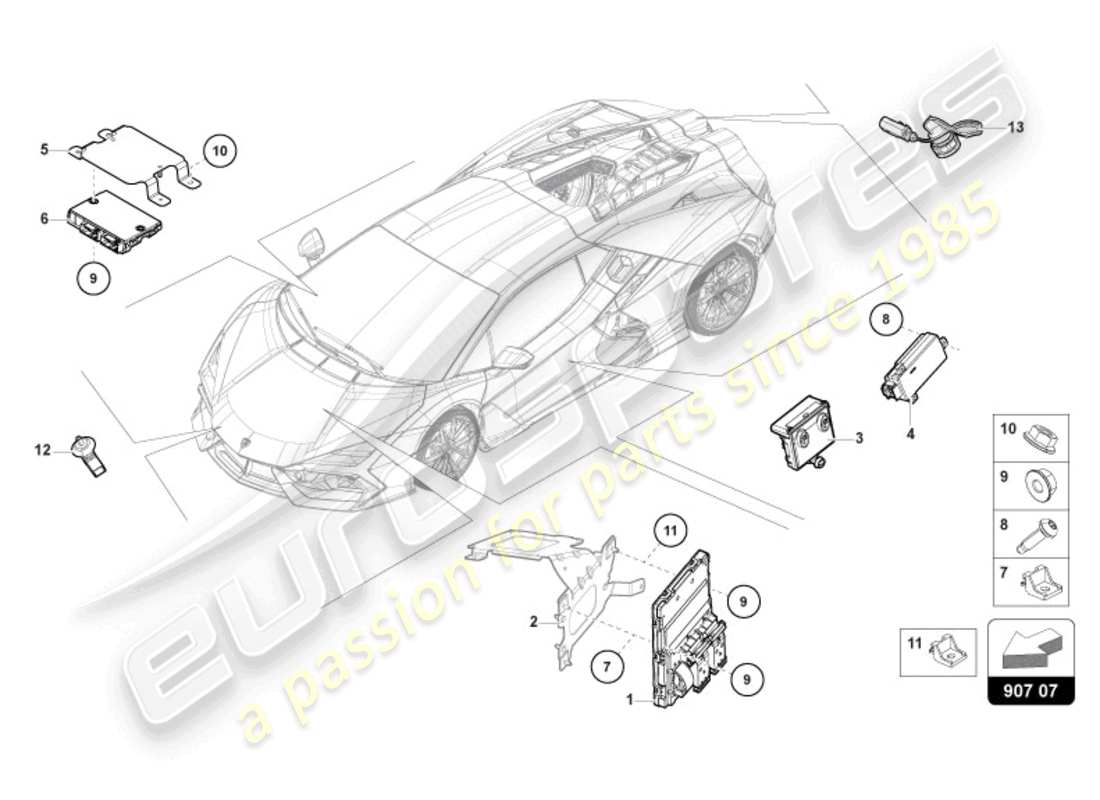

Lamborghini Revuelto Coupe (2024) ONBOARD SUPPLY CONTROL UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 4N0907063NN
                  ONBOARD SUPPLY CONTROL UNIT
                  from £351.52
                  from £351.52
                  BODY COMPUTER BCM1 Genuine Lamborghini - New (to order)
                  ONBOARD SUPPLY CONTROL UNIT Genuine Bentley Part - New (to order)
                  # 002
                  -
                  BRACKET
                  SEE ILLUSTRATION : 035.04
                  # 003
                  MPN: 4M1959792K
                  DOOR CONTROL UNIT
                  PASSENGER SIDE
                  from £197.56
                  from £197.56
                  DOOR CONTROL DIAG-ADR: 052 Genuine Lamborghini - New (to order)
                  # 003
                  MPN: 4M1959793K
                  DOOR CONTROL UNIT
                  Driver side
                  from £197.56
                  from £197.56
                  DOOR CONTROL DIAG-ADR: 042 Genuine Lamborghini - New (to order)
                  # 004
                  MPN: 47B971418
                  CONTROL UNIT FOR WINDOW REGULATOR
                  from £708.26
                  from £708.26
                  WDSM2 SAMPLE B X PROTO LB744 Genuine Lamborghini - New (to order)
                  # 005
                  MPN: 47B907348
                  BRACKET
                  from £62.20
                  from £62.20
                  BRACKET STG.GATEWAY-DIV Genuine Lamborghini - New (to order)
                  # 006
                  MPN: 4KL907468N
                  DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)
                  from £608.82
                  from £608.82
                  EL.CONTROL UNIT GATEWAYVERNETZUNG Genuine Lamborghini - New (to order)
                  DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY) Genuine Bentley Part - New (to order)
                  # 007
                  MPN: 4G0907114A
                  RETAINER FOR CONTROL UNIT
                  from £3.18
                  from £3.18
                  BRACKET STG. FUESSE Genuine Lamborghini - New (to order)
                  RETAINER FOR CONTROL UNIT Genuine Bentley Part - New (to order)
                  # 008
                  MPN: N10595002
                  ROUND HD. SCREW
                  M5X18
                  from £1.02
                  from £1.02
                  HEXALOBULAR SOCKET M5 X 18 Genuine Lamborghini - New In stock
                  # 009
                  MPN: N01508210
                  HEXAGON COLLAR NUT
                  M6
                  from £0.47
                  from £0.47
                  HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                  Genuine Porsche Part (no longer available to order)
                  Genuine Bentley Part (no longer available to order)
                  # 010
                  MPN: N10017304
                  HEXAGON COLLAR NUT
                  M5
                  from £0.79
                  from £0.79
                  HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
                  shouldered hex. nut Genuine Porsche Part - New (to order)
                  HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                  # 011
                  MPN: 4G0907114B
                  RETAINER FOR CONTROL UNIT
                  from £2.40
                  from £2.40
                  BRACKET STG. FUESSE Genuine Lamborghini - New (to order)
                  RETAINER FOR CONTROL UNIT Genuine Bentley Part - New (to order)
                  # 012
                  MPN: 8Z0820535B
                  EXTERNAL TEMPERATURE SENSOR
                  from £0.77
                  from £0.77
                  This part replaces part number 8Z0820535A
                  OUTER SENSOR Genuine Lamborghini - New (to order)
                  EXTERNAL TEMPERATURE SENSOR Genuine Bentley Part - New (to order)
                  # 013
                  MPN: 3SA915525
                  SOCKET
                  from £94.64
                  from £94.64
                  OUTLET EXT CHARGE SOCKET Genuine Lamborghini - New (to order)
                  SOCKET Genuine Bentley Part - New (to order)
