lamborghini revuelto coupe (2024) socket parts diagram

919.03.00 - SOCKET

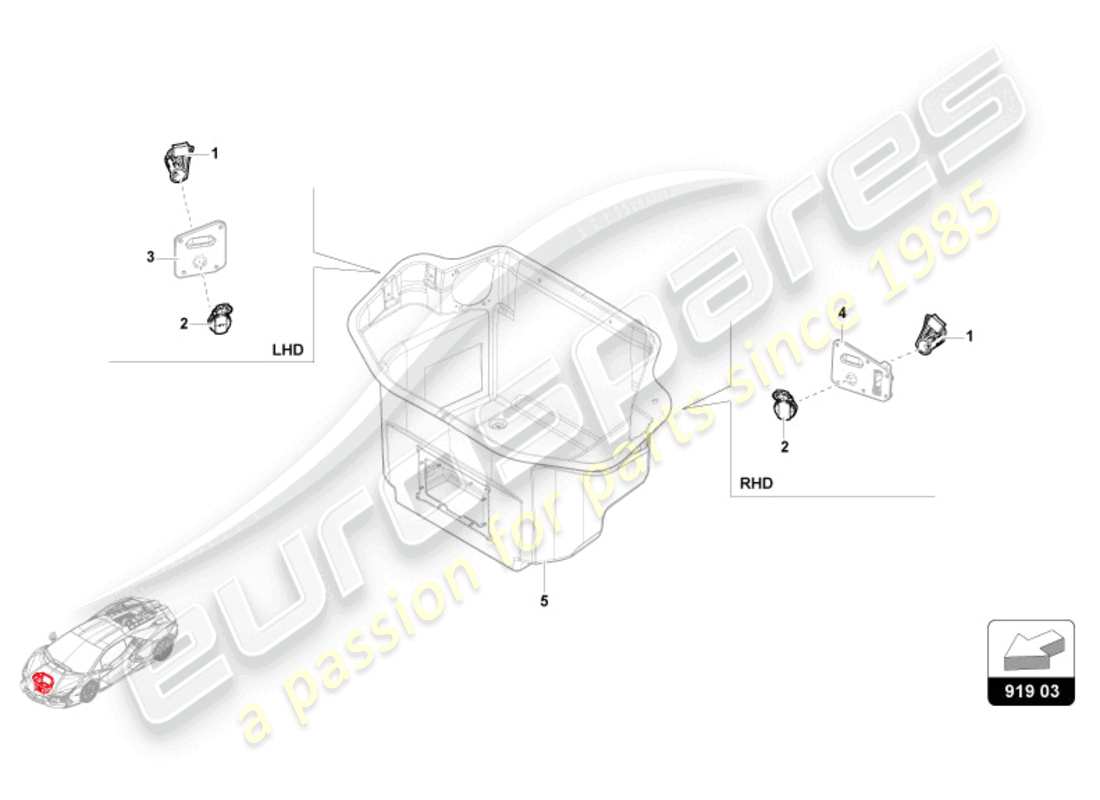

Lamborghini Revuelto Coupe (2024) SOCKET Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 4M0919309B
      SOCKET
      from £11.81
      from £11.81
      OUTLET 12V 150MM PVC-LTG. Genuine Lamborghini - New (to order)
      # 002
      MPN: 1K0919341N
      CLAMP. SLEEVE W/ HINGED COVER
      from £21.22
      from £21.22
      SPRING PIN Genuine Lamborghini - New (to order)
      Genuine Bentley Part (no longer available to order)
      # 003
      -
      COVER
      NOT FOR THIS MODEL- RHD
      # 003
      -
      COVER
      SEE ILLUSTRATION : 863.02- LHD
      # 004
      -
      COVER
      NOT FOR THIS MODEL- LHD
      # 004
      -
      COVER
      SEE ILLUSTRATION : 863.03- RHD
      # 005
      -
      luggage compartment
      SEE ILLUSTRATION : 863.02- LHD
      # 005
      -
      luggage compartment
      SEE ILLUSTRATION : 863.03- RHD
