lamborghini revuelto coupe (2024) windscreen washer system parts diagram

955.02.00 - WINDSCREEN WASHER SYSTEM

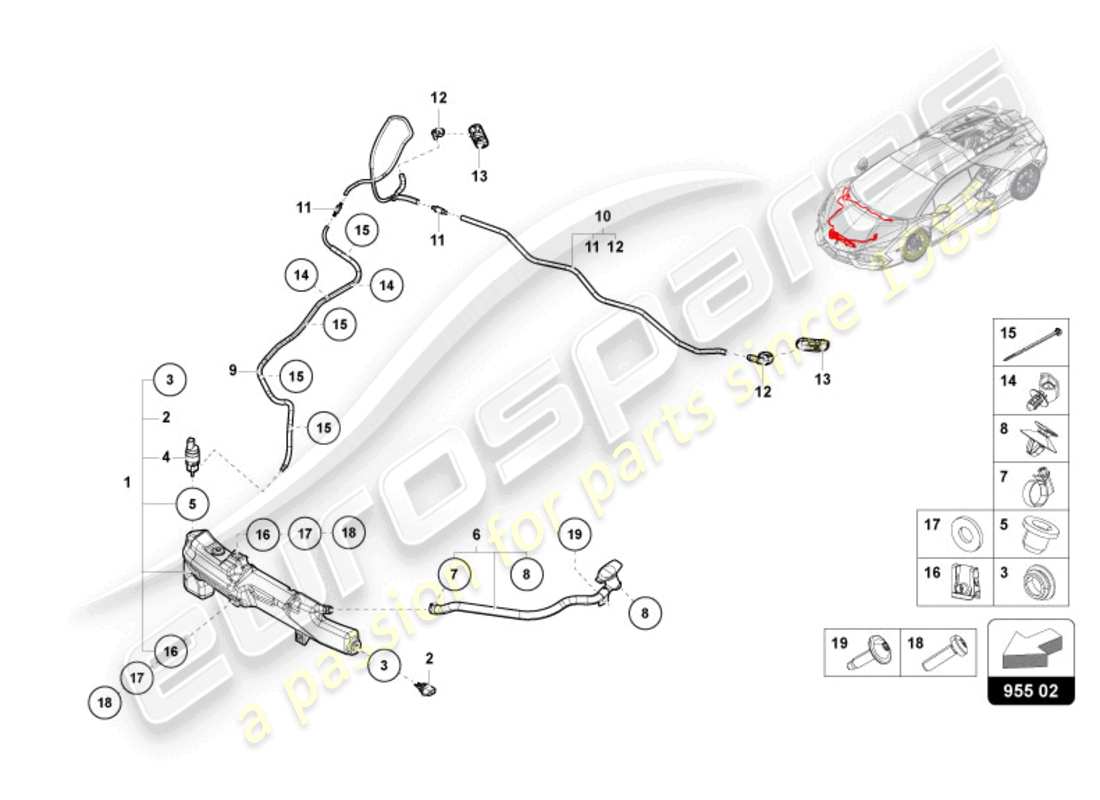

Lamborghini Revuelto Coupe (2024) WINDSCREEN WASHER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 47B955449
                            WASH WATER RESERVOIR
                            from £170.53
                            from £170.53
                            WASHER FLUID Genuine Lamborghini - New (to order)
                            # 002
                            MPN: 7M0919376
                            WATER LEVEL SWITCH
                            from £12.04
                            from £12.04
                            SENSOR Genuine Lamborghini - New (to order)
                            WATER LEVEL SWITCH Genuine Bentley Part - New (to order)
                            # 003
                            MPN: 7M0919382
                            SEAL RING
                            from £6.30
                            from £6.30
                            GASKET Genuine Lamborghini - New (to order)
                            SEAL RING Genuine Bentley Part - New (to order)
                            # 004
                            MPN: 1K5955651
                            WINDSCREEN WASHER SYSTEM PUMP
                            from £46.88
                            from £46.88
                            WASHER PUMP Genuine Lamborghini - New In stock
                            WINDSCREEN WASHER SYSTEM PUMP Genuine Porsche Part - New (to order)
                            WINDSCREEN WASHER SYSTEM PUMP Genuine Bentley Part - New (to order)
                            # 005
                            MPN: 8A0955465
                            SEAL RING
                            from £14.61
                            from £14.61
                            GASKET Genuine Lamborghini - New (to order)
                            # 006
                            MPN: 47B955944
                            HOSE
                            from £80.43
                            from £80.43
                            HOSE Genuine Lamborghini - New (to order)
                            # 007
                            -
                            HOSE CLAMP
                            # 008
                            -
                            CLIP
                            # 009
                            MPN: 47B955972
                            HOSE
                            from £55.92
                            from £55.92
                            HOSE Genuine Lamborghini - New (to order)
                            # 010
                            MPN: 47B955964
                            HOSE
                            from £119.06
                            from £119.06
                            HOSE Genuine Lamborghini - New (to order)
                            # 011
                            MPN: 113955975C
                            VALVE
                            from £10.94
                            from £10.94
                            VALVE Genuine Lamborghini - New (to order)
                            # 012
                            MPN: 3B0955665C
                            ELBOW FITTING
                            6X1
                            from £3.98
                            from £3.98
                            COUPLING Genuine Lamborghini - New (to order)
                            ELBOW FITTING Genuine Bentley Part - New (to order)
                            # 013
                            MPN: 9Y0955985B
                            WATER JET
                            LEFT
                            from £17.49
                            from £17.49
                            SPRUZZATORE/UGELLO Genuine Lamborghini - New (to order)
                            NOZZLE Genuine Porsche Part - New (to order)
                            # 013
                            MPN: 9Y0955985C
                            WATER JET
                            RIGHT
                            from £17.49
                            from £17.49
                            SPRUZZATORE/UGELLO Genuine Lamborghini - New (to order)
                            NOZZLE Genuine Porsche Part - New (to order)
                            # 014
                            MPN: N90681401
                            CORRUGATED TUBE CLIP
                            from £0.47
                            from £0.47
                            CORRUGATED HOSE Genuine Lamborghini - New In stock
                            CORRUGATED PIPE PIECE Genuine Porsche Part - New (to order)
                            CORRUGATED TUBE CLIP Genuine Bentley Part - New (to order)
                            # 015
                            MPN: N90937701
                            CABLE TIES
                            4.6X193 OUTER
                            from £0.79
                            from £0.79
                            CLIP Genuine Lamborghini - New In stock
                            TIE WRAP Genuine Porsche Part - New (to order)
                            Genuine Bentley Part (no longer available to order)
                            # 016
                            MPN: N90657701
                            SPEED NUT
                            from £0.80
                            from £0.80
                            SPEED NUT Genuine Lamborghini - New (to order)
                            SPEED NUT Genuine Porsche Part - New (to order)
                            # 017
                            MPN: N90107607
                            WASHER
                            8,2X18X2
                            from £0.55
                            from £0.55
                            WASHER Genuine Lamborghini - New In stock
                            WASHER Genuine Bentley Part - New (to order)
                            # 018
                            MPN: N10700202
                            ROUND HD. SCREW
                            VITE M6X22-M6X22
                            from £1.06
                            from £1.06
                            HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                            # 019
                            MPN: N91180901
                            FLAT HEAD MULTI-POINT SOCKET BOLT
                            M5X20
                            from £0.76
                            from £0.76
                            HEXALOBULAR SOCKET M5X20 Genuine Lamborghini - New In stock
                            Flat head multi-point Genuine Porsche Part - New In stock
                            FLAT HEAD MULTI-POINT SOCKET BOLT Genuine Bentley Part - New (to order)
