lamborghini revuelto coupe (2024) high-voltage wiring set for high-voltage battery and power electronics parts diagram

970.04.00 - HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS

Lamborghini Revuelto Coupe (2024) HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS Parts Diagram

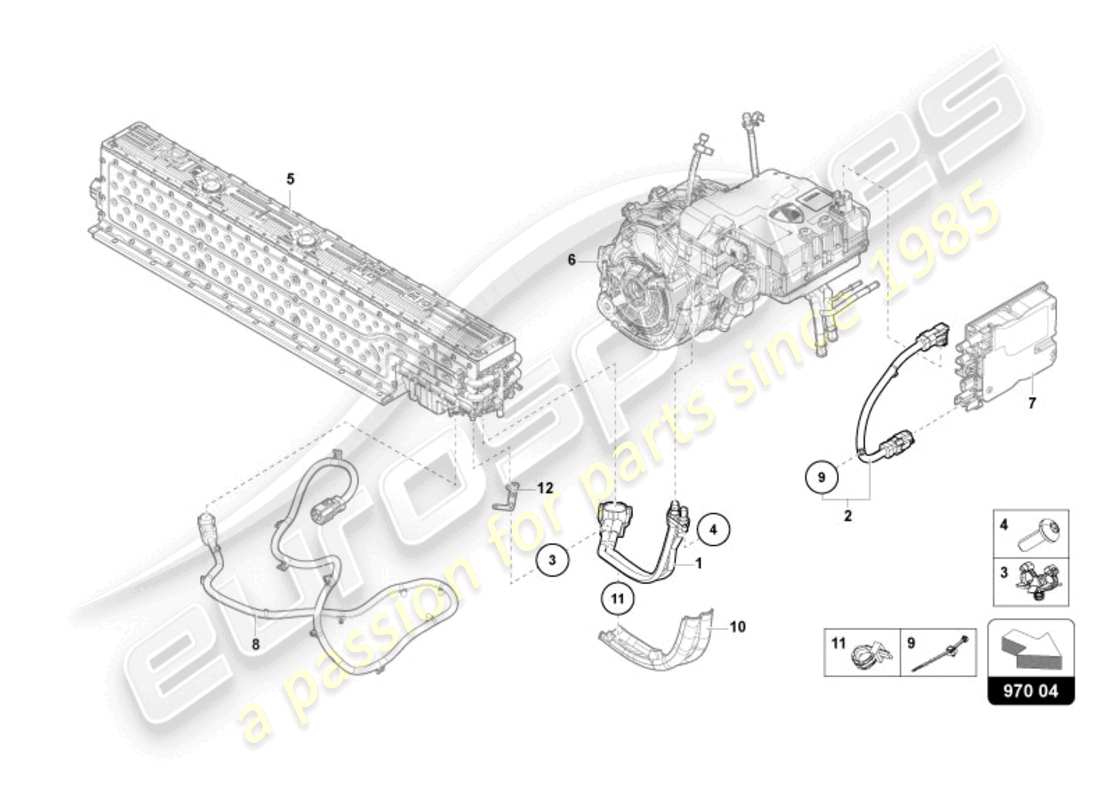

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 47B971097C
        HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS
        from £945.29
        from £945.29
        HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS Genuine Lamborghini - New (to order)
        # 002
        MPN: 47B971449
        HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS
        from £347.36
        from £347.36
        HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS Genuine Lamborghini - New (to order)
        # 003
        MPN: 9J1971850
        DOUBLE BINDER CABLE TIE WITH BRACKET FOR
        BLACK 6,5/0,6-3,0
        from £1.28
        from £1.28
        CABLE TIE 3,5G Genuine Lamborghini - New (to order)
        # 004
        MPN: N10196103
        OVAL SOCKET HEAD BOLT WITH HEX DRIVE
        M6X18
        from £0.78
        from £0.78
        HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
        oval socket head bolt Genuine Porsche Part - New In stock
        # 005
        -
        high-voltage battery
        SEE ILLUSTRATION : 915.02
        # 006
        -
        ELECTRIC DRIVE
        SEE ILLUSTRATION : 901.01
        # 007
        -
        VOLTAGE CONVERTER
        SEE ILLUSTRATION : 907.03
        # 008
        -
        HIGH-VOLTAGE CABLE FOR POWER DISTRIBUTOR/HIGH- VOLTAGE BATTERY
        SEE ILLUSTRATION : 970.01- LHD
        # 008
        -
        HIGH-VOLTAGE CABLE FOR POWER DISTRIBUTOR/HIGH- VOLTAGE BATTERY
        SEE ILLUSTRATION : 970.02- RHD
        # 009
        MPN: 3D0971838N
        CABLE TIES WITH BRACKET
        from £0.75
        from £0.75
        CABLE TIE BASE 6.50X193.00 Genuine Lamborghini - New In stock
        # 010
        -
        GUIDE
        SEE ILLUSTRATION : 901.01
        # 011
        MPN: N10623102

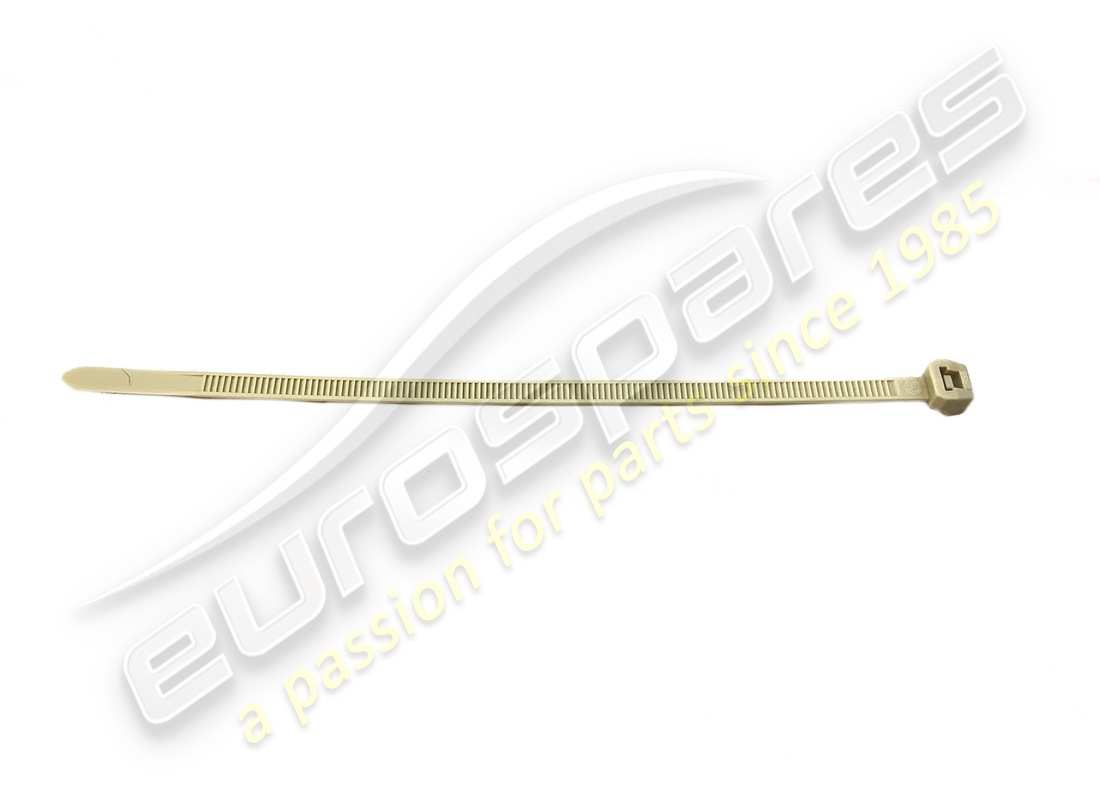

        CABLE TIES
        C4.6X193 OUTER
        from £0.52
        from £0.52
        CABLE TIE C4.6X143 Genuine Lamborghini - New In stock
        # 012
        -
        BRACKET
        SEE ILLUSTRATION : 970.01- LHD
        # 012
        -
        BRACKET
        SEE ILLUSTRATION : 970.02- RHD
