723.02.00 - BRAKE AND ACCEL. LEVER MECH.

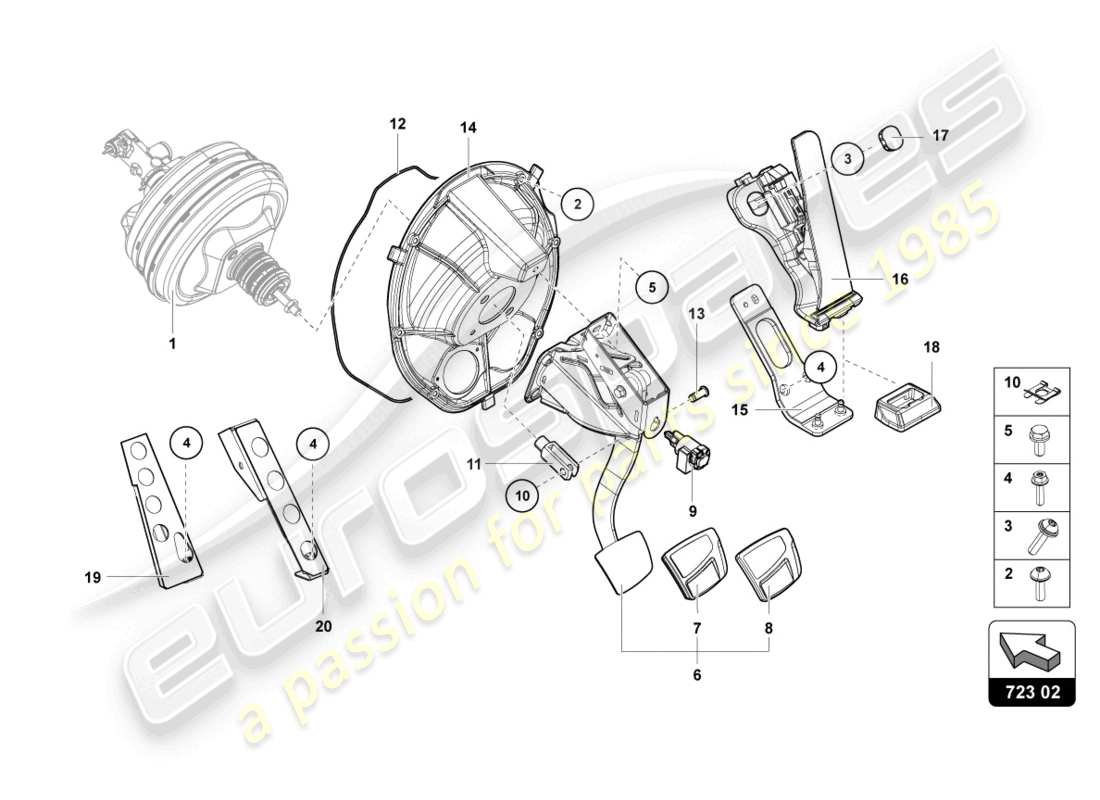

Lamborghini SIAN (2020) BRAKE AND ACCEL. LEVER MECH. Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
Brake Servo
# 002
MPN: N91032702
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
M6X20
from £0.95
from £0.95
# 003
MPN: N91165701
HEX SOCKET HEAD BOLT (COMBI)
M6X35
from £0.61
from £0.61
# 004
MPN: N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
M6X28
from £0.92
from £0.92
# 005
MPN: N10049308
HEXAGON HEAD BOLT (COMBI)
M8X20
from £1.04
from £1.04
# 006
MPN: 471723140
BRAKE PEDAL
LHD (EUROPE, USA spec vehicles)
from £379.02
from £379.02
# 006
MPN: 472723140
BRAKE PEDAL
RHD (UK spec vehicles)
from £396.61
from £396.61
# 007
MPN: 400721174D
CAP FOR FOOT BRAKE PEDAL
from £14.55
from £14.55
# 008
MPN: 400721780A
COVER
from £99.40
from £99.40
# 009
MPN: 4F0945459B
BRAKE LIGHT SENSOR
4 PIN
from £12.60
from £12.60
# 010
MPN: N0126481
RETAINING WASHER
from £0.54
from £0.54
# 011
MPN: 470721339
SUSPENSION LUG
from £404.67
from £404.67
# 012

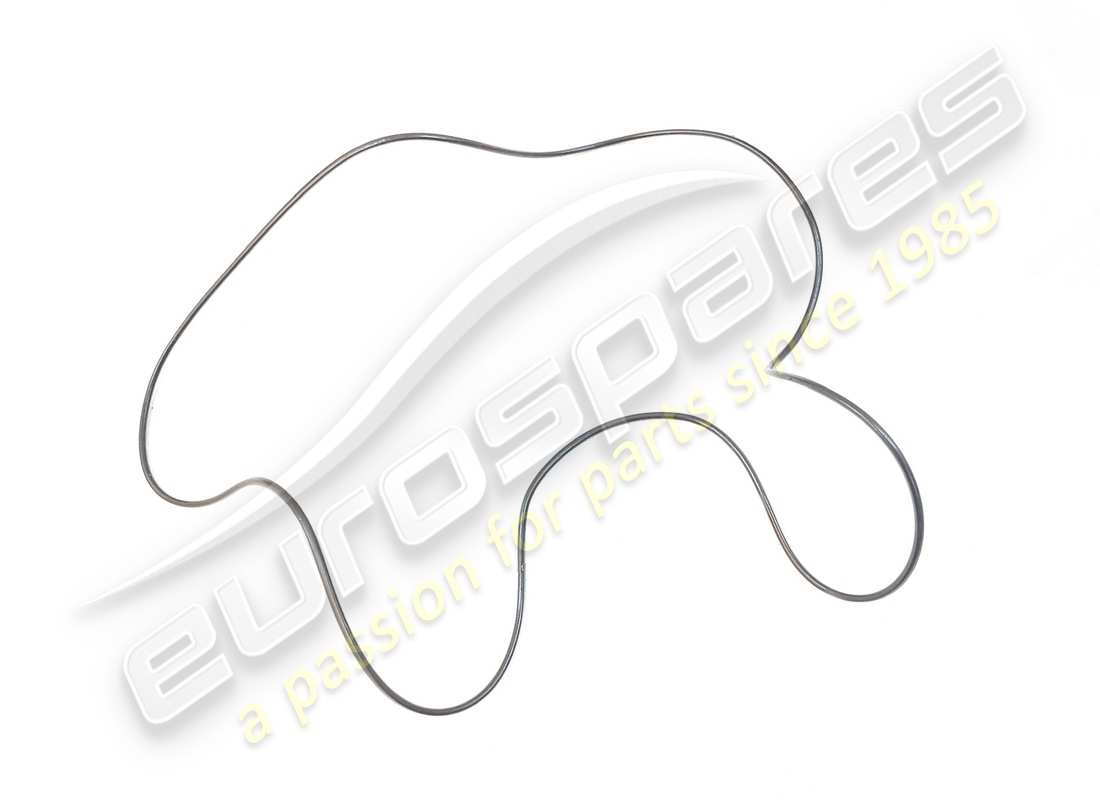

MPN: 470805675A
SEAL
from £21.62
from £21.62
# 013
MPN: 470721375
PIN
from £360.56
from £360.56
# 014
MPN: 471805057A
BRACKET FOR PEDAL CLUSTER
LHD (EUROPE, USA spec vehicles)
from £2,441.97
from £2,441.97
# 014
MPN: 472805058
BRACKET FOR PEDAL CLUSTER
RHD (UK spec vehicles)
from £242.53
from £242.53
# 015

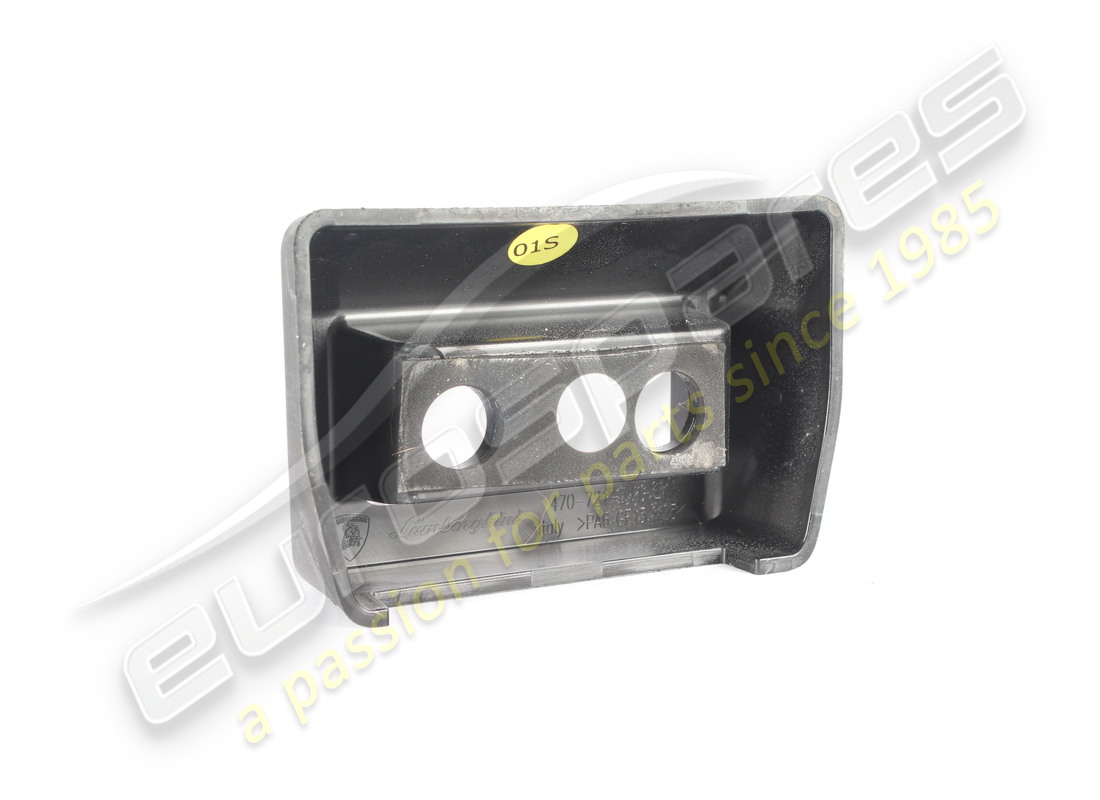

MPN: 470721531B
STOP FOR ACCELERATOR PEDAL
from £92.74
from £92.74
# 016

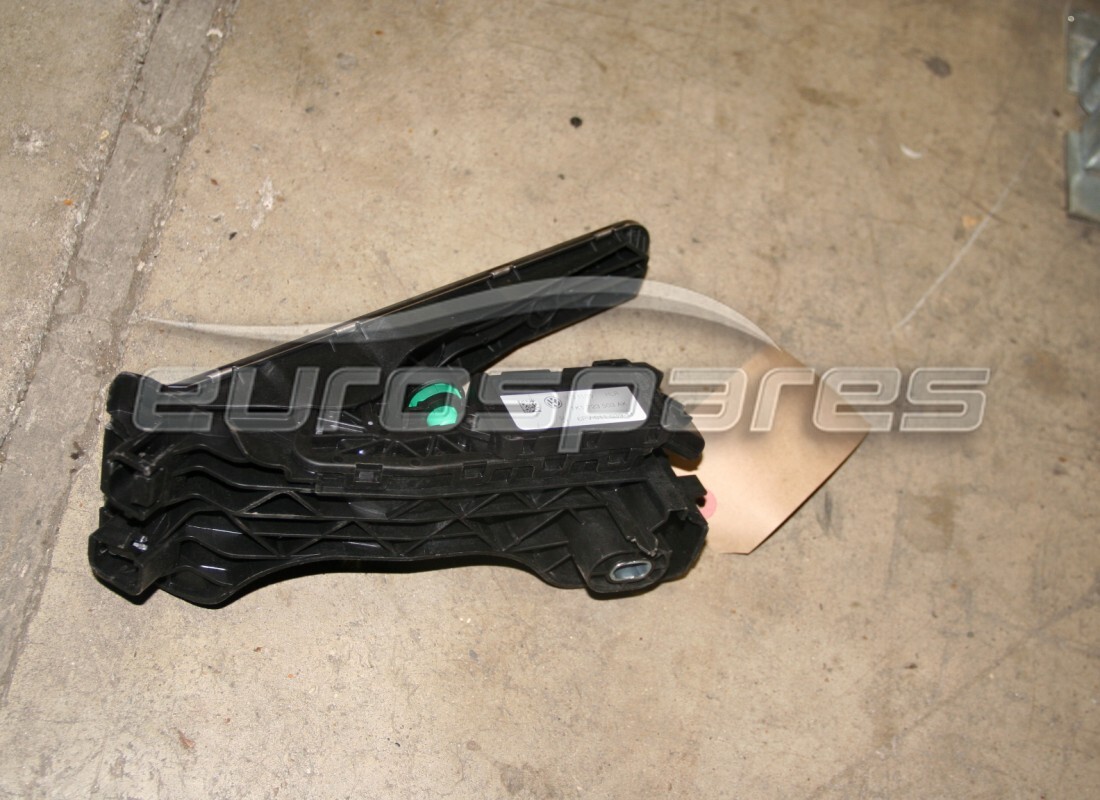

MPN: 1K1723503AK
ACCELERATOR PEDAL WITH ELECTRONIC MODULE
LHD
from £45.24
from £45.24
# 017
MPN: 1K0721989
CAP
from £0.60
from £0.60
# 018
MPN: 470721511D
COVER
from £19.98
from £19.98
# 019
MPN: 471864417E
FOOT REST
LHD (EUROPE, USA spec vehicles)
from £137.04
from £137.04
# 020
MPN: 472864418D
COVER FOR FOOTREST
RHD (UK spec vehicles)
from £75.37
from £75.37
