lamborghini sian (2021) catalytic converter parts diagram

251.05.00 - CATALYTIC CONVERTER

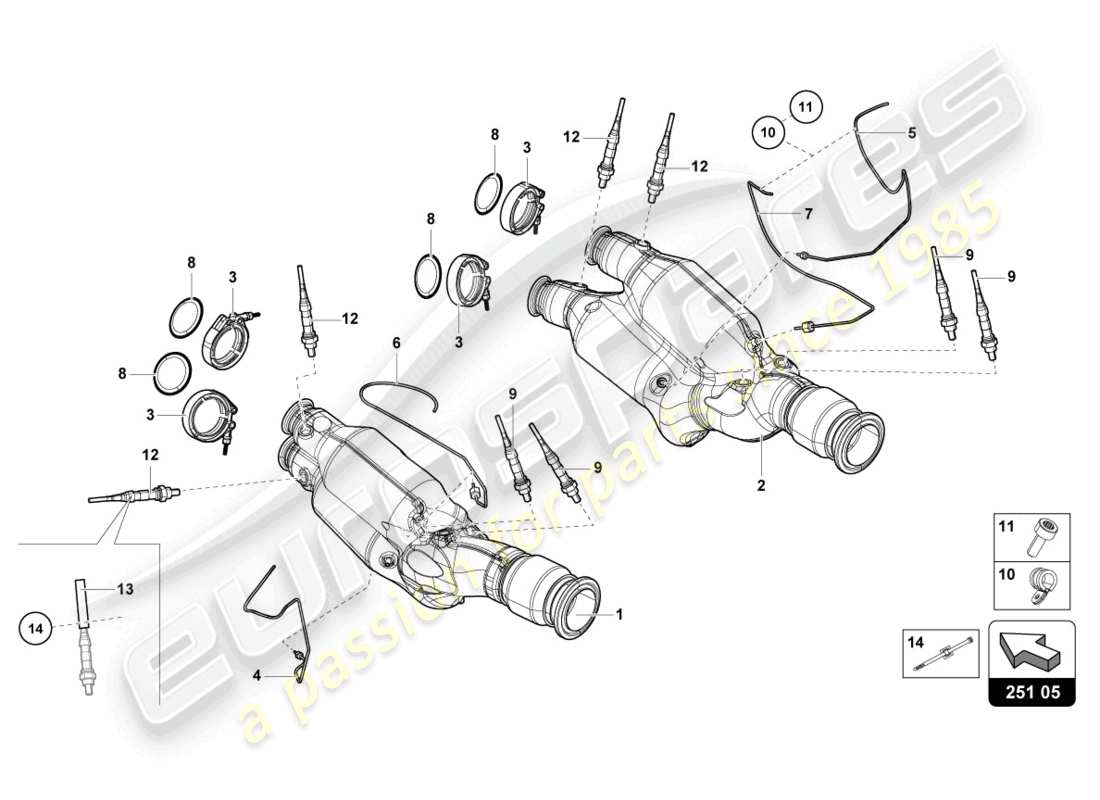

Lamborghini SIAN (2021) CATALYTIC CONVERTER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 07M131777G
          CATALYTIC CONVERTER
          EU5 CN - ONLY FOR CHINA AND AGCC MARKETS-LEFT (EUROPE spec vehicles)
          from £5,739.39
          from £5,739.39
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 001
          MPN: 07M131777H
          CATALYTIC CONVERTER
          LEV 3-LEFT
          from £6,820.97
          from £6,820.97
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 001
          MPN: 07M131777H
          CATALYTIC CONVERTER
          LEV 3 - NOT FOR CHINA-LEFT
          from £6,820.97
          from £6,820.97
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 002
          MPN: 07M131778E
          CATALYTIC CONVERTER
          EU5 CN - ONLY FOR CHINA AND AGCC MARKETS-RIGHT (EUROPE spec vehicles)
          from £5,739.39
          from £5,739.39
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 002
          MPN: 07M131778F
          CATALYTIC CONVERTER
          LEV 3-RIGHT
          from £6,820.97
          from £6,820.97
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 002
          MPN: 07M131778F
          CATALYTIC CONVERTER
          LEV 3 - NOT FOR CHINA-RIGHT
          from £6,820.97
          from £6,820.97
          PRE-CATALYTIC Genuine Lamborghini - New (to order)
          # 003
          MPN: 07M251189B
          CLIP
          from £66.12
          from £66.12
          CLAMP Genuine Lamborghini - New (to order)
          # 004
          MPN: 470919529D
          TEMPERATURE SENSOR
          LEFT FRONT
          from £242.48
          from £242.48
          TEMPERATURE SENSOR LH Genuine Lamborghini - New In stock
          # 005
          MPN: 470919523D
          TEMPERATURE SENSOR
          LEFT REAR
          from £232.89
          from £232.89
          TEMPERATURE SENSOR LH Genuine Lamborghini - New (to order)
          # 006
          MPN: 470919529E
          TEMPERATURE SENSOR
          RIGHT FRONT
          from £251.21
          from £251.21
          TEMPERATURE SENSOR RH Genuine Lamborghini - New (to order)
          # 007
          MPN: 470919523E
          TEMPERATURE SENSOR
          RIGHT REAR
          from £236.37
          from £236.37
          TEMPERATURE SENSOR RH Genuine Lamborghini - New In stock
          # 008
          MPN: 07M251261
          SEAL
          from £33.32
          from £33.32
          GASKET Genuine Lamborghini - New In stock
          # 009
          MPN: 06A906262AT
          LAMBDA PROBE
          rear
          from £117.92
          from £117.92
          LAMBDA PROBE Genuine Lamborghini - New In stock
          LAMBDA PROBE Bosch Original Parts - New (to order)
          # 011
          MPN: N91137001
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M10X28
          from £10.86
          from £10.86
          TRIPLE SQUARE BOLTM10X28 Genuine Lamborghini - New (to order)
          # 012
          MPN: 07M906262B
          LAMBDA PROBE
          FRONT
          from £197.30
          from £197.30
          LAMBDA PROBE Genuine Lamborghini - New In stock
          # 013
          MPN: 470972837A
          HOSE REINFORCEMENT
          WOOL BLANKET
          from £15.13
          from £15.13
          PROTECTIVE PART GUAINA SONDA LAMBD Genuine Lamborghini - New (to order)
          # 014
          MPN: 470971850B
          CABLE TIES
          from £2.57
          from £2.57
          CABLE TIE FASC ACCIAIO Genuine Lamborghini - New (to order)
