lamborghini sian (2021) windscreen washer system parts diagram

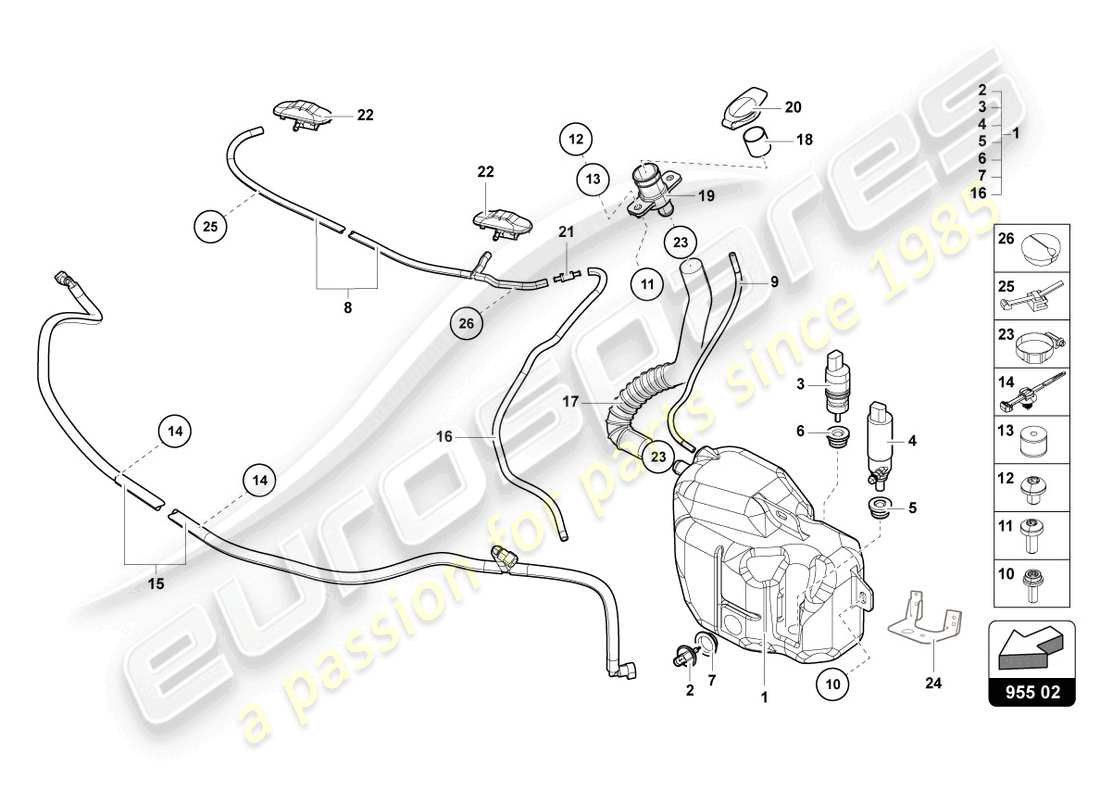

955.02.00 - WINDSCREEN WASHER SYSTEM

Lamborghini SIAN (2021) WINDSCREEN WASHER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 47F955448
                                        WASH WATER RESERVOIR
                                        from £907.87
                                        from £907.87
                                        # 002
                                        MPN: 7M0919376
                                        WATER LEVEL SWITCH
                                        from £10.94
                                        from £10.94
                                        # 003
                                        MPN: 1J5955651
                                        WINDSCREEN WASHER SYSTEM PUMP
                                        from £45.31
                                        from £45.31
                                        # 004
                                        MPN: 1J0955681
                                        WINDSCREEN WASHER SYSTEM PUMP
                                        from £61.74
                                        from £61.74
                                        # 005
                                        MPN: 431955465A
                                        SEAL
                                        from £8.65
                                        from £8.65
                                        # 006
                                        MPN: 8A0955465
                                        SEAL RING
                                        from £14.06
                                        from £14.06
                                        # 007
                                        MPN: 7M0919382
                                        SEAL RING
                                        from £6.70
                                        from £6.70
                                        # 008
                                        MPN: 470955972C
                                        HOSE LINE FOR WASHER WATER
                                        from £23.57
                                        from £23.57
                                        This part replaces part number 470955972A - and 2 more. Click to view details
                                        # 009
                                        MPN: 470955197
                                        breather line
                                        from £8.56
                                        from £8.56
                                        # 010
                                        MPN: N91026802
                                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                                        M8X20
                                        from £2.07
                                        from £2.07
                                        # 011
                                        MPN: N10405604
                                        OVAL HEXAGON SOCKET HEAD BOLT
                                        M6X14
                                        from £0.86
                                        from £0.86
                                        # 012
                                        MPN: N10680302
                                        HEXAGON SOCKET FLAT HEAD BOLT
                                        M6X8
                                        from £0.53
                                        from £0.53
                                        # 013
                                        MPN: 470863309
                                        STOP BUFFER
                                        from £3.98
                                        from £3.98
                                        # 014
                                        MPN: 3D0971838K
                                        CABLE TIES
                                        from £0.80
                                        from £0.80
                                        # 015
                                        MPN: 470955970
                                        HOSE LINE FOR WASHER WATER
                                        FRONT
                                        from £68.31
                                        from £68.31
                                        # 016
                                        -
                                        PIPE
                                        # 017
                                        MPN: 470955944
                                        PIPE/HOSE LINE
                                        from £30.58
                                        from £30.58
                                        # 018
                                        MPN: 8N0955485
                                        STRAINER
                                        from £5.58
                                        from £5.58
                                        # 019
                                        MPN: 400955459
                                        HOLDER FOR FILLER PIPE
                                        from £67.54
                                        from £67.54
                                        # 020
                                        MPN: 400955277
                                        END CAP
                                        from £8.99
                                        from £8.99
                                        # 021
                                        MPN: 113955975C
                                        VALVE
                                        from £8.13
                                        from £8.13
                                        # 022
                                        MPN: 5M0955985C
                                        WATER JET
                                        from £2.95
                                        from £2.95
                                        # 023
                                        MPN: 400955973
                                        HOSE CLAMP
                                        from £7.96
                                        from £7.96
                                        # 024
                                        -
                                        ARM
                                        # 025
                                        MPN: 5M0971838
                                        CABLE TIE WITH TERMINAL SOCKET
                                        4,6X200MM
                                        from £1.75
                                        from £1.75
                                        # 026
                                        MPN: 8D0955754
                                        GROMMET
                                        from £1.56
                                        from £1.56
